What is a TLOC in a Cisco SD-WAN deployment?
Answer: C
The answer C is correct. ref: book Cisco Software-Defined Wide Area Networks Chapter OMP routes, page 48–51 TLOC: The Transport Location (TLOC) identifier is the next hop of the OMP route. This attribute is very similar to the BGP_NEXT_HOP attribute. Within the TLOC, there are three values:
Source: Adapted from community discussion — RREVECO

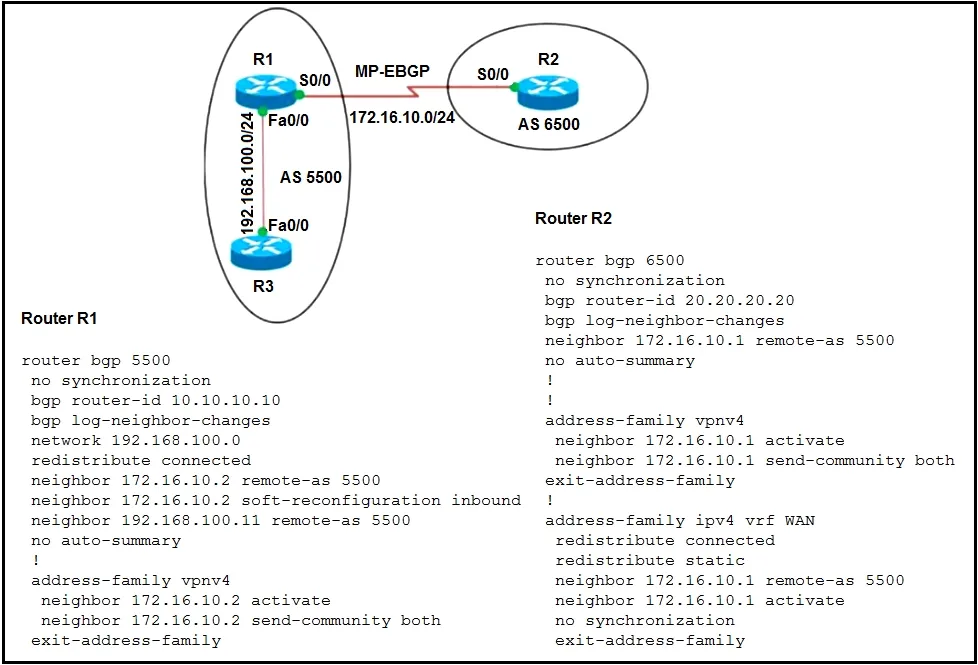

Refer to the exhibit. An engineer configures the BGP adjacency between R1 and R2; however, it fails to establish. Which action resolves the issue?
Answer: B

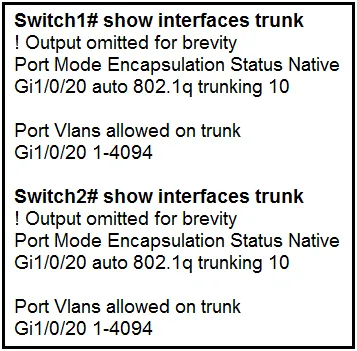

Refer to the exhibit. The trunk does not work over the back-to-back link between Switch1 interface Gig1/0/20 and Switch2 interface Gig1/0/20. Which configuration fixes the problem?
Answer: B
A. Switch 1(config)#interface gig1/0/20 Switch1(config-if)#switchport mode dynamic auto B. Switch2(config)#interface gig1/0/20 Switch2(config-if)#switchport mode dynamic desirable C. Switch2(config)#interface gig1/0/20 Switch2(config-if)#switchport mode dynamic auto D. Switch1(config)#interface gig1/0/20 Switch1(config-if)#switchport trunk native vlan 1 Switch2(config)#interface gig1/0/20 Switch2(config-if)#switchport trunk native vlan 1
Source: Adapted from community discussion — dragonwise

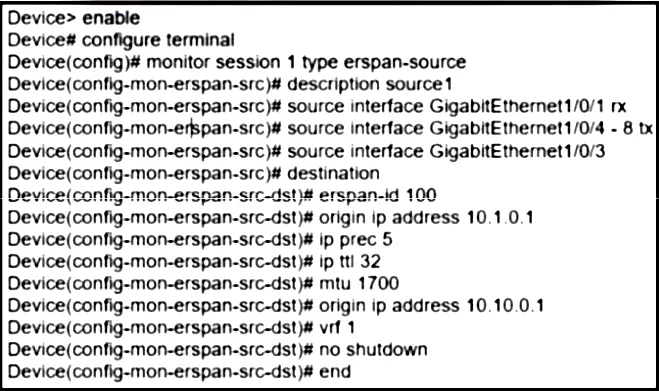

Refer to the exhibit. An engineer must configure an ERSPAN session with the remote end of the session 10.10.0.1. Which commands must be added to complete the configuration?
Answer: A
A. Device(config)#monitor session 1 type erspan-source Device(config-mon-erspan-src)#destination Device(config-mon-erspan-src-dst)#no origin ip address 10.10.0.1 Device(config-mon-erspan-src-dst)#ip address 10.10.0.1 B. Device(config)#monitor session 1 type erspan-source Device(config-mon-erspan-src)#destination Device(config-mon-erspan-src-dst)#no vrf 1 C. Device(config)#monitor session 1 type erspan-source Device(config-mon-erspan-src)#destination Device(config-mon-erspan-src-dst)#no origin ip address 10.10.0.1 Device(config-mon-erspan-src-dst)#ip destination address 10.10.0.1 D. Device(config)#monitor session 1 type erspan-destination Device(config-mon-erspan-src)#source Device(config-mon-erspan-src-dst)#origin ip address 10.1.0.1
Source: Adapted from community discussion — dragonwise

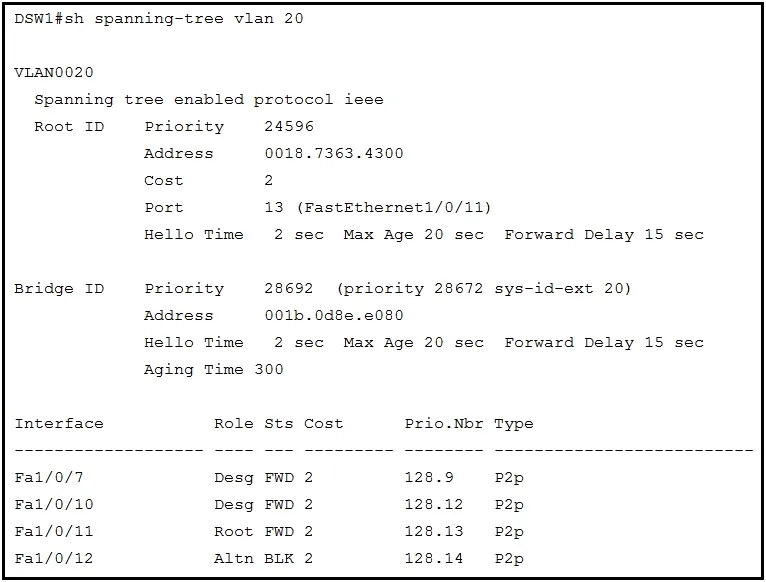

Refer to the exhibit. What does the output confirm about the switch's spanning tree configuration?
Answer: B
The default spanning-tree mode in Cisco switch is PVST+. This spanning-tree mode is based on the IEEE 802.1D standard and Cisco proprietary extensions. PVST+ is same as standard IEEE 802.1D but it runs on each VLAN. In the output we see the line “Spanning tree enabled protocol ieee” under “VLAN 20” so it can say the switch is running in PVST+ mode.
Source: Adapted from community discussion — rafaelinho88

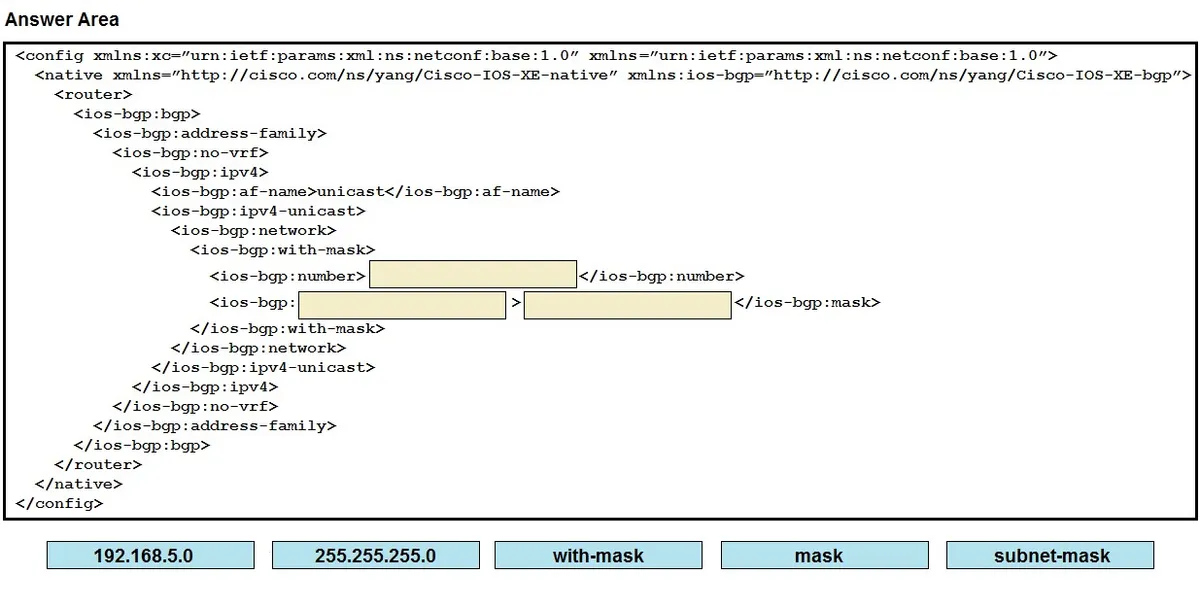

DRAG DROP - Drag and drop the snippets onto the blanks within the code to construct a script that advertises the network prefix 192.168.5.0/24 into a BGP session. Not all options are used. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

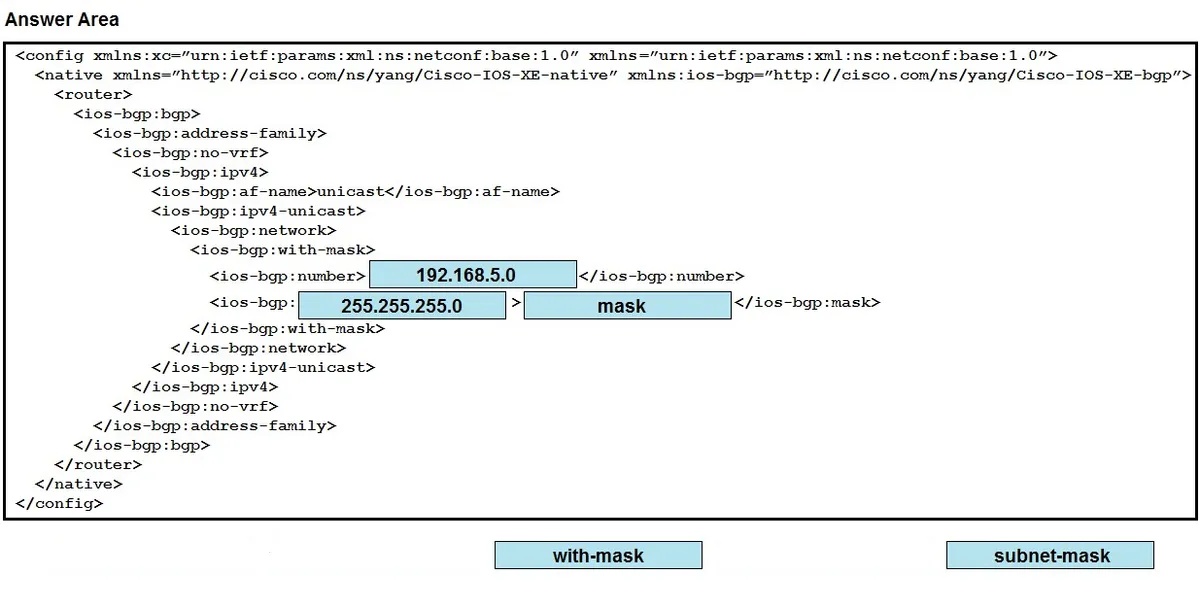

Answer: See figure below
bro what the hell this is not ENCOR NETWORK ANYMORE it is programmation , millions of question on python !!!!! COME ON :((((((
Source: Adapted from community discussion — COLONEL_MAJOR
Based on the router's API output in JSON format below, which Python code will display the value of the `hostname` key?
Answer: A
A must be correct. "response,json()" the comma must be a typo and should be a dot, because all other answer are clearly wrong. B & D make the same mistake: 'hostname' is not a child element of 'family'. C has no semicolons in the square brackets.
Source: Adapted from community discussion — Caradum
Under which network conditions is an outbound QoS policy that is applied on a router WAN interface most beneficial?
Answer: B
Hi gents, here my thinking to this topic A. under traffic classification and marking conditions --> this is not a condition but rather an action and therefore WRONG B. under interface saturation conditions Saturation is a condition and NOT BAD C. under all network conditions well if this was the case, then the vendor Cisco would have made this a default state and thats it. also WRONG D. under network convergence conditions Well the wording is very vague here. a service policy can assign utmost priority to system level tasks that help in convergence, for example try putting OSPF protocol into CS6 or EF marking and implement a Priority Queueing (PQ) then you have made convergence faster but starved out everything else. Also NOT BAD but why would any clear thinking admin interfere with system level priorities? as far as i can see, there is only answer B which is NOT BAD answer for a question worded like that. Answer B
Source: Adapted from community discussion — XalaGyan
Which function is performed by vSmart in the Cisco SD-WAN architecture'?
Answer: A
Authentication: As mentioned, the Cisco SD-WAN control plane contributes the underlying infrastructure for data plane security. In addition, authentication is enforced by two other mechanisms: In the traditional key exchange model, the Cisco vSmart Controller sends IPsec encryption keys to each edge device https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/security/vedge-20-x/security-book/security-overview.html
Source: Adapted from community discussion — tckoon

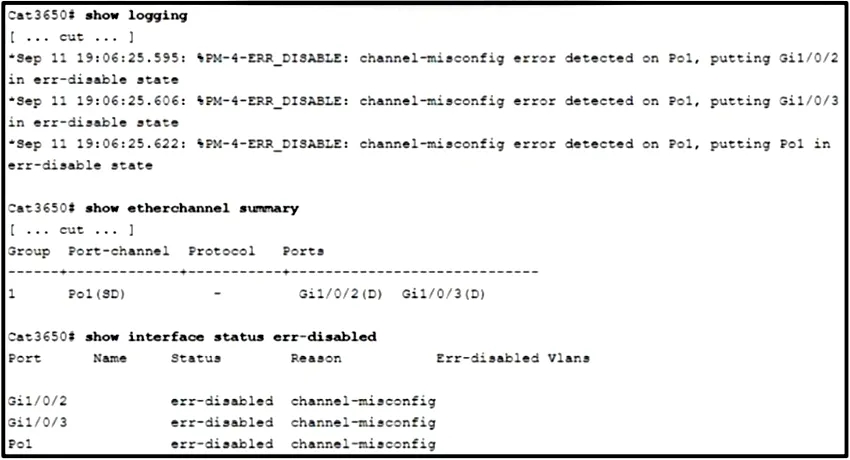

Refer to the exhibit. The administrator troubleshoots an EtherChannel that keeps moving to err-disabled. Which two actions must be taken to resolve the issue? (Choose two.)
Answer: BE
Here is what we know: 1)Interfaces on local switch are g1/0/2 and g1/0/3, and are bundled into port-channel 1 2) They are in err-disabled Now, we have no information on the neighbor switch, and we need to deduce the correct answer based on the options available and the given information. A) Port-channels do not require matching port-channel id on the neighbor device, so this is wrong B) Port-channel parameters do need to be compatible, meaning, we need to have compatible protocols and modes on both sides of the port-channel, e.i. PAGP = auto/desirable, LACP= active/passive, static=ON C) This isn't entirely necessary, as you could have a StackWise setup of switches, in this case you can connect to different switches, same goes for vPC or VSS architecture D) No. E) We do need to ensure that the neighboring switch has their interfaces in the port-channel connecting to the local switch From this we can confidently conclude that B and E are the right answers. The only reason C isn't correct is because we do not know where it is only connecting to one switch or if its using StackWise/VSS/vPC
Source: Adapted from community discussion — [Removed]
