350-401 practice questions 401–410

1. Question 401 · 1003 in bank

   While configuring an IOS router for HSRP with a virtual IP of 10.1.1.1, an engineer sees this log message. Jan 1 12:12:12.111 : %HSRP-4-DIFFVIP1: GigabitEthernet0/0 Grp 1 active routers virtual IP address 10.1.1.1 is different to the locally configured address 10.1.1.25 Which configuration change must the engineer make?

   • AChange the HSRP group configuration on the local router to 1.
   • BChange the HSRP virtual address on the local router to 10.1.1.1.
   • CChange the HSRP virtual address on the remote router to 10.1.1.1.
   • DChange the HSRP group configuration on the remote router to 1.

   Show answer

   Answer: B

   Explanation

   Gentlemen, i strongly agree with Goathammer and Amansoor. Here is my thinking to the topic. since we are configuring a NEW member of HSRP> I ASSUME !!!! that router 1 is the active and already in the network forwarding traffic. if i changed the remote ip address to my newly configured 10.1.1.25 then i run the danger of disrupting network forwarding even for a short time. to not cause any CHANGE to the state of the existing network i would opt to change the NEWLY Configured router 10.1.1.25 to the already running one of 10.1.1.1 long story short the message says that members of the group do not agree on the same virtual ip. so it is up to you to change the running router(s) to the new config risking a short downtime due to Role Selection OR to be on the safe side, just change the NEWLY added router to match the existing setup. i hope my explanations or the way i thought about the problem makes sense. thanks all

   Source: Adapted from community discussion — XalaGyan

   Next question

2. Question 402 · 1003 in bank

   An engineer must configure a new loopback interface on a router and advertise the interface as a /24 in OSPF. Which command set accomplishes this task?

   • AR2(config)#interface Loopback0 R2(config-if)#ip address 172.22.2.1 255.255.255.0 R2(config-if)#ip ospf network broadcast R2(config-if)#ip ospf 100 area 0
   • BR2(config)#interface Loopback0 R2(config-if)#ip address 172.22.2.1 255.255.255.0 R2(config-if)#ip ospf network point-to-point R2(config-if)#ip ospf 100 area 0
   • CR2(config)#interface Loopback0 R2(config-if)#ip address 172.22.2.1 255.255.255.0 R2(config-if)#ip ospf network point-to-multipoint R2(config-if)#router ospf 100
   • DR2(config-router)#network 172.22.2.0 0.0.0.255 area 0 R2(config)#interface Loopback0 R2(config-if)#ip address 172.22.2.1 255.255.255.0 R2(config-if)#ip ospf 100 area 0

   Show answer

   Answer: B

   Explanation

   B is correct. When OSPF is running on a given loopback interface, it sees the network type of "LOOPBACK" and it knows that it can not establish an adjacency through that loopback interface with another router so it advertises that loopback as a host route or the only IP address on that logical interface. As Martin explained so nicely you can tell OSPF that it is not a loopback and it is a point-to-point network type, and OSPF says "OK I am going to advertise the interface with its correct mask". In MPLS environment where OSPF is the IGP in the core, and you have configured the loopback interface of the PE router with a /24 mask, you can have some problems, because there is a discrepancy, the loopback’s mask is 24 but OSPF is advertising a mask of /32. There are few solutions to fix this problem, one solution is to reconfigure the mask to be /32, another solution is to configure the loopback interface with “ip ospf network point-to-point”.

   Source: Adapted from community discussion — Abdullavip

   Next question

3. Question 403 · 1003 in bank

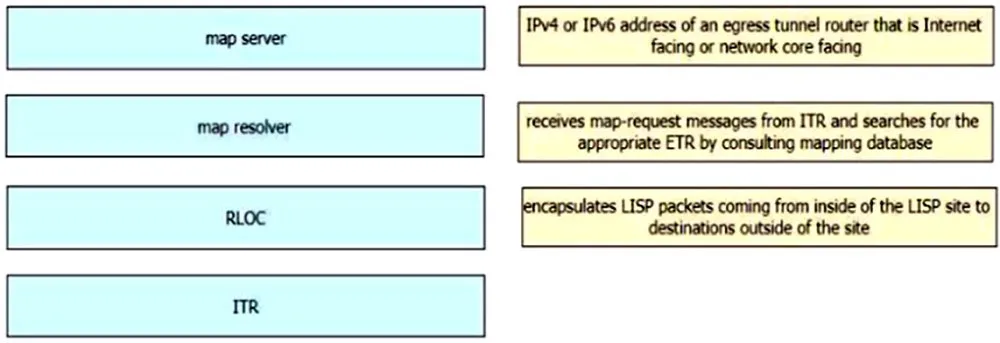

   DRAG DROP - Drag and drop the LISP components on the left to their descriptions on the right. Not all options are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   ANS RLOC, RESOLVER, ITR Map resolver (MR): This is a network device (typically a router) that receives LISP-encapsulated map requests from an ITR and finds the appropriate ETR to answer those requests by consulting the map server.

   Source: Adapted from community discussion — RREVECO

   References

   • Cisco documentation



   Next question

4. Question 404 · 1003 in bank

   What is a characteristic of a type 2 hypervisor?

   • Acomplicated deployment
   • Bideal for data center
   • Creferred to as bare-metal
   • Dideal for client/end-user system

   Show answer

   Answer: D

   Next question

5. Question 405 · 1003 in bank

   Select 2

   Which two features does the Cisco SD-Access architecture add to a traditional campus network? (Choose two.)

   • Amodular QoS
   • Bsoftware-defined segmentation
   • Cidentity services
   • Dprivate VLANs
   • ESD-WAN

   Show answer

   Answer: BC

   References

   • Cisco documentation

   Next question

6. Question 406 · 1003 in bank

   Which congestion queuing method on Cisco IOS based routers uses four static queues?

   • Aweighted fair
   • Bcustom
   • Clow latency
   • Dpriority

   Show answer

   Answer: D

   Explanation

   Priority Queuing (PQ)—This type of queuing places traffic into one of four queues. Each queue has a different level of priority, and higher-priority queues must be emptied before packets are emptied from lower-priority queues. This behavior can “starve out” lower- priority traffic. Reference: https://www.ciscopress.com/articles/article.asp?p=352991&seqNum=7#:~:text=Priority%20Queuing%20(PQ)%E2%80%94This%20type%20of%20queuing%20places%20traffic%20into%20one%20of%20four%20queues.%20Each%20queue%20has%20a%20different%20level%20of%20priority%2C%20and%20higher%2Dpriority%20queues%20must%20be%20emptied%20before%20packets%20are%20emptied%20from%20lower%2Dpriority%20queues.%20This%20behavior%20can%20%E2%80%9Cstarve%20out%E2%80%9D%20lower%2D%20priority%20traffic.

   Source: Adapted from community discussion — Asymptote

   Next question

7. Question 407 · 1003 in bank

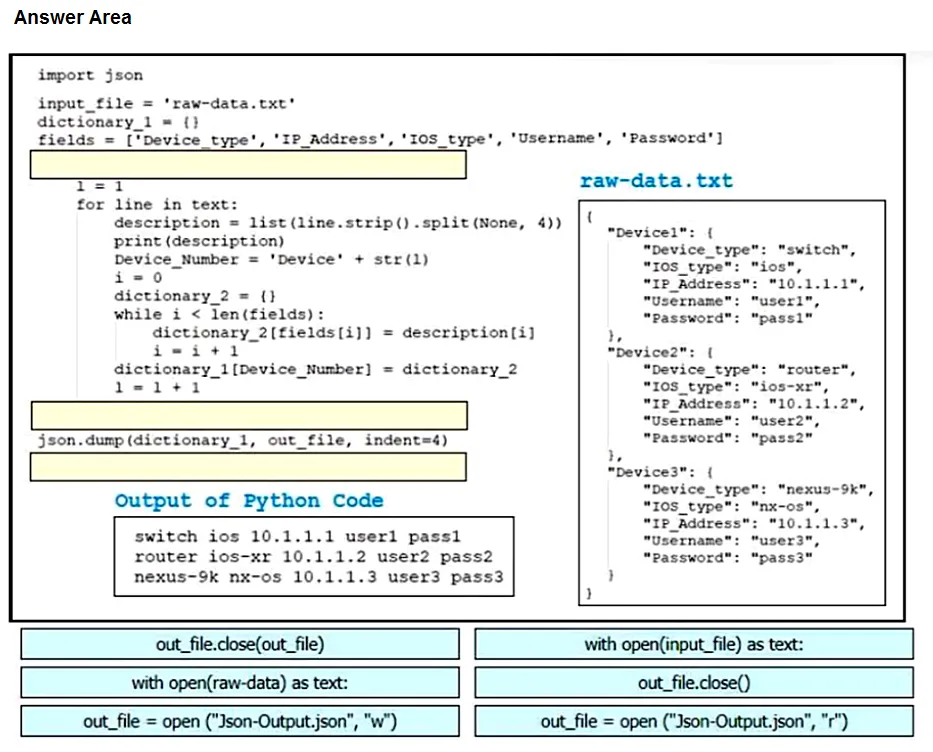

   DRAG DROP - An engineer plans to use Python to convert text files that contain device information to JSON Drag and drop the code snippets from the bottom onto the blanks in the code to construct the request. Not all options are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

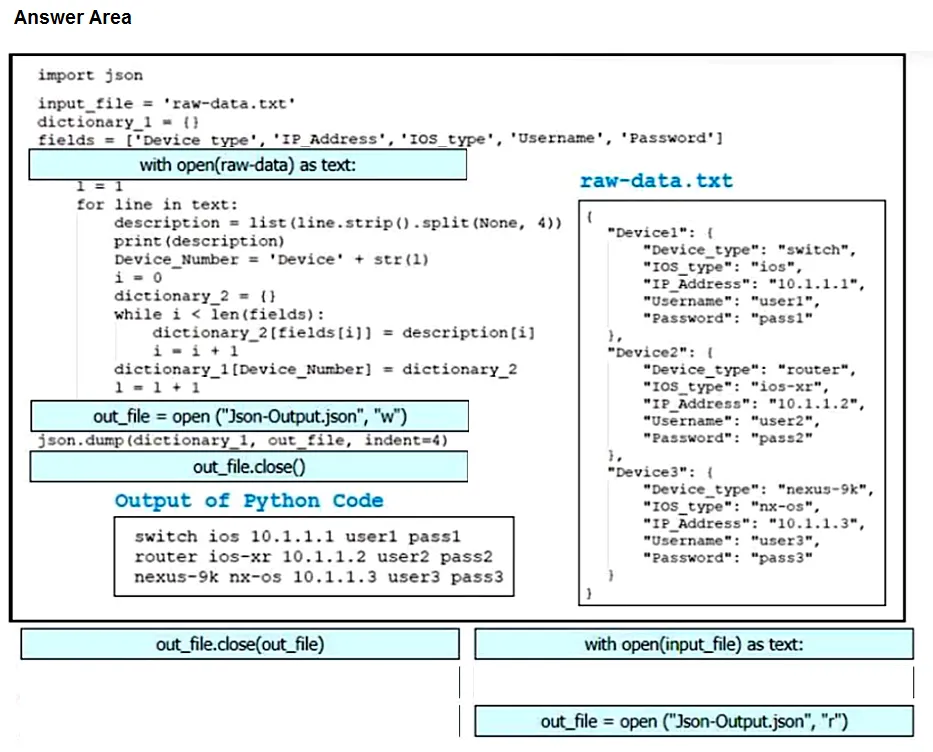

   Answer: See figure below

   Explanation

   File 'raw-data.tx' is referenced by the variable input_file, so first text box should contain - with open(input_file) as text: Rest looks correct.

   Source: Adapted from community discussion — uzbin



   Next question

8. Question 408 · 1003 in bank

   Which resource is able to be shared among virtual machines deployed on the same physical server?

   • Adisk
   • BVM configuration file
   • Capplications
   • Doperating system

   Show answer

   Answer: A

   Next question

9. Question 409 · 1003 in bank



   Refer to the exhibit. An engineer must set up connectivity between a campus aggregation layer and a branch office access layer. The engineer uses dynamic trunking protocol to establish this connection; however, management traffic on VLAN1 is not passing. Which action resolves the issue and allow communication for all configured VLANs?

   • ADisable Spanning Tree for the native VLAN.
   • BAllow all VLANs on the trunk links.
   • CChange both interfaces to access ports.
   • DConfigure the correct native VLAN on the remote interface

   Show answer

   Answer: D

   Explanation

   sw1(config-if)#switchport trunk native vlan 122 sw1(config-if)# Dec 21 21:37:35.737: %CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on Ethernet0/1 (122), with sw2 Ethernet0/1 (1). Dec 21 21:37:35.738: %CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on Ethernet0/3 (122), with sw2 Ethernet0/3 (1). sw1(config-if)# Dec 21 21:38:35.744: %CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on Ethernet0/3 (122), with sw2 Ethernet0/3 (1). Dec 21 21:38:35.744: %CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on Ethernet0/1 (122), with sw2 Ethernet0/1 (1). sw1(config-if)#do show interfaces po2 swi | i Native Trunking Native Mode VLAN: 122 (VLAN0122) <<<<<<<<<<<<<<<<<<<<< Administrative Native VLAN tagging: enabled Administrative private-vlan trunk Native VLAN tagging: enabled sw1(config-if)#

   Source: Adapted from community discussion — nushadu

   Next question

10. Question 410 · 1003 in bank

    Select 3

    Which three resources must the hypervisor make available to the virtual machines? (Choose three.)

    • AMemory
    • Bbandwidth
    • CIP address
    • DProcessor
    • Estorage
    • Fsecure access

    Show answer

    Answer: ADE

    Explanation

    Provided answer is correct, - Memory (RAM) - Processor (cpu cores) - Storage (disk) those are the resources that can be distributed among virtual machines.

    Source: Adapted from community discussion — Xerath

    Next question
