DRAG DROP - Drag and drop the characteristics from the left onto the orchestration tools that they describe on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Which configuration allows administrators to configure the device through the console port and use a network authentication server?
Answer: D
A. aaa new-model aaa authentication login default local aaa authorization console aaa authorization config-commands username netadmin secret 9 $9$vFpMf8elb4RVV8$seZ/bDAx1uV B. aaa new-model aaa authentication login default local aaa authorization console aaa authorization config-commands C. aaa new-model aaa authentication login default line D. aaa new-model aaa authentication login default group radius aaa authorization console aaa authorization config-commands
Source: Adapted from community discussion — PureInertiaCopy
What is the process for moving a virtual machine from one host machine to another with no downtime?
Answer: C
DRAG DROP - Drag and drop the characteristics from the left onto the infrastructure deployment models they describe on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Correct answer is - Cloud - Highly agile easy to scale the capacity up and down On premises - Infrastructure requires large and regular investments highly customizable
Source: Adapted from community discussion — mykab
DRAG DROP - Drag and drop the characteristics from the left onto the routing protocols they describe on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
DRAG DROP - Drag and drop the tools from the left onto the agent types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
A company plans to implement intent-based networking in its campus infrastructure. Which design facilitates a migration from a traditional campus design to a programmable fabric design?
Answer: D
D. Routed access is the design that facilitates a migration from a traditional campus design to a programmable fabric design. In a traditional campus design, the access layer is typically implemented using a Layer 2 switch with VLANs, and the distribution layer performs the routing between VLANs. In contrast, a programmable fabric design uses a routed access layer, where each access switch has an IP address and performs routing locally, eliminating the need for a separate distribution layer. By implementing a routed access design, the company can gradually migrate from a traditional campus design to a programmable fabric design. The Layer 2 access and two-tier designs are both traditional campus designs and do not facilitate the migration to a programmable fabric design. The three-tier design includes a distribution layer, which is not needed in a programmable fabric design with routed access.
Source: Adapted from community discussion — mrtattoo

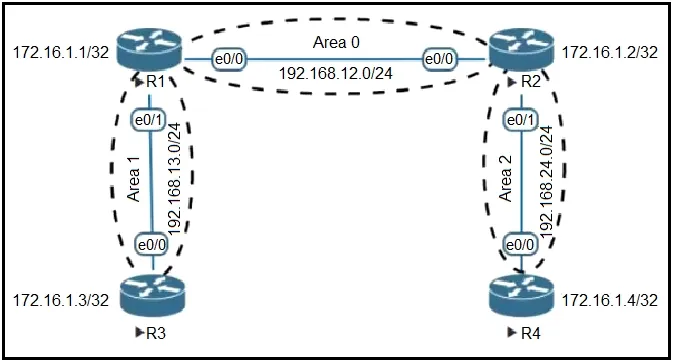

Refer to the exhibit. An engineer must create a configuration that prevents R3 from receiving the LSA about 172.16.1.4/32. Which configuration set achieves this goal?
Answer: C
Correct is C The policy must be applied on R1 and we have 2 ways. -Apply outbound area 0 (This will affect others areas in this ABR -Apply inbound area 1 (More accurate) Validate on EVE-NG
Source: Adapted from community discussion — Ferrantee
Refer to the exhibit. An engineer is reaching network 172.16.10.0/24 via the R1-R2-R4 path. Which configuration forces the traffic to take a path of R1-R3-R4?
Answer: A
A. R1(config)#route-map RM_LOCAL_PREF permit 10 R1(config-route-map)#set local-preference 101 R1(config-route-map)#exit R1(config)#router bgp 100 R1(config-router)#neighbor 13.13.13.3 route-map RM_LOCAL_PREF in R1(config-router)#end R1#clear ip bgp 13.13.13.3 soft in B. R1(config)#route-map RM_AS_PATH_PREPEND R1(config-route-map)#set as-path prepend 200 200 R1(config-route-map)#exit R1(config)#router bgp 100 R1(config-router)#neighbor 12.12.12.2 route-map RM_AS_PATH_PREPEND in R1(config-router)#end R1#clear ip bgp 12.12.12.2 soft in C. R1(config)#router bgp 100 R1(config-router)#neighbor 13.13.13.3 weight 1 R1(config-router)#end D. R2(config)#route-map RM_MED permit 10 R2(config-route-map)#set metric 1 R2(config-route-map)#exit R2(config)#router bgp 200 R2(config-router)#neighbor 12.12.12.1 route-map RM_MED out R2(config-router)#end R2#clear ip bgp 12.12.12.1 soft out
Source: Adapted from community discussion — dragonwise
In a Cisco SD-Access solution, which protocol is used by an extended node to connect to a single edge node?
Answer: C
