350-801 practice questions 201–210

1. Question 201 · 450 in bank

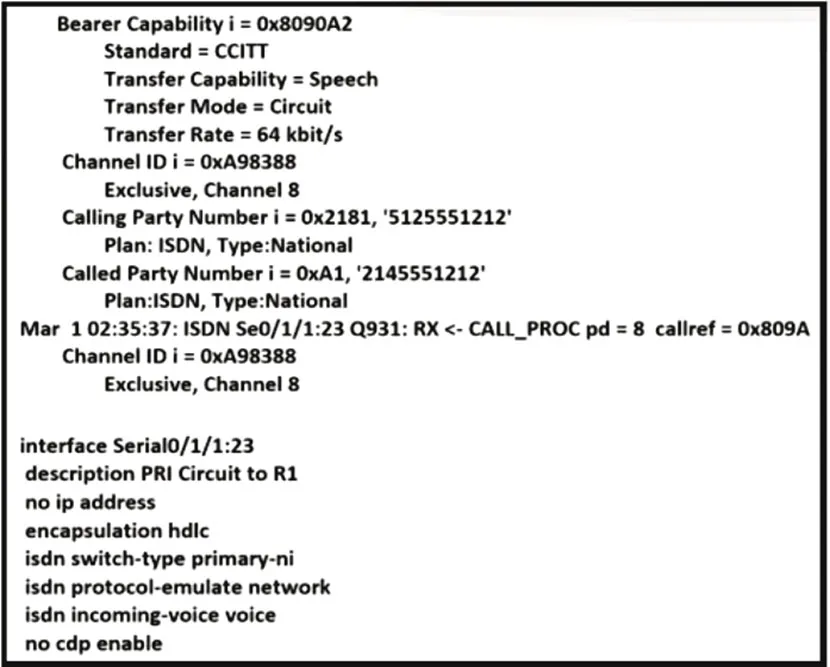

   Refer to the exhibit. An engineer is troubleshooting why PSTN phones are not receiving the caller's name when called from a remote Cisco UCM site. An ISDN PRI connection is being used to reach the PSTN. What must the administrator select to resolve the issue?

   • Aisdn send display ie
   • Bisdn enable clid
   • Cisdn outgoing display-ie
   • Disdn supp-service name calling

   Show answer

   Answer: C

   Explanation

   D isdn supp-service name calling To set the calling name display parameters sent out on an ISDN serial interface, use the isdn supp-service name calling command in interface configuration mode. To disable calling name delivery, use the no form of this command. isdn supp-service name calling [ie | operation-value-tag | profile {Network Extension operation-value-tag {ecma | iso | local} | ROSE}] no isdn supp-service name calling

   Source: Adapted from community discussion — Myare

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

2. Question 202 · 450 in bank

   A customer wants a video conference with five Cisco TelePresence IX5000 Series systems. Which media resource is necessary in the design to fully utilize the immersive functions?

   • ACisco PVDM4-128
   • Bsoftware conference bridge on Cisco Unified Communications Manager
   • CCisco Webex Meetings Server
   • DCisco Meeting Server

   Show answer

   Answer: D

   Explanation

   How is everyone agreeing with cisco's crappy way of phrasing questions (I'm convinced purposefully) and that D is the correct answer. While CMS is certainly a conference bridge, which is a media resource, CMS is a specific technology that is also a conference bridge but when they say media resource nowhere in documentation does anyone ever call CMS a media resource, CMS is a media resource, Media resource is not CMS. Sorry for the rant\

   Source: Adapted from community discussion — Twitchy

   Next question

3. Question 203 · 450 in bank

   A company deploys centralized Cisco UCM architecture for a hub location and two remote sites. ✑ The company has only one ITSP connection at the hub location, and ITSP supports only G.711 calls. ✑ Remote site A has a 1-Gbps fiber connection to the hub location and calls to and from remote site A use G.711 codec. ✑ Remote site B has a 1-T1 connection to the hub location and calls to and from remote site B use G.729 codec. Based on the provided guidance, a Cisco voice engineer must design media resource management for the customer. What is the method that needs to be followed?

   • Aconfigure the hardware transcoder on the site B router
   • Bconfigure the hardware transcoder on the site A router
   • Cconfigure the hardware transcoder on the hub location router
   • Dconfigure the software transcoder on Cisco UCM to support voice calls to and from both remote sites

   Show answer

   Answer: C

   Explanation

   Correct answer is C. Site B has a T1 connection and we don't want to force them to limit the number of calls. As an administrator, i would take the incoming calls from site B in G729 and do a transcode at the hub location, and receive an Incoming call to Site B in G 711 and transcode it to G729 and traverse over T1. Win Win situation.

   Source: Adapted from community discussion — Vijay_ABI

   Next question

4. Question 204 · 450 in bank

   In which location does an administrator look to determine which subscriber the phone registers to if it loses registration with the current Cisco UCM subscriber?

   • Aon Cisco UCM Administration page, System > Device Pool > Cisco UCM Group
   • Bon Cisco UCM Administration Page Device > Phone > Phone Configuration page
   • Con Cisco UCM Administration page, Server > Cisco UCM
   • Don Cisco UCM Administration page, System > Enterprise Parameters

   Show answer

   Answer: A

   Explanation

   Question is where to view where the currently registered phone will register once it would loose registration with current server. In that case I would say A. If you want to review on which server the phone is currently registered it would be B

   Source: Adapted from community discussion — slash24nl

   Next question

5. Question 205 · 450 in bank

   Select 2

   An engineer is integrating Unity Connection with Cisco UCM. Which two actions must be configured so that recording and playback from the IP phones works at all times, including peak traffic hours? (Choose two.)

   • AIncrease the number of voice ports.
   • BThe phone system to which the phones are registered in Unity Connection has the Default Trap Switch check box enabled.
   • CEnsure that you have set up SIP Digest Authentication on the SIP trunk security profile.
   • DIf it's a Unity Connection Cluster, ensure that replication is fine and not in split-brain mode.
   • EAdd dedicated dial-out ports with the allow trap connections setting selected.

   Show answer

   Answer: BE

   Explanation

   Search for allow trap https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/integration/guide/cucm_sip/b_cucintcucmsip/b_cucintcucmsip_chapter_011.html#ID-2585-000003c7 Trap Connection needs to be enable on the port and phone system to always allow recording and playback

   Source: Adapted from community discussion — kitty73

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

6. Question 206 · 450 in bank

   When designing the capacity for a Cisco UCM 12.x cluster, an engineer must decide which VMware template will be used for each node. What is the lowest number of users supported in a template and the highest number of users in a template?

   • A750 and 15,000 users
   • B750 and 10,000 users
   • C500 and 10,000 users
   • D1000 and 10,000 users

   Show answer

   Answer: D

   Explanation

   For Cisco Collaboration System Release (CSR) 12. x , the Unified CM deployments require all virtual nodes to increase their vRAM by 2 GB of memory for the following VM configuration templates: 1,000 users – 2 vCPU – 6 GB vRAM – 80 GB vDisk 2,500 users – 4 vCPU – 6 GB vRAM – 80 GB vDisk 7,500 users – 2 vCPU – 8 GB vRAM – 110 GB vDisk 10,000 users – 4 vCPU – 8 GB vRAM – 110 GB vDisk

   Source: Adapted from community discussion — Panda_man

   Next question

7. Question 207 · 450 in bank

   An engineer must configure switch port 5/1 to send CDP packets to configure an attached Cisco IP phone to trust tagged traffic on its access port. Which command is required to complete the configuration? Router# configure terminal - Router(config)# interface gigabitethernet 5/1 Router(config-if)# description Cube E42.421-5965

   • Aplatform qos trust extend cos 3
   • Bplatform qos extend trust
   • Cplatform qos trust extend
   • Dplatform qos trust extend cos 5

   Show answer

   Answer: C

   Explanation

   Answer is C They had used this question from this guide, same naming of Port even This example shows how to configure Gigabit Ethernet port 5/1 to send CDP packets that tell the Cisco IP phone to configure its access port as trusted: Router# configure terminal Router(config)# interface gigabitethernet 5/1 Router(config-if)# platform qos trust extend https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst6500/ios/15-5SY/config_guide/sup6T/15_5_sy_swcg_6T/voip.html

   Source: Adapted from community discussion — DaKenjee

   References

   • Cisco documentation

   Next question

8. Question 208 · 450 in bank

   Which DSCP marking is represented as 101110 in an IP header?

   • ACS3
   • BAF41
   • CAF31
   • DEF

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

9. Question 209 · 450 in bank

   Which service on the Presence Server is responsible for maintaining the point-to-point chat connections between Jabber clients?

   • ACisco XCP Router
   • BCisco XCP Text Conference Manager
   • CCisco SIP Proxy
   • DCisco XCP XMPP Federation Manager

   Show answer

   Answer: A

   Explanation

   The question asks who maintains the point-to-point communication ..."it routes XMPP data to the other active XCP services on IM and Presence Service, and it accesses SDNS to allow the system to route XMPP data to IM and Presence Service users. The XCP router manages XMPP sessions for users, and routes XMPP messages to and from these sessions."... https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/service/10_0_1/admin/CUCM_BK_CDDBCDEB_00_cisco-unified-servicability-merge-100/CUCM_BK_CDDBCDEB_00_cisco-unified-servicability-merge-100_chapter_0101.html#CUCM_RF_C1541552_00

   Source: Adapted from community discussion — kitty73

   References

   • Cisco documentation

   Next question

10. Question 210 · 450 in bank

    Which DiffServ PHB preserves backward compatibility with any IP precedence scheme?

    • Aexpedited forwarding
    • Bclass selector
    • Cassured forwarding
    • Ddefault

    Show answer

    Answer: B

    References

    • Cisco documentation

    Next question
