350-801 practice questions 161–170

1. Question 161 · 450 in bank

   Select 2

   A customer wants to deploy Cisco Jabber Phone Mode with contacts. Which two configurations are needed to accomplish this goal? (Choose two.)

   • ARemove the IM and Presence servers from the Cisco UCM service profile
   • BEnable Cisco UCM end users for IM and Presence
   • CDisable Instant Messaging on IM and Presence
   • DAdd the Application Client Users role to the Cisco UCM end users
   • EImport Contacts.xml into Jabber

   Show answer

   Answer: BC

   References

   • Cisco documentation

   Next question

2. Question 162 · 450 in bank

   Which attribute contains an XMPP stanza?

   • Atype
   • Biq
   • Cmessage
   • Dpresence

   Show answer

   Answer: A

   Next question

3. Question 163 · 450 in bank

   What is a software-based media resource that is provided by the Cisco IP Voice Media Streaming Application?

   • Avideo conference bridge
   • Bauto-attendant
   • Ctranscoder
   • Dannunciator

   Show answer

   Answer: D

   Explanation

   The Cisco IP Voice Media Streaming Application provides the following software-based media resources: Conference bridge Music on Hold (MoH) Annunciator Media termination point (MTP) Interactive Voice Response (IVR) Probably a close answer would be A, but I think the most accurate is D https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/media.html

   Source: Adapted from community discussion — ocero

   References

   • Cisco documentation

   Next question

4. Question 164 · 450 in bank

   Users want their mobile phones to be able to access their Cisco Unity Connection mailboxes with only having to enter their voicemail pin at the login prompt when calling the pilot number. Where should an engineer configure this feature?

   • Aalternate extensions
   • Bmessage settings
   • Ctransfer rules
   • Dgreetings

   Show answer

   Answer: A

   Explanation

   Answer A Question is about "only to enter PIN", here >Greeting Search Users > Edit User Basics (username) > Caller Input > Edit Caller Input > (*) > sign-in

   Source: Adapted from community discussion — DaKenjee

   References

   • Cisco documentation

   Next question

5. Question 165 · 450 in bank

   An administrator is integrating a Cisco Unity Express module to a Cisco UCME system. A test call is placed to the Cisco Unity Express pilot number, but the administrator receives a busy signal. The dial-peer is configured as follows: dial-peer voice 4100 voip destination-pattern 41.. session protocol sipv2 session target ipv4:10.1.10.1 dtmf-relay sip-notify no vad How is this issue resolved?

   • AThe dial-peer needs to be reconfigured to support the G.711 voice codec.
   • BThe destination pattern needs to be changed to match the dialed number of 4100.
   • CThe dial-peer needs to be reconfigured to support vad.
   • DThe dial-peer needs to be reconfigured to support H.323 instead of SIP.

   Show answer

   Answer: A

   References

   • Cisco documentation

   Next question

6. Question 166 · 450 in bank

   Which open-standard protocol is the basis for the Extensible Messaging and Presence Protocol?

   • ASIP
   • BJSON
   • CXML
   • DHTTP

   Show answer

   Answer: C

   Explanation

   Reference: https://en.wikipedia.org/wiki/XMPP#:~:text=Extensible%20Messaging%20and%20Presence%20Protocol,information%2C%20and%20contact%20list% 20maintenance .

   Next question

7. Question 167 · 450 in bank

   What is required when deploying co-resident VMs by using Cisco UCM?

   • ADeploy the VMs to a server running Cisco UCM.
   • BEnsure that applications will perform QoS.
   • CProvide a guaranteed bandwidth of 10 Mbps.
   • DAvoid hardware oversubscription.

   Show answer

   Answer: D

   Explanation

   Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/uc_system/virtualization/collaboration-virtualization-sizing.html

   Next question

8. Question 168 · 450 in bank

   Which Cisco Unity Connection handler plays a greeting that announces the option to dial a user extension by default?

   • Athe Operator call handler
   • Bthe Goodbye call handler
   • Cthe Directory handler
   • Dthe Interview handler

   Show answer

   Answer: C

   Explanation

   from provided link: https://www.cisco.com/en/US/docs/voice_ip_comm/unity/3x/administration/guide/313/SAG_0200.html you can see: "By default, the Operator call handler allows callers to dial the appropriate extension to reach the Sign-in conversation," So I think Answer A

   Source: Adapted from community discussion — Kabimas66

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • cisco.com documentation

   Next question

9. Question 169 · 450 in bank

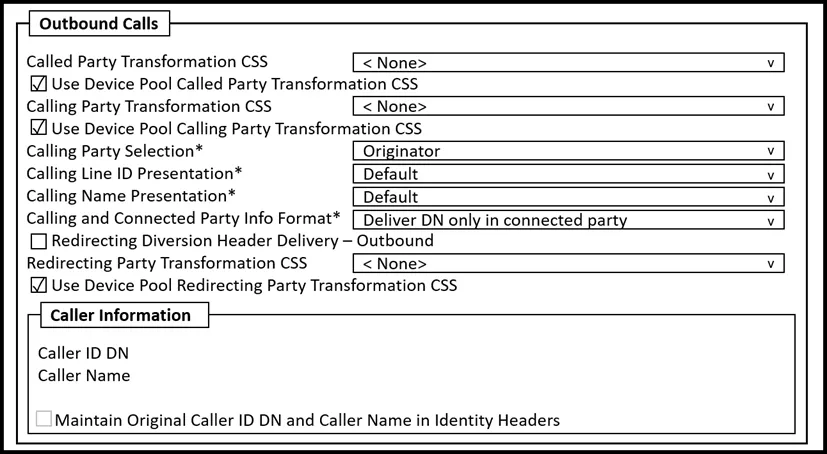

   Refer to the exhibit.



   Unanswered calls do not reach the voicemail associated with the phones. Instead, callers receive the default greeting. Which action fixes the configuration?

   • AReview the conversation manager logs on Cisco Unity Connection.
   • BCheck the box ג€Redirecting Diversion Header Delivery - Outboundג€, then reset the trunk.
   • CReboot Cisco Unity Connection.
   • DCheck the box ג€Redirecting Diversion Header Delivery - Outboundג€.

   Show answer

   Answer: B

   Next question

10. Question 170 · 450 in bank

    Which type of message must an administrator configure in the SIP Trunk Security Profile for a Message Waiting Indicator light to work with a SIP integration between Cisco UCM and Cisco Unity Connection?

    • AUnsolicited NOTIFY
    • BSIP Register
    • C200 OK
    • DTCP port 5060

    Show answer

    Answer: A

    Explanation

    Reference: https://www.uccollabing.com/troubleshooting-mwi-sip-cisco-unity-connection/

    Next question
