300-620 practice questions 51–60

1. Question 51 · 340 in bank

   Select 2

   Which two components are essential parts of a Cisco ACI Virtual Machine Manager (VMM) domain policy configuration? (Choose two.)

   • ALayer 3 outside interface association
   • BEPG static port binding
   • CVMM domain profile
   • DEPG association
   • EIP address pool association

   Show answer

   Answer: CD

   Next question

2. Question 52 · 340 in bank

   Select 2

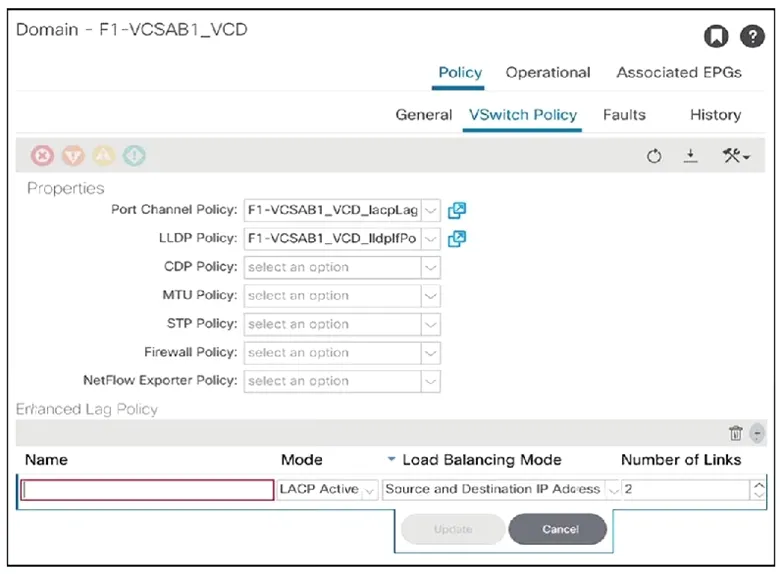

   Refer to the exhibit. An engineer configures the Cisco ACI fabric for VMM integration with ESXi servers that are to be connected to the ACI leaves. The server team requires the network switches to initiate the LACP negotiation as opposed to the servers. The LAG group consists of two 10 Gigabit Ethernet links. The server learn also wants to evenly distribute traffic across all available links. Which two enhanced LAG policies meet these requirements? (Choose two.)

   • ALACP Mode: LACP Standby
   • BLB Mode: Destination IP Address and TCP/UDP Port
   • CLB Mode: Source and Destination MAC Address
   • DLB Mode: Source IP Address and TCP/UDP Port
   • ELACP Mode: LACP Active

   Show answer

   Answer: BD

   Next question

3. Question 53 · 340 in bank

   Which tenant is used when configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes?

   • Adefault
   • Binfra
   • Ccommon
   • Dmgmt

   Show answer

   Answer: D

   Next question

4. Question 54 · 340 in bank

   What represents the unique identifier of an ACI object?

   • Auniversal resource identifier (URI)
   • Bapplication programming interface
   • Cmanagement information tree
   • Ddistinguished name

   Show answer

   Answer: D

   Next question

5. Question 55 · 340 in bank

   Which new construct must a user create when configuring in-band management?

   • AVLAN pool
   • Bmanagement contract
   • Cmanagement tenant
   • Dbridge domain

   Show answer

   Answer: B

   Next question

6. Question 56 · 340 in bank

   What must be configured to allow SNMP traffic on the APIC controller?

   • Aout-of-band management interface
   • Bcontract under tenant mgmt
   • CSNMP relay policy
   • Dout-of-band bridge domain

   Show answer

   Answer: B

   Next question

7. Question 57 · 340 in bank

   Which type of port is used for in-band management within ACI fabric?

   • Aspine switch port
   • BAPIC console port
   • Cleaf access port
   • Dmanagement port

   Show answer

   Answer: C

   Next question

8. Question 58 · 340 in bank

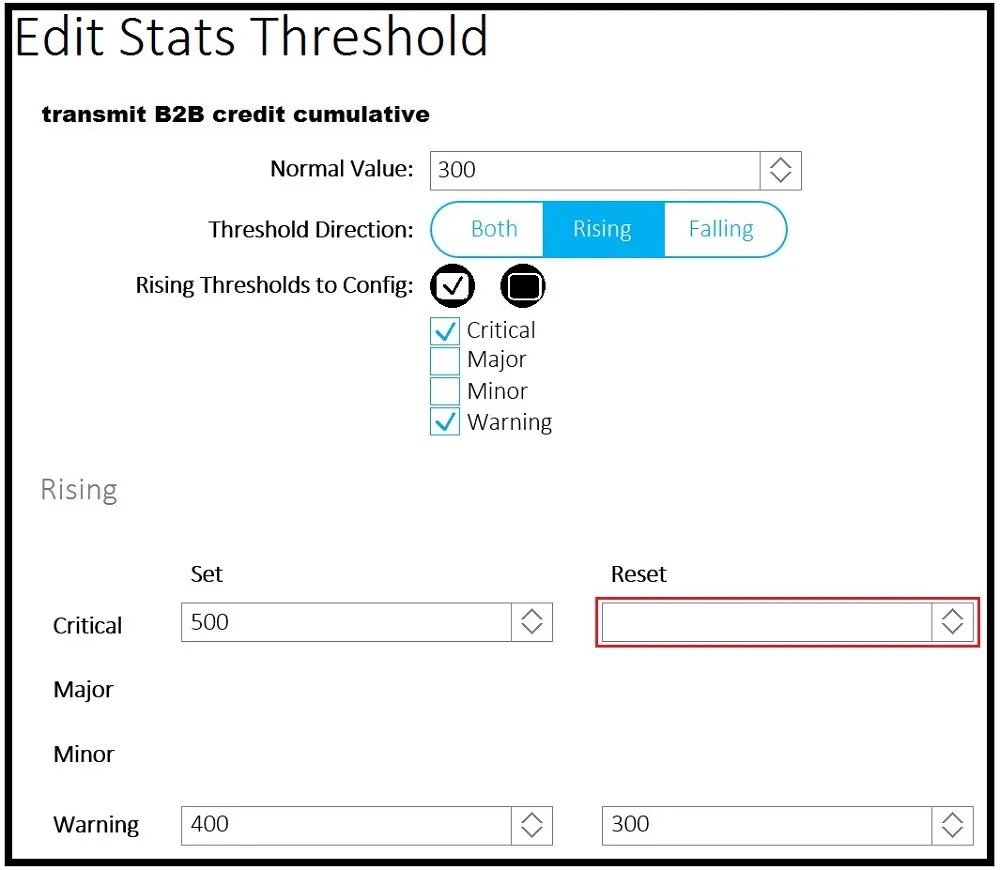

   Refer to the exhibit. A client reports that the ACI domain connectivity to the fiber channel storage is experiencing a B2B credit oversubscription. The environment has a SYSLOG server for state collection messages. Which value should be chosen to clear the critical fault?

   • A300
   • B410
   • C350
   • D510

   Show answer

   Answer: B

   Next question

9. Question 59 · 340 in bank

   Which statement about ACI syslog is true?

   • ANotifications for different scopes of syslog objects can be sent only to one destination.
   • BSyslog messages are sent to the destination through the spine.
   • CAll syslog messages are sent to the destination through APIC.
   • DSwitches send syslog messages directly to the destinations.

   Show answer

   Answer: D

   Next question

10. Question 60 · 340 in bank

    A data center administrator is upgrading an ACI fabric. There are 3 APIC controllers in the fabric and all the servers are dual-homed to pairs of leaf switches configured in VPC mode. How should the fabric be upgraded to minimize possible traffic impact during the upgrade?

    • A1. Create two maintenance groups for the APIC controllers: VPC left and VPC right. 2. Upgrade the first group of controllers. 3. Upgrade the second group of controllers. 4. Upgrade the leaf switches.
    • B1. Create two maintenance groups for APIC controllers: VPC left and VPC right. 2. Upgrade the leaf switches. 3. Upgrade the first group of controllers. 4. Upgrade the second group of controllers.
    • C1. Create two maintenance groups for the leaf switches: VPC left and VPC right. 2. Upgrade the APIC controllers. 3. Upgrade the first group of leaf switches. 4. Upgrade the second group of leaf switches.
    • D1. Create two maintenance groups for the leaf switches: VPC left and VPC right. 2. Upgrade the first group of switches. 3. Upgrade the second group of switches. 4. Upgrade the APIC controllers.

    Show answer

    Answer: C

    Next question
