300-620 practice questions 41–50

1. Question 41 · 340 in bank

   Regarding the MTU value of MP-BGP EVPN control plane packets in Cisco ACI, which statement about communication between spine nodes in different sites is true?

   • ABy default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets.
   • BBy default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1800-bytes packets.
   • CBy default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1500-bytes packets.
   • DBy default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9100-bytes packets.

   Show answer

   Answer: A

   Next question

2. Question 42 · 340 in bank

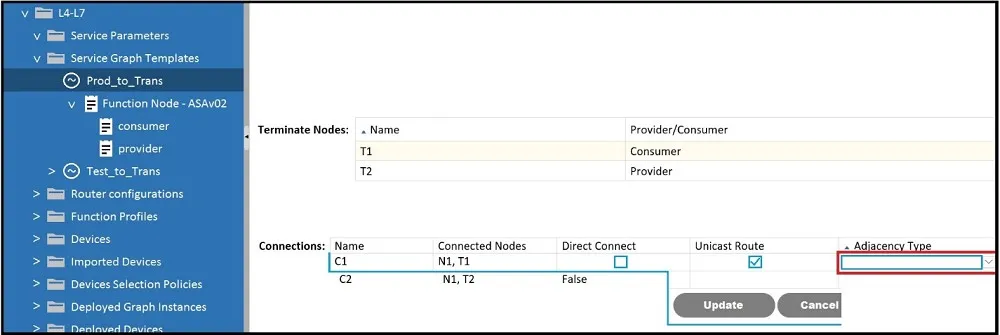

   Refer to the exhibit. Which Adjacency Type value should be set when the client endpoint and the service node interface are in a different subnet?

   • ARouted
   • BUnicast
   • CL3Out
   • DL3

   Show answer

   Answer: D

   Next question

3. Question 43 · 340 in bank

   Which endpoint learning operation is completed on the ingress leaf switch when traffic is received from a Layer 3 Out?

   • AThe source MAC address of the traffic is learned as a local endpoint.
   • BThe source MAC address of the traffic is learned as a remote endpoint.
   • CThe source IP address of the traffic is learned as a remote endpoint.
   • DThe source IP address of the traffic is learned as a local endpoint.

   Show answer

   Answer: A

   Next question

4. Question 44 · 340 in bank

   Select 2

   An engineer must connect Cisco ACI fabric using Layer 2 with external third-party switches. The third-party switches are configured using 802.1s protocol. Which two constructs are required to complete the task? (Choose two.)

   • Aspanning tree policy for mapping MST Instances to VLANs
   • BMCP policy with PDU per VLAN enabled
   • CMCP instance policy with administrative slate disabled
   • Ddedicated EPG for native VLAN
   • Estatic binding of native VLAN in all existing EPGs

   Show answer

   Answer: AD

   Next question

5. Question 45 · 340 in bank

   Select 2

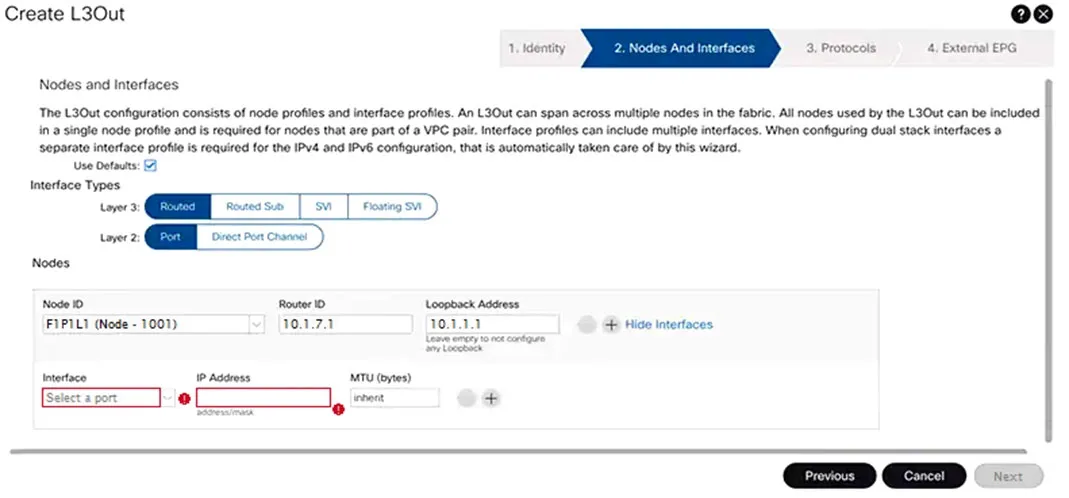

   Refer to the exhibit. An engineer must configure an L3Out peering with the backbone network. The L3Out must forward unicast and multicast traffic over the link. Which two methods should be used to configure L3Out to meet these requirements? (Choose two.)

   • ALayer 3 routed port
   • BVPC with SVI
   • Cport channel with SVI
   • DLayer 3 routed subinterface
   • ELayer 3 floating SVI

   Show answer

   Answer: AD

   Next question

6. Question 46 · 340 in bank

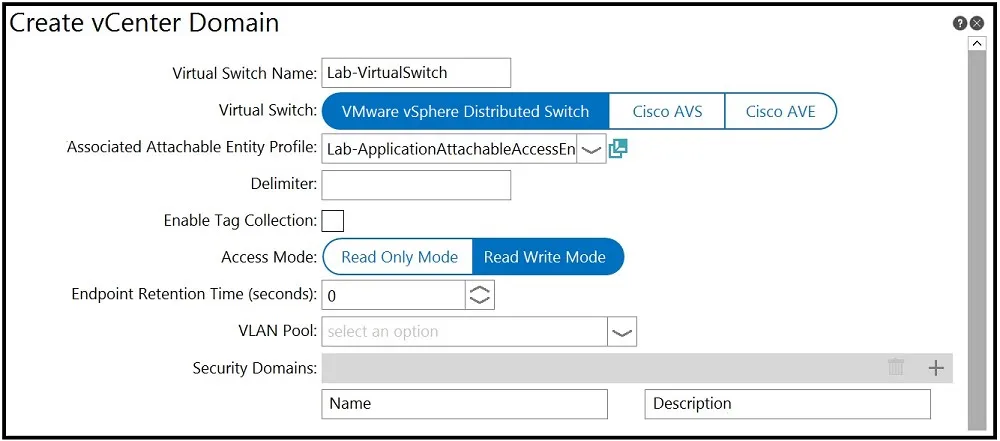

   Refer to the exhibit. An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of "Tenant | Application | EPG". Which configuration option is used to generate port groups with names formatted as "Tenant=Application=EPG"?

   • Aenable tag collection
   • Bsecurity domains
   • Cdelimiter
   • Dvirtual switch name

   Show answer

   Answer: C

   Next question

7. Question 47 · 340 in bank

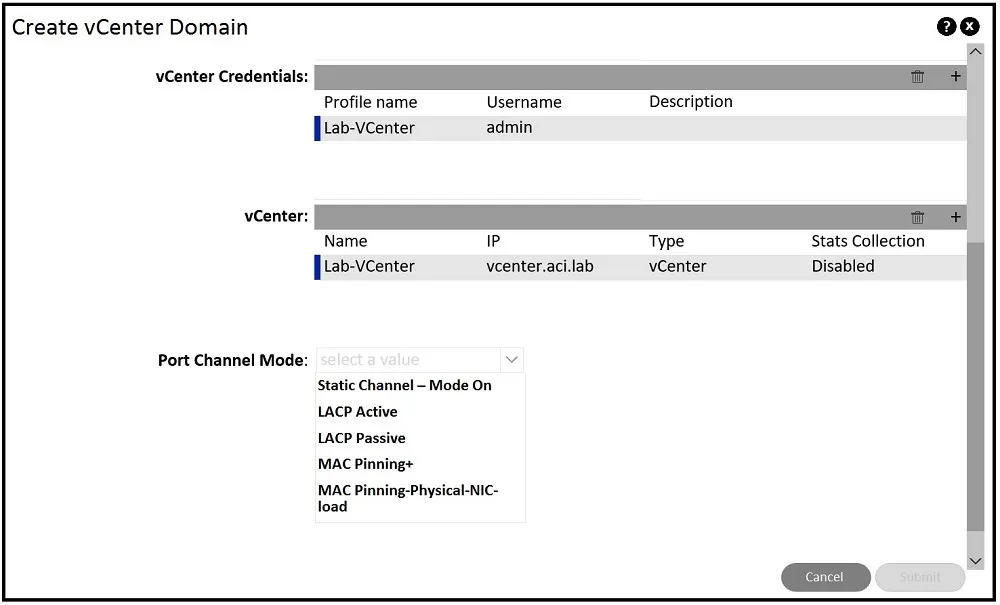

   Refer to the exhibit. An engineer is implementing Cisco ACI "" VMware vCenter integration for a blade server that lacks support of bonding. Which port channel mode results in "route based on originating virtual port" on the VMware VDS?

   • AStatic Channel "" Mode On
   • BMAC Pinning-Physical-NIC-load
   • CLACP Passive
   • DMAC Pinning+
   • ELACP Active

   Show answer

   Answer: D

   Next question

8. Question 48 · 340 in bank

   When configuring Cisco ACI VMM domain integration with VMware vCenter, which object is created in vCenter?

   • Adatacenter
   • BVMware vSphere Standard vSwitch
   • CVMware vSphere Distributed Switch
   • Dcluster

   Show answer

   Answer: C

   Next question

9. Question 49 · 340 in bank

   An engineer has set the VMM resolution immediacy to pre-provision in a Cisco ACI environment. No Cisco Discovery Protocol neighborship has been formed between the hypervisors and the ACI fabric leaf nodes. How does this affect the download policies to the leaf switches?

   • ANo policies are downloaded because LLDP is the only supported discovery protocol.
   • BPolicies are downloaded when the hypervisor host is connected to the VMM VDS.
   • CPolicies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.
   • DNo policies are downloaded because there is no discovery protocol neighborship.

   Show answer

   Answer: C

   Next question

10. Question 50 · 340 in bank

    In the context of VMM, which protocol between ACI leaf and compute hosts ensures that the policies are pushed to the leaf switches for immediate and on demand resolution immediacy?

    • AVXLAN
    • BLLDP
    • CISIS
    • DSTP

    Show answer

    Answer: B

    Next question
