300-620 practice questions 11–20

1. Question 11 · 340 in bank

   How is an EPG extended outside of the ACI fabric?

   • ACreate an external bridged network that is assigned to a leaf port.
   • BCreate an external routed network that is assigned to an EPG.
   • CEnable unicast routing within an EPG.
   • DStatically assign a VLAN ID to a leaf port in an EPG.

   Show answer

   Answer: D

   Next question

2. Question 12 · 340 in bank

   Where is the COOP database located?

   • Aleaf
   • Bspine
   • CAPIC
   • Dendpoint

   Show answer

   Answer: B

   Next question

3. Question 13 · 340 in bank

   Which description regarding the initial APIC cluster discovery process is true?

   • AThe APIC uses an internal IP address from a pool to communicate with the nodes.
   • BEvery switch is assigned a unique AV by the APIC.
   • CThe APIC discovers the IP address of the other APIC controllers by using Cisco Discovery Protocol.
   • DThe ACI fabric is discovered starting with the spine switches.

   Show answer

   Answer: A

   Next question

4. Question 14 · 340 in bank

   Select 2

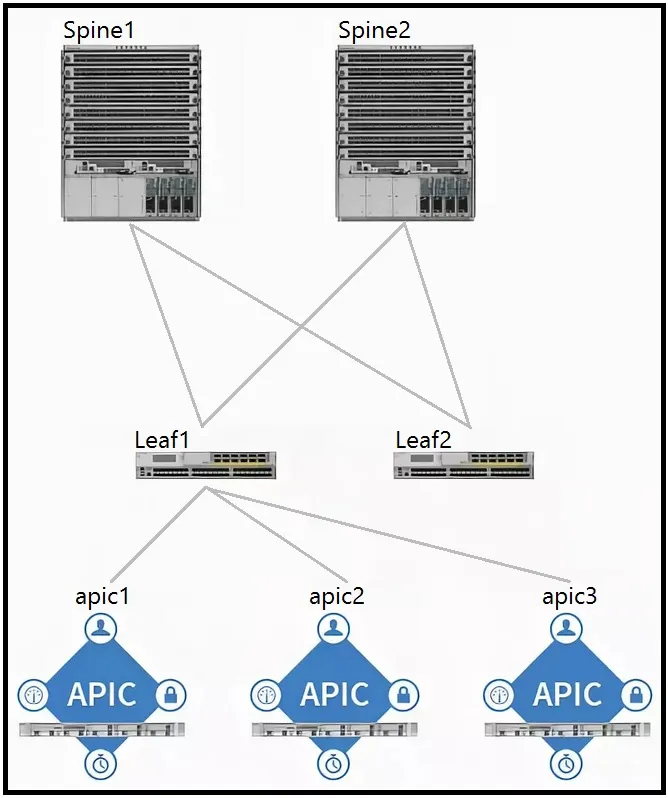

   Refer to the exhibit. Which two components should be configured as route reflectors in the ACI fabric? (Choose two.)

   • ASpine1
   • Bapic1
   • CSpine2
   • DLeaf1
   • ELeaf2
   • Fapic2

   Show answer

   Answer: AC

   Next question

5. Question 15 · 340 in bank

   When creating a subnet within a bridge domain, which configuration option is used to specify the network visibility of the subnet?

   • Alimit IP learning to subnet
   • Bscope
   • Cgateway IP
   • Dsubnet control

   Show answer

   Answer: B

   Next question

6. Question 16 · 340 in bank

   What does a bridge domain represent?

   • ALayer 3 cloud
   • BLayer 2 forwarding construct
   • Ctenant
   • Dphysical domain

   Show answer

   Answer: B

   Next question

7. Question 17 · 340 in bank

   Which table holds IP address, MAC address and VXLAN/VLAN information on a Cisco ACI leaf?

   • Aendpoint
   • Badjacency
   • CRIB
   • DARP

   Show answer

   Answer: A

   Next question

8. Question 18 · 340 in bank

   Select 2

   Which two types of interfaces are supported on border leaf switches to connect to an external router? (Choose two.)

   • Asubinterface with VXLAN tagging
   • Bsubinterface with 802.1Q tagging
   • CFEX host interface
   • Dout of band interface
   • ESwitch Virtual Interface

   Show answer

   Answer: BE

   Next question

9. Question 19 · 340 in bank

   Which Cisco APIC configuration prevents a remote network that is not configured on the bridge domain from being learned by the fabric?

   • Aenable Limit IP Learning to Subnet
   • Benable Unicast Routing
   • Cenable IP Data-plane Learning
   • Denable ARP Flooding to BD

   Show answer

   Answer: A

   Next question

10. Question 20 · 340 in bank

    Select 2

    An engineer needs to deploy a leaf access port policy group in ACI Fabric to support the following requirements: ✑ Control the amount of application data flowing into the system ✑ Allow the newly connected device to auto-negotiate link speed with the leaf switch Which two ACI policies must be configured to achieve these requirements? (Choose two.)

    • Alink level policy
    • BL2 interface policy
    • Cslow drain policy
    • Dingress data plane policing policy
    • Eingress control plane policing policy

    Show answer

    Answer: AD

    Next question
