300-620 practice questions 101–110

1. Question 101 · 340 in bank

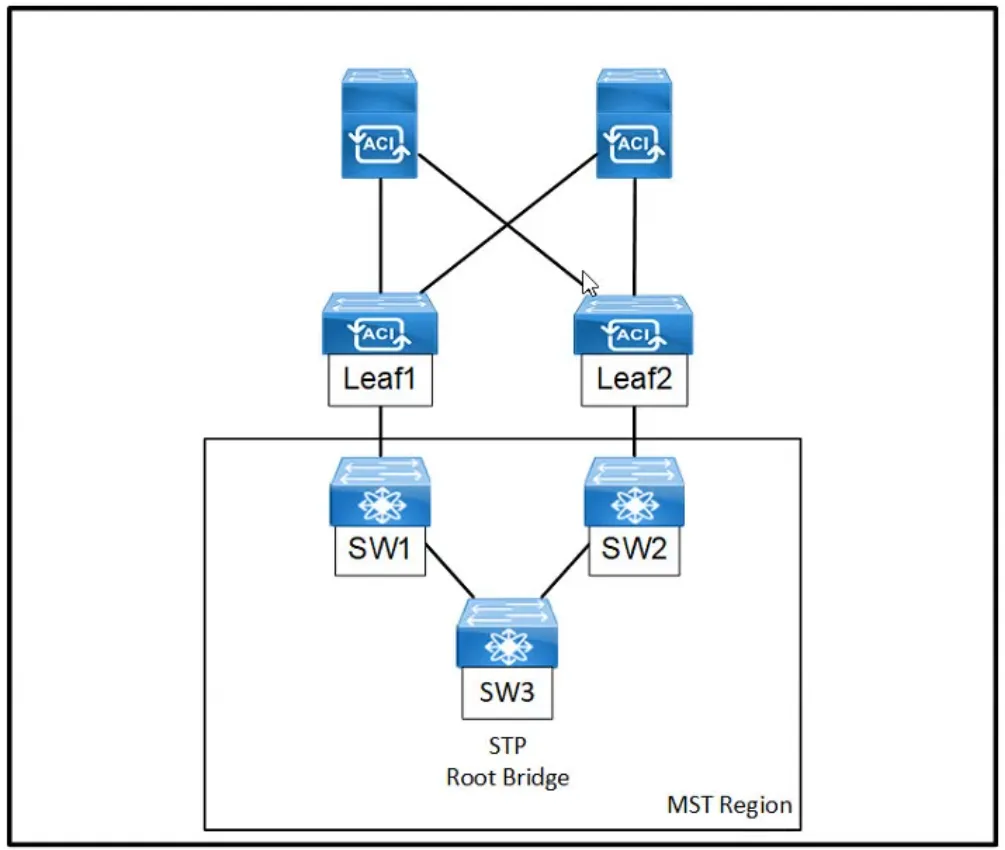

   Refer to the exhibit. An engineer is deploying a Cisco ACI environment but experiences a STP loop between SW1 and SW2. Which configuration step is needed to break the STP loop?

   • AConfigure a Layer 2 external bridged network on the interfaces facing the MST switches.
   • BEnable the native VLAN on the interfaces facing the MST switches using static ports in a dedicated EPG.
   • CEnable BPDU filter under the STP interface policy on the interfaces facing the MST switches.
   • DConfigure the STP instance to VLAN mapping under the switch STP policy.

   Show answer

   Answer: B

   Next question

2. Question 102 · 340 in bank

   What is MP-BGP used for in Cisco ACI fabric?

   • AMP-BGP VPNv4 AF is used as protocol on L3Out between a border leaf and an external router
   • BMP-BGP Layer 2 VPN EVPN AF is used to propagate L3Out routes that are received from a border leaf
   • CMP-BGP VPNv4 AF is used to propagate L3Out routes that are received from a border leaf to the fabric
   • DMP-BGP VPNv4 AF is used between spines in an ACI Multi-Pod fabric to propagate the endpoint

   Show answer

   Answer: C

   Next question

3. Question 103 · 340 in bank

   Select 2

   What are two descriptions of ACI Multi-Site? (Choose two.)

   • ARouters in the Inter-Site network must run OSPF, DHCP relay, and MP-BGP
   • BACI Multi-Site is a solution that allows one APIC cluster to manage multiple ACI sites
   • CThe Multi-Site orchestrator must be directly attached to one ACI leaf
   • DACI Multi-Site is a solution that supports a dedicated APIC cluster per site
   • EThe Inter-Site network routers should run OSPF to establish peering with the spines

   Show answer

   Answer: DE

   Next question

4. Question 104 · 340 in bank

   The company ESXi infrastructure is hosted on the Cisco UCS-B Blade Servers. The company decided to take advantage of ACI VMM integration to enable consistent enforcement of policies across virtual and physical workloads. The requirement is to prevent the packet loss between the distributed virtual switch and the ACI fabric. Which setting must be implemented on a vSwitch policy to accomplish this goal?

   • AStatic Channel
   • BMAC Pinning
   • CLACP
   • DLLDP

   Show answer

   Answer: B

   Next question

5. Question 105 · 340 in bank

   An engineer is configuring ACI VMM domain integration with Cisco UCS-B Series. Which type of port channel policy must be configured in the vSwitch policy?

   • ALACP Active
   • BMAC Pinning
   • CLACP Passive
   • DMAC Pinning-Physical-NIC-load

   Show answer

   Answer: B

   Next question

6. Question 106 · 340 in bank

   A Cisco ACI is integrated with a VMware vSphere environment. The port groups must be created automatically in vSphere and propagated to hypervisors when created in the ACI environment. Which action accomplishes this goal?

   • ACreate the port groups on the vCenter that reflect the EPG names in the APIC
   • BAssign the uplinks of the ESXi hosts to the vDS that the APIC created
   • CConfigure contracts for the EPGs that are required on the ESXi hosts
   • DAssociate the VMM domain with the EPGs that must be available in vCenter

   Show answer

   Answer: D

   Next question

7. Question 107 · 340 in bank

   A network engineer is integrating a new Hyperflex storage duster into an existing Cisco ACI fabric. The Hyperflex cluster must be managed by vCenter, so a new vSphere Distributed switch must be created. In addition, the hardware discovery must be performed by a vendor-neutral discovery protocol. Which set of steps meets these requirements?

   • AConfigure an Interface Policy group, select CDP, and apply it to the desired interfaces. Enter the vCenter IP and credentials in the Create vCenter Controller dialog box. In the Create VMware VMM domain dialog box, select Read-Only Mode.
   • BConfigure an Interface Policy group, select LLDP, and apply it to the selected interfaces. Create a VLAN pool, add it to the VMware VMM domain, and include the appropriate interfaces. Enter the vCenter IP and credentials in the Create vCenter Controller dialog box.
   • CConfigure a Switch Policy group, select LLDP, and apply it to the indicated interfaces. Set up a VMware VMM domain and apply it to the appropriate interfaces. Enter the APIC management IP and credentials in the Create vCenter Controller dialog box.
   • DConfigure an Interface Policy group, select CDP, and apply it to the designated interfaces. Create a VMware VMM domain, add it to the VLAN pool, and associate it to the designated interfaces. Select Read Only Mode in the Create VMware VMM domain dialog box.

   Show answer

   Answer: B

   Next question

8. Question 108 · 340 in bank

   In-band is currently configured and used to manage the Cisco ACI fabric. The requirement is for leaf and spine switches to use out-of-band management for NTP protocol. Which action accomplishes this goal?

   • ASelect Out-of-Band as Management EPG in the default DateTimePolicy.
   • BCreate an Override Policy with NTP Out-of-Band for leaf and spine switches.
   • CChange the interface used for APIC external connectivity to ooband.
   • DAdd a new filter to the utilized Out-of-Band-Contract to allow NTP protocol.

   Show answer

   Answer: A

   Next question

9. Question 109 · 340 in bank

   An administrator must migrate the vSphere Management VMkernel of all ESXi hosts in the production cluster from the standard default virtual switch to a VDS that is integrated with APIC in a VMM domain. Which action must be completed in this scenario?

   • AThe Management VMkernel EPG resolution must be set to Pre-Provision.
   • BThe administrator must create an in-band VMM Management EPG before performing the migration.
   • CThe administrator must set the Management VMkernel BD resolution immediacy to On-Demand.
   • DThe VMkernel Management BD must be located under the Management Tenant.

   Show answer

   Answer: A

   Next question

10. Question 110 · 340 in bank

    A customer implements RBAC on a Cisco APIC using a Windows RADIUS server that is configured with network control policies. The APIC configuration is as follows: • Tenant = TenantX • Security Domain = TenantX-SD • User = X The customer requires User X to have access to TenantX only, without any extra privilege in the Cisco ACI fabric domain. Which Cisco AV pair must be implemented on the RADIUS server to meet these requirement?

    • Ashell:domains = TenantX-SD/fabric-admin/,common//read-all
    • Bshell:domains = TenantX-SD/tenant-admin
    • Cshell:domains = TenantX-SD/tenant-ext-admin/,common//read-all
    • Dshell:domains = TenantX-SD/tenant-admin/,common//read-all

    Show answer

    Answer: C

    Next question
