300-620 practice questions 151–160

1. Question 151 · 340 in bank

   An engineer must configure a Layer 3 connection to the WAN router. The hosts in production VRF must access WAN subnets. The engineer associates EPGs in the production VRF with the external routed domain. Which action completes the task?

   • AConfigure the Export Route Control Subnet scope for the external EPG.
   • BConfigure the External Subnets for the External EPG scope for the external EPG.
   • CConfigure the Import Route Control Subnet scope for the external EPG.
   • DConfigure the Shared Route Control Subnet scope for the external EPG.

   Show answer

   Answer: B

   Next question

2. Question 152 · 340 in bank

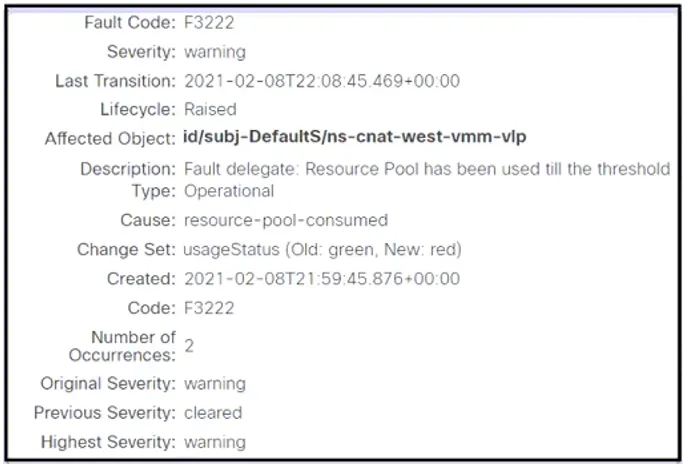

   Refer to the exhibit. A Cisco APIC raises an error when the EPG must accept endpoints from a VMM domain created. Which action clears the fault?

   • AExpand the VLAN pool for the VMM domain.
   • BCreate a bridge domain for the VMM domain.
   • CAssociate the EPG with the VMM domain.
   • DAssociate the VLAN pool with the VMM domain.

   Show answer

   Answer: A

   Next question

3. Question 153 · 340 in bank

   A Cisco ACI endpoint group must have its gateway address migrated out of the ACI fabric. An engineer configures EPG-TEST with a static port binding and configures the encap VLAN with the required VLAN. Which configuration set must be used on the bridge domain to meet these requirements?

   • AL2 Unknown Unicast: Hardware Proxy Unicast Routing: Disabled - ARP Flooding: Enabled
   • BL2 Unknown Unicast: Hardware Proxy Unicast Routing: Disabled - ARP Flooding: Disabled
   • CL2 Unknown Unicast: Flood - Unicast Routing: Disabled - ARP Flooding: Enabled
   • DL2 Unknown Unicast: Flood - Unicast Routing: Enabled - ARP Flooding: Enabled

   Show answer

   Answer: C

   Next question

4. Question 154 · 340 in bank

   What is a requirement for Cisco ACI IPN to manage multidestination traffic?

   • Apervasive gateway
   • Bunicast routing
   • Canycast gateway
   • Dmulticast routing

   Show answer

   Answer: D

   Next question

5. Question 155 · 340 in bank

   An organization deploys active-active data centers and active-standby firewalls in each data center. Which action should be taken in a Cisco ACI Multi-Pod to maintain traffic symmetry through the firewalls?

   • ADisable Resilient Hashing.
   • BDisable service node Health Tracking.
   • CEnable Pod ID Aware Redirection.
   • DEnable Endpoint Dataplane Learning.

   Show answer

   Answer: C

   Next question

6. Question 156 · 340 in bank

   Select 2



   Refer to the exhibit. An engineer must allow IP mobility between Site1 and Site2 in a Cisco ACI Multi-Site orchestrator. The design must meet these requirements: • A disaster recovery (DR) solution must exist between the sites that do not require vMotion support. • The application must be started at a DR site without having to re-IP the application servers. • The solution must avoid any broadcast storms between the sites. Which two actions meet these criteria? (Choose two.)

   • ADefine a unique bridge domain subnet per site.
   • BConfigure STP between Cisco ACI fabrics.
   • CDeploy a local EPG for Site1 and Site2
   • DDisable Inter-site BUM Traffic.
   • EApply the L2 Stretch feature.

   Show answer

   Answer: DE

   Next question

7. Question 157 · 340 in bank



   Refer to the exhibit. New e-commerce software is deployed on Cisco ACI fabric. The environment must meet these requirements: • The overall number of contracts must be reduced by reusing the existing contracts within a VRF when possible. • The e-commerce software must communicate only with software EPGs that are part of the same ANP. • The e-commerce software must be prevented from communicating with applications in different ANPs. Which scope must be selected to meet these requirements?

   • AApplication Profile
   • BEndpoint Group
   • CTenant
   • DGlobal

   Show answer

   Answer: A

   Next question

8. Question 158 · 340 in bank

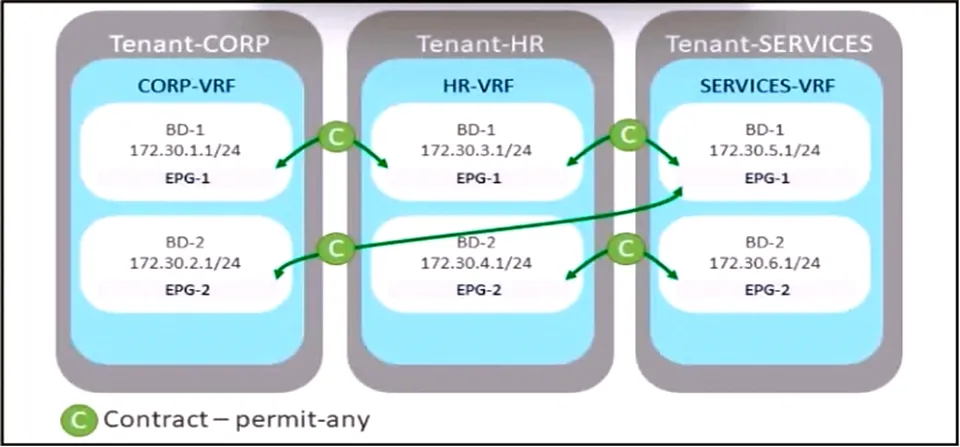

   Refer to the exhibit. A company merges three of its departments: CORP, HR, and SERVICES, Currently, the connectivity between departments is achieved by using VRF route leaking. The requirement is to redesign the Cisco ACI networking architecture to communicate between EPGs and BDs from any tenant without configuring contracts or VRF route leaking. Which configuration meets these criteria?

   • AConfigure an unenforced VRF in the user tenant and map all required EPGs to it.
   • BImplement an enforced VRF in the common tenant and map all required BDs to it.
   • CConfigure an enforced VRF in the user tenant and map all required EPGs to it.
   • DImplement an unenforced VRF in the common tenant and map all required BDs to it.

   Show answer

   Answer: D

   Next question

9. Question 159 · 340 in bank

   Select 2

   What two actions should be taken to deploy a new Cisco ACI Multi-Pod setup? (Choose two.)

   • AConfigure MP-BGP on IPN routers that face the Cisco ACI spines.
   • BConnect all spines to the IPN.
   • CConfigure anycast RP for the underlying multicast protocol
   • DConfigure the TEP pool of the new pod to be routable across the IPN.
   • EIncrease interface MTU for all IPN routers to support VXLAN traffic.

   Show answer

   Answer: DE

   Next question

10. Question 160 · 340 in bank

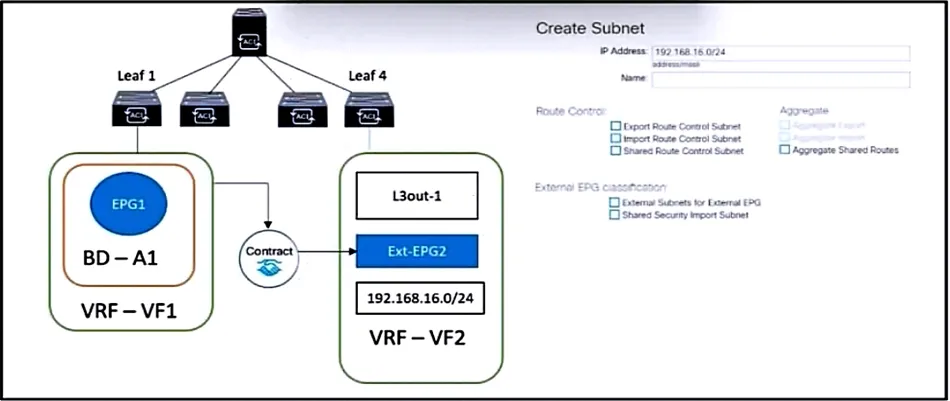

    Refer to the exhibit. The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1". Which configuration set accomplishes these goals?

    • AExport Route Control Subnet - Import Route Control Subnet - Aggregate Shared Routes
    • BExternal Subnets for External EPG Shared Route Control Subnet - Shared Security Import Subnet
    • CExternal Subnets for External EPG Import Route Control Subnet - Shared Route Control Subnet
    • DExport Route Control Subnet - Shared Security Import Subnet - Aggregate Shared Routes

    Show answer

    Answer: B

    Next question
