300-415 practice questions 71–80

1. Question 71 · 382 in bank

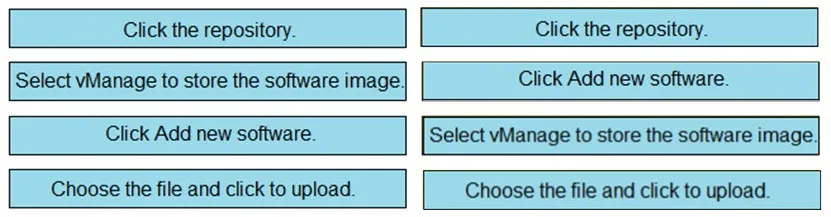

   DRAG DROP - Drag and drop the steps from the left into the order on the right to upload software on vManage repository that is accessible from Maintenance > Software Repository. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/dam/en/us/td/docs/routers/sdwan/vManage-Help/vmanage-help-17-2.pdf

   Source: Adapted from community discussion — CCNPWILL



   Next question

2. Question 72 · 382 in bank

   A network administrator is configuring an application-aware firewall between inside zones to an outside zone on a WAN Edge router using vManage GUI. Which kind of inspection is performed when the `inspect` action is used?

   • ALayer 7 inspection for TCP and Layer 4 inspection for UDP
   • Bstateful inspection for TCP and stateless inspection of UDP
   • CIPS inspection for TCP and Layer 4 inspection for UDP
   • Dstateful inspection for TCP and UDP

   Show answer

   Answer: D

   Explanation

   A firewall policy is a type of localized security policy that allows stateful inspection of TCP, UDP, and ICMP data traffic flows. https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/security/ios-xe-16/security-book-xe/enterprise-firewall.html

   Source: Adapted from community discussion — Roger95

   References

   • Cisco documentation

   Next question

3. Question 73 · 382 in bank

   What is a description of vManage NMS?

   • AA cluster consists of a minimum of two vManage NMSs.
   • BIt is a software process on a dedicated WAN Edge router in the network.
   • CA cluster requires device templates to be created on an attached to the same server.
   • DIt is accessible only from VPN 512 (the management VPN).

   Show answer

   Answer: C

   Explanation

   C is correct. From the link above: "Note that you must configure each Cisco vManage in the cluster individually, from that vManage server itself. You cannot create a vManage configuration template on one vManage server and attach other Cisco vManage to that device template."

   Source: Adapted from community discussion — CCNPCollab1297

   References

   • Cisco documentation
   • Cisco documentation
   • cisco.com documentation
   • cisco.com documentation
   • Cisco documentation

   Next question

4. Question 74 · 382 in bank

   A network administrator is creating an OMP feature template from the vManage GUI to be applied to WAN Edge routers. Which configuration attribute will avoid the redistribution of the routes back into the OMP from the LAN side?

   • Aconfigure ג€ECMP limitג€
   • Bconfigure ג€Send Backup Pathsג€
   • Cconfigure ג€Number of Paths Advertised per Prefixג€
   • Dconfigure ג€Overlay AS Numberג€

   Show answer

   Answer: D

   Next question

5. Question 75 · 382 in bank

   Where on vManage does an engineer find the details of control node failure?

   • AAlarms
   • BEvents
   • CAudit log
   • DNetwork

   Show answer

   Answer: A

   References

   • Cisco documentation

   Next question

6. Question 76 · 382 in bank

   DRAG DROP - Drag and drop the REST API calls from the left onto the functions on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

7. Question 77 · 382 in bank

   A customer must upgrade the Cisco SD-WAN devices and controllers from version 19.2 to version 20.3. The devices include WAN Edge Cloud, vManage, vSmart, and vBond. Which types of image files are needed for this upgrade?

   • Aone file for vManage and one file for all other devices with extension .bin
   • Bone file for vManage, one for vSmart, and one for vBond + WAN Edge Cloud with extension .bin
   • Cone file for vManage and one file for all other devices with extension tar.gz
   • Done file for vManage, one for vSmart, and one for vBond + WAN Edge Cloud with extension tar.gz

   Show answer

   Answer: C

   References

   • cisco.com documentation
   • Cisco documentation
   • cisco.com documentation

   Next question

8. Question 78 · 382 in bank

   An engineer wants to automate the onboarding process for a WAN Edge router with vManage. Which command will accomplish this?

   • Arequest vedge-cloud activate chassis-number <chassis-number> serial <serial>
   • Brequest vedge-cloud activate chassis-number <chassis-number> token <token-number>
   • Crequest vedge-cloud activate serial <serial> token <token-number>
   • Drequest vedge-cloud activate chassis-number <chassis-number> organization <organization>

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

9. Question 79 · 382 in bank

   In a Cisco SD-WAN network, which component is responsible for distributing route and policy information via the OMP?

   • AvManage
   • BvSmart Controller
   • CvBond Orchestrator
   • DWAN Edge Router

   Show answer

   Answer: B

   Next question

10. Question 80 · 382 in bank

    An engineer is adding a tenant with location ID 123456789 in vManage. What is the maximum number of alphanumeric characters that is accepted in the tenant name field?

    • A8
    • B256
    • C128
    • D64

    Show answer

    Answer: C

    References

    • cisco.com documentation
    • Cisco documentation

    Next question
