Implementing Cisco SD-WAN Solutions (ENSDWI)382 questions across 39 pages are complete and free, with no account or card.
382 questions in this bank
Free access · progress saved on this device
Which VPN connects the transport-side WAN Edge interface to the underlay/WAN network?
Answer: B
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2020/pdf/R6BGArNQ/TECRST-2191.pdf page 13
An engineer is configuring a list that matches all IP prefixes with lengths from /1 to /16 in a centralized control policy. Which list accomplishes this task?
Answer: A
This should be A. • 0.0.0.0/0—Match any prefix–length pair. • 0.0.0.0/0 le length—Match any IP prefix whose length is less than or equal to length. For example, ip-prefix 0.0.0.0/0 le 16 matches all IP prefixes with lengths from /1 through /16. https://sdwan-docs.cisco.com/Product_Documentation/Software_Features/SD-WAN_Release_16.3/06Policy_Basics/03Localized_Control_Policy/Configuring_Localized_Control_Policy
Source: Adapted from community discussion — FlipCCNP
In the Cisco SD-WAN solution, vSmart controller is responsible for which two actions? (Choose two.)
Answer: CE
An engineer is configuring a data policy for packets that must be captured through the policy. Which command accomplishes this task?
Answer: B
i looked at this from JTPRO https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2020/pdf/DGTL-BRKRST-2791.pdf#page=72 B does seem to be the best answer or am i reading this incorect
Source: Adapted from community discussion — shanntorana
An administrator must configure an ACL for traffic coming in from the service-side VPN on a specific WAN Edge device with circuit ID 123456789. Which policy must be used to configure this ACL?
Answer: A
Refer to the exhibit. An administrator is configuring a policy in addition to an existing hub-and-spoke policy for two sites that should directly communicate with each other. How is this policy configured?
Answer: B
No. The policy has to allow TLOCs and routes from that site, which is filtered out by the existing hub and spoke topology. Custom control policy is the correct one.
Source: Adapted from community discussion — DBla
Which feature allows reachability to an organization's internally hosted applications for an active DNS security policy on a device?
Answer: B
B is correct. "If the DNS query is for a local domain, it forwards the query without changing the DNS packet to the DNS server in the enterprise network" ----> https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/security/ios-xe-16/security-book-xe/umbrella-integration.html
Source: Adapted from community discussion — khanda
A network administrator is configuring a centralized control policy based on match action pairs for multiple conditions. Which order must be configured to prefer Prefix List over TLOC and TLOC over Origin?
Answer: B
question says, which order. Like for prefix list, acl, in your control policy, data policy etc, always your specifics match must be on the lower sequences, you have to go to specific till general ones, if not the specific ones will never match. In the same way, if you want to match first prefix list, so you use lower seq for this, next for tloc and so on. I hope it helps.
Source: Adapted from community discussion — Zamochit

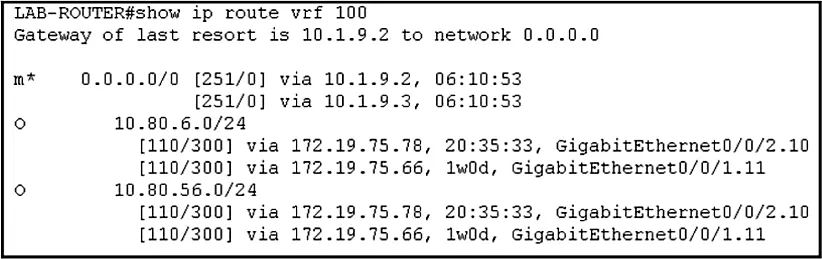

Refer to the exhibit. The network administrator has configured a centralized topology policy that results in the displayed routing table at a branch office. Which two configurations are verified by the output? (Choose two.)
Answer: BD
Originally OMP has 250 AD value in vEdge platforms. For cEdge it is 251, because NHRP has 250 AD which exists in Cisco OS before SD-WAN. m* shows routes learned from OMP
Source: Adapted from community discussion — izduk
When a WAN Edge device joins the Cisco SD-WAN overlay, which Cisco SD-WAN component orchestrates the connection between the WAN Edge device and a vSmart controller?
Answer: B
Correct. Cisco vBond resides in the orchestration plane. The vBond controller is largely responsible for the Zero-Touch Provisioning process as well as first-line authentication, control/management information distribution, and facilitating Network Address Translation (NAT) traversal.
Source: Adapted from community discussion — Mr_Cipher
