300-415 practice questions 21–30

1. Question 21 · 382 in bank

   An engineer must configure a centralized policy on a site in which all HTTP traffic should use the Public Internet circuit if the loss on this circuit is below 10%, otherwise MPLS should be used. Which configuration wizard fulfills this requirement?

   • ACreate Applications or Groups of Interest > Configure Traffic Data > Apply Policies to Sites and VPNs.
   • BConfigure VPN Membership > Apply Policies to Sites and VPNs.
   • CCreate Applications or Groups of Interest > Configure Traffic Rules > Apply Policies to Sites and VPNs.
   • DConfigure Topology > Apply Policies to Sites and VPNs.

   Show answer

   Answer: C

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/data-policies.html#id_107211

   Source: Adapted from community discussion — she_ccie

   References

   • Cisco documentation

   Next question

2. Question 22 · 382 in bank

   An engineer must use data prefixes to configure centralized data policies using the vManage policy configuration wizard. What is the first step to accomplish this task?

   • AConfigure network topology.
   • BApply policies to sites and VPNs.
   • CConfigure traffic rules.
   • DCreate groups of interest.

   Show answer

   Answer: D

   Next question

3. Question 23 · 382 in bank

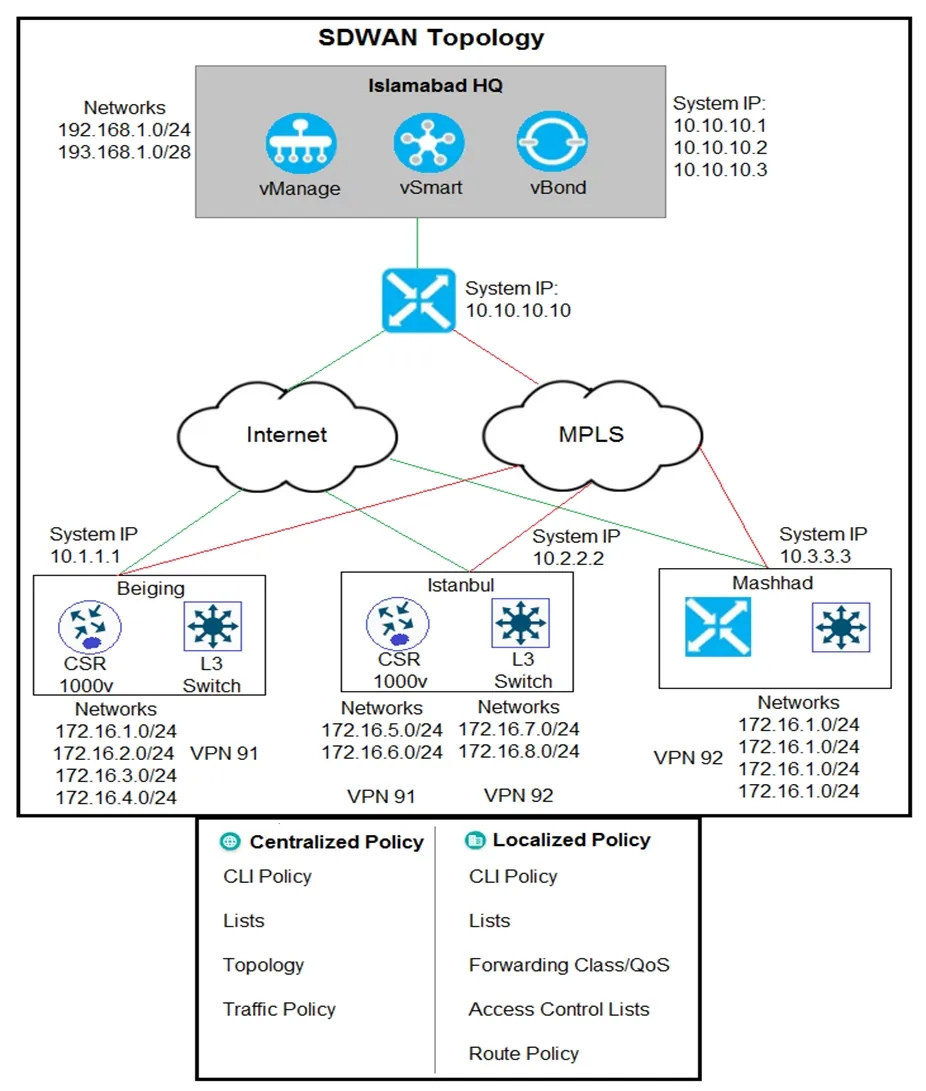

   Refer to the exhibit. The Cisco SD-WAN network is configured with a default full-mesh topology. Islamabad HQ and Islamabad WAN Edges must be used as the hub sites. Hub sites MPLS TLOC must be preferred when forwarding FTP traffic based on a configured SLA class list. Which policy configuration does the network engineer use to call the SLA class and set the preferred color to MPLS?

   • ACentralized Policy, Traffic Policy
   • BCentralized Policy, Topology
   • CLocalized Policy, Forwarding Class
   • DLocalized Policy, Route Policy

   Show answer

   Answer: A

   Explanation

   CONFIGURATION | POLICIES - Centralized Policy> Data Policy This will be AAR to call the SLA list and pin traffic to MPLS color.

   Source: Adapted from community discussion — khanda

   References

   • Cisco documentation

   Next question

4. Question 24 · 382 in bank



   Refer to the exhibit. Which command allows traffic through the IPsec tunnel configured in VPN 0?

   • Aservice netsvc1 vpn1
   • Bservice netsvc1 address 1.1.1.1
   • Cservice FW address 1.1.1.1
   • Dservice local

   Show answer

   Answer: B

   Explanation

   Half the battle is understanding the layout of this question. The question they are asking is "what is the next line in the config after the VPN1 configuration command at the bottom of the snippet" "From-vSmart" means configure this on vSmart. Service insertion requires configs on several devices. A service config needs to go on the edge router to advertise the service. The second config is done on the vSmart controller. Baio's doc is a good reference to learn the order of operation.

   Source: Adapted from community discussion — she_ccie

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

5. Question 25 · 382 in bank



   Refer to the exhibit. Which configuration sets up direct Internet access for VPN 1? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/vEdge-as-NAT-device.html

   Source: Adapted from community discussion — NetArch_Teck

   Next question

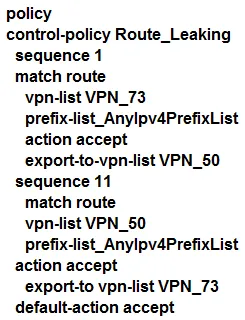

6. Question 26 · 382 in bank

   An enterprise has several sites with multiple VPNs that are isolated from each other. A new requirement came where users in VPN 73 must be able to talk to users in VPN 50. Which configuration meets this requirement? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.ciscolive.com/c/dam/r/ciscolive/latam/docs/2018/pdf/BRKCRS-2186.pdf

   Source: Adapted from community discussion — PureInertiaCopy

   Next question

7. Question 27 · 382 in bank

   An engineer is configuring a data policy for IPv4 prefixes for a single WAN Edge device on a site with multiple WAN Edge devices. How is this policy added using the policy configuration wizard?

   • AIn vBond orchestrator, select the configure --> policies screen, select the localized policy tab, and click add policy.
   • BIn vManage NMS, select the configure --> policies screen, select the localized policy tab, and click add policy.
   • CIn vSmart controller, select the configure --> policies screen, select the localized policy tab, and click add policy.
   • DIn vManage NMS, select the configure --> policies screen, select the centralized policy tab, and click add policy.

   Show answer

   Answer: B

   Next question

8. Question 28 · 382 in bank

   In a customer retail network with multiple data centers, what does the network administrator use to create a regional hub topology?

   • Aapp route policy on vSmart
   • Bdata policy on vSmart
   • Ccontrol policy on vSmart
   • Dcontrol policy on vManage

   Show answer

   Answer: D

   Explanation

   I think the answer is C. Source (you can also go to the section on control polices and it's all about vSmart too: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/policy-basics-CLIs.html

   Source: Adapted from community discussion — M_Ryu

   References

   • Cisco documentation

   Next question

9. Question 29 · 382 in bank

   Which scheduling method is configured by default for the eight queues in the cloud vEdge router?

   • Aweighted round robin
   • Bpriority queue
   • Clow latency queue
   • Dweighted random early detection

   Show answer

   Answer: A

   Explanation

   Reference: https://sdwan-docs.cisco.com/Product_Documentation/Software_Features/Release_18.1/06Policy_Basics/05Localized_Data_Policy/ Configuring_Localized_Data_Policy_for_IPv4

   Source: Adapted from community discussion — kentkyye

   References

   • Cisco documentation

   Next question

10. Question 30 · 382 in bank

    In an AWS cloud, which feature provisions WAN Edge routers automatically in Cisco SD-WAN?

    • ACloud OnRamp
    • BCloud app
    • CvAnalytics
    • DNetwork Designer

    Show answer

    Answer: A

    References

    • Cisco documentation

    Next question
