350-401 practice questions 771–780

1. Question 771 · 1003 in bank

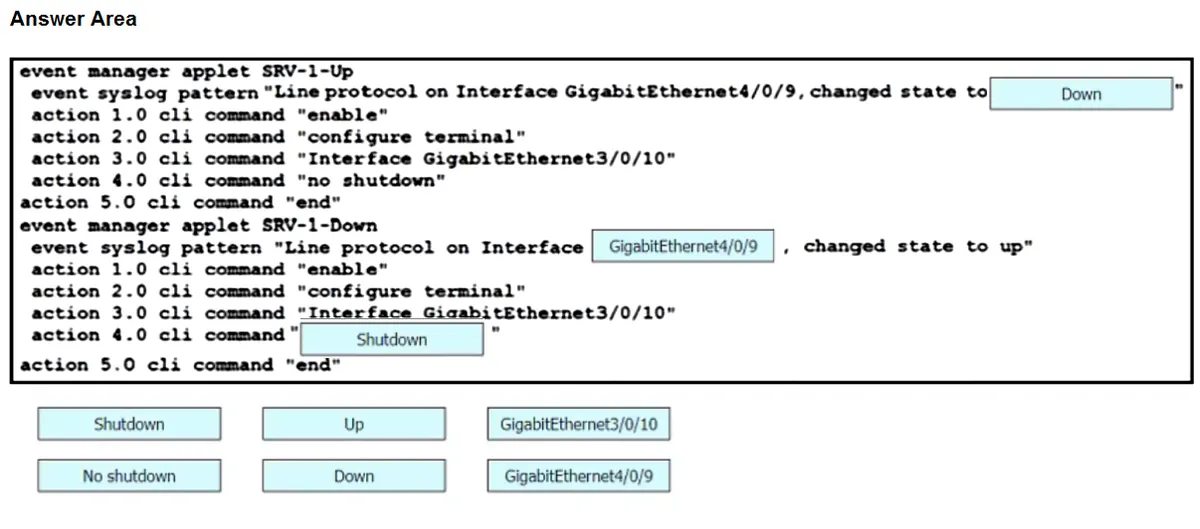

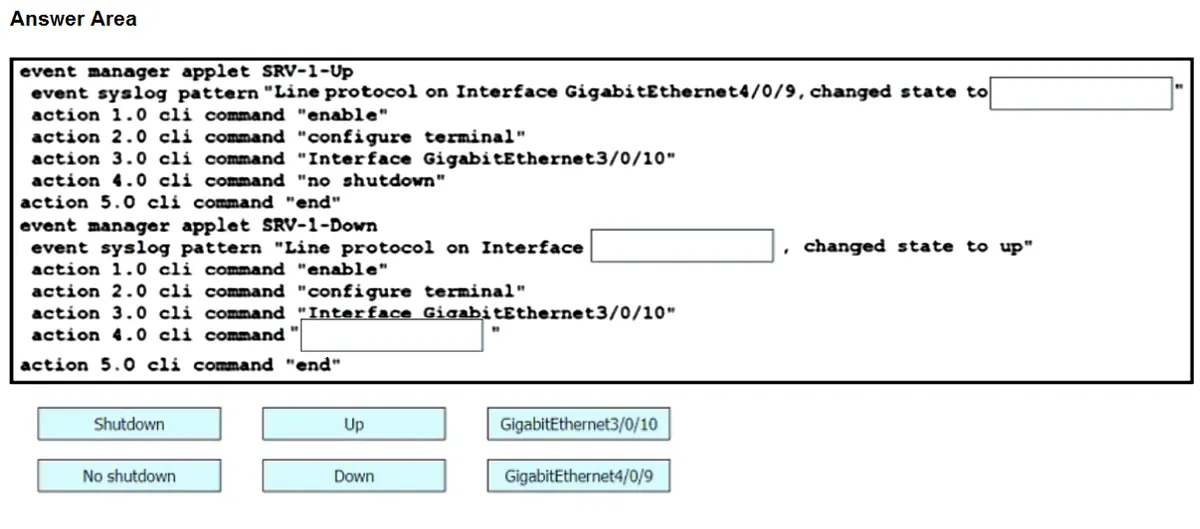

   DRAG DROP - Drag and drop the snippets onto the blanks within the code to construct a script that brings up the failover Ethernet port if the primary port goes down and also shuts down the failover port when the primary returns to service. Not all options are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

2. Question 772 · 1003 in bank

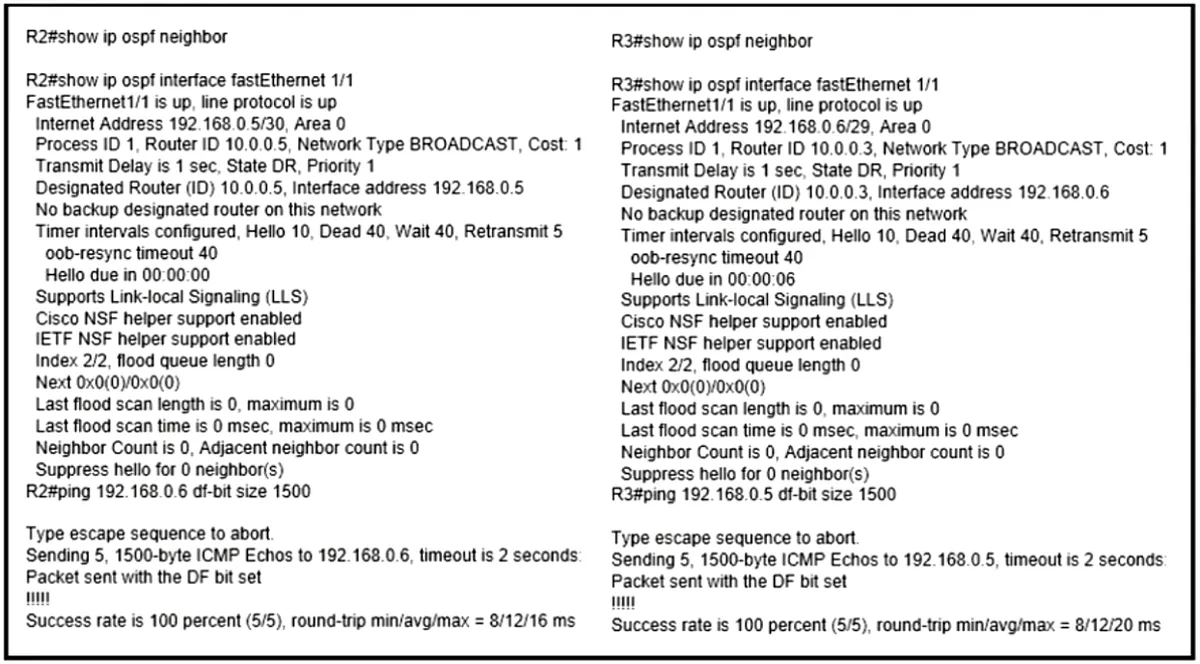

   Refer to the exhibit. Why does the OSPF neighborship fail between the two interfaces?

   • AThe MTU is not the same.
   • BThe OSPF timers are different.
   • CThere is a mismatch in the OSPF interface network type.
   • DThe IP subnet mask is not the same.

   Show answer

   Answer: D

   Explanation

   Yes D indeed, but be aware that the subnet mask is checked by OSPF only if a broadcast network type is being used, such as Ethernet. If it is a point to point connection, then no such check will take place.

   Source: Adapted from community discussion — slacker_at_work

   Next question

3. Question 773 · 1003 in bank

   Which technology enables a redundant supervisor engine to take over when the primary supervisor engine fails?

   • ASSO
   • BFHRP
   • Cgraceful restart
   • DNSF

   Show answer

   Answer: A

   Explanation

   SSO is the base technology that has this capability at L-2. NSF sits on top of SSO to extend the same capability to L-3.

   Source: Adapted from community discussion — JackDRipper

   References

   • cisco.com documentation

   Next question

4. Question 774 · 1003 in bank

   A customer requires their wireless data traffic to egress at the switch port of the access point. Which access point mode supports this?

   • AFlexConnect
   • BSniffer
   • CBridge
   • DMonitor

   Show answer

   Answer: A

   Explanation

   https://study-ccnp.com/cisco-wireless-access-point-ap-modes-explained/ "FlexConnect Mode FlexConnect AP mode enables switching traffic between an SSID and a VLAN locally if the CAPWAP to the WLC is down, even when the AP is at a remote site. It can also be configured to egress at the access point’s LAN port."

   Source: Adapted from community discussion — JackDRipper

   Next question

5. Question 775 · 1003 in bank

   What is a capability of the Cisco DNA Center southbound API?

   • AIt adds support for managing non-Cisco devices from Cisco DNA Center.
   • BIt connects to ITSM services such as ServiceNow.
   • CIt sends webhooks from Cisco DNA Center when alerts are triggered.
   • DIt allows administrators to make API calls to Cisco DNA Center.

   Show answer

   Answer: A

   Explanation

   Answer A is correct. Southbound—Multivendor Support APIs/SDK: The Cisco DNA Center Multivendor SDK allows partners to add support for managing non-Cisco devices directly from Cisco DNA Center. https://blogs.cisco.com/networking/with-apis-cisco-dna-center-can-improve-your-competitive-advantage

   Source: Adapted from community discussion — JackDRipper

   References

   • cisco.com documentation

   Next question

6. Question 776 · 1003 in bank



   Refer to the exhibit. Which command set enables router R2 to be configured via NETCONF?

   • AR1(config)# netconf - R1(config)# ip http secure-server
   • BR1(config) # username Netconf privilege 15 password example_password R1(config)# netconf-yang - R1(config)# netconf-yang feature candidate-datastore
   • CR1(config)# snmp-server manager - R1(config)# snmp-server community ENCOR rw
   • DR1(config)# snmp-server manager - R1(config)# snmp-server community ENCOR ro

   Show answer

   Answer: B

   Explanation

   No one going to mention that face that the answers are giving a configuration response for "R1" which doesn't even exist in the exhibit??

   Source: Adapted from community discussion — PureInertiaCopy

   References

   • cisco.com documentation

   Next question

7. Question 777 · 1003 in bank

   In the Cisco DNA Center Image Repository, what is a golden image?

   • AThe latest software image that is available for a specific device type.
   • BThe Cisco recommended software image for a specific device type.
   • CA software image that is compatible with multiple device types.
   • DA software image that meets the compliance requirements of the organization.

   Show answer

   Answer: D

   Explanation

   I don't think It is an image recommended by Cisco.... https://www.cisco.com/c/en/us/td/docs/cloud-systems-management/network-automation-and-management/dna-center/2-1-2/user_guide/b_cisco_dna_center_ug_2_1_2/b_cisco_dna_center_ug_2_1_1_chapter_0100.html#concept_qj4_fzx_f1b Cisco DNA Center allows you to designate software images and SMUs as golden. A golden software image or SMU is a validated image that meets the compliance requirements for the particular device type. So I would say It is something that meet the requirements of an Organization for a specific type of device. My €0,02

   Source: Adapted from community discussion — DavideDL

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

8. Question 778 · 1003 in bank

   Select 2

   What are two benefits of implementing a traditional WAN instead of an SD-WAN solution? (Choose two.)

   • Alower control plane abstraction
   • Bfaster fault detection
   • Csimplified troubleshooting
   • Dcomprehensive configuration standardization
   • Elower data plane overhead

   Show answer

   Answer: AE

   Explanation

   A traditional WAN might have lower control plane abstraction and lower data plane overhead than an SD-WAN solution. Traditional WANs typically have a simpler architecture where the control plane (which is responsible for routing decisions) and the data plane (which carries the user data) are not separated. This results in lower control plane abstraction. Also, since traditional WANs are not overlay networks like SD-WANs, they generally incur less data plane overhead. Overlay networks add extra information (headers) to the original packets, which results in increased overhead and potentially less efficient use of the available bandwidth. It's important to note that while these may be perceived as benefits in certain cases, the trade-offs include less flexibility, more complex configuration and management, and lack of some features like centralized control, easy scalability, and advanced traffic management that are typically found in SD-WAN solutions. By Chat GPT.

   Source: Adapted from community discussion — HarwinderSekhon

   Next question

9. Question 779 · 1003 in bank

   What is a Type 1 hypervisor?

   • Aruns directly on a physical server and depends on a previously installed operating system
   • Bruns directly on a physical server and includes its own operating system
   • Cruns on a virtual server and depends on an already installed operating system
   • Druns on a virtual server and includes its own operating system

   Show answer

   Answer: B

   Next question

10. Question 780 · 1003 in bank

    Which technology uses network traffic telemetry, contextual information, and file reputation to provide insight into cyber threats?

    • Asecurity services
    • Bsecurity intelligence
    • Csegmentation
    • Dthreat defense

    Show answer

    Answer: D

    Explanation

    I'm going for D OCG clearly stated Threat Defense "provides this visibility through network telemetry, file reputation, and contextual information ..." (P. 709)

    Source: Adapted from community discussion — kmb192006

    Next question
