Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
Where in Cisco DNA Center is documentation of each API call organized by its functional area?
Answer: A
A. The Developer Toolkit provides documentation about each API call, organized according to functional areas of the Intent API in Cisco DNA center.
Source: Adapted from community discussion — kebkim

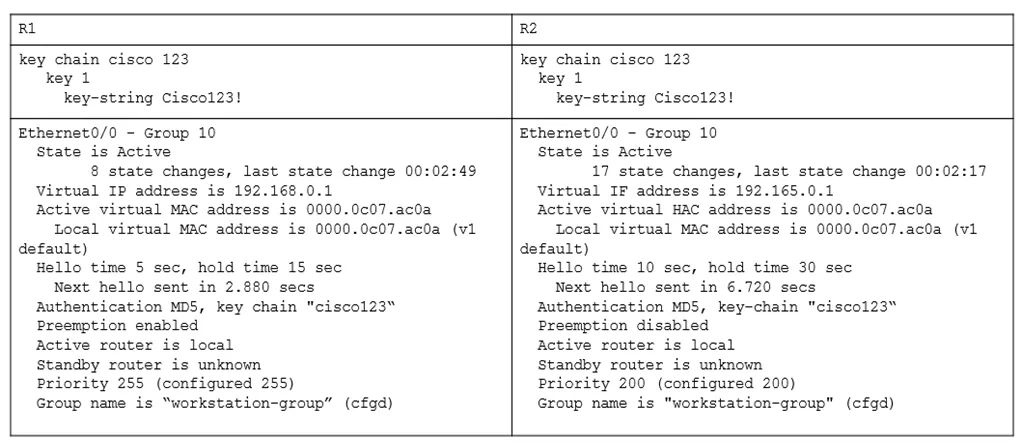

Refer to the exhibit.
An engineer is installing a new pair of routers in a redundant configuration. When checking on the standby status of each router, the engineer notices that the routers are not functioning as expected. Which action will resolve the configuration error?
Answer: D
The most situable for this question is D (configure unique virtual address) as is one of requirements for a group to work, as seeing in the image. The others are wrong for the following reason. (so Wrong based in the question) A) Not mandatory the timers must match to work on HSRP. on HSRP negotiation the active router will override the standby timers. https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9000/nb-06-cat-9k-stack-wp-cte-en.pdf B) On the image key string match so is not this reason HSRP cant be seen each other C) Wrong, priority is for selecing the active router, the best practice is should be different thus (WRONG) D) Different virtual Gateway configured on the same group number indeed will make HSRP routers negotiation fail for that group thus (CORRECT)
Source: Adapted from community discussion — Eddgar0

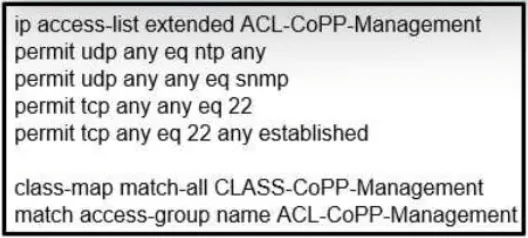

Refer to the exhibit. An engineer must protect the CPU of the router from high rates of NTP, SNMP, and SSH traffic. Which two configurations must be applied to drop these types of traffic when it continuously exceeds 320 kbps? (Choose two.)
Answer: CE
https://www.cisco.com/c/en/us/td/docs/ios/12_2sb/feature/guide/cpp.html exceed-action action: Specifies the action to take on packets that exceed the rate limit violate-action action: Specifies the action to take on packets that continuously exceed the police rate limit. "continuously exceeds" -> Hence, option C,E.
Source: Adapted from community discussion — HungarianDish_111
Which free application has the ability to make REST calls against Cisco DNA Center?
Answer: C
Reference: https://developer.cisco.com/docs/dna-center/#!getting-started
If AP power level is increased from 25 mW to 100 mW, what is the power difference in dBm?
Answer: A
or the easiest calculation is using the laws of 3s covered in the book. A value of 3dB means that the power value of interest is double the reference value.
Source: Adapted from community discussion — FrameRelay
What is the result when an active route processor fails in a design that combines NSF with SSO?
Answer: D
D Cisco Nonstop Forwarding does not maintain a continuously active control plane during switchover. Instead, the forwarding plane uses known routes while the routing protocol information is being restored after switchover https://www.cisco.com/en/US/technologies/tk869/tk769/technologies_white_paper0900aecd801dc5e2.html
Source: Adapted from community discussion — MJane

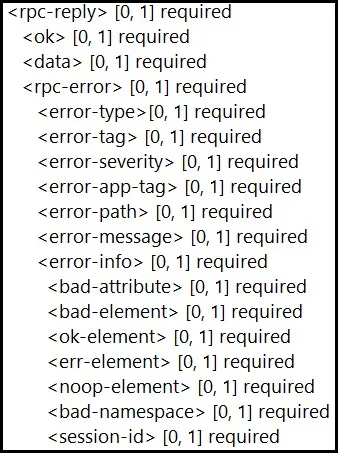

Refer to the exhibit. Which command is required to verify NETCONF capability reply messages?
Answer: C
C. cisco#show netconf schema | section rpc-reply [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required [0, 1] required cisco#
Source: Adapted from community discussion — nushadu

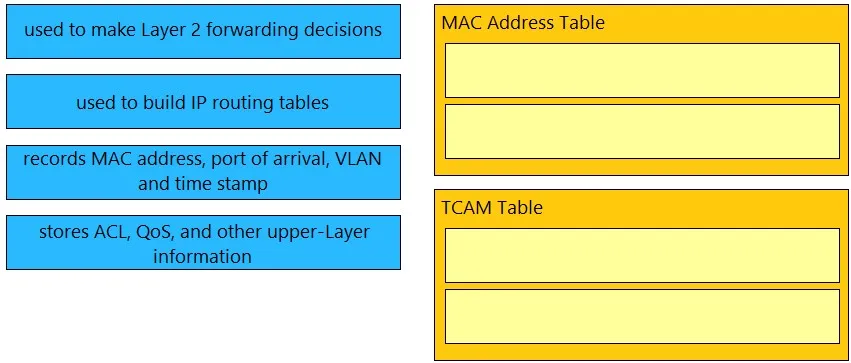

DRAG DROP - Drag and drop the characteristics from the left to the table types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

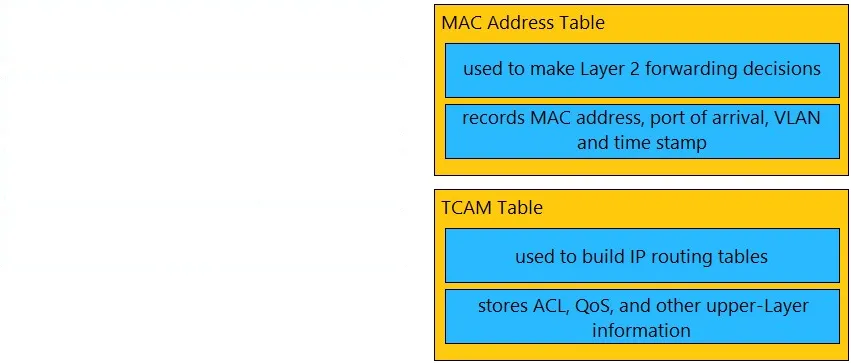

Answer: See figure below
Which A record type should be configured for access points to resolve the IP address of @ wireless LAN controller using ONS?
Answer: D
Yes but remember. These questions were ripped from the real exams in countries where test centers allow their students to cheat and usually in these countries, English is not their first language.
Source: Adapted from community discussion — mgiuseppe86

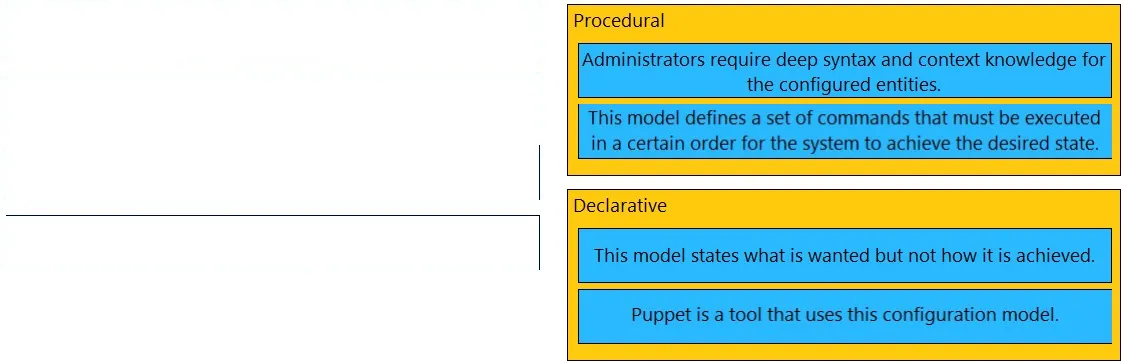

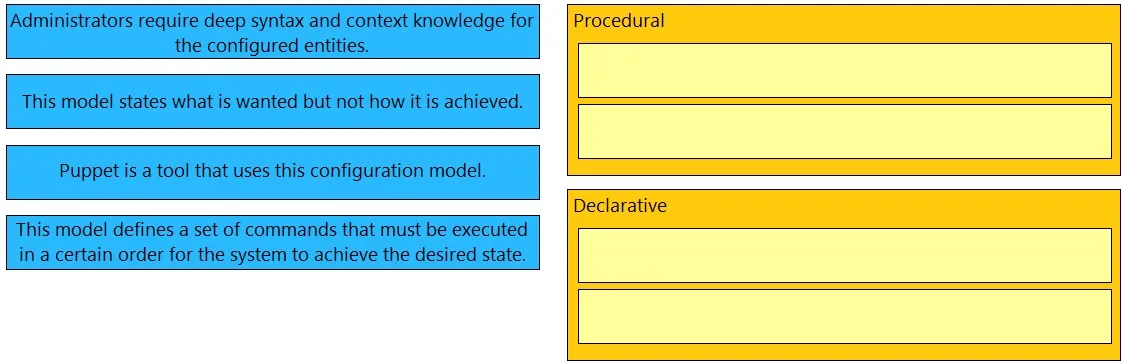

DRAG DROP - Drag and drop the characteristics from the left onto the configuration models on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
All you need to do is understand English to know Declarative without context assumes you declare what you want and Precedural means you follow a precedure............
Source: Adapted from community discussion — mgiuseppe86
