Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
How is 802.11 traffic handled in a fabric-enabled SSID?
Answer: B
https://www.cisco.com/c/dam/en/us/td/docs/cloud-systems-management/network-automation-and-management/dna-center/deploy-guide/cisco-dna-center-sd-access-wl-dg.pdf • For a fabric-enabled SSID, the AP converts 802.11 traffic to 802.3 and encapsulates it into VXLAN, encoding the VNI and SGT information of the client
Source: Adapted from community discussion — AlbertoStu
A customer has a wireless network deployed within a multi-tenant building. The network provides client access, location-based services and is monitored using Cisco DNA Center. The security department wants to locate and track malicious devices based on threat signatures. Which feature is required for this solution?
Answer: D
The answer is D. As the aWIPS functionality is integrated into Cisco DNA Center, the aWIPS can configure and monitor WIPS policies and alarms and report threats. Reference: https://www.cisco.com/c/en/us/td/docs/cloud-systems-management/network-automation-and-management/dna-center-rogue-management-application/2-1-2/quick-start-guide/b_rogue_management_qsg_2_1_2/b_rogue_management_qsg_1_4_chapter_00.html
Source: Adapted from community discussion — Caledonia
In a Cisco SD-Access wireless environment, which device is responsible for hosting the anycast gateway?
Answer: D
Given answer is correct. See below: "...... Inter-VLAN traffic is attracted to the edge node because the AnyCast gateway for the end hosts resides there." Here is the link: https://www.cisco.com/c/en/us/td/docs/solutions/CVD/Campus/cisco-sda-design-guide.html
Source: Adapted from community discussion — Deu_Inder

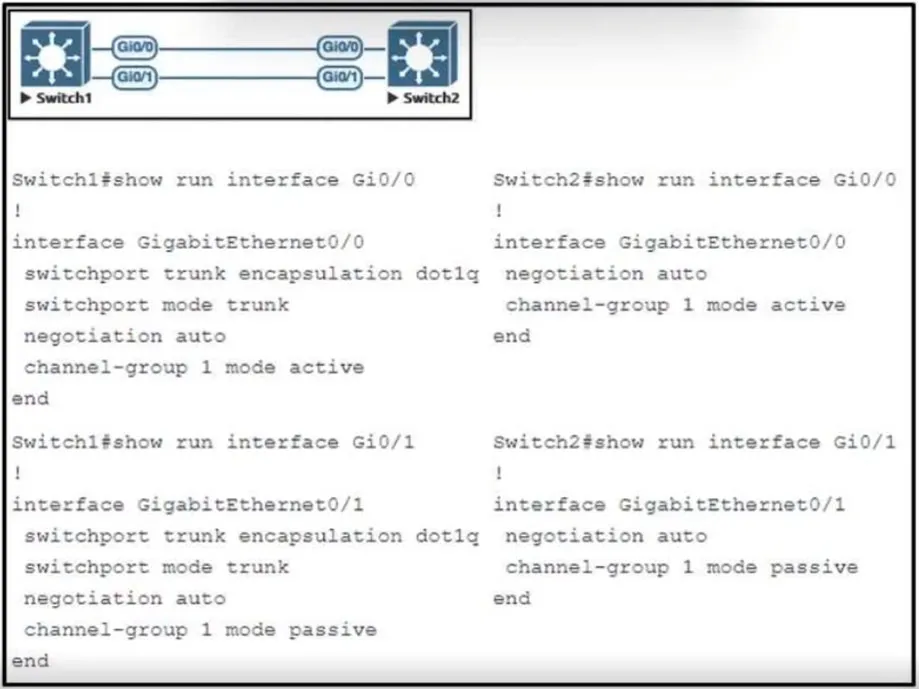

Refer to the exhibit. The port channel between the switches does not work as expected. Which action resolves the issue?
Answer: D
I believe the given answer is correct after running this through a lab. SW2 in "auto" mode picks up on the fact that it's connections to SW1 are trunks and appears to form trunk based on negotiation as per the output below. Port Mode Encapsulation Status Native vlan Po1 auto n-802.1q trunking 1 The port channel does actually come up but with only one member, Gi0/0 on each side. Setting the port channel mode on SW2-Gi0/1 to active (LACP), the port is bundled into the port channel and everything works as expected. Therefore, I believe the answer to be D.
Source: Adapted from community discussion — AndreasThornus

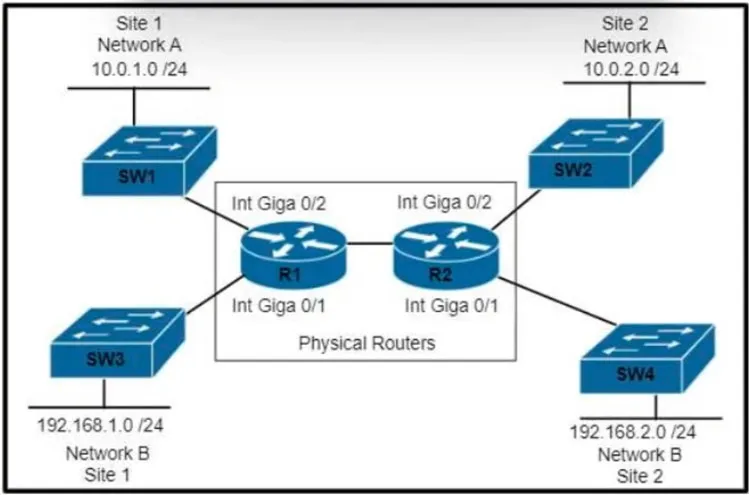

Refer to the exhibit. Which set of commands is required to configure and verify the VRF for Site 1 Network A on router R1?
Answer: C
C A. R1#ip routing R1#(config)#ip vrf 100 R1#(config-vrf)#rd 100:1 R1#(config-vrf)# address family ipv4 R1(config)#interface Gi0/2 R1(config-if)#ip address 10.0.1.1 255.255.255.0 R1#show ip route B. R1#ip routing R1#(config)#ip vrf 100 R1(config)#interface Gi0/2 R1(config-if)#ip address 10.0.1.1 255.255.255.0 R1#showip route C. R1#ip routing R1#(config)#ip vrf 100 R1(config)#interface Gi0/2 R1(config-if)#ip vrf forwarding 100 R1(config-if)#ip address 10.0.1.1 255.255.255.0 R1#show ip vrf D. R1#ip routing R1#(config)#ip vrf 100 R1(config)#interface Gi0/2 R1(config-if)#ip address 10.0.1.1 255.255.255.0 R1#show ip vrf
Source: Adapted from community discussion — Manicardi
How does Protocol Independent Multicast function?
Answer: C
Although PIM is called a multicast routing protocol, it actually uses the unicast routing table to perform the reverse path forwarding (RPF) check function instead of building up a completely independent multicast routing table. Unlike other routing protocols, PIM does not send and receive routing updates between routers
Source: Adapted from community discussion — rafaelinho88
Which VXLAN component is used to encapsulate and decapsulate Ethernet frames?
Answer: C

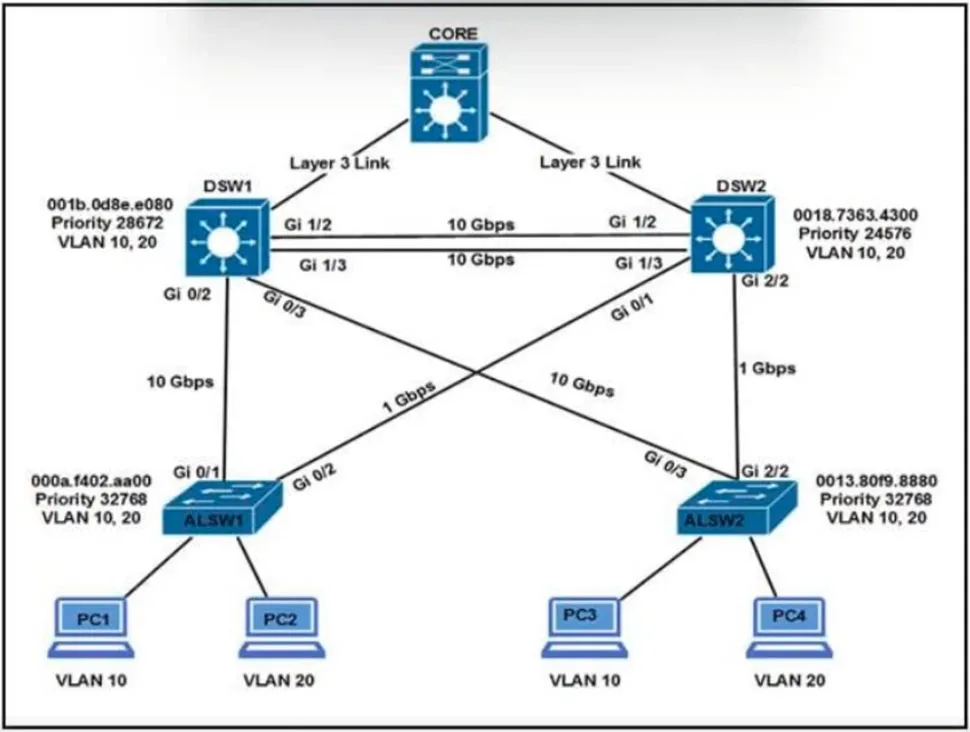

Refer to the exhibit. Assuming all links are functional, which path does PC1 take to reach DSW1?
Answer: C
Path cost from ALSW1 to root bridge(DSW2) via DSW1 is 2 + 2 = cost of 4. ( 10gbps+10Gbps) Path cost from ALSW1 to root bridge(DSW2) is 4 = cost of 4. ( 1Gbps) Therefore the patch cost equal and DSW2 is root bridge Therefore it will via Gi0/2. Answer is C. IF let say the question change the ALSW1 to DSW2 Gi0/2 interface to 100Mbps (cost=19) , the answer will be different. ALSW1 to DSW2 will be blocked. Answer will be D.
Source: Adapted from community discussion — tckoon
By default, which virtual MAC address does HSRP group 22 use?
Answer: B
do the math its always -6 so if you get the HSRP for group 22 then you do (22-6=16). another whats for group 16 then you do (16-6=10). just remember for this question do the -6
Source: Adapted from community discussion — ZanaRock23
Refer to the exhibit. Both controllers are in the same mobility group. Which result occurs when client 1 roams between APs that are registered to different controllers in the same WLAN?
Answer: A
A is correct, if this is Intercontroller Layer 2 Roaming (the client database entry is moved to the new controller). https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/config-guide/b_cg85/overview.html
Source: Adapted from community discussion — Cer_Pit
