350-401 practice questions 491–500

1. Question 491 · 1003 in bank

   A server running Linux is providing support for virtual machines along with DNS and DHCP services for a small business. Which technology does this represent?

   • Acontainer
   • BType 1 hypervisor
   • CType 2 hypervisor
   • Dhardware pass-thru

   Show answer

   Answer: C

   Explanation

   This question is really stupid and so is the discussion about type 1 and 2 hypervisors. ESX runs on linux just as much as... linux running kvm Stupid ambiguous question. But if I were to guess, I would say the answer is C because whoever wrote it doesn't consider anything except vmware a type 1 hypervisor. But who knows what that person was thinking.

   Source: Adapted from community discussion — CBlu

   Next question

2. Question 492 · 1003 in bank

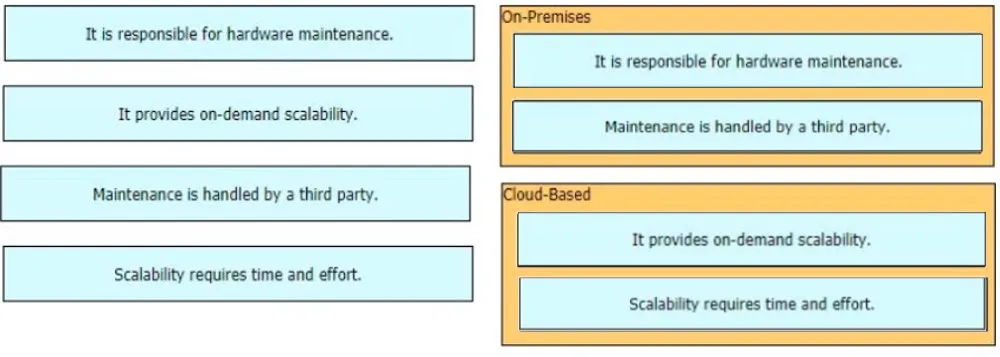

   DRAG DROP - Drag and drop the characteristics from the left onto the deployment types on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Here's my answer: ON PREMISE: Q501. - Scalability requires time and effort - It is responsible for hardware maintenance CLOUD ENVIRONMENT: Q501. - It provides on-demand scalability - Maintenance is handled by a third party

   Source: Adapted from community discussion — PureInertiaCopy



   Next question

3. Question 493 · 1003 in bank

   DRAG DROP - Drag and drop the characteristics from the left onto the routing protocols they describe on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Rember boys and girls.. when reading an EIGRP question, any positive-sounding description is automatically EIGRP. "Quickly computes new paths?" - MUST BE EIGRP! "Can load-balance unequal cost LB?" - MUST BE EIGRP! Only CISCO DESIGNS THE BEST PROTOCOLS

   Source: Adapted from community discussion — mgiuseppe86



   Next question

4. Question 494 · 1003 in bank

   Which features does Cisco EDR use to provide threat detection and response protection?

   • Acontainment, threat intelligence, and machine learning
   • Bfirewalling and intrusion prevention
   • Ccontainer-based agents
   • Dcloud analysis and endpoint firewall controls

   Show answer

   Answer: A

   Explanation

   Zero mention of this in OCG. I'm beginning to think that 25%-50% of these questions aren't covered in the official materials.

   Source: Adapted from community discussion — examtopicsacct

   References

   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 495 · 1003 in bank

   An engineer is configuring Local WebAuth on a Cisco Wireless LAN Controller. According to RFC 5737, which virtual IP address must be used in this configuration?

   • A172.20.10.1
   • B192.168.0.1
   • C1.1.1.1
   • D192.0.2.1

   Show answer

   Answer: D

   Explanation

   RFC 5737 specifies the use of the following blocks of IP addresses for documentation purposes: 192.0.2.0/24 (TEST-NET-1) 198.51.100.0/24 (TEST-NET-2) 203.0.113.0/24 (TEST-NET-3) These addresses are reserved for use in documentation and sample configurations and are not routable on the public Internet. The address 192.0.2.1 falls within the 192.0.2.0/24 range and is intended for such purposes, making it the correct choice for configuring Local WebAuth on a Cisco Wireless LAN Controller in this context.

   Source: Adapted from community discussion — Shri_Fcb10

   References

   • Cisco documentation

   Next question

6. Question 496 · 1003 in bank



   Refer to the exhibit. The OSPF neighborship fails between two routers. What is the cause of this issue?

   • AThe OSPF process is stopped on the neighbor router.
   • BThe OSPF router ID is missing on this router.
   • CThe OSPF router ID is missing on the neighbor router.
   • DThere is an MTU mismatch between the two routers.

   Show answer

   Answer: D

   Explanation

   cisco_R2(config-subif)#do debug ip osp adj OSPF adjacency debugging is on cisco_R2(config-subif)#ip mtu 1111 <<<<<<<<<<<<<<<< cisco_R2(config-subif)# cisco_R2(config-subif)# cisco_R2(config-subif)#do clear ip ospf !!!debug shows this: cisco_R2(config-subif)# *Dec 23 13:02:27.164: OSPF-1 ADJ Et0/0.10: Rcv DBD from 6.6.6.6 seq 0x19FD opt 0x52 flag 0x7 len 32 mtu 1500 state EXSTART <<<<<<<<<<<<< *Dec 23 13:02:27.164: OSPF-1 ADJ Et0/0.10: Nbr 6.6.6.6 has larger interface MTU <<<<<<<<< *Dec 23 13:02:27.164: OSPF-1 ADJ Et0/0.10: Rcv DBD from 6.6.6.6 seq 0x26B opt 0x52 flag 0x2 len 112 mtu 1500 state EXSTART *Dec 23 13:02:27.164: OSPF-1 ADJ Et0/0.10: Nbr 6.6.6.6 has larger interface MTU *Dec 23 13:02:27.395: OSPF-1 ADJ Et0/0.10: Rcv DBD from 6.6.6.6 seq 0x26B opt 0x52 flag 0x2 len 112 mtu 1500 state EXSTART

   Source: Adapted from community discussion — nushadu

   Next question

7. Question 497 · 1003 in bank

   What is one benefit of adopting a data modeling language?

   • Aaugmenting the use of management protocols like SNMP for status subscriptions
   • Brefactoring vendor and platform specific configurations with widely compatible configurations
   • Caugmenting management process using vendor centric actions around models
   • Ddeploying machine-friendly codes to manage a high number of devices

   Show answer

   Answer: B

   Explanation

   I did not find any documents which would clearly exclude answer D, still, I am going for B. Consistency and standardization seem to be the main advantage of data models, which is more in line with answer B (vendor/platform independent). https://www.cisco.com/c/en/us/td/docs/iosxr/ncs5xx/programability/63x/b-programmability-cg-63x-ncs5xx/cg_63_data_models_scope_need_and_benefits.pdf "Data models can be used to automate configuration tasks across heterogeneous devices in a network." https://developer.cisco.com/docs/ios-xe/#!model-based-management-introduction/data-models Open Models are supported for IOS-XE. "Open models are models designed to be independent of the underlying platform implementation." https://www.cisco.com/c/en/us/td/docs/iosxr/ncs5xx/programability/63x/b-programmability-cg-63x-ncs5xx/cg_63_data_models_scope_need_and_benefits.pdf Although this document reads "automating the configuration using data models results in scalability." Scalability seems to be linked rather to hierarchical network design.

   Source: Adapted from community discussion — HungarianDish_111

   References

   • Cisco documentation
   • cisco.com documentation

   Next question

8. Question 498 · 1003 in bank

   In Cisco DNA Center what is the integration API?

   • Asouthbound consumer-facing RESTful API, which enables network discovery and configuration management
   • Bwestbound interface, which allows the exchange of data to be used by ITSM, IPAM and reporting
   • Can interface between the controller and the network devices, which enables network discovery and configuration management
   • Dnorthbound consumer-facing RESTful API which enables network discovery and configuration management

   Show answer

   Answer: B

   Explanation

   Westbound—Integration APIs The westbound APIs provide the capability to publish the network data, events and notifications to the external systems and consume information in Cisco DNA Center from the connected systems.

   Source: Adapted from community discussion — kebkim

   References

   • cisco.com documentation

   Next question

9. Question 499 · 1003 in bank

   An engineer must configure a new WLAN that allows a user to enter a passphrase and provides forward secrecy as a security measure. Which Layer 2 WLAN configuration is required on the Cisco WLC?

   • AWPA3 Enterprise
   • BWPA2 Personal
   • CWPA2 Enterprise
   • DWPA3 Personal

   Show answer

   Answer: D

   Explanation

   D is correct WPA3-Personal provides the following key advantages: • Creates a shared secret that is different for each SAE authentication. • Protects against brute force “dictionary” attacks and passive attacks. • Provides forward secrecy. <--- Reference: https://www.cisco.com/c/en/us/products/collateral/wireless/catalyst-9100ax-access-points/wpa3-dep-guide-og.pdf WPA3 Personal provides forward secrecy. Reference: https://blogs.cisco.com/networking/wpa3-bringing-robust-security-for-wi-fi-networks

   Source: Adapted from community discussion — Cer_Pit

   References

   • Cisco documentation
   • cisco.com documentation

   Next question

10. Question 500 · 1003 in bank

    In Cisco SD-WAN, which protocol is used to measure link quality?

    • AIPsec
    • BOMP
    • CRSVP
    • DBFD

    Show answer

    Answer: D

    Explanation

    The BFD (Bidirectional Forwarding Detection) is a protocol that detects link failures as part of the Cisco SD-WAN (Viptela) high availability solution, is enabled by default on all vEdge routers, and you cannot disable it.

    Source: Adapted from community discussion — error_909

    References

    • Cisco documentation
    • cisco.com documentation

    Next question
