350-801 practice questions 131–140

1. Question 131 · 450 in bank

   What does average rate limiting allow?

   • Atraffic to burst to the Be size when there is available bandwidth
   • Bmore traffic than the CIR to be sent when there is available bandwidth
   • Ctransmits traffic bursts up to the Bc size
   • Dbandwidth up to the Be size

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_plcshp/configuration/15-mt/qos-plcshp-15-mt-book/qos-plcshp-oview.html

   Source: Adapted from community discussion — H31d1

   References

   • Cisco documentation

   Next question

2. Question 132 · 450 in bank

   Where is the default Interregion Maximum Session Bit Rate for a region configured?

   • AService Parameter Configuration
   • BEnterprise Phone Configuration
   • CEnterprise Parameters Configuration
   • DRegion Configuration

   Show answer

   Answer: A

   Next question

3. Question 133 · 450 in bank

   How does traffic policing respond to violations?

   • AExcess traffic is queued.
   • BAll traffic is treated equally.
   • CExcess traffic is dropped.
   • DExcess traffic is retransmitted.

   Show answer

   Answer: C

   Explanation

   Reference: https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-policing/19645-policevsshape.html

   References

   • Cisco documentation

   Next question

4. Question 134 · 450 in bank

   Select 2

   What are two characteristics of priority queuing? (Choose two.)

   • AIt allocates an equal share of bandwidth to each flow.
   • BIt applies strict priority to user-defined traffic classes.
   • CIt ensures that critical traffic queues are serviced first.
   • DIt guarantees bandwidth for user-defined traffic classes.
   • EIt places traffic into one of four queues.

   Show answer

   Answer: CE

   References

   • Cisco documentation

   Next question

5. Question 135 · 450 in bank

   Which IP precedence value maps to DSCP EF?

   • A0
   • B1
   • C3
   • D5

   Show answer

   Answer: D

   Explanation

   Reference: https://www.ccexpert.us/root-bridge/layer-3-qos-classification-with-dscp.html#:~:text=*IP%20precedence%20value%205%20(DSCP,is%20given% 20the%20EF%20designation .

   Source: Adapted from community discussion — papahawaii

   References

   • Cisco documentation

   Next question

6. Question 136 · 450 in bank

   Which approach is taken to implement CAC within Cisco UCM in full-mesh topology?

   • Aphysical location
   • BAudio Codec Preference List
   • CRSVP-enabled locations
   • Ddevice pool

   Show answer

   Answer: C

   References

   • Cisco documentation

   Next question

7. Question 137 · 450 in bank

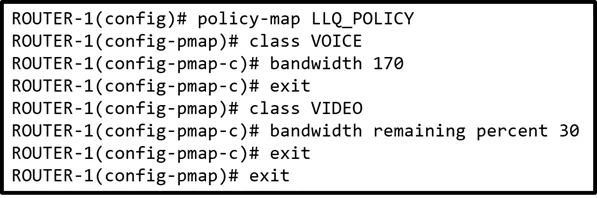

   Refer to the exhibit.



   An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic. Which change must the engineer make in the configuration?

   • Abandwidth 170 to percent 170
   • Bbandwidth 170 to reserve 170
   • Cbandwidth 170 to priority 170
   • Dbandwidth 170 to LLQ 170

   Show answer

   Answer: C

   Explanation

   From Cisco book : LLQ provides strict priority queueing for CBWFQ, reducing jitter in voice conversations in other queues are dequeued. Configured by the priority command, LLQ enables use of a single, strict priority queue within CBWFQ at the class level, allowing you to direct traffic belonging to a class to the CBWFQ strict priority queue.

   Source: Adapted from community discussion — Panda_man

   References

   • Cisco documentation

   Next question

8. Question 138 · 450 in bank

   Which characteristic of distributed class-based weighted fair queueing addresses jitter prevention?

   • AIt provides additional granularity by allowing a user to create classes.
   • BIt uses a priority queue for voice traffic to avoid jitter.
   • CIt minimizes jitter by implementing a priority queue for voice traffic.
   • DIt provides additional granularity by allowing a user to define custom classes.

   Show answer

   Answer: C

   References

   • Cisco documentation
   • Cisco documentation

   Next question

9. Question 139 · 450 in bank

   An administrator with ID123456789 is receiving complaints of pixilation, smearing, and pulsing of video calls between two offices that are connected by a WAN. Assuming that QoS is implemented on the WAN connection, which classification is used to mark the video traffic, according to the Cisco QoS baseline?

   • AAF41
   • BCS3
   • CEF
   • DAF31

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-video/212134-Video-Quality-of-Service-QOS-Tutorial.html

   References

   • Cisco documentation

   Next question

10. Question 140 · 450 in bank

    What are the last two bits of a DS field in DiffServe Byte used for?

    • AAFxy
    • BECN
    • CINC
    • DRMI

    Show answer

    Answer: B

    References

    • Cisco documentation

    Next question
