Implementing Cisco Advanced Call Control and Mobility Services (CLASSP)211 questions across 22 pages are complete and free, with no account or card.
211 questions in this bank
Free access · progress saved on this device
An administrator is configuring a SIP trunk to an ITSP. The SIP connection will traverse from a Cisco UCM to the ISTP through a Cisco Unified Border Element. The ITSP has indicated that they require an in-band method for DTMF. Which command on the outbound dial-peer to the ITSP will meet this requirement?
Answer: D
A new solution is configured to support internal, local, and international calling. Calling [+44 1111 1111] from one of the registered internal phones does not work. Local and internal calls seem to work without any problems. The configuration has patterns configured to match the failing dialed number [+44 …. ….]. The other configured patterns show [2…] for internal numbers and [555 …] for local numbers. International numbers use E.164 as recommended. What is missing to make this solution work?
Answer: C
A customer must advertise some numbers through GDPR on Call Manager. The Cisco UCM already is advertising some URIs to other clusters with GDPR, but the customer wants to ensure that specific numbers are advertised. Where under the Cisco UCM Admin page > Call Routing > Global Dial Plan Replication must that set of numbers be configured?
Answer: B
A new Cisco UCM deployment is configured, and now the customer requires a set of 10 DNSs to park the calls starting with 8. The users must use the softkey to park the call. Which configuration must be performed to achieve this requirement?
Answer: B
An administrator troubleshoots call failure in a new deployment and finds that the SIP INVITE messages sent to the service provider contain a diversion header with the user's 4-cigit directory number. These 4-digit directory numbers range from 1000 to 9899. The service provider is rejecting the calls because it requires that the diversion header contain 10 digits. Which command on the Cisco Unified Border Element resolves this issue for all users?
Answer: B
Some users report having issues dialing some external numbers when traveling to other locations within the company. The company has five locations in five cities in one country and has an egress gateway in each location for TEHO. The configuration has no specific entry stating that the roaming users are using the local gateway, but calls are going out. How is a verification of the call routing in such a specific configuration performed to further identify the problem?
Answer: A

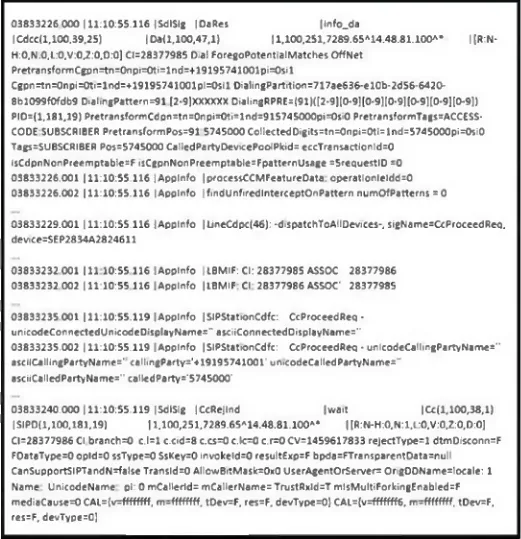

Refer to the exhibit. An administrator configured a new SIP trunk between Cisco UCM and Cisco Unified Border Element. Calls that use this new trunk are failing, and debugs from the Cisco Unified Border Element do not show any signaling received from Cisco UCM. The administrator verified that OPTIONS is enabled on the SIP profile configured on the trunk on Cisco UCM. The route pattern matched for this call is correctly configured to send calls to the Cisco Unified Border Element using this new trunk. What is the cause of this failure?
Answer: C

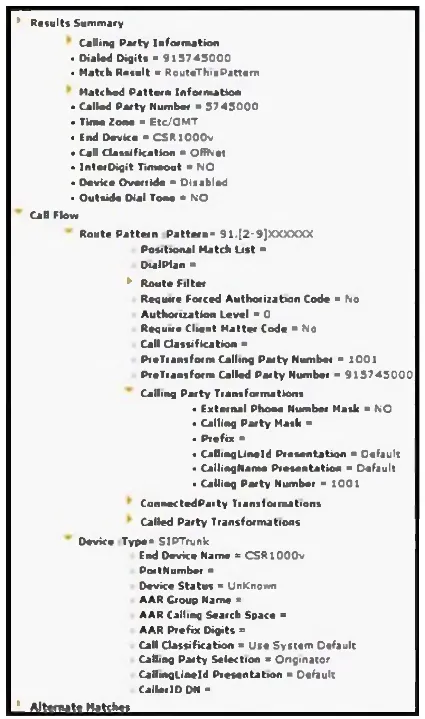

Refer to the exhibit. An administrator troubleshoots an issue where each user's 4-digit directory number is presented as the calling number when dialing out to the PSTN. This 4-digit calling number prevents the external user from calling the internal user back. Which two actions must the administrator perform to resolve the issue? (Choose two.)
Answer: CE

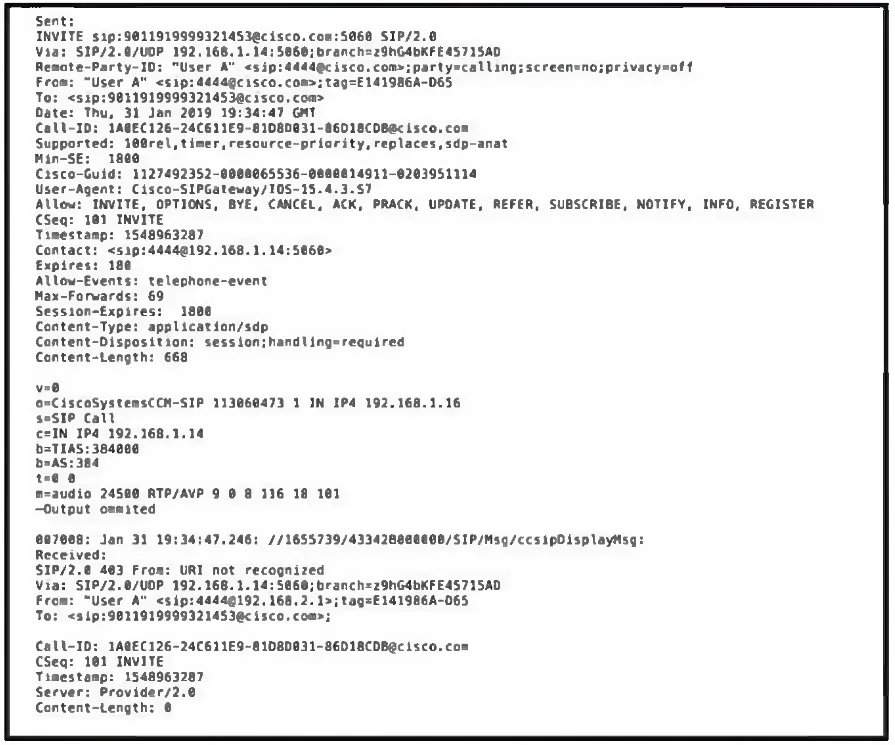

Refer to the exhibit. An administrator is trying to test outbound calls toward the ITSP but cannot complete the call and receives a SIP error. ITSP is consulted, and the issue is that the ANI that is being sent is not the DID provided 8005532447. Which configuration change sends the correct ANI on the INVITE sent to ITSP to fix the error?
Answer: B
An administrator has configured two route patterns, 9.911 and 9.[2-9]XXXXXX. When a user dials 9911. Cisco UCM waits for the T302 timer before routing the call. How will the administrator force interdigit timeout and route the call as soon as the user has finished dialing 9911, without waiting for the T302 timer to expire?
Answer: C
