Cisco Certified Network Associate (CCNA)1,334 questions across 134 pages are complete and free, with no account or card.
1334 questions in this bank
Free access · progress saved on this device
Refer to the graphic. R1 is unable to establish an OSPF neighbor relationship with R3. What are possible reasons for this problem? (Choose two.)
Answer: DF
I like D and E for this. How is F possible if you can clearly see them in the same area according to the graphic? Thoughts anyone?
Source: Adapted from community discussion — xdxp23

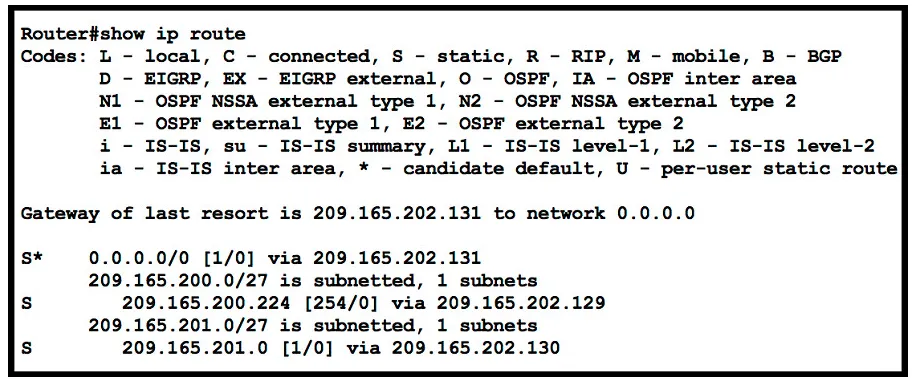

Refer to the exhibit. Which command configures a floating static route to provide a backup to the primary link?
Answer: A
A is correct. You will only see one of 2 routes in the the table cause the floating route will be only in the table when the primary route fails and comes as alternate. The route with 254 AD should be the floating route, and the primary route has problems (not in table). I agree with yasuke, the question should have stated " which command configured the floating static route...."
Source: Adapted from community discussion — ismatdmour

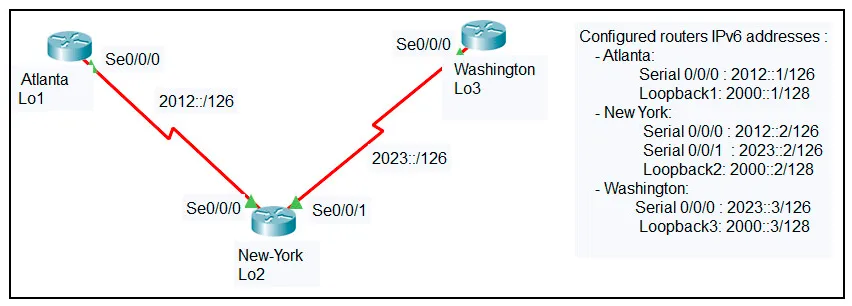

Refer to the exhibit. An engineer configured the New York router with static routes that point to the Atlanta and Washington sites. Which command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?
Answer: A
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_pi/configuration/xe-3s/iri-xe-3s-book/ip6-route-static-xe.html#GUID-85796C3A-3143-4DF7-B9D0- 8EC87D0DB08B
Source: Adapted from community discussion — kokoyul
A wireless administrator has configured a WLAN; however, the clients need access to a less congested 5-GHz network for their voice quality. Which action must be taken to meet the requirement?
Answer: A
Ref: Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide, Cisco IOS XE Gibraltar 16.12.x “C H A P T E R 47 Information About Configuring Band Selection, 802.11 Bands, and Parameters Band Select Band select enables client radios that are capable of dual-band (2.4 and 5-GHz) operations to move to a less congested 5-GHz access point. The 2.4-GHz band is often congested. Clients on this band typically experience interference from Bluetooth devices, microwave ovens, and cordless phones as well as co-channel interference from other access points because of the 802.11b/g limit of 3 nonoverlapping channels. To prevent these sources of interference and improve overall network performance, configure band selection on the device. …” A. enable Band Select Correct answer B. enable DTIM Wrong answer. C. enable RX-SOP Wrong answer. D. enable AAA override Wrong answer.
Source: Adapted from community discussion — [Removed]
What is the effect when loopback interfaces and the configured router ID are absent during the OSPF Process configuration?
Answer: D
actually correct answer is poorly worded. interface could be in state UP/DOWN and still be eligible for being router ID.
Source: Adapted from community discussion — ccna_goat

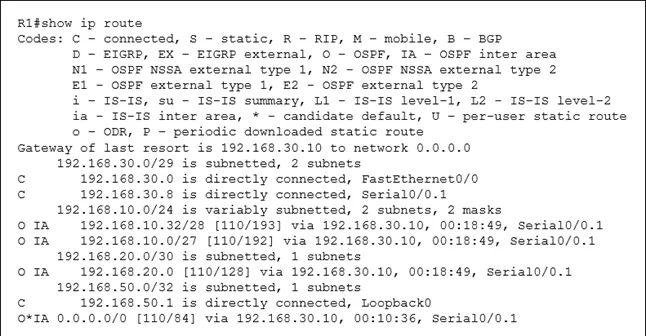

Refer to the exhibit. What is the metric of the route to the 192.168.10.33/28 subnet?
Answer: E
192.168.10.33/28 subnet? Is this another way they try to trick you ? or is this an actual typo ? 192.168.10.33 Is a host IP and not a subnet ID.
Source: Adapted from community discussion — creaguy

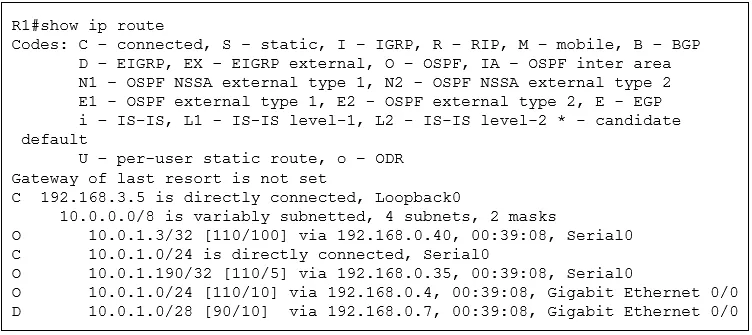

Refer to the exhibit. Traffic sourced from the loopback0 interface is trying to connect via ssh to the host at 10.0.1.15. What is the next hop to the destination address?
Answer: B
Answer A is incorrect. If select 10.0.1.0/28 and subnet mask is 255.255.255.240. Then, host address range will be 10.10.1.1 to 10.10.1.14. Therefore, it coorrect answer should be B.
Source: Adapted from community discussion — dicksonpwc
When the active router in a VRRP group fails, which router assumes the role and forwards packets?
Answer: C
The only answer is Cisco's, because that's their certification. There are several docs that talk about standby or backup. The most important thing is to see the real state in the router configuration. For this, the show command does perfectly the job. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/command/reference/unicast/n5500-ucast-cr/n5k-vrrp_cmds_show.pdf https://community.cisco.com/t5/switching/vrrp-state-is-backup/td-p/2389647 (ps Peter Paluch is a CCIE employee of Cisco, I think if he uses the word backup for VVRP, then the state is backup)
Source: Adapted from community discussion — dorian81
Which action does the router take as it forwards a packet through the network?
Answer: C
Refer to the exhibit. Which two prefixes are included in this routing table entry? (Choose two.)
Answer: AB
192.168.0-63 because /26 = 64 IP addresses per subnet and 4 subnets (256/64), 0-63, 64-127, 128-191, 192-255. A & B are correct.
Source: Adapted from community discussion — DARKK
