200-301 practice questions 651–660

1. Question 651 · 1334 in bank

   Which command must you enter to guarantee that an HSRP router with higher priority becomes the HSRP primary router after it is reloaded?

   • Astandby 10 preempt
   • Bstandby 10 version 1
   • Cstandby 10 priority 150
   • Dstandby 10 version 2

   Show answer

   Answer: A

   Explanation

   Preemption is the technology that ask a HSRP enabled router to be primary every time it comes up even though backup router is acting as Primary currently. if Preemption not enabled, when primary router reloads then backup router becomes primary and doesnot become backup even though primary router comes up.

   Source: Adapted from community discussion — kaus33k

   Next question

2. Question 652 · 1334 in bank

   Which command should you enter to verify the priority of a router in an HSRP group?

   • Ashow hsrp
   • Bshow sessions
   • Cshow interfaces
   • Dshow standby

   Show answer

   Answer: D

   Explanation

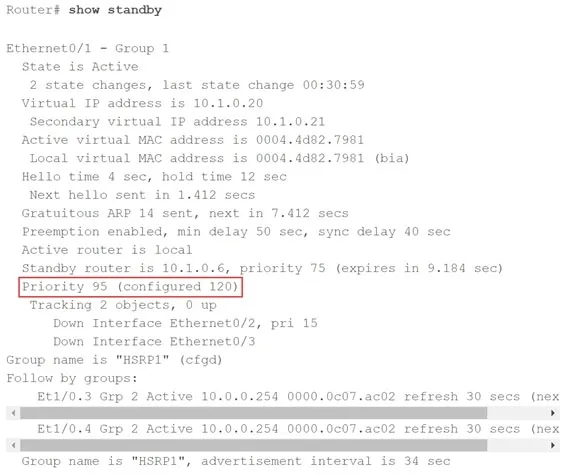

   The following is sample output from the show standby command:

   Source: Adapted from community discussion — [Removed]



   Next question

3. Question 653 · 1334 in bank

   Refer to the exhibit. Which command would you use to configure a static route on Router1 to network 192.168.202.0/24 with a nondefault administrative distance?



   • Arouter1(config)#ip route 192.168.202.0 255.255.255.0 192.168.201.2 1
   • Brouter1(config)#ip route 192.168.202.0 255.255.255.0 192.168.201.2 5
   • Crouter1(config)#ip route 1 192.168.201.1 255.255.255.0 192.168.201.2
   • Drouter1(config)#ip route 5 192.168.202.0 255.255.255.0 192.168.201.2

   Show answer

   Answer: B

   Explanation

   Answer B is correct and not A because question asks for Non default AD therefore we use 5 as AD for static route and not 1 because Default AD for static route is 1

   Source: Adapted from community discussion — cybernett

   Next question

4. Question 654 · 1334 in bank

   Select 2

   Which of the following dynamic routing protocols are Distance Vector routing protocols?

   • AIS-IS
   • BEIGRP
   • COSPF
   • DBGP
   • ERIP

   Show answer

   Answer: BE

   Explanation

   EIGRP is sometimes referred to as a hybrid routing protocol because it has characteristics of both distance-vector and link-state protocols. For example, EIGRP doesn’t send link-state packets as OSPF does; instead, it sends traditional distance-vector updates containing information about networks plus the cost of reaching them from the perspective of the advertising router. And EIGRP has link-state characteristics as well—it synchronizes routing tables between neighbors at startup and then sends specific updates only when topology changes occur. This makes EIGRP suitable for very large networks. EIGRP has a maximum hop count of 255 (the default is set to 100).

   Source: Adapted from community discussion — bigbux

   Next question

5. Question 655 · 1334 in bank

   You have configured a router with an OSPF router ID, but its IP address still reflects the physical interface. Which action can you take to correct the problem in the least disruptive way?

   • AReload the OSPF process
   • BSpecify a loopback address
   • CReboot the router
   • DSave the router configuration

   Show answer

   Answer: A

   Explanation

   Once an OSPF Router ID selection is done, it remains there even if you remove it or configure another OSPF Router ID. So the least disruptive way is to correct it using the command ג€clear ip ospf processג€.

   Source: Adapted from community discussion — jerry19

   Next question

6. Question 656 · 1334 in bank

   Which command should you enter to view the error log in an EIGRP for IPv6 environment?

   • Ashow ipv6 eigrp neighbors
   • Bshow ipv6 eigrp topology
   • Cshow ipv6 eigrp traffic
   • Dshow ipv6 eigrp events

   Show answer

   Answer: D

   Explanation

   These must be questions from the previous CCNA exams before the update to 200-301. Rather than edit them out, admin here decided to just add to the question bank. I'm not sure if that's a good or bad decision...

   Source: Adapted from community discussion — Jackie_Manuas12

   References

   • Cisco documentation

   Next question

7. Question 657 · 1334 in bank

   Refer to the exhibit. Which two statements about the network environment of router R1 must be true? (Choose two.)



   Refer to the exhibit. Router R1 must be configured to reach the 10.0.3.0/24 network from the 10.0.1.0/24 segment. Which command must be used to configure the route?

   • Aroute add 10.0.3.0 0.255.255.255 10.0.4.2
   • Bip route 10.0.3.0 0.255.255.255 10.0.4.2
   • Croute add 10.0.3.0 mask 255.255.255.0 10.0.4.3
   • Dip route 10.0.3.0 255.255.255.0 10.0.4.3

   Show answer

   Answer: D

   Explanation

   Router R1 must be configured to reach the 10.0.3.0/24 network from the 10.0.4.0/24 segment, not 10.0.1.0/24 segment. I think the question should be corrected!

   Source: Adapted from community discussion — AbdullahMohammad251

   Next question

8. Question 658 · 1334 in bank

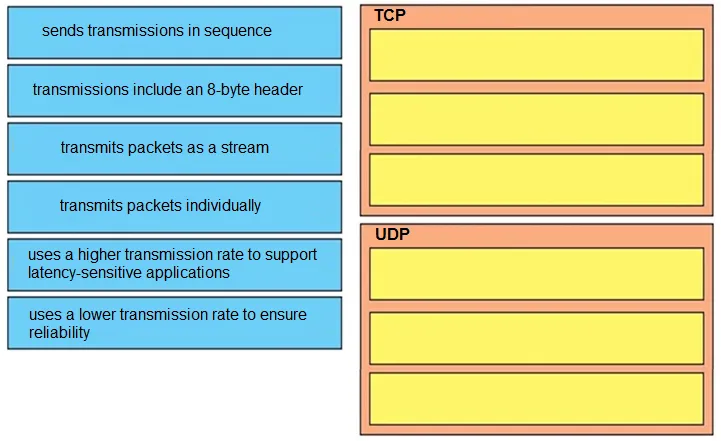

   DRAG DROP - Drag and drop the descriptions of IP protocol transmissions from the left onto the IP traffic types on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

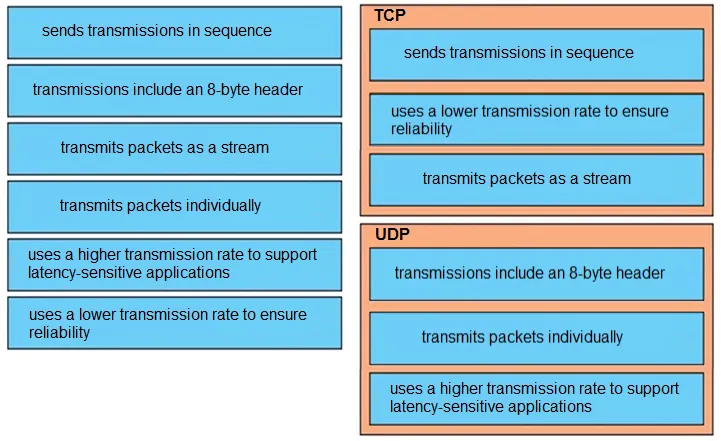

   Answer: See figure below

   Explanation

   "Stream Versus Packet — TCP/IP is a stream-oriented protocol, while UDP is a packet-oriented protocol. This means that TCP/IP is considered to be a long stream of data that is transmitted from one end of the connection to the other end, and another long stream of data flowing in the opposite direction."

   Source: Adapted from community discussion — rlelliott



   Next question

9. Question 659 · 1334 in bank

   Select 2



   • AThe EIGRP administrative distance was manually changed from 90 to 170.
   • BThere are 20 different network masks within the 10.0.0.0/8 network.
   • CTen routes are equally load-balanced between Te0/1/0.100 and Te0/2/0.100.
   • DThe 10.0.0.0/8 network was learned via external EIGRP.
   • EA static default route to 10.85.33.14 was defined.

   Show answer

   Answer: BC

   Explanation

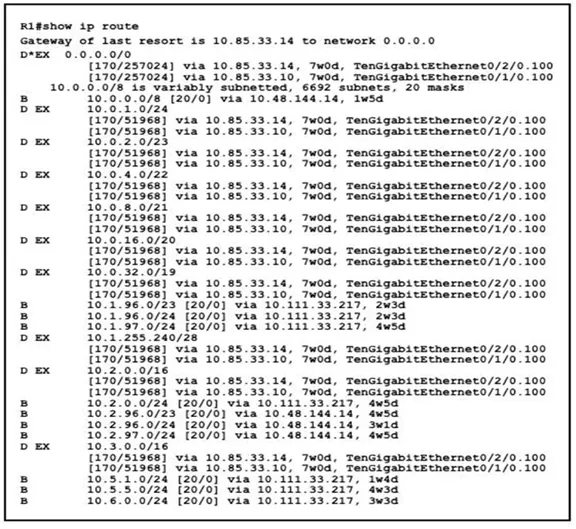

   Question: Refer to the exhibit. Which two statements about the network environment of router R1 must be true? (Choose two.)

   Source: Adapted from community discussion — andresfjardim

   Next question

10. Question 660 · 1334 in bank

    Select 2

    Which two statements about exterior routing protocols are true? (Choose two.)

    • AThey determine the optimal within an autonomous system.
    • BThey determine the optimal path between autonomous systems.
    • CBGP is the current standard exterior routing protocol.
    • DMost modern networking supports both EGP and BGP for external routing.
    • EMost modern network routers support both EGP and EIGRP for external routing.

    Show answer

    Answer: BC

    Explanation

    Exterior Gateway Protocols (EGP): Used for routing between autonomous systems. It is also referred to as inter-AS routing. Service providers and large companies may interconnect using an EGP. The Border Gateway Protocol (BGP) is the only currently viable EGP and is the official routing protocol used by the Internet. NOTE Because BGP is the only EGP available, the term EGP is rarely used; instead, most engineers simply refer to BGP. https://www.ciscopress.com/articles/article.asp?p=2180210&seqNum=7

    Source: Adapted from community discussion — Clinques

    Next question
