200-301 practice questions 661–670

1. Question 661 · 1334 in bank

   You have two paths for the 10.10.10.0 network - one that has a feasible distance of 3072 and the other of 6144. What do you need to do to load balance your EIGRP routes?

   • AChange the maximum paths to 2
   • BChange the configuration so they both have the same feasible distance
   • CChange the variance for the path that has a feasible distance of 3072 to 2
   • DChange the IP addresses so both paths have the same source IP address

   Show answer

   Answer: C

   Explanation

   They were claiming that they have removed EIGRP from blueprints, as i guess they just lied out there...there are lot of deep/detailed questions about EIGRP which i have not met neither in Wendell Odom nor on Netacad.

   Source: Adapted from community discussion — reagan_donald

   References

   • Cisco documentation

   Next question

2. Question 662 · 1334 in bank

   DRAG DROP - Drag each route source from the left to the numbers on the right. Beginning with the lowest and ending with the highest administrative distance. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   here is a list of routing protocols with default ADs Connected = 0 Static Route = 1 eBGP (external) = 20 EIGRP (Internal) = 90 OSPF = 110 IS-IS =115 RIP =120 EIGRP (external) =170 iBGP (internal BGP) = 200 EIGRP summary route = 5

   Source: Adapted from community discussion — msomali



   Next question

3. Question 663 · 1334 in bank

   Select 2

   Which two circumstances can prevent two routers from establishing an OSPF neighbor adjacency? (Choose two.)

   • Amismatched autonomous system numbers
   • Ban ACL blocking traffic from multicast address 224.0.0.10
   • Cmismatched process IDs
   • Dmismatched hello timers and dead timers
   • Euse of the same router ID on both devices

   Show answer

   Answer: DE

   Explanation

   B is wrong: The IPv4 multicast addresses used for OSPF are 224.0. 0.5 to send information to all OSPF routers and 224.0. 0.6 to send information to DR/BDR routers. The IPv6 multicast addresses are FF02::5 for all OSPFv3 routers and FF02::6 for all DR/BDR routers.

   Source: Adapted from community discussion — daynight

   Next question

4. Question 664 · 1334 in bank

   Select 3

   Which three describe the reasons large OSPF networks use a hierarchical design? (Choose three.)

   • Ato speed up convergence
   • Bto reduce routing overhead
   • Cto lower costs by replacing routers with distribution layer switches
   • Dto decrease latency by increasing bandwidth
   • Eto confine network instability to single areas of the network
   • Fto reduce the complexity of router configuration

   Show answer

   Answer: ABE

   Explanation

   Hierarchical design of OSPF (basically means that you can separate the larger internetwork into smaller internetworks called areas) helps us create a network with all features listed above (decrease routing overhead, speed up convergence, confine network instability to single areas of the network).

   Source: Adapted from community discussion — dicksonpwc

   Next question

5. Question 665 · 1334 in bank

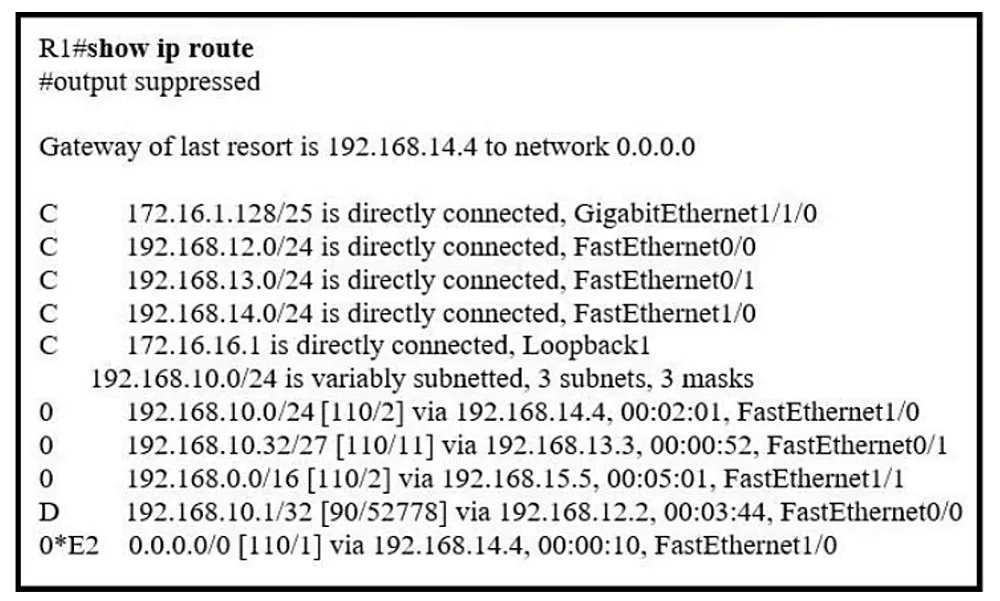

   Refer to the exhibit. If R1 receives a packet destined to 172.16.1.1, to which IP address does it send the packet?



   • A192.168.14.4
   • B192.168.12.2
   • C192.168.13.3
   • D192.168.15.5

   Show answer

   Answer: A

   Explanation

   172.16.1.1 is not in the routing table this means it is a random address. But since a default static route of 0.0.0.0 has been configured and injected to OSPF with the next hope address of 192.168.14.4 through FastEthernet1/0, thus R1 will send the packet to 192.168.14.4.

   Source: Adapted from community discussion — msomali

   Next question

6. Question 666 · 1334 in bank

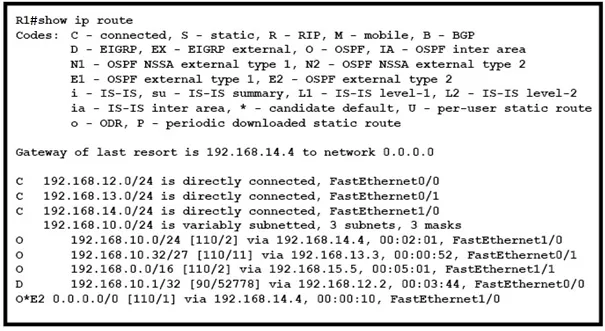

   Refer to the exhibit. On R1 which routing protocol is in use on the route to 192.168.10.1?



   • ARIP
   • BOSPF
   • CIGRP
   • DEIGRP

   Show answer

   Answer: D

   Explanation

   This question needs to be looked into, if it was a host IP 192.168.10.1 the answer should be B(OSPF), and if its a network Address of 192.168.10.1, then it can be D (EIGRP), And they didn't specify which of them the IP belongs to

   Source: Adapted from community discussion — Scvrfvce

   Next question

7. Question 667 · 1334 in bank

   Refer to the exhibit. Which Command do you enter so that R1 advertises the loopback0 interface to the BGP Peers?



   • ANetwork 172.16.1.32 mask 255.255.255.224
   • BNetwork 172.16.1.0 0.0.0.255
   • CNetwork 172.16.1.32 255.255.255.224
   • DNetwork 172.16.1.33 mask 255.255.255.224
   • ENetwork 172.16.1.32 mask 0.0.0.31
   • FNetwork 172.16.1.32 0.0.0.31

   Show answer

   Answer: A

   Explanation

   Tricky question. This tests more of your knowledge of subnetting than routing? Posted answer of A is correct. Loopback IP 172.168.1.33 falls into the address range 172.16.2.32 255.255.255.224. Hence that (172.16.2.32) is the network to be advertised.

   Source: Adapted from community discussion — LTTAM

   Next question

8. Question 668 · 1334 in bank

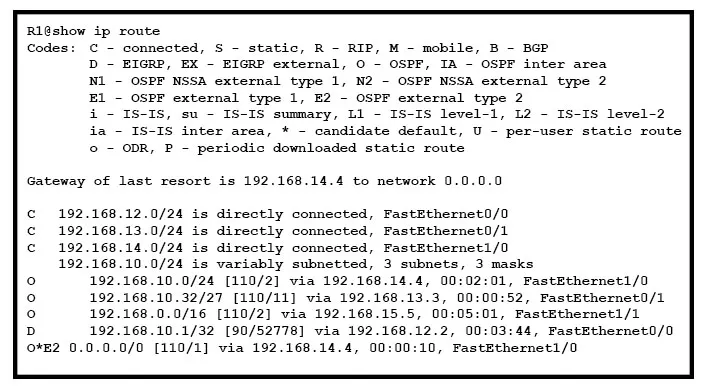

   Refer to exhibit. What Administrative distance has route to 192.168.10.1?



   • A1
   • B90
   • C110
   • D120

   Show answer

   Answer: B

   Next question

9. Question 669 · 1334 in bank

   A device detects two stations transmitting frames at the same time. This condition occurs after the first 64 bytes of the frame is received. Which interface counter increments?

   • Arunt
   • Bcollision
   • Clate collision
   • DCRC

   Show answer

   Answer: C

   Explanation

   Collision occurs in the first 64 bytes A late collision occurs after the 512th bit (64th byte) of a frame has been transmitted by a device. Anything under 64byte frame is considered a runt.

   Source: Adapted from community discussion — oooMooo

   References

   • Cisco documentation

   Next question

10. Question 670 · 1334 in bank

    Which value is used to determine the active router in an HSRP default configuration?

    • ARouter loopback address
    • BRouter IP address
    • CRouter priority
    • DRouter tracking number

    Show answer

    Answer: B

    Explanation

    This was the better question... If there is no priority configured for a standby group, what determines which router is active?

    Source: Adapted from community discussion — mrsiafu

    Next question
