200-301 practice questions 611–620

1. Question 611 · 1334 in bank

   A WLC sends alarms about a rogue AP, and the network administrator verifies that the alarms are caused by a legitimate autonomous AP. How must the alarms be stopped for the MAC address of the AP?

   • ARemove the AP from WLC management
   • BPlace the AP into manual containment.
   • CManually remove the AP from Pending state.
   • DSet the AP Class Type to Friendly.

   Show answer

   Answer: D

   Explanation

   Keyword is "legitimate autonomous AP" Answer is D I think option B will kick the clients, which you probably don't want https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/112045-handling-rogue-cuwn-00.html#anc23 https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/112045-handling-rogue-cuwn-00.html#anc34 https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/112045-handling-rogue-cuwn-00.html#anc32 Also search for "Valid client on Rogue AP" in provided links

   Source: Adapted from community discussion — splashy

   References

   • Cisco documentation
   • Cisco documentation
   • cisco.com documentation
   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 612 · 1334 in bank

   What is one reason to implement LAG on a Cisco WLC?

   • Ato increase security and encrypt management frames
   • Bto enable connected switch ports to failover and use different VLANs
   • Cto provide link redundancy and load balancing
   • Dto allow for stateful and link-state failover

   Show answer

   Answer: C

   Next question

3. Question 613 · 1334 in bank

   When an access point is seeking to join wireless LAN controller, which message is sent to the AP-Manager interface?

   • ADiscovery response
   • BDHCP request
   • CDHCP discover
   • DDiscovery request

   Show answer

   Answer: D

   Explanation

   the person that post this question and put the answer as C is a fool lmao, even the site reference he put says D is the correct answer, shaking my head.

   Source: Adapted from community discussion — BreezyNet

   References

   • Cisco documentation

   Next question

4. Question 614 · 1334 in bank

   A corporate office uses four floors in a building. ✑ Floor 1 has 24 users. ✑ Floor 2 has 29 users. Floor 3 has 28 users.



   ✑ Floor 4 has 22 users. Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?

   • A192.168.0.0/24 as summary and 192.168.0.0/28 for each floor
   • B192.168.0.0/23 as summary and 192.168.0.0/25 for each floor
   • C192.168.0.0/25 as summary and 192.168.0.0/27 for each floor
   • D192.168.0.0/26 as summary and 192.168.0.0/29 for each floor

   Show answer

   Answer: C

   Explanation

   write this down first thing in the exam: /32 1 /31 2 /30 4 /29 8 /28 16 /27 32 /26 64 /25 128 /24 256 /23 512 /22 1024 /21 2048

   Source: Adapted from community discussion — Customexit

   Next question

5. Question 615 · 1334 in bank

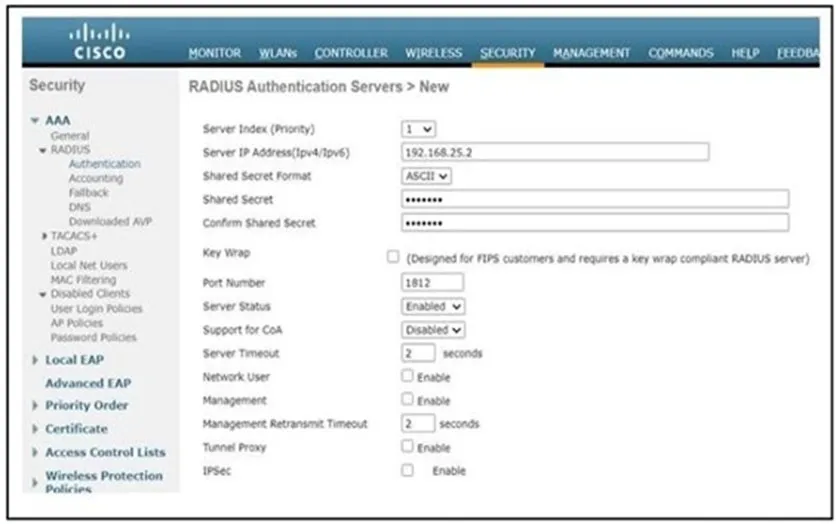

   Refer to the exhibit. A network engineer configures the Cisco WLC to authenticate local wireless clients against a RADIUS server. Which task must be performed to complete the process?

   • AChange the Support for CoA to Enabled
   • BSelect Enable next to Management
   • CSelect Enable next to Network User
   • DChange the Server Status to Disabled

   Show answer

   Answer: C

   Explanation

   Network users is for authenticating the people connected to the wireless network. Management is for authentication people who try to login to the WLC. https://mrncciew.com/2013/04/21/configuring-radius-on-wlc/

   Source: Adapted from community discussion — RougePotatoe

   Next question

6. Question 616 · 1334 in bank

   After installing a new Cisco ISE server which task must the engineer perform on the Cisco WLC to connect wireless clients on a specific VLAN based on their credentials?

   • ADisable the LAG Mode on Next Reboot.
   • BEnable the Event Driven RRM.
   • CEnable the Allow AAA Override.
   • DEnable the Authorize MIC APs against auth-list or AAA

   Show answer

   Answer: C

   Explanation

   Answer C is correct,... In order to support centralized access control through a centralized AAA server such as the Cisco Identity Services Engine (ISE) or ACS, the IPv6 ACL can be provisioned on a per-client basis using AAA Override attributes. In order to use this feature, the IPv6 ACL must be configured on the controller and the WLAN must be configured with the AAA Override feature enabled. https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-6/configuration-guide/b_cg76/b_cg76_chapter_0111001.pdf

   Source: Adapted from community discussion — GigaGremlin

   References

   • Cisco documentation

   Next question

7. Question 617 · 1334 in bank

   Refer to the exhibit. Router R1 is running three different routing protocols. Which route characteristic is used by the router to forward the packet that it receives for destination IP 172.16.32.1?



   • Alongest prefix
   • Badministrative distance
   • Ccost
   • Dmetric

   Show answer

   Answer: A

   Explanation

   I saw a bunch, bunch, bunch of these on the CCNA. They were all pretty easy. Find the network that the IP fits in, look at the prefix length, if you have 1 that is longer than the rest chhose that as answer. If there is more than 1 with the same longest prefix move over to AD and pick the lowest value. Once again if duplicate lowest move over to metric. Watch for the tricky non-default AD and DO NOT pick by code letter because they change ADs on some of them.

   Source: Adapted from community discussion — rlelliott

   References

   • Cisco documentation
   • cisco.com documentation
   • Cisco documentation
   • Cisco documentation
   • AWS documentation

   Next question

8. Question 618 · 1334 in bank

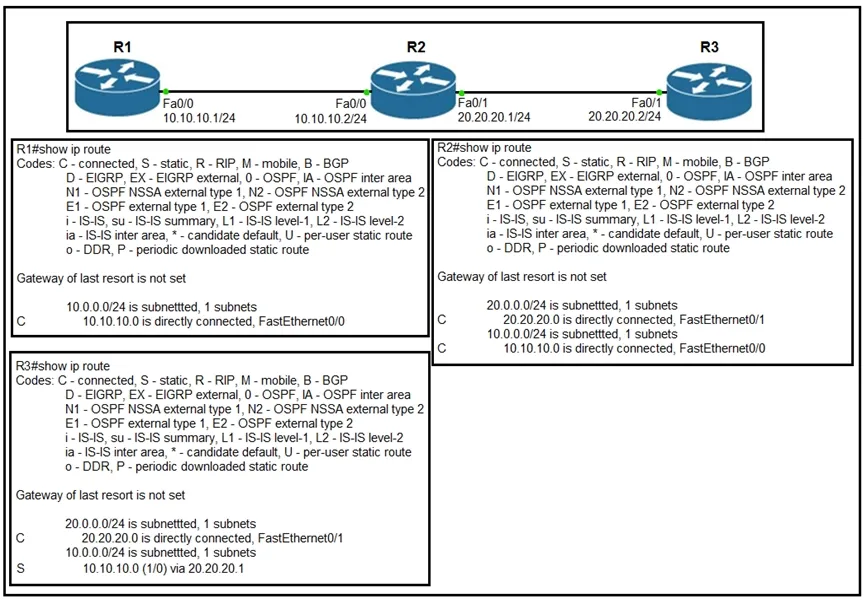

   Refer to the exhibit. Router R1 Fa0/0 cannot ping router R3 Fa0/1. Which action must be taken in router R1 to help resolve the configuration issue?



   • Aset the default gateway as 20.20.20.2
   • Bconfigure a static route with Fa0/1 as the egress interface to reach the 20.20.2.0/24 network
   • Cconfigure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network
   • Dset the default network as 20.20.20.0/24

   Show answer

   Answer: C

   References

   • Cisco documentation

   Next question

9. Question 619 · 1334 in bank

   By default, how does EIGRP determine the metric of a route for the routing table?

   • AIt uses the bandwidth and delay values of the path to calculate the route metric.
   • BIt uses a default metric of 10 for all routes that are learned by the router.
   • CIt counts the number of hops between the receiving and destination routers and uses that value as the metric.
   • DIt uses a reference bandwidth and the actual bandwidth of the connected link to calculate the route metric.

   Show answer

   Answer: A

   Explanation

   tldr: "EIGRP uses the minimum bandwidth on the path to a destination network and the total delay to compute routing metrics"

   Source: Adapted from community discussion — tyuipo

   References

   • Cisco documentation

   Next question

10. Question 620 · 1334 in bank

    Router R1 must send all traffic without a matching routing-table entry to 192.168.1.1. Which configuration accomplishes this task?

    • AR1#config t R1(config)#ip routing R1(config)#ip route default-route 192.168.1.1
    • BR1#config t R1(config)#ip routing R1(config)#ip route 192.168.1.1 0.0.0.0 0.0.0.0
    • CR1#config t R1(config)#ip routing R1(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1
    • DR1#config t R1(config)#ip routing R1(config)#ip default-gateway 192.168.1.1

    Show answer

    Answer: C

    Explanation

    This text appears to be from a L3 switch. On a router there is no need to turn on (config)# "ip routing" first and then the default route command. it should be: R1# conf t R1(config)# ip route 0.0.0.0 0.0.0.0 192.168.1.1

    Source: Adapted from community discussion — FloridaMan88

    Next question
