200-301 practice questions 551–560

1. Question 551 · 1334 in bank

   How does CAPWAP communicate between an access point in local mode and a WLC?

   • AThe access point must not be connected to the wired network, as it would create a loop
   • BThe access point must be connected to the same switch as the WLC
   • CThe access point must directly connect to the WLC using a copper cable
   • DThe access point has the ability to link to any switch in the network, assuming connectivity to the WLC

   Show answer

   Answer: D

   Explanation

   the correct answer is option D: "The access point has the ability to link to any switch in the network, assuming connectivity to the WLC." The AP can be connected to any switch in the network, as long as the switch has connectivity to the WLC. The AP and the WLC exchange CAPWAP messages over IP, using UDP port 5246 or 5247, depending on whether the messages are encrypted.

   Source: Adapted from community discussion — Ciscoman021

   Next question

2. Question 552 · 1334 in bank



   Refer to the exhibit. Which configuration establishes a Layer 2 LACP EtherChannel when applied to both switches?

   • AInterface range G1/1 ג€" 1/3 switchport mode trunk channel-group 1 mode active no shutdown
   • BInterface range G1/1 ג€" 1/3 switchport mode access channel-group 1 mode passive no shutdown
   • CInterface range G1/1 ג€" 1/3 switchport mode trunk channel-group 1 mode desirable no shutdown
   • DInterface range G1/1 ג€" 1/3 switchport mode access channel-group 1 mode on no shutdown

   Show answer

   Answer: A

   Explanation

   LACP uses active and passive A. Uses active(2 active interfaces do form ether channel) Correct Answer B. Uses passive(2 passive interfaces don't form ether channel) C. Uses desirable (This is for PAGP ether channel required is LACP) D. Uses mode on(This is for static ether channel required is LACP)

   Source: Adapted from community discussion — Hope_12

   Next question

3. Question 553 · 1334 in bank

   Which switching concept is used to create separate broadcast domains?

   • ASTP
   • BVTP
   • CVLAN
   • DCSMA/CD

   Show answer

   Answer: C

   Next question

4. Question 554 · 1334 in bank



   Refer to the exhibit. Which action must be taken so that neighboring devices rapidly discover switch Cat9300?

   • AEnable portfast on the ports that connect to neighboring devices.
   • BConfigure the cdp timer 10 command on switch Cat9300.
   • CConfigure the cdp holdtime 10 command on switch Cat9300
   • DConfigure the cdp timer 10 command on the neighbors of switch Cat9300

   Show answer

   Answer: B

   Next question

5. Question 555 · 1334 in bank

   What is a requirement when configuring or removing LAG on a WLC?

   • AThe incoming and outgoing ports for traffic flow must be specified if LAG is enabled.
   • BThe management interface must be reassigned if LAG is disabled
   • CThe controller must be rebooted after enabling or reconfiguring LAG
   • DMultiple untagged interfaces on the same port must be supported

   Show answer

   Answer: C

   Explanation

   it seams like B and C might be right: B - When you disable LAG, you must assign an AP-manager interface to each port on the controller. C - When LAG is enabled, any change to the LAG configuration requires a controller reboot https://community.cisco.com/t5/wireless-mobility-knowledge-base/lag-link-aggregation/ta-p/3128669#toc-hId--766763784

   Source: Adapted from community discussion — PiotrMar

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

6. Question 556 · 1334 in bank

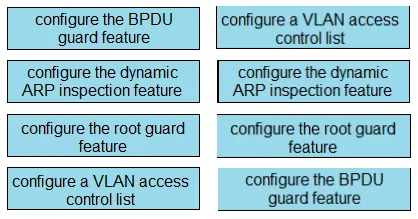

   DRAG DROP - Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

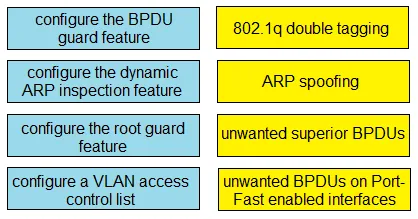

   Answer: See figure below

   Explanation

   Configure the root guard feature: Unwanted superior BPDUs Configure the dynamic ARP inspection feature: ARP spoofing Configure the root guard feature: Unwanted superior BPDUs Configure a VLAN access control list: 802.1q double tagging

   Source: Adapted from community discussion — no_blink404



   Next question

7. Question 557 · 1334 in bank

   Which type of port is used to connect the wired network when an autonomous AP maps two VLANs to its WLANs?

   • Aaccess
   • BLAG
   • Ctrunk
   • DEtherChannel

   Show answer

   Answer: C

   Next question

8. Question 558 · 1334 in bank

   A network administrator needs to aggregate 4 ports into a single logical link which must negotiate layer 2 connectivity to ports on another switch. What must be configured when using active mode on both sides of the connection?

   • ALLDP
   • BLACP
   • CCisco vPC
   • D802 1q trunks

   Show answer

   Answer: B

   Explanation

   LACP - Configure multiple physical connections to operate as a single connection. Trunk - Configure a single connection to carry traffic from multiple VLANs

   Source: Adapted from community discussion — c9957e3

   Next question

9. Question 559 · 1334 in bank

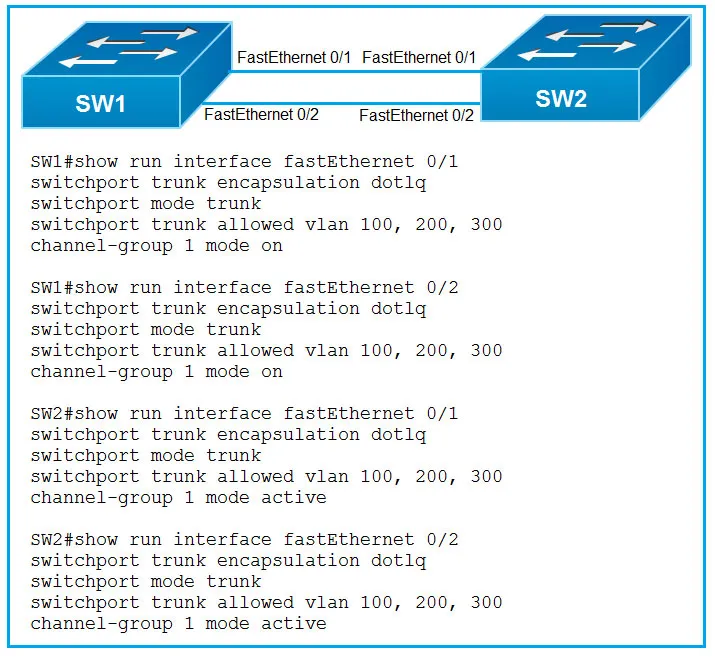

   Refer to the exhibit. An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work establish an LACP port channel?

   • AChange the channel-group mode on SW1 to desirable
   • BChange the channel-group mode on SW1 to active or passive
   • CChange the channel-group mode on SW2 to auto
   • DConfigure the interface port-channel 1 command on both swtiches

   Show answer

   Answer: B

   Explanation

   I'm literally spending more time trying to figure out what the question is asking rather than figuring out the answer...

   Source: Adapted from community discussion — RougePotatoe

   Next question

10. Question 560 · 1334 in bank



    Refer to the exhibit. For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface. These tasks must be completed: ✑ Disable all neighbor discovery methods on R5 interface Gi0/1 ✑ Permit neighbor discovery on R5 interface Gi0/2. ✑ Verify there are no dynamically learned neighbors on R5 interface Gi0/1. ✑ Display the IP address of R6's interface Gi0/2 Which configuration must be used?

    • AR5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#lldp run R5(config)#no cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor
    • BR5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor R5#sh lldp neighbor
    • CR5(config)#int Gi0/1 R5(config-if)#no cdp run R5(config-if)#exit R5(config)#lldp run R5(config)#cdp enable R5#sh cdp neighbor R5#sh lldp neighbor
    • DR5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor

    Show answer

    Answer: D

    Explanation

    D. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor - Disable all neighbor discovery methods on R5 interface Gi0/1 (config-if)#no cdp enable / (config)#no lldp run - Permit neighbor discovery on R5 interface Gi0/2. (config)#cdp run - Verify there are no dynamically learned neighbors on R5 interface Gi0/1. #sh lldp neighbor (just to confirm LLDP discovery has been disabled) - Display the IP address of R6's interface Gi0/2 #sh cdp neighbor detail ("detail" shows information such as IP address)

    Source: Adapted from community discussion — dropspablo

    Next question
