Question 41 · 1334 in bank
Select 2Which two protocols are supported on service-port interfaces? (Choose two.)
Show answer
Answer: AD
200-301AssociateCiscoAll questions freePage 5 of 134
200-301 practice questions 41–50
Cisco Certified Network Associate (CCNA)1,334 questions across 134 pages are complete and free, with no account or card.
Official study references
1334 questions in this bank
Free access · progress saved on this device
Question 42 · 1334 in bank
What is the benefit of using private IPv4 addressing?
Show answer
Answer: B
Question 43 · 1334 in bank
Two switches have been implemented and all interfaces are at the default configuration level. A trunk link must be implemented between two switches with these requirements: • using an industry-standard trunking protocol • permitting VLANs 1-10 and denying other VLANs How must the interconnecting ports be configured?
Show answer
Answer: C
Explanation
C. switchport mode trunk switchport trunk encapsulation dot1q <--using an industry-standard trunking protocol switchport trunk allowed vlans 1-10 <-- permitting VLANs 1-10 and denying other VLANs
Source: Adapted from community discussion — [Removed]
Question 44 · 1334 in bank

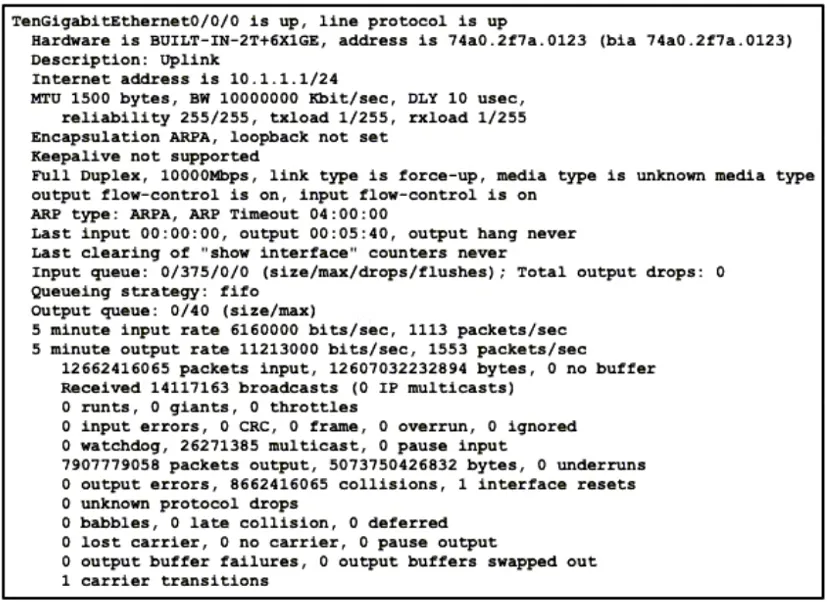

Refer to the exhibit. Traffic that is flowing over interface TenGigabitEthemet0/0/0 experiences slow transfer speeds. What is the cause of this issue?
Show answer
Answer: C
Explanation
output shows that there are 8662416065 collisions on the interface, which could be a likely reason for slow transfer speeds. Answer: (C). a duplex incompatibility "txload 1/255" means that the transmitted traffic load is 1/255th of the total bandwidth capacity. "rxload 1/255" means that the received traffic load is 1/255th of the total bandwidth capacity. "txload" and "rxload," a value of 1/255 indicates that there is very low traffic congestion.
Source: Adapted from community discussion — Cynthia2023
Question 45 · 1334 in bank
Select 2Which two host addresses are reserved for private use within an enterprise network? (Choose two.)
Show answer
Answer: AD
Explanation
Address ranges to be use by private networks are: Class A: 10.0.0.0 to 10.255.255.255 Class B: 172.16.0.0 to 172.31.255.255 Class C: 192.168.0.0 to 192.168.255.255
Source: Adapted from community discussion — ahmt
Question 46 · 1334 in bank

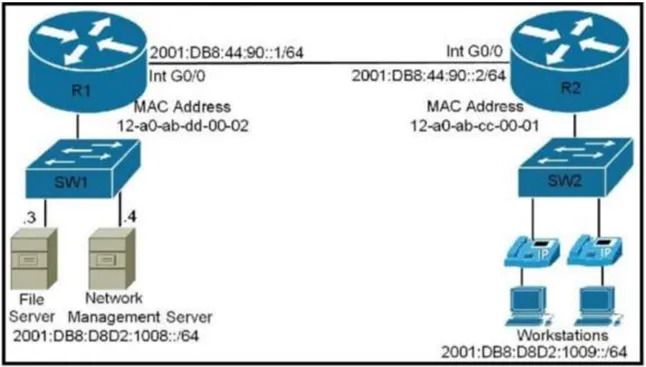

Refer to the exhibit. The iPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. Which address must be used?
Show answer
Answer: A
Explanation
- classic EUI-64 --> just splits the mac and insert FFFE - modified EUI-64 (that now is the standard)--> splits the mac address, insert FFFE and inverts the 7th bit
Source: Adapted from community discussion — UAE7
Question 47 · 1334 in bank
Which function forwards frames to ports that have a matching destination MAC address?
Show answer
Answer: D
Explanation
The function that forwards frames to ports that have a matching destination MAC address is D. frame switching. As per the search results, a switch has four functions: learning, flooding, filtering, and switching. Specifically, switching is the function that allows a switch to forward frames to the proper Layer 2 port based on the destination MAC address . This is achieved by using a MAC address table to keep track of which MAC addresses are connected to which switch ports, and then forwarding frames only to the appropriate port based on the destination MAC address .
Source: Adapted from community discussion — dearc
Question 48 · 1334 in bank
Select 2What are two reasons to configure PortFast on a switch port attached to an end host? (Choose two.)
Show answer
Answer: BD
Explanation
BD are correct. What are two features of PortFast? Portfast does two things for us: Interfaces with portfast enabled that come up will go to forwarding mode immediately, the interface will skip the listening and learning state. A switch will never generate a topology change notification for an interface that has portfast enabled.
Source: Adapted from community discussion — bisiyemo1
Question 49 · 1334 in bank

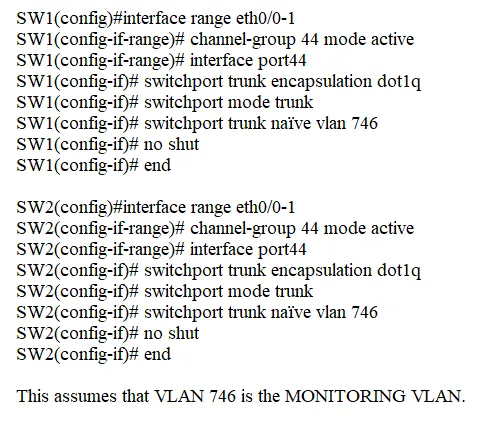

SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window • All necessary preconfigurations have been applied • Do not change the enable password or hostname for any device • Save your configurations to NVRAM before moving to the next item • Click Next at the bottom of the screen to submit this lab and move to the next question • When Next is clicked the lab closes and cannot be reopened Topology -
Tasks - Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured. 1. Configure an LACP EtherChannel and number it as 44; configure it between switches SW1 and SW2 using interfaces Ethemet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends. 2. Configure the EtherChannel as a trunk link. 3. Configure the trunk link with 802.1q tags. 4. Configure VLAN 'MONITORING' as the untagged VLAN of the EtherChannel.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
S1 interface range eth0/0-1 shut channel-group 44 mode active no shut interface port-channel 44 switchport mode trunk switchport trunk encapsulation dot1q switchport trunk native vlan 746 S2 interface range eth0/0-1 shut channel-group 44 mode active no shut interface port-channel 44 switchport mode trunk switchport trunk encapsulation dot1q switchport trunk native vlan 746
Source: Adapted from community discussion — LeonardoMeCabrio
Question 50 · 1334 in bank
A network administrator wants the syslog server to filter incoming messages into different files based on their importance. Which filtering criteria must be used?
Show answer
Answer: B
Explanation
Facility code: Syslog messages have a facility code that indicates the type of process or application that generated the message. The facility code ranges from 0 to 23, and different facilities are used to indicate different types of messages. The network administrator can configure the syslog server to filter messages based on their facility code, so that messages generated by a specific process or application are stored in a specific file.
Source: Adapted from community discussion — mageknight
