Question 1291 · 1334 in bank

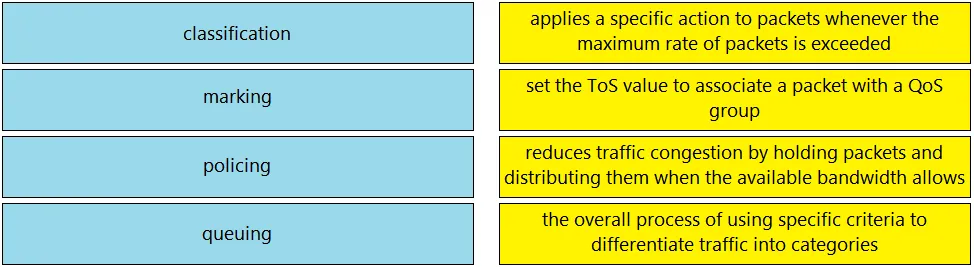

DRAG DROP - Drag and drop the Qos features from the left onto the corresponding statements on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
I agree. I'm disappointed that the answers they have been chosen past 800 (where we pay to see more) have been the least accurate. I was feeling pretty good with the first set of questions, but now I'm feeling confused and second guessing everything when I see these questions. Then I see everyone is feeling the same. Not good...
Source: Adapted from community discussion — Tdawg1968
Permanent link to question 1291 Report an issue
Question 1292 · 1334 in bank

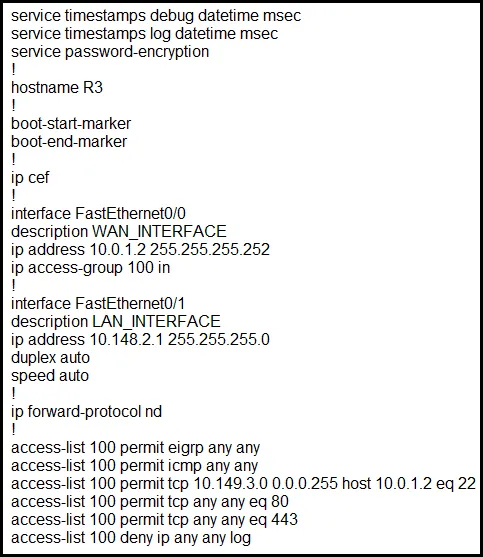

Refer to the exhibit. Which configuration enables DHCP addressing for hosts connected to interface FastEthernet0/1 on router R3?
Show answer
Answer: D
Explanation
Why we should care about ACL? it is not applied on the F 0/1 interface so logically B and D are right what do you think guys?
Source: Adapted from community discussion — Dutch012
Permanent link to question 1292 Report an issue
Question 1293 · 1334 in bank

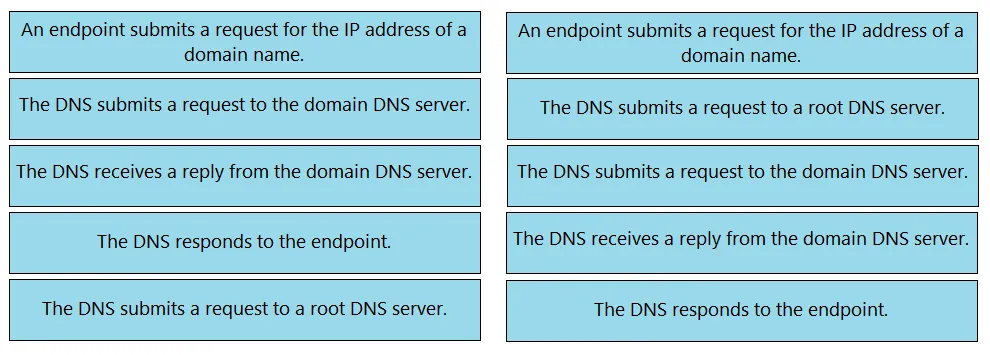

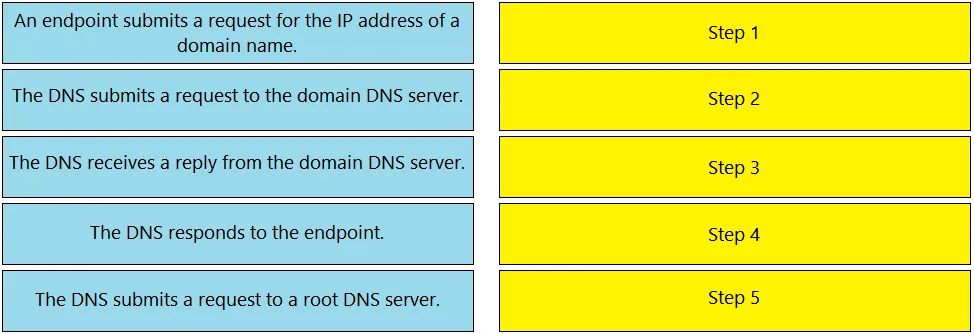

DRAG DROP - Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Answer is correct. The 8 steps in a DNS lookup: 1.A user types ‘example.com’ into a web browser and the query travels into the Internet and is received by a DNS recursive resolver. 2. The resolver then queries a DNS root nameserver (.). 3.The root server then responds to the resolver with the address of a Top Level Domain (TLD) DNS server (such as .com or .net), which stores the information for its domains. When searching for example.com, our request is pointed toward the .com TLD. 4.The resolver then makes a request to the .com TLD. 5.The TLD server then responds with the IP address of the domain’s nameserver, example.com. 6.Lastly, the recursive resolver sends a query to the domain’s nameserver. 7.The IP address for example.com is then returned to the resolver from the nameserver. 8.The DNS resolver then responds to the web browser with the IP address of the domain requested initially. Once the 8 steps of the DNS lookup have returned the IP address for example.com, the browser is able to make the request for the web page: 9.The browser makes a HTTP request to the IP address. 10.The server at that IP returns the webpage to be rendered in the browser (step 10).
Source: Adapted from community discussion — RidzV
Permanent link to question 1293 Report an issue
Question 1294 · 1334 in bank
Select 2
Which two features introduced in SNMPv2 provide the ability to retrieve large amounts of data in one request and acknowledge a trap using PDUs? (Choose two.)
Show answer
Answer: DE
Explanation
SNMPv2 introduced two features that provide the ability to retrieve large amounts of data in one request and acknowledge a trap using PDUs. These features are: GetBulkRequest: This feature allows a management station to retrieve a large amount of data in one request, reducing the number of requests needed to retrieve the same information. The GetBulkRequest PDU specifies a starting OID and a maximum number of variables to be returned in a single response. InformRequest: This feature is used to acknowledge receipt of a trap message from an agent. The InformRequest PDU is similar to the trap PDU, but it includes a request identifier, which allows the management station to match the acknowledgment with the original trap. The InformRequest also requires an acknowledgment from the receiving device, which provides greater reliability in trap delivery.
Source: Adapted from community discussion — mageknight
References
Cisco documentation
Permanent link to question 1294 Report an issue
Question 1295 · 1334 in bank

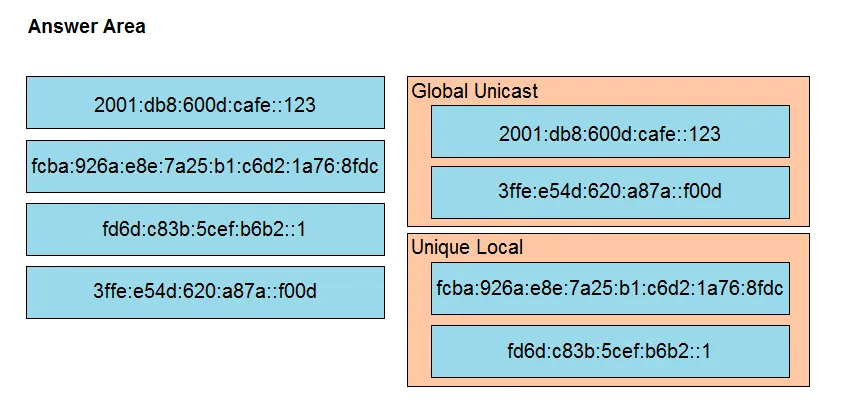

DRAG DROP - Drag and drop the IPv6 addresses from the left onto the corresponding address types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Reference: https://learningnetwork.cisco.com/s/question/0D53i00000Kt6kl/ipv6-unique-local-addresses
Source: Adapted from community discussion — netzwork
Permanent link to question 1295 Report an issue
Question 1296 · 1334 in bank

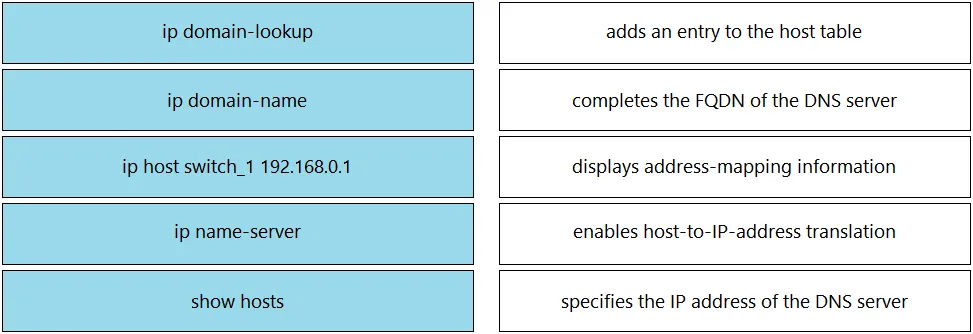

DRAG DROP - Drag and drop the DNS commands from the left onto their effects on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
References
Cisco documentation
Permanent link to question 1296 Report an issue
Question 1297 · 1334 in bank
What is the purpose of configuring different levels of syslog for different devices on the network?
Show answer
Answer: A
Explanation
What is the purpose of catching a bus? Cisco's answer: Walk into the bus. Normal people's answer: To arrive the destination. What is the purpose of eating food? Cisco's answer: Bite, chew and swallow the food. Normal people's answer: To enjoy the taste or provide energy.
Source: Adapted from community discussion — Joshua25
Permanent link to question 1297 Report an issue
Question 1298 · 1334 in bank

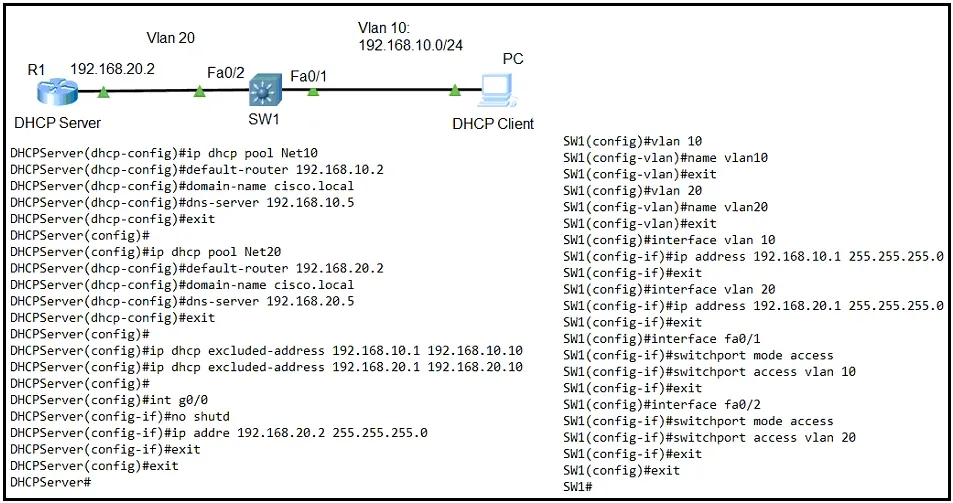

Refer to the exhibit. The DHCP server is configured with a DHCP pool for each of the subnets represented. Which command must be configured on switch SW1 to allow DHCP clients on VLAN 10 to receive dynamic IP addresses from the DHCP server?
Show answer
Answer: C
Explanation
It is C. You are thinking of the default gateway, we need the DHCP server address which is 192.168.20.2. The exhibit with the long output is meant to throw us off, just look at the topology diagram and it is there. If we only needed 192.168.10.2 for DHCP for VLAN 10, then we would not need an IP helper address.
Source: Adapted from community discussion — oatmealturkey
Permanent link to question 1298 Report an issue
Question 1299 · 1334 in bank

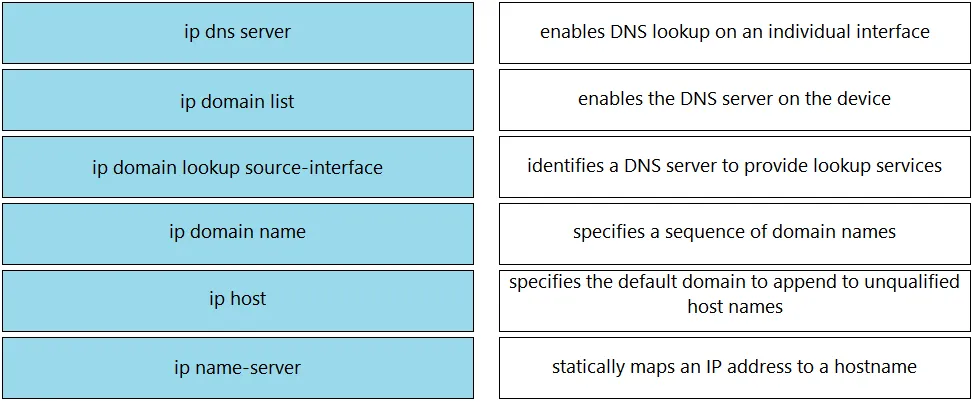

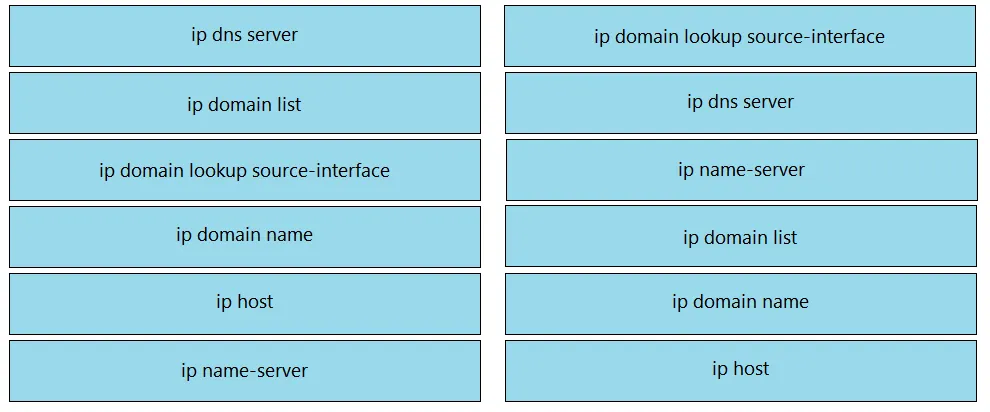

DRAG DROP - Drag and drop the DNS lookup commands from the left onto the functions on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Permanent link to question 1299 Report an issue
Question 1300 · 1334 in bank
Select 2
Which two actions are taken as the result of traffic policing? (Choose two.)
Show answer
Answer: BC
Explanation
Traffic policing does not cause bursting at all, in fact it imposes a ceiling so it limits it if anything. Traffic policing enforcement causes packets to be either dropped or re-marked. https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-policing/19645-policevsshape.html
Source: Adapted from community discussion — oatmealturkey
References
Cisco documentation
Permanent link to question 1300 Report an issue
