JN0-683 practice questions 41–48

1. Question 41 · 48 in bank

   Click the Exhibit button.



   A VXLAN tunnel has been created between leaf1 and leaf2 in your data center. Referring to the exhibit, which statement is correct?

   • ATraffic sent from server1 to server2 will be dropped on leaf2.
   • BTraffic sent from server1 to server2 will be dropped on leaf1.
   • CTraffic sent from server1 to server2 will be tagged with VLAN ID 200 on leaf2 and forwarded to server2.
   • DTraffic sent from server1 to server2 will be tagged with VLAN ID 100 on leaf2 and forwarded to server2.

   Show answer

   Answer: B

   Next question

2. Question 42 · 48 in bank

   Select 2

   Click the Exhibit button.



   Referring to the exhibit, the spine1 device has an underlay BGP group that in configured to peer with its neighbors’ directly connected interfaces. Which two statements are true in this scenario? (Choose two.)

   • AThe multihop statement is not required to establish the underlay BGP sessions.
   • BLoad balancing for the underlay is not configured correctly.
   • CLoad balancing for the underlay is configured correctly.
   • DThe multihop statement is required to establish the underlay BGP sessions.

   Show answer

   Answer: AC

   Next question

3. Question 43 · 48 in bank

   Click the Exhibit button.

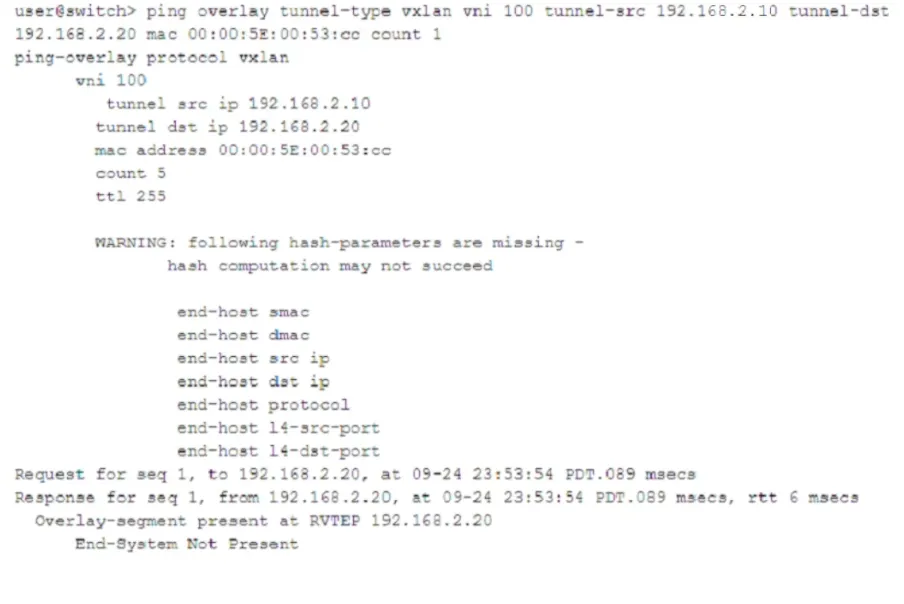

   Referring to the exhibit, which statement is correct?

   • AThe MAC address is unknown and not in the forwarding table of the remote VTEP.
   • BThe remote VTEP is not responding.
   • CVNI 100 is not configured on the remote VTEP.
   • DThe MAC address is known but not reachable by the remote vtep.

   Show answer

   Answer: A

   Next question

4. Question 44 · 48 in bank

   Click the Exhibit button.

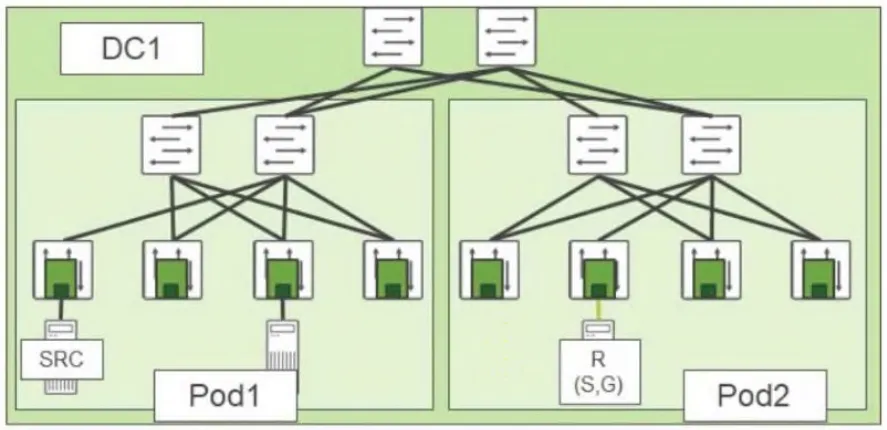

   Referring to the exhibit, data center DC1 has two pods in the same broadcast domain. You want to forward multicast traffic to only one host that is interested in receiving the multicast traffic. In this scenario, which EVPN route type would be required to accomplish this task?

   • AType 6
   • BType 8
   • CType 7
   • DType 5

   Show answer

   Answer: C

   Next question

5. Question 45 · 48 in bank

   Select 2

   Click the Exhibit button.



   The 192.168.0.0/24 route is being advertised into your IP fabric by the leaf device in AS 65512. In this scenario, which two statements are correct? (Choose two.)

   • ABy default, both spine devices will accept and install the route learned from the leaf device.
   • BBy default, each spine device will not advertise this route to all other peer leaf devices.
   • CBy default, both spine devices will reject the route learned from the leaf device.
   • DBy default, each spine device will advertise this route to all other peer leaf devices.

   Show answer

   Answer: AB

   Next question

6. Question 46 · 48 in bank

   You implement a MAC-VRF routing instance with a VLAN-aware service type configured with multiple VLAN IDs. Which statement is correct about this implementation?

   • AAll VLANs will use the same VNI.
   • BAll VLANs will use the same EVI.
   • CAll VLANs will use the same bridge table.
   • DAll VLANs will use the same broadcast domain.

   Show answer

   Answer: C

   Next question

7. Question 47 · 48 in bank

   Select 2

   Click the Exhibit button.



   The 192.168.0.0/24 route is being advertised into your IP fabric by the leaf devices in AS 65511 and AS 65512. Both spine devices receive the routes from each of the leaf devices. In this scenario, which two statements are correct? (Choose two.)

   • ABy default, each spine device will advertise both route entries for this route to other leaf devices.
   • BBy default, each spine device will only accept the first received next hop for this route from the leaf devices, while the other next hop will be rejected.
   • CBy default, each spine device will advertise only the active route entry to the other leaf devices.
   • DBy default, each spine device will accept both next hops for the route received from the leaf devices, but only one next hop will become the active route.

   Show answer

   Answer: BC

   Next question

8. Question 48 · 48 in bank

   Select 2

   You must integrate several leaf nodes that do not support the EVPN-VXLAN architecture into your existing EVPN-VXLAN-based IP fabric. In this scenario, which two design considerations would accomplish this task? (Choose two.)

   • AEthernet segment identifier
   • Bedge-routed bridging
   • Cgeneric routing encapsulation
   • Dcollapsed fabric

   Show answer

   Answer: BD
