JN0-683 practice questions 31–40

1. Question 31 · 48 in bank

   You are deploying a new network to support your AI workloads on devices that support at least 400 Gbps Ethernet. There is no requirement for any Layer 2 VLANs in this network. Which network architecture would satisfy this requirement?

   • Aan IP fabric using the EVPN-MPLS architecture
   • Ban IP fabric with an EVPN-VXLAN architecture
   • Can IP fabric using the PIM-SM to signal VXLAN overlay
   • Dan IP fabric using EBGP

   Show answer

   Answer: D

   Next question

2. Question 32 · 48 in bank

   Select 3

   Which three statements are correct about VXLAN control planes? (Choose three.)

   • AEVPN is inefficient and does not scale well.
   • BEVPN enables fast convergence and updates.
   • CMulticast is not agile and requires manual VNI mapping.
   • DMulticast does not require as many resources.
   • EBoth multicast and EVPN can facilitate MAC learning.

   Show answer

   Answer: BDE

   Next question

3. Question 33 · 48 in bank

   You are asked to build redundant gateways in your EVPN-VXLAN environment, but you must conserve address space because these gateways must span across seven PEs. What should you implement on the PEs to satisfy these requirements?

   • AUse IRB interfaces with the same IP and MAC address.
   • BUse IRB interfaces with the same IP address and different MAC addresses.
   • CUse IRB interfaces with different IP addresses and the same VGA.
   • DUse IRB interfaces with the same IP and VGA.

   Show answer

   Answer: B

   Next question

4. Question 34 · 48 in bank

   You want to ensure that VXLAN traffic from the xe-0/0/12 interface is being encapsulated by logical vtep.32770 and sent to a remote leaf device. In this scenario, which command would you use to verify that traffic is flowing?

   • Amonitor traffic interface xe-0/0/12
   • Bshow interfaces vtep.32770 detail
   • Cshow interface terse vtep.32770
   • Dshow interfaces terse vtep.32770 statistics

   Show answer

   Answer: D

   Next question

5. Question 35 · 48 in bank

   You manage an IP fabric with an EVPN-VXLAN overlay. You have multiple tenants separated using multiple unique VRF instances. You want to determine the routing information that belongs in each routing instance’s routing table. In this scenario, which property is used for this purpose?

   • Athe VRF target community.
   • Bthe route distinguisher value
   • Cthe routing instance type
   • Dthe VRF table label

   Show answer

   Answer: A

   Next question

6. Question 36 · 48 in bank

   Select 2

   You are deploying an IP fabric with an oversubscription ratio of 3:1. In this scenario, which two statements are correct? (Choose two.)

   • AThe oversubscription ratio remains the same when you remove leaf devices.
   • BThe oversubscription ratio increases when you remove leaf devices.
   • CThe oversubscription ratio decreases when you add leaf devices.
   • DThe oversubscription ratio remains the same when you add leaf devices.

   Show answer

   Answer: AD

   Next question

7. Question 37 · 48 in bank

   Select 2

   You are asked to build out the VXLAN control plane. In this scenario, which two protocols provide this capability? (Choose two.)

   • AMBGP
   • BPIM-SM
   • COSPF
   • DIS-IS

   Show answer

   Answer: AD

   Next question

8. Question 38 · 48 in bank

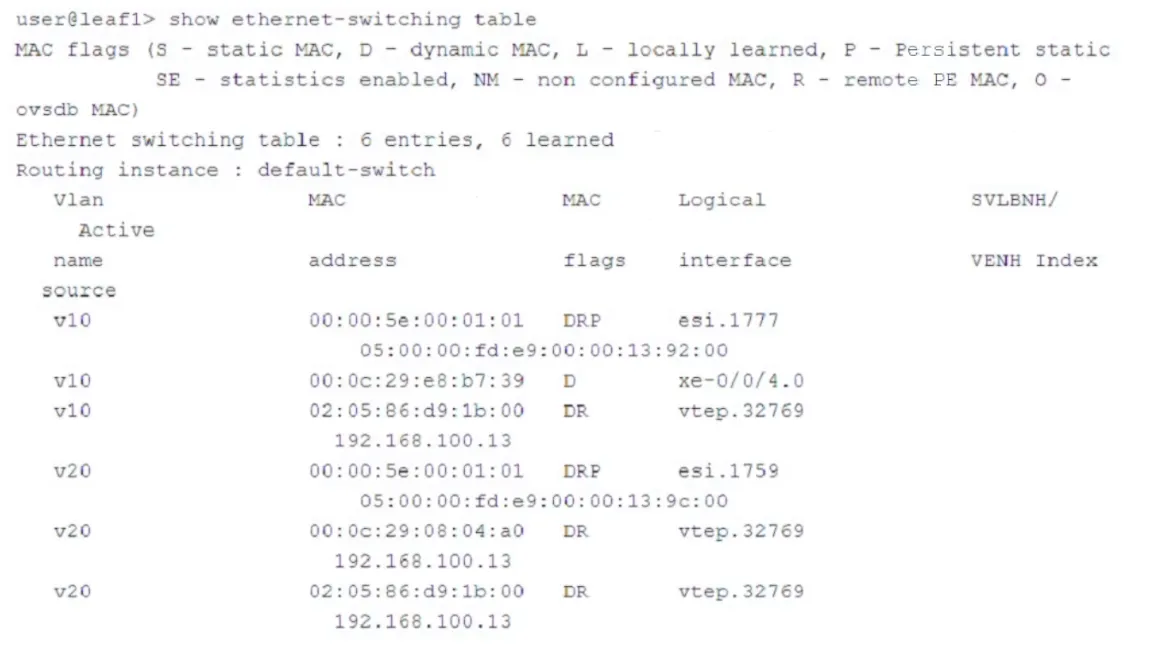

   Click the Exhibit button.



   Referring to the exhibit, why is the active source field blank for the entry that uses the 00:0c:29:e8:b7:39 MAC address?

   • AThe host for this entry is locally connected to leaf1.
   • BThe ARP lookup for this host has failed.
   • CThe EVPN route for this host does not have a valid next hop.
   • DThis entry is associated with a multicast EVPN route.

   Show answer

   Answer: A

   Next question

9. Question 39 · 48 in bank

   Select 2

   You are deploying multiple Juniper switches at the same location. Your switches are currently using the factory-default configuration. In this scenario, which two statements are correct? (Choose two.)

   • Athe DHCP server configuration cannot provide Junos version requirements to DHCP clients.
   • BThe switch will try to request an IP address from a DHCP server using all interfaces that are connected and are operational.
   • CThe switch will try to request an IP address from a DHCP server using only the management interface.
   • DThe DHCP server configuration can provide Junos version requirements to DHCP clients.

   Show answer

   Answer: BD

   Next question

10. Question 40 · 48 in bank

    Select 2

    Click the Exhibit button.



    Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly. Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)

    • AConfigure the set switch-options vrf-target target:65000:1 parameter on Leaf-2.
    • BConfigure the set switch-options service-id 1 parameter on Leaf-2.
    • CConfigure the set switch-options vtep-source-interface irb.0 parameter on Leaf-1.
    • DConfigure the set switch-options route-distinguisher 192.168.100.50:1 parameter on Leaf-1.

    Show answer

    Answer: AD

    Next question
