JN0-683 practice questions 1–10

1. Question 1 · 48 in bank

   Select 2

   Which two statements are true about IP fabrics using unnumbered BGP? (Choose two.)

   • AUnnumbered BGP peering automatically provisions IPv4 peering.
   • BUnnumbered BGP requires that family inet6 is configured on each interface.
   • CUnnumbered BGP peering automatically provisions IPv6 peering.
   • DUnnumbered BGP requires that family inet is configured on each interface.

   Show answer

   Answer: BC

   Next question

2. Question 2 · 48 in bank

   Select 2

   You are asked to automatically provision new Juniper Networks devices in your network with minimal manual intervention. Before you begin, which two statements are correct? (Choose two.)

   • AYou must have a system log (syslog) server to manage system log messages and alerts.
   • BYou must have a DHCP server that provides the location of the software image and configuration files.
   • CYou must have a file server that stores software image and configuration files.
   • DYou must have an NTP server to perform time synchronization.

   Show answer

   Answer: BC

   Next question

3. Question 3 · 48 in bank

   Select 2

   What are two supported methods for exporting data when using the Junos telemetry interface? (Choose two.)

   • Ausing SNMP
   • Busing gRPC
   • Cusing UDP
   • Dusing REST

   Show answer

   Answer: BD

   Next question

4. Question 4 · 48 in bank

   Click the Exhibit button.



   You want to enable the border leaf device to send Type 5 routes of local networks to the border leaf device in another data center. What must be changed to the configuration shown in the exhibit to satisfy this requirement?

   • AAdd a VLAN configuration with an l3-interface to the tenant1 routing instance.
   • BMove vrf-target target: 65000:1 to the evpn hierarchy.
   • CChange :5001 in the route-distinguisher to :10010.
   • DAdd encapsulation vxlan to the evpn hierarchy.

   Show answer

   Answer: A

   Next question

5. Question 5 · 48 in bank

   Select 3

   Which three statements are correct about symmetric IRB routing with EVPN Type 2 routes? (Choose three.)

   • AAn L3 interface (IRB) is required for each local VLAN.
   • BSymmetric routing requires MAC-VRF.
   • CSymmetric routing is less efficient than asymmetric routing.
   • DSymmetric routing supports the EVPN service VLAN bundle.
   • ESymmetric routing requires an extra transit VNI for each VRF.

   Show answer

   Answer: ABD

   Next question

6. Question 6 · 48 in bank

   You are asked for TX and RX traffic statistics for each interface to which an application server is attached. The statistics need to be reported every five seconds. Using the Junos default settings, which telemetry method would accomplish this request?

   • ANative Sensors
   • BOpenConfig
   • CSNMP
   • DgNMI

   Show answer

   Answer: A

   Next question

7. Question 7 · 48 in bank

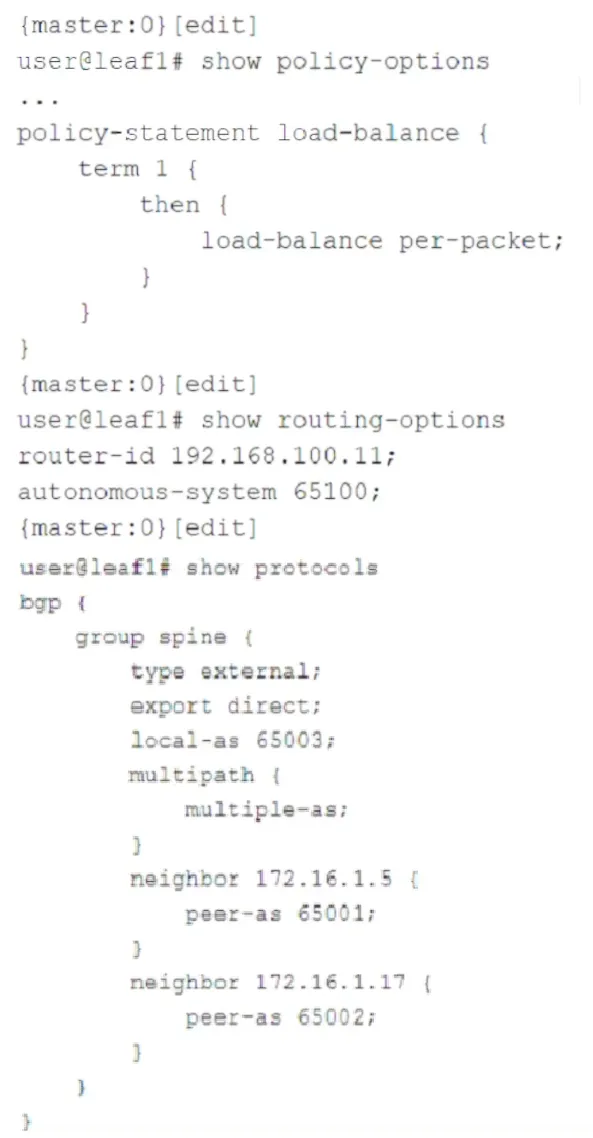

   Click the Exhibit button.



   You are troubleshooting an IP fabric for your data center. You notice that your traffic is not being load balancing to your spine devices from leaf devices. Referring to the configuration shown in the exhibit, what must be configured to solve this issue?

   • AThe load-balance policy must have a from statement that matches on protocol bgp.
   • BThe multipath multiple-as configuration must be configured for each peer in the BGP spine group.
   • CThe load-balance policy must be applied as an export policy to your BGP spine group.
   • DThe load-balance policy must be applied to the forwarding table under the routing-options hierarchy.

   Show answer

   Answer: D

   Next question

8. Question 8 · 48 in bank

   You are using a single tenant data center with a bridged overlay architecture. In this scenario, how do hosts of the different virtual networks communicate with each other?

   • Ausing anycast gateway addresses configured on the leaf devices
   • Busing EVPN Type 5 routes
   • Coff-fabric using an external device
   • Dusing virtual gateway addresses configured on the spine

   Show answer

   Answer: C

   Next question

9. Question 9 · 48 in bank

   Which statement is correct about a collapsed fabric EVPN-VXLAN architecture?

   • AFully meshed back-to-back links are needed between the spine devices.
   • BBorder gateway functions occur on border leaf devices.
   • CIt supports multiple vendors in the fabric as long as all the spine devices are Juniper devices deployed with L2 VTEPs.
   • DUsing Virtual Chassis at the leaf layer increases resiliency.

   Show answer

   Answer: B

   Next question

10. Question 10 · 48 in bank

    Select 2

    Which two requirements are needed to facilitate over-the-top DCI? (Choose two.)

    • AAll leaf VTEPs in each network must be reachable.
    • BAll spine loopbacks in each network must be reachable.
    • CEVPN route-types must be advertised to all spine devices.
    • DEVPN route-types must be advertised to all leaf devices.

    Show answer

    Answer: AB

    Next question
