301B practice questions 191–197

1. Question 191 · 197 in bank

   -- Exhibit

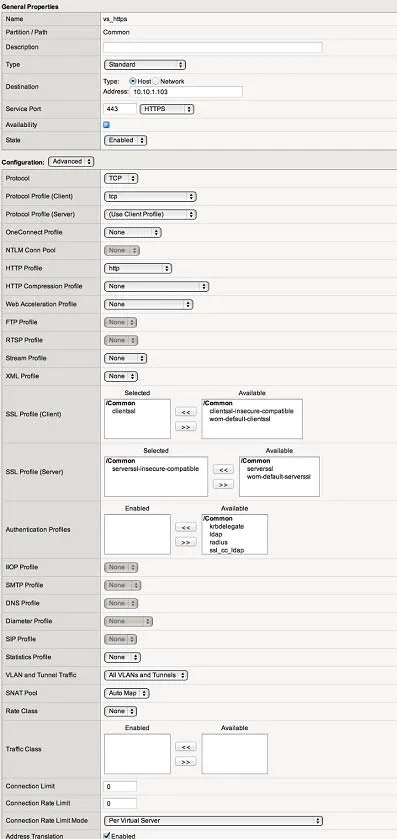

   -- Exhibit -- Refer to the exhibit. An LTM Specialist is troubleshooting an issue with an application configured on an LTM device. The application works properly when accessed directly via the servers; however, it does not work when accessed via the LTM device. The virtual server, 192.168.1.211:443, is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. The virtual server has no Client or Server SSL profiles associated. Which configuration change will allow the application to function through the virtual server?

   • AChange pool member port to 8443.
   • BChange virtual server port to 8443.
   • CAdd SSL off-loading to the pool member.
   • DAdd Client and Server SSL profiles to the virtual server.

   Show answer

   Answer: A

   Next question

2. Question 192 · 197 in bank

   -- Exhibit

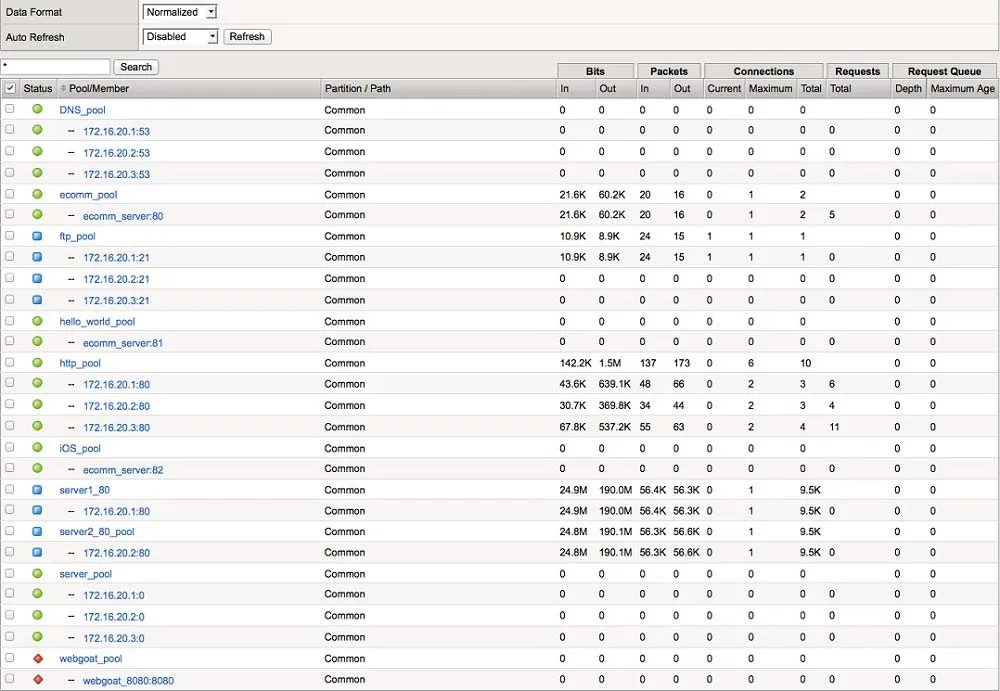

   -- Exhibit -- Refer to the exhibit. An administrator created a monitor to a pool member web server, which resulted in a pool member that is marked red. The administrator knows the web server is working when it is accessed from another computer. What should the administrator do to correct the problem?

   • AChange the default gateway on the server.
   • BCreate a SNAT in the LTM device configuration.
   • CChange the route to the client in the LTM configuration.
   • DChange the username and/or password on the monitor.

   Show answer

   Answer: D

   Next question

3. Question 193 · 197 in bank

   -- Exhibit

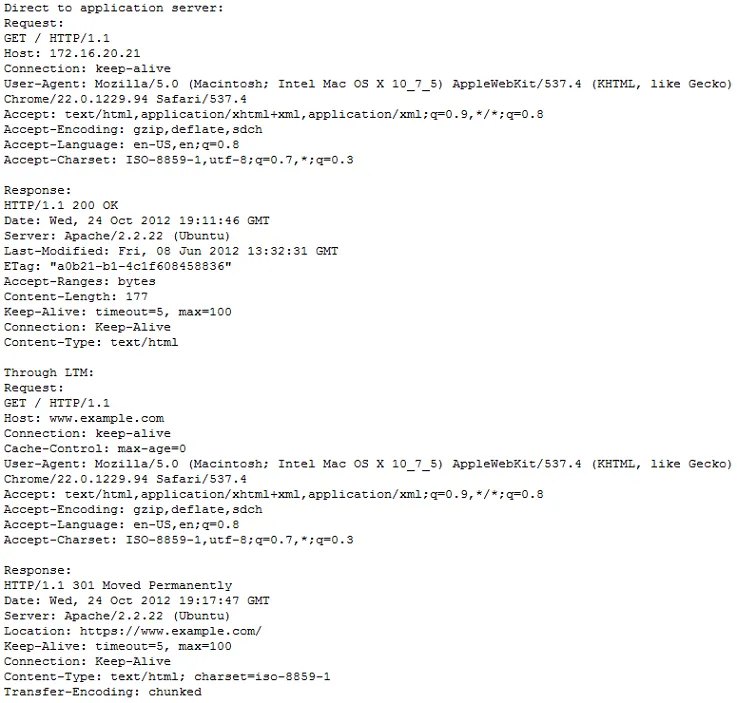

   -- Exhibit -- Refer to the exhibits. An LTM Specialist configures a virtual server for an internal application to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application users report that images are NOT loading through the virtual server; however, images load when going directly to the server. What should the LTM Specialist configure to allow the images to load through the virtual server?

   • AHTTP profile with "SSL Offload" enabled
   • BHTTP profile with "SSL Offload" disabled
   • CStream profile with source "http:" and target "https:"
   • DStream profile with target "http:" and source "https:"

   Show answer

   Answer: C

   Next question

4. Question 194 · 197 in bank

   -- Exhibit

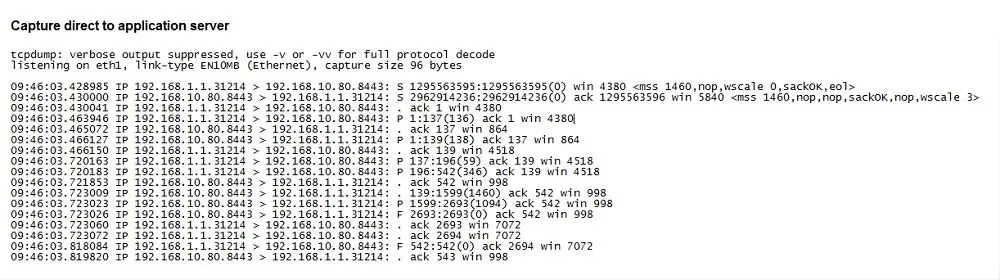

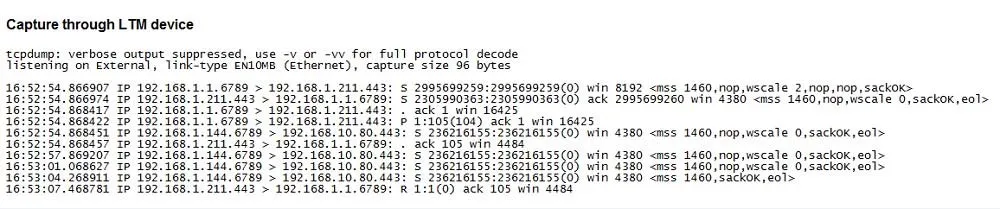

   -- Exhibit -- Refer to the exhibits. An LTM Specialist is troubleshooting an issue with one of the virtual servers on an LTM device, and all requests are receiving errors. Testing directly against the server generates no errors. The LTM Specialist has captured the request and response on both client and server sides of the LTM device. What should the LTM Specialist do to fix this issue?

   • ARemove "header-erase Host" in http profile.
   • BConfigure SNAT Automap on the virtual server.
   • CAssign OneConnect profile to the virtual server.
   • DSet "redirect-rewrite" to "selective" in http profile.

   Show answer

   Answer: A

   Next question

5. Question 195 · 197 in bank

   -- Exhibit

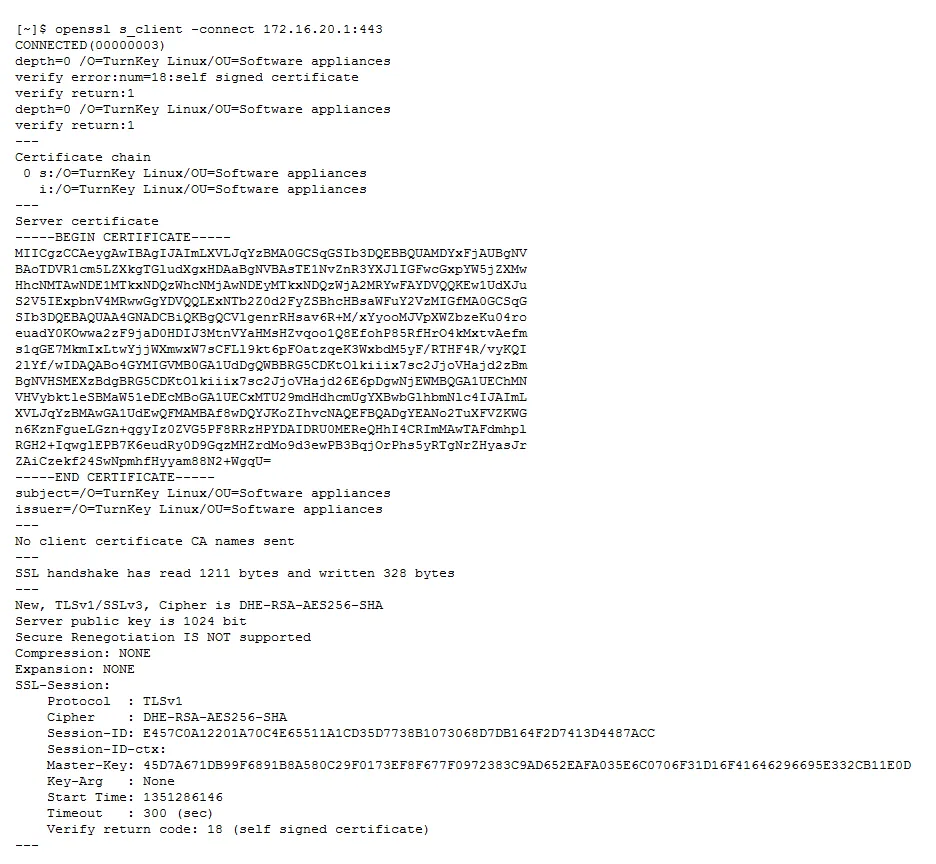

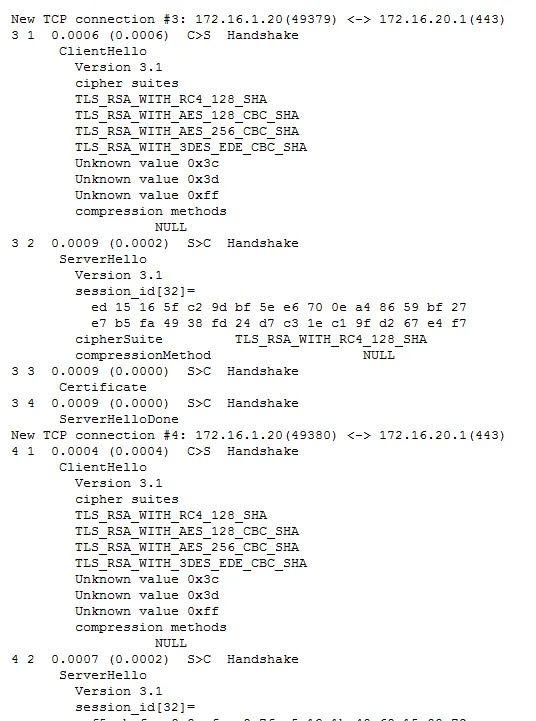

   -- Exhibit -- Refer to the exhibits. After upgrading LTM from v10 to v11, users are unable to connect to an application. The virtual server is using a client SSL profile for re-terminating SSL for payload inspection, but a server SSL profile is being used to re-encrypt the request. A client side ssldump did NOT show any differences between the traffic going directly to the server and the traffic being processed by the LTM device. However, packet capture was done on the server, and differences were noted. Which modification will allow the LTM device to process the traffic correctly?

   • AEnable Strict Resume.
   • BChange Secure Renegotiation to "Request."
   • CEnable ProxySSL option in the server SSL profile.
   • DChange to different ciphers on the server SSL profile.

   Show answer

   Answer: B

   Next question

6. Question 196 · 197 in bank

   -- Exhibit

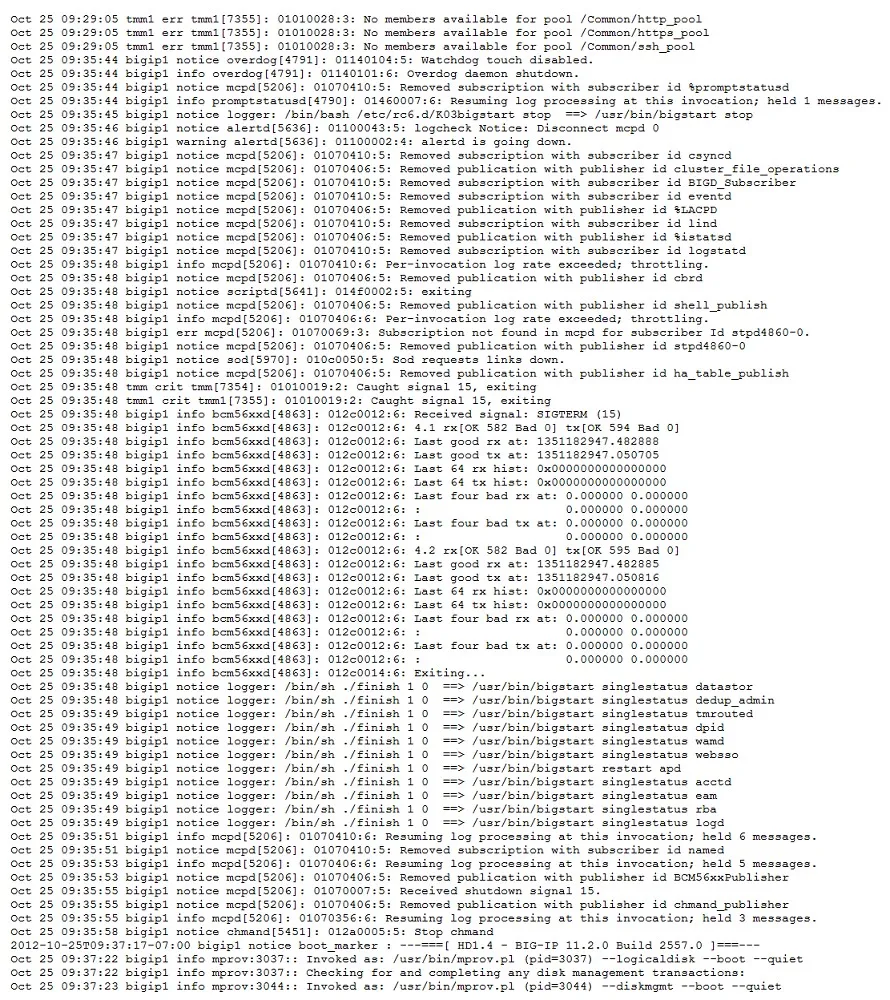

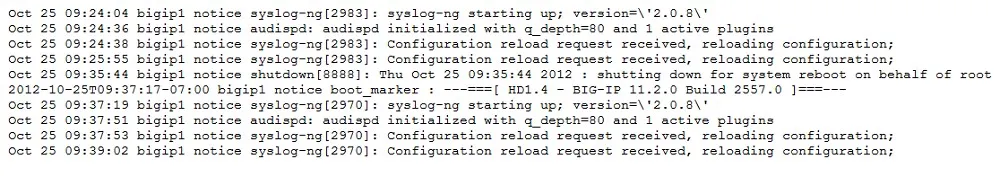

   -- Exhibit -- Refer to the exhibits. An LTM Specialist uses the information in the logs to determine the cause of a failover event in a high-availability (HA) pair. What caused the failover?

   • AThe overdog process crashed.
   • BThe system was administratively rebooted.
   • CThe process bcm56xxd received SIGTERM from the watchdog process.
   • DThe configuration reload request caused the config to reload and the device to failover.

   Show answer

   Answer: B

   Next question

7. Question 197 · 197 in bank

   -- Exhibit

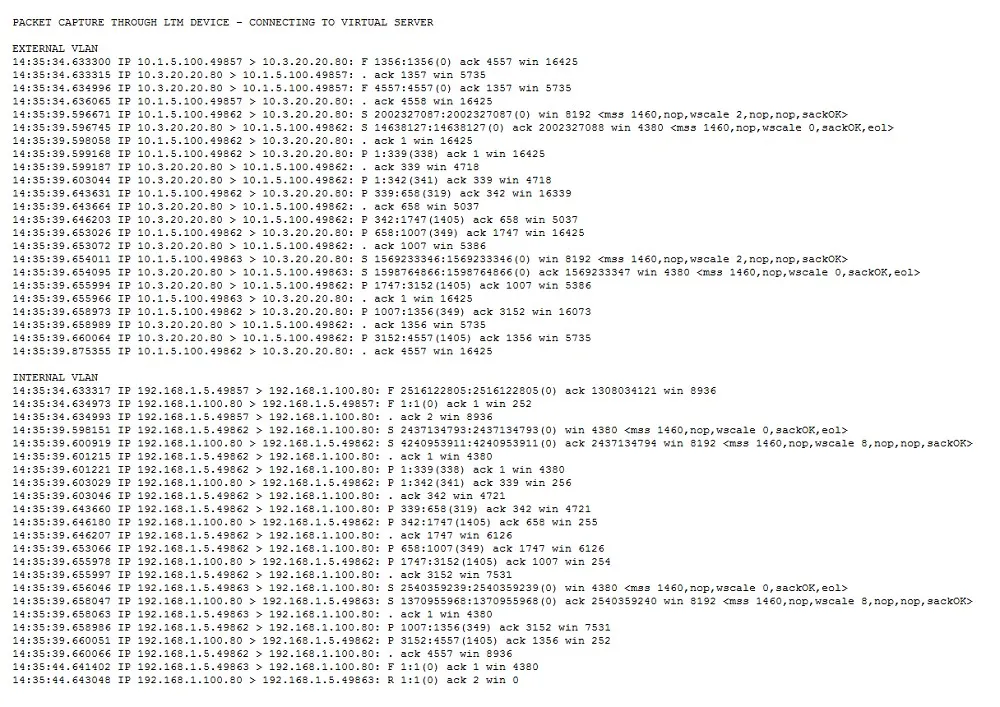

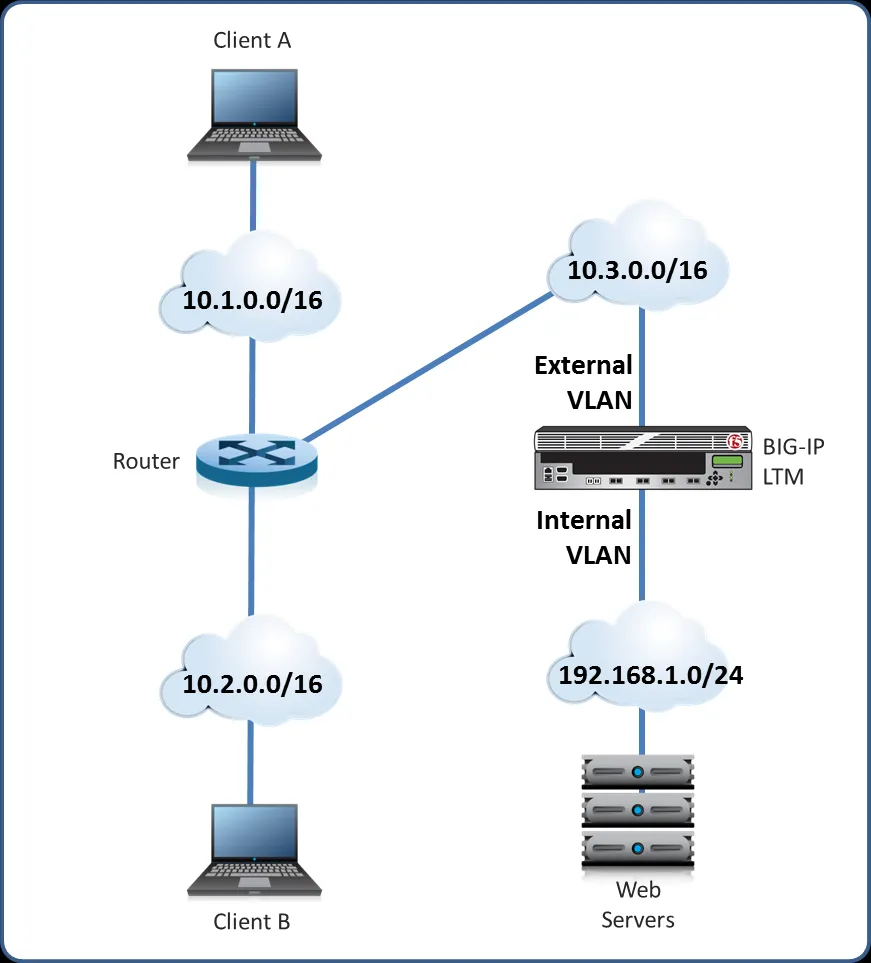

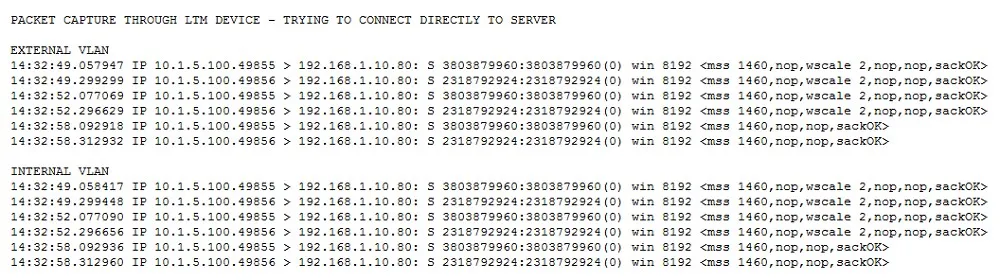

   -- Exhibit -- Refer to the exhibits. Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers. Why are users unable to connect directly to the application servers?

   • AThe router does NOT have a route to the server subnet.
   • BThe web server does NOT have a correct default gateway.
   • CThe LTM device does NOT have a SNAT on the External VLAN.
   • DThe LTM device does NOT have an IP Forwarding virtual server on the Internal VLAN.
   • EThe LTM device does NOT have an IP Forwarding virtual server on the External VLAN.

   Show answer

   Answer: B
