301B practice questions 131–140

1. Question 131 · 197 in bank

   -- Exhibit

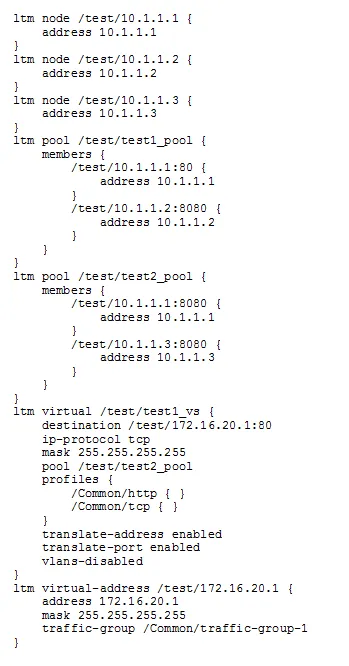

   -- Exhibit -- Refer to the exhibit. An LTM Specialist is reviewing the 'test' partition. Which objects, in order, can be removed from the partition?

   • Adelete pool test1_pool, delete node 10.1.1.2
   • Bdelete node 10.1.1.2, delete pool test2_pool
   • Cdelete pool test1_pool, delete node 10.1.1.2, delete node 10.1.1.1
   • Ddelete virtual test1_vs, delete pool test2_pool, delete node 10.1.1.1
   • Edelete pool test1_pool, delete pool test2_pool, delete node 10.1.1.3

   Show answer

   Answer: A

   Next question

2. Question 132 · 197 in bank

   Select 2

   -- Exhibit

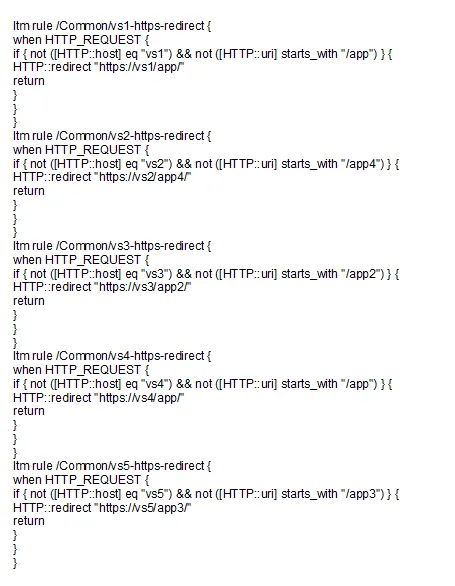

   -- Exhibit -- Refer to the exhibit. Which two items can be consolidated to simplify the LTM configuration? (Choose two.)

   • A/Common/vs1-https-redirect
   • B/Common/vs2-https-redirect
   • C/Common/vs3-https-redirect
   • D/Common/vs4-https-redirect
   • E/Common/vs5-https-redirect

   Show answer

   Answer: AD

   Next question

3. Question 133 · 197 in bank

   -- Exhibit

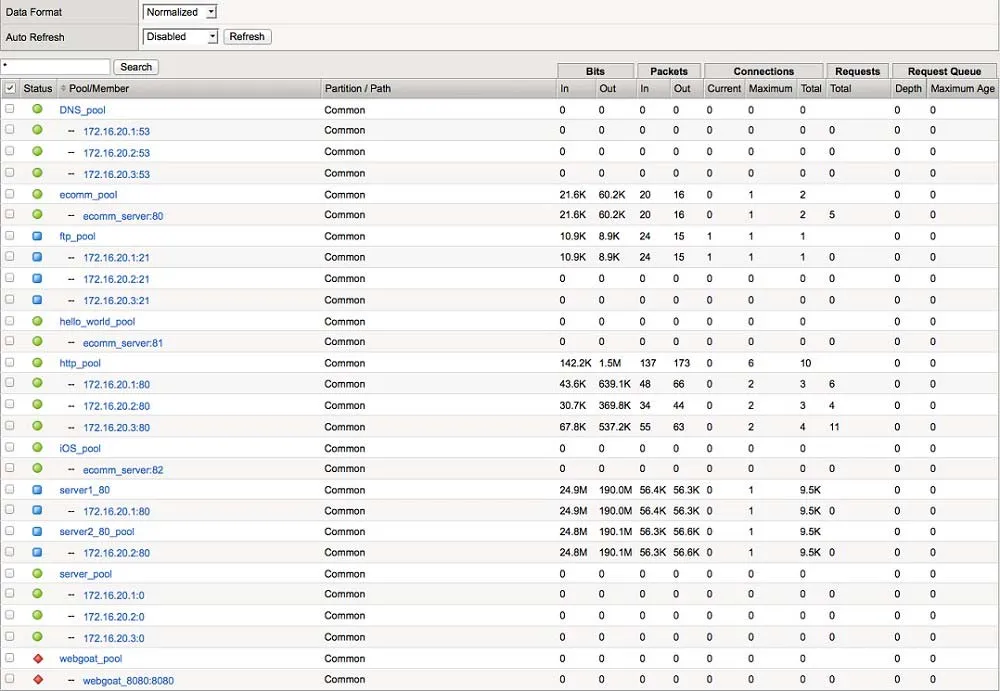

   -- Exhibit -- Refer to the exhibit. Which pool can be removed without affecting client traffic?

   • Aftp_pool
   • Bhttp_pool
   • Cserver1_80
   • Dserver_pool

   Show answer

   Answer: D

   Next question

4. Question 134 · 197 in bank

   -- Exhibit

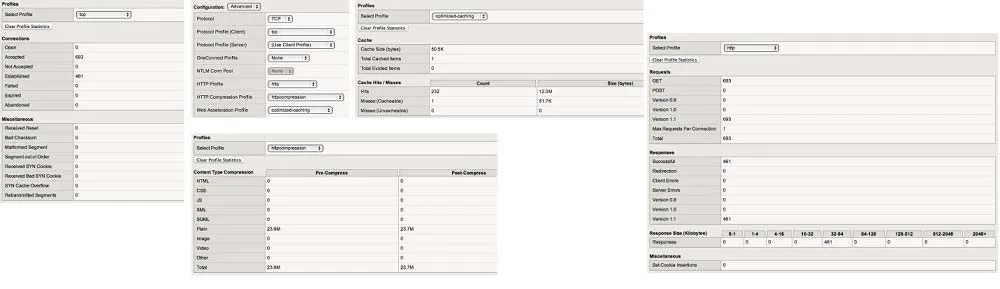

   -- Exhibit -- Refer to the exhibit. Which profile could be removed or changed on this virtual server to reduce CPU load on the LTM device without increasing server side bandwidth usage?

   • Atcp
   • Bhttp
   • Chttpcompression
   • Doptimized-caching

   Show answer

   Answer: C

   Next question

5. Question 135 · 197 in bank

   -- Exhibit



   -- Exhibit -- Refer to the exhibit. An LTM Specialist is upgrading the LTM devices. Which device should be upgraded first?

   • ADevice A
   • BDevice B
   • CDevice C
   • DDevice D

   Show answer

   Answer: C

   Next question

6. Question 136 · 197 in bank

   -- Exhibit

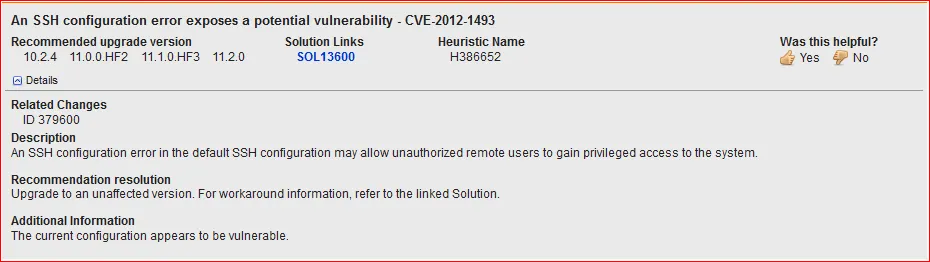

   -- Exhibit -- Refer to the exhibit. An LTM Specialist is working on an LTM 11.0.0 installation and has identified a security vulnerability as shown in the exhibit. The LTM Specialist is tasked with applying the latest available hotfix to resolve the problem. Which procedure resolves the problem?

   • ABrowse to System > Software Management > Hotfix List. Import TMOS 11.2.0 to the available hotfix images. Select the imported hotfix image and installation location and click Install.
   • BBrowse to System > Software Management > Hotfix List. Import 11.1.0.HF3 to the available hotfix images. Select the imported hotfix image and installation location and click Install.
   • CBrowse to System > Software Management > Image List. Import TMOS 11.2.0 to the available hotfix images. Select the imported hotfix image and installation location and click Install.
   • DBrowse to System > Software Management > Image List. Import 11.1.0.HF3 to the available hotfix images.

   Show answer

   Answer: B

   Next question

7. Question 137 · 197 in bank

   -- Exhibit



   -- Exhibit -- Refer to the exhibit. An LTM Specialist has uploaded a qkview to F5 iHealth. Within the GUI, what is the correct procedure to comply with the recommendation shown in the exhibit?

   • AObtain product version image from release.f5.com. Overwrite existing image with new product version image. Select product version image and click Install. Select the available disk and volume set name.
   • BObtain product version image from images.f5.com. Overwrite existing image with new product version image. Select product version image and click Install. Select the available disk and volume set name.
   • CObtain product version image from downloads.f5.com. Import product version image. Install image onto BIG-IP platform. Select product version image and click Install. Select the available disk and volume set name.
   • DLog a call requesting the product version image via websupport.f5.com Import product version image. Install image onto BIG-IP platform. Select product version image and click Install.

   Show answer

   Answer: C

   Next question

8. Question 138 · 197 in bank

   -- Exhibit



   -- Exhibit -- Refer to the exhibit. Which step should an LTM Specialist take next to finish upgrading to HD1.3?

   • AInstall image to HD1.3
   • BInstall hotfix to HD1.3
   • CActivate HD1.3
   • DRelicense HD1.3

   Show answer

   Answer: C

   Next question

9. Question 139 · 197 in bank

   -- Exhibit

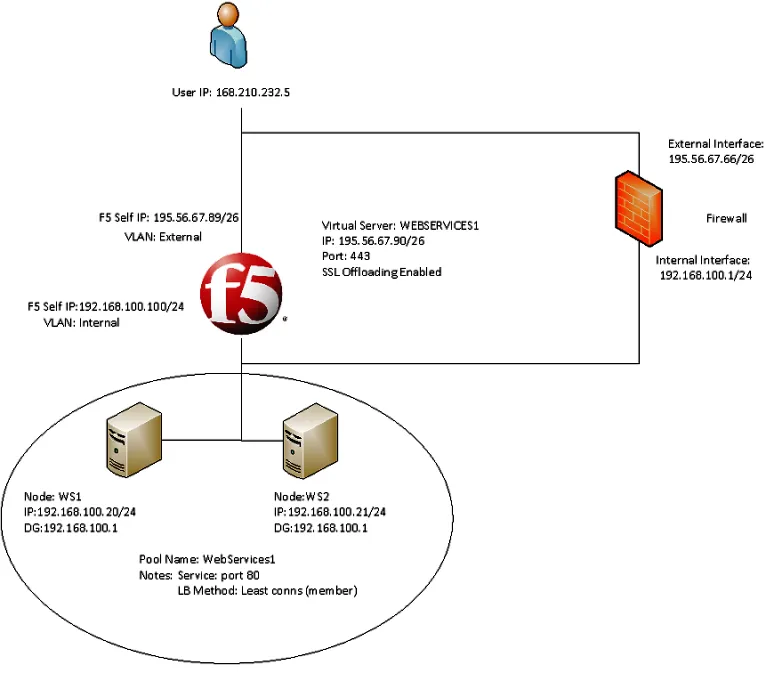

   -- Exhibit -- Refer to the exhibit. Users receive an error when attempting to connect to the website https://website.com. The website has a DNS record of 195.56.67.90. The upstream ISP has confirmed that there is nothing wrong with the routing between the user and the LTM device. The following tcpdump outputs have been captured: External Vlan, filtered on IP 168.210.232.5 00:25:07.598519 IP 168.210.232.5.33159 > 195.56.67.90.https: S 1920647964:1920647964(0) win 8192 <mss 1450,nop,nop,sackOK> 00:25:07.598537 IP 195.56.67.90.https > 168.210.232.5.33159: S 2690691360:2690691360(0) ack 1920647965 win 4350 <mss 1460,sackOK,eol> 00:25:07.598851 IP 168.210.232.5.33160 > 195.56.67.90.https: S 2763858764:2763858764(0) win 8192 <mss 1450,nop,nop,sackOK> 00:25:07.598858 IP 195.56.67.90.https > 168.210.232.5.33160: S 1905576176:1905576176(0) ack 2763858765 win 4350 <mss 1460,sackOK,eol> Internal Vlan, filtered on IP 168.210.232.5 00:31:46.171124 IP 168.210.232.5.33202 > 192.168.100.20.http: S 2389057240:2389057240(0) win 4380 <mss 1460,nop,wscale 0,sackOK,eol> What is the problem?

   • AThe filters on the tcpdumps are incorrect.
   • BThe DNS entry for website.com is incorrect.
   • CThe virtual server 'WEBSERVICES1' is listening on the incorrect port.
   • DThe firewall is dropping the connection coming from the pool members returned to the client.
   • EThe subnet masks of the pool members of pool WebServices1 and the f5 'Internal' Vlan are incorrect.

   Show answer

   Answer: D

   Next question

10. Question 140 · 197 in bank

    -- Exhibit

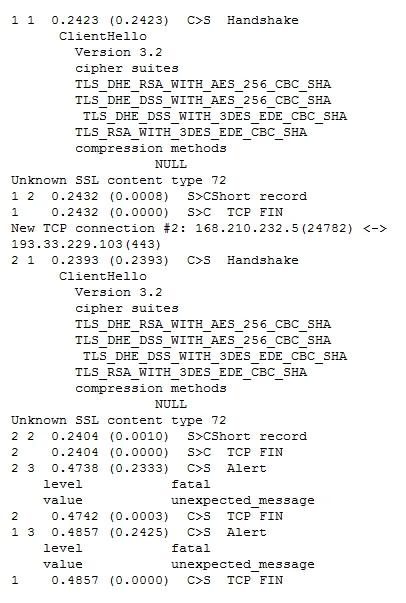

    -- Exhibit -- Refer to the exhibit. A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. After trying Mozilla Firefox and Internet Explorer browsers, the client still receives the same errors. The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit. What is the problem?

    • AThe SSL key length is incorrect.
    • BThe BIG-IP LTM is NOT serving a certificate.
    • CThe BIG-IP LTM is NOT listening on port 443.
    • DThe client needs to be upgraded to the appropriate cipher-suite.

    Show answer

    Answer: B

    Next question
