Question 191 · 610 in bank
A network administrator installed a new VLAN to the network after a company added an additional floor to the office. Users are unable to obtain an IP address on the new VLAN, but ports on existing VLANs are working properly. Which of the following configurations should the administrator update?
Show answer
Answer: D
Explanation
IP helper directly addresses the VLAN-specific DHCP delivery issue. The administrator needs to update the router’s configuration for the new VLAN (e.g., ip helper-address ) to relay requests to the server. While a missing DHCP scope could also be an issue, the question asks for a “configuration to update,” and IP helper is a network-side fix tied to the VLAN addition. Answer: D. IP helper
Source: Adapted from community discussion — AriGarcia
Permanent link to question 191 Report an issue
Question 192 · 610 in bank
A network engineer needs to add a boundary network to isolate and separate the internal network from the public-facing internet. Which of the following security defense solutions would best accomplish this task?
Show answer
Answer: D
Permanent link to question 192 Report an issue
Question 193 · 610 in bank
A network administrator is configuring a new switch and wants to ensure that only assigned devices can connect to the switch. Which of the following should the administrator do?
Show answer
Answer: C
Explanation
Port security is a feature available on most network switches that allows you to control which devices can connect to a particular switch port based on MAC addresses. By enabling port security, the network administrator can restrict each port to only allow a specific set of MAC addresses, ensuring that only authorized devices can connect. If an unauthorized device tries to connect, the switch can take actions such as shutting down the port, dropping the traffic, or sending an alert.
Source: Adapted from community discussion — BobbyCruz111
Permanent link to question 193 Report an issue
Question 194 · 610 in bank
A customer needs six usable IP addresses. Which of the following best meets this requirement?
Show answer
Answer: D
Explanation
The ideal mask would be 255.255.255.248 which would give us exactly the right amount of usable addresses at 6, but the next best is D. with 14 usable address
Source: Adapted from community discussion — kinkistyle
Permanent link to question 194 Report an issue
Question 195 · 610 in bank

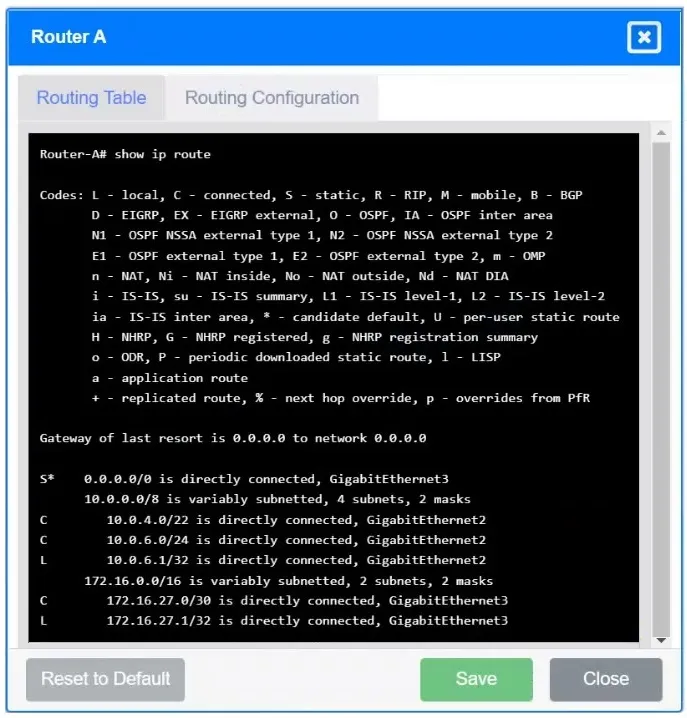

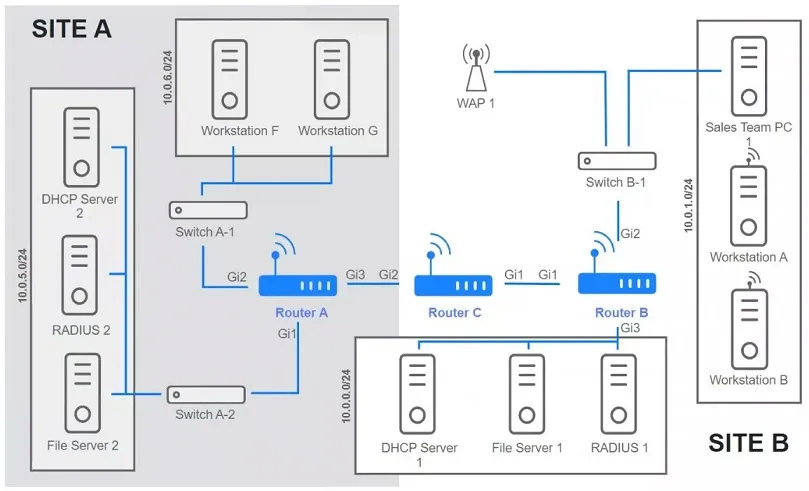

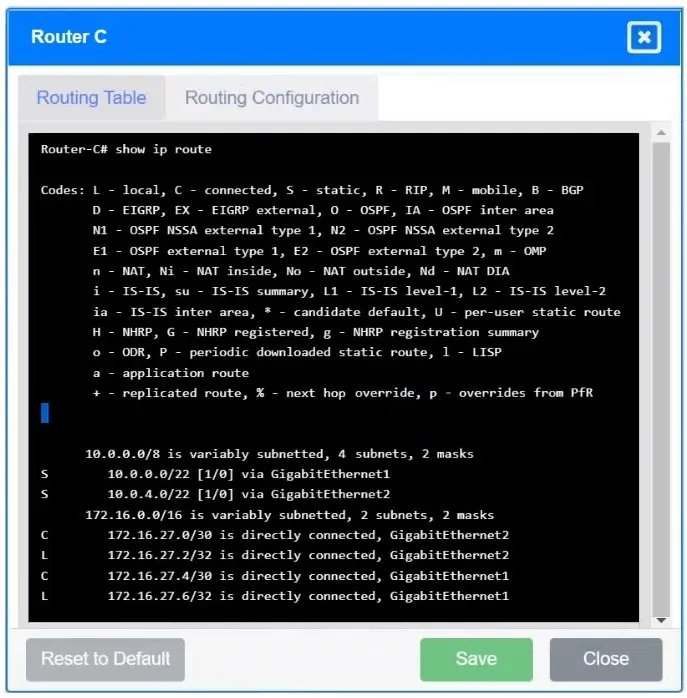

SIMULATION - Users are unable to access files on their department share located on file server 2. The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2. INSTRUCTIONS - Click on each router to review output, identify any issues, and configure the appropriate solution. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure

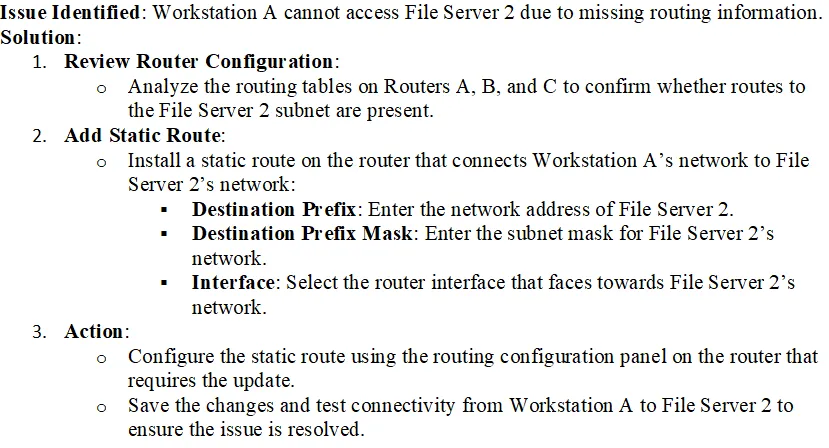

Answer: See figure below
Explanation
Router A: Problem found: Yes Destination Prefix: 10.0.5.0 Destination Mask: 255.255.255.0 Interface: Gi1 Router B: Problem Found: Yes Destination Prefix: 10.0.1.0 Destination Mask: 255.255.255.0 Interface: Gi2 Router B: nothing to do, all good
Source: Adapted from community discussion — Azizuddeen
Permanent link to question 195 Report an issue
Question 196 · 610 in bank
A user reports having intermittent connectivity issues to the company network. The network configuration for the user reveals the following: IP address: 192.168.1.10 - Subnet mask: 255.255.255.0 - Default gateway: 192.168.1.254 - The network switch shows the following ARP table:
Which of the following is the most likely cause of the user's connection issues?
Show answer
Answer: C
Explanation
The correct answer is C. Another PC with manually configured IP. Looking at the ARP table provided in the image, we can identify the issue: There are two devices with the same IP address (192.168.1.10): One device with MAC address 0c:00.1134.0001 on eth4 Another device with MAC address 0c:00.1298.d239 on eth6 This is a clear case of an IP address conflict where: Both devices are trying to use 192.168.1.10 Both are on VLAN 10 Different physical ports (eth4 and eth6)
Source: Adapted from community discussion — chupapi_001
Permanent link to question 196 Report an issue
Question 197 · 610 in bank
Which of the following is created to illustrate the effectiveness of wireless networking coverage in a building?
Show answer
Answer: D
Permanent link to question 197 Report an issue
Question 198 · 610 in bank
Which of the following cloud deployment models is most commonly associated with multitenancy and is generally offered by a service provider?
Show answer
Answer: C
Explanation
The correct answer is: C. Public. The public cloud deployment model is most commonly associated with multitenancy and is generally offered by a service provider. In this model, multiple organizations (tenants) share the same infrastructure and resources while keeping their data separate. Examples include cloud services like AWS, Microsoft Azure, and Google Cloud.
Source: Adapted from community discussion — ba10f26
Permanent link to question 198 Report an issue
Question 199 · 610 in bank
A network administrator needs to create an SVI on a Layer 3-capable device to separate voice and data traffic. Which of the following best explains this use case?
Show answer
Answer: C
Explanation
The correct answer is: C. A logical interface used for the routing of VLANs. A Switch Virtual Interface (SVI) is a logical interface configured on a Layer 3 switch to provide inter-VLAN routing. By creating an SVI, the network administrator can separate voice and data traffic into different VLANs and enable communication between them through the Layer 3 device.
Source: Adapted from community discussion — ba10f26
Permanent link to question 199 Report an issue
Question 200 · 610 in bank
A network administrator is performing a refresh of a wireless environment. As the APs are being placed, they overlap a little bit with each other. Which of the following 2.4GHz channels should be selected to ensure that they do not conflict?
Show answer
Answer: B
Permanent link to question 200 Report an issue
