220-1101 practice questions 221–230

1. Question 221 · 624 in bank

   A technician is replacing the RAM on an entry-level server with hot-swappable components. Which of the following should the technician do NEXT?

   • AReplace the RAM while the server is at a cool temperature.
   • BReplace the RAM while the server is running.
   • CPower down the server completely and then replace the RAM.
   • DVerity that the OS supports hot swapping the RAN.

   Show answer

   Answer: C

   Explanation

   When replacing RAM on an entry-level server with hot-swappable components, the technician should do the following NEXT: C. Power down the server completely and then replace the RAM. Explanation: Hot-swappable components allow for replacement without shutting down the entire system. However, for certain critical components like RAM, it is still recommended to power down the server completely before making changes. While hot-swapping RAM is technically feasible in some environments, it is generally a best practice to avoid potential issues and ensure a clean and controlled replacement by powering down the server.

   Source: Adapted from community discussion — edwinv

   Next question

2. Question 222 · 624 in bank

   While on a VoIP call, one user is unable to understand the other because the audio is breaking up. Which of the following BEST describes what is occurring on the call?

   • AHigh latency
   • BExternal interference
   • CNo connectivity
   • DPort flapping

   Show answer

   Answer: A

   Explanation

   The BEST description for what is occurring on the VoIP call where one user is unable to understand the other due to audio breaking up is: A. High latency. Explanation: High latency (Option A) refers to delays in the transmission of data over a network. In the context of a VoIP (Voice over Internet Protocol) call, high latency can cause audio packets to arrive late or out of order, leading to audio interruptions and a breaking up of the conversation.

   Source: Adapted from community discussion — edwinv

   Next question

3. Question 223 · 624 in bank

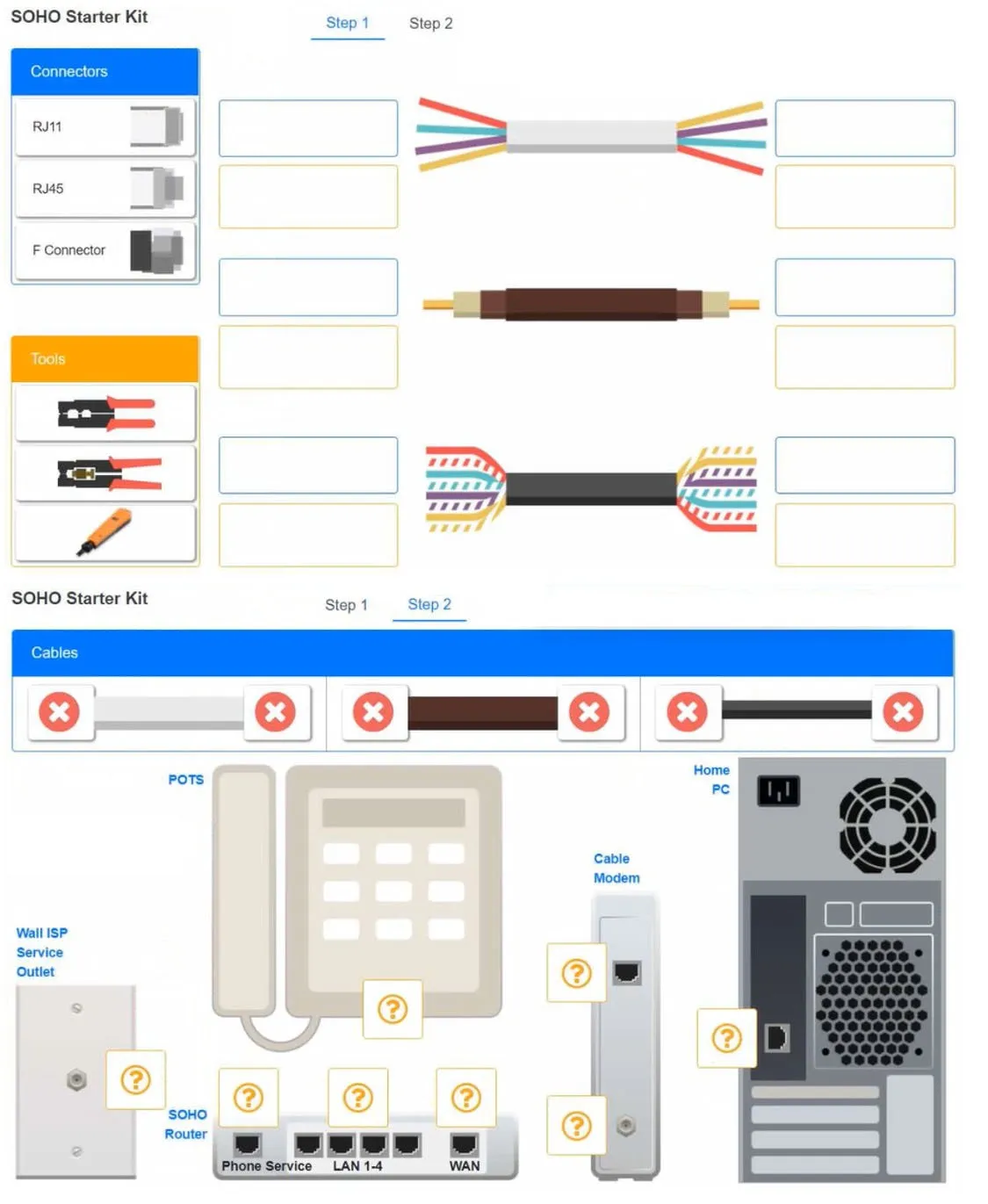

   DRAG DROP - A small ISP has hired a new technician. Joe, the new technician, is being trained to configure customers' home networks. The training instructor gives the technician a starter kit with cables, cable ends, and other network equipment and asks him to build a working network. The computer should be connected to have Internet connectivity and the phone should be connected to have a dial tone. INSTRUCTIONS - Use the appropriate cables, cable ends, tools and equipment to configure the network and connect all components accordingly. There are 2 steps and the simulation starts on step 1. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

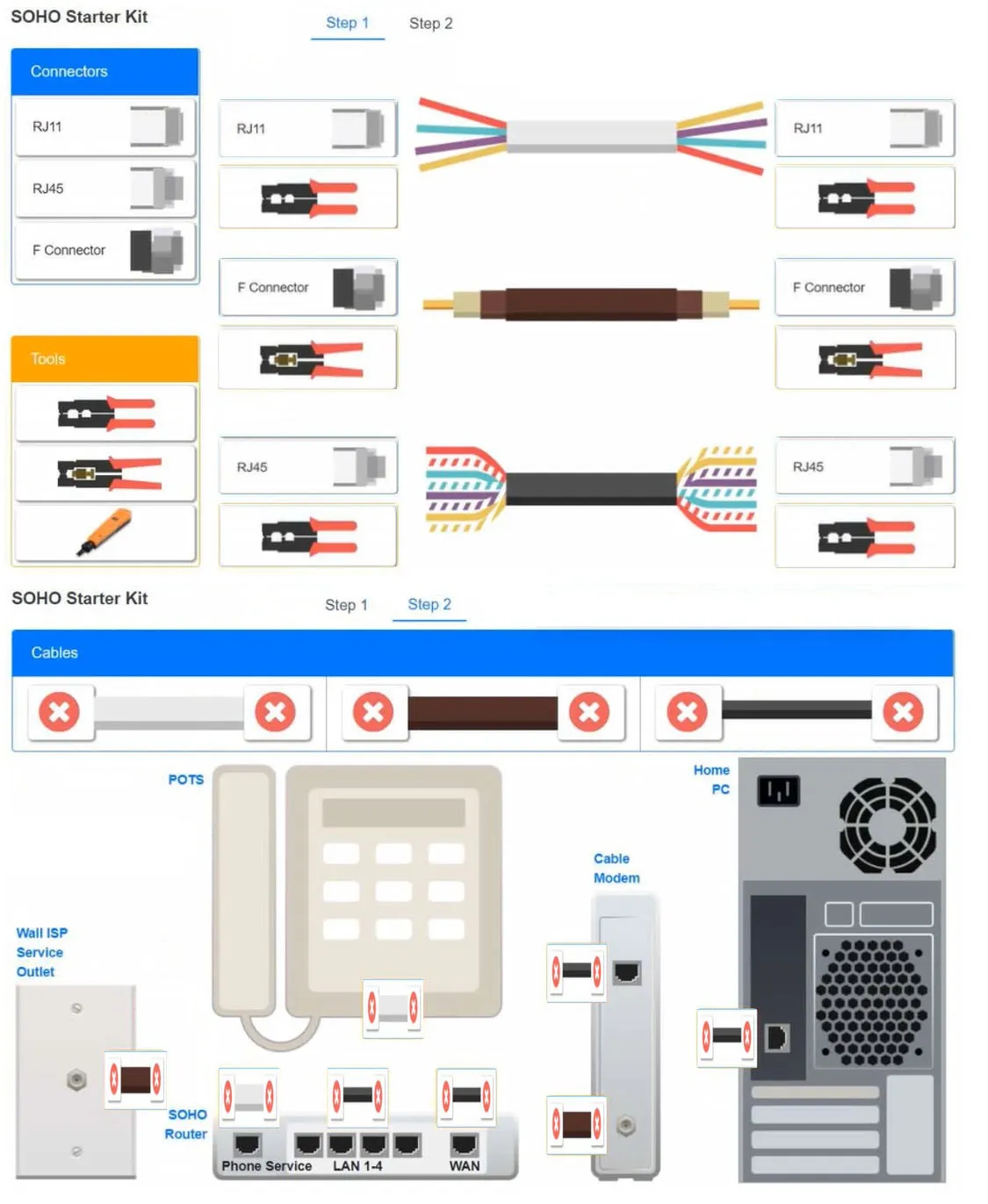

   Show the answer figure

   Answer: See figure below

   Explanation

   IF you look at step one, the cables are color coordinated, so in step 2, you get that colored cable and connect it to what has to be connected. An example is that the RJ11 cable (the white cable) is used for phone connection, so you connect it on the phone and the phone jack on the router. SO the white cable goes on those two.

   Source: Adapted from community discussion — Yeti7007



   Next question

4. Question 224 · 624 in bank

   A laptop has been returned for a screen repair. The owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop. Which of the following steps should the repair technician take FIRST?

   • AReplace the graphics card.
   • BReplace the screen, as the customer insists.
   • CRecommend the usage of an external display instead.
   • DEnsure the backlight is functioning as expected.

   Show answer

   Answer: D

   Explanation

   Ensure the backlight is functioning as expected. The technician should first check the backlight, as the fact that a faded image can be seen in bright settings suggests that the issue may be with the backlight and not the screen itself. If the backlight is not functioning as expected, the technician can then proceed with repairing or replacing it. If the backlight is functioning correctly, then the technician can move on to other possible causes of the issue.

   Source: Adapted from community discussion — freeman016

   Next question

5. Question 225 · 624 in bank

   A systems administrator needs to set up a multifunction printer for the legal department. The legal department deals with sensitive documents and requires a secure method of releasing print jobs. Which of the following should the systems administrator configure to meet the department's security requirements?

   • ASMB settings
   • BUser authentication
   • CAudit logging
   • DWired connection

   Show answer

   Answer: B

   Explanation

   This option requires the user to enter a PIN code or swipe a smart card before the printer releases their print job. This way, the user can verify their identity and ensure that no one else can access their sensitive documents. The other options are not as secure or effective as user authentication. SMB settings are used to share files and printers over a network, but they do not provide a secure method of releasing print jobs. Audit logging records the details of each print job, but it does not prevent unauthorized access to the printed documents. Wired connection reduces the risk of wireless interference or hacking, but it does not guarantee that the print jobs are only retrieved by the intended recipient

   Source: Adapted from community discussion — Raffaelloo

   Next question

6. Question 226 · 624 in bank

   A network technician is working to locate an end user's Cat 6 cable within a network rack. The server rack is poorly documented, and a cable management system has not been implemented. Which of the following would be the BEST tool to BEST identify the correct cable?

   • ACable tester
   • BNetwork tap
   • CToner probe
   • DLoopback plug

   Show answer

   Answer: C

   Explanation

   The technician connects the tone generator to the Cat 6 cable at one end. The tone generator sends a signal or tone through the cable. The technician then uses the probe to scan the network rack and listen for the tone. When the probe is near the cable carrying the tone, it emits an audible sound, helping the technician identify the correct cable among the mess of cables in the rack.

   Source: Adapted from community discussion — Andylove

   Next question

7. Question 227 · 624 in bank

   A technician connects a new computer to the internet and then opens the wiring closet. Even though all of the wires are terminated, nothing in the wiring closet is labeled. Which of the following tools should the technician use to complete the task?

   • ACable tester
   • BLoopback plug
   • CToner probe
   • DPunchdown tool

   Show answer

   Answer: C

   Explanation

   To complete the task of identifying and labeling cables in the wiring closet where nothing is currently labeled, the technician should use: C. Toner probe. Explanation: A toner probe (Option C) is a tool used to trace and identify cables in a network or wiring system. The toner is connected to one end of the cable, and the technician uses the probe to trace the corresponding cable in the wiring closet. This helps in identifying and labeling cables.

   Source: Adapted from community discussion — edwinv

   Next question

8. Question 228 · 624 in bank

   Which of the following is the BEST use case for client-side virtualization?

   • ALegacy software
   • BEmail
   • CDirectory services
   • DDatabase

   Show answer

   Answer: A

   Next question

9. Question 229 · 624 in bank

   An IT technician is inspecting the internal components of a desktop computer to assess a suspected power issue with the motherboard. Which of the following connectors should the IT technician inspect further?

   • ARJ45
   • BStraight tip
   • CDB9
   • DMolex

   Show answer

   Answer: D

   Explanation

   Certain Molex connectors are used for providing power to the motherboard, fans, floppy disk drive, CD/DVD drive, video card, some older hard drive models, and more. source: https://en.wikipedia.org/wiki/Molex_connector DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Source: https://www.l-com.com/frequently-asked-questions/what-is-a-db9-connector A & B are clearly not it

   Source: Adapted from community discussion — oxfordcommaa

   Next question

10. Question 230 · 624 in bank

    A systems administrator is attempting to resolve a ticket regarding an issue with an email server. The administrator is covering for a coworker who was previously working on the ticket. The coworker already gathered facts about the issue and spoke with users concerning their missing emails. The coworker also discovered the email server's retention policy was updated shortly before users first noticed the issue. Which of the following should the systems administrator do NEXT to resolve the email issue?

    • AEscalate the ticket to a higher level to resolve the email server issue.
    • BTest a theory to determine the cause of the email server issue.
    • CEstablish a theory of probable cause for the email server issue.
    • DCreate a plan of action to resolve the email server issue.

    Show answer

    Answer: C

    Explanation

    I do not believe a theory was established yet. The problem was identified, but as for an actual solution to the problem, nothing seems to be stated.

    Source: Adapted from community discussion — TrebleSmith

    Next question
