Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
Select the benefits of implementing Cisco DNA Center. (Choose all that apply.)
Answer: ADE
What about one click configuration (you only have to click to provision devices, you can have templates to automate configuration, etc.), meaning every configuration is doing with clicking now. Agree with the 3 other answers also.
Source: Adapted from community discussion — Gabiche
A network administrator need to configure Netflow on the devices in his network. He has Source IP Address, Destination IP Address, Source Port number & Destination port number. What additional information do he need to configure Netflow.
Answer: ACD
Missing the (choose three), but provided answers are correct. " NetFlow Flows Key Fields A network flow is identified as a unidirectional stream of packets between a given source and destination--both are defined by a network-layer IP address and by transport-layer source and destination port numbers. Specifically, a flow is identified as the combination of the following key fields: Source IP address Destination IP address Source port number Destination port number Layer 3 protocol type Type of service (ToS) Input logical interface " https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/netflow/configuration/15-mt/nf-15-mt-book/get-start-cfg-nflow.html#GUID-BE3FF8D7-C298-4C34-95DE-1CA27DB651EF
Source: Adapted from community discussion — iGlitch
A network administrator is configuring a configuration management tool for some network devices that does not support agent. Select what option will you pick from the below options to successfully configure configuration management tool for that device.
Answer: B
The grammar is horrible. Yes the question does state "some network devices that do not support an agent." but that is what the question is referring to, the question is not asking to find a common management tool for all devices, just the ones that do not support an agent... I am going with B on this one based on the last part of the question alone "What option will you pick... for THAT device?"
Source: Adapted from community discussion — mgiuseppe86

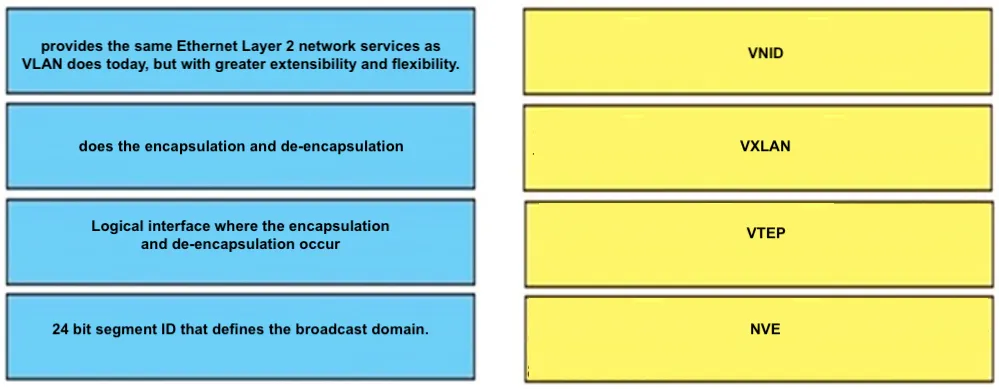

DRAG DROP - Drag and drop the definitions in the left to their respective Terminology in the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

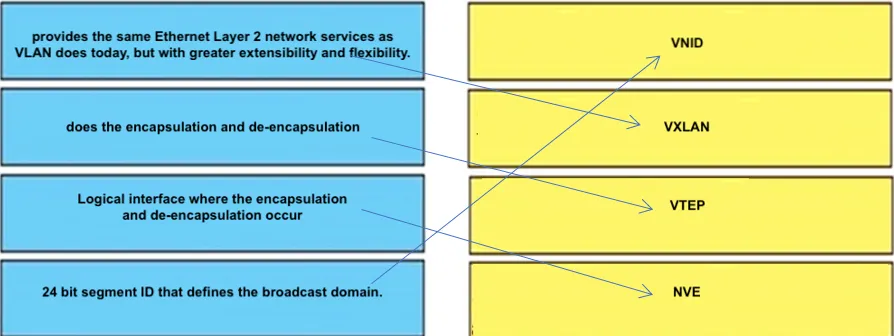

Answer: See figure below
correct Terminology VXLAN (Virtual Extensible LAN) - The technology that provides the same Ethernet Layer 2 network services as VLAN does today, but with greater extensibility and flexibility. VNID (Vxlan Network Identifier) - 24 bit segment ID that defines the broadcast domain. Interchangeable with "VXLAN Segment ID". VTEP (Virtual Tunnel Endpoint) - This is the device that does the encapsulation and de-encapsulation. NVE (Network Virtual Interface) - Logical interface where the encapsulation and de-encapsulation occur.
Source: Adapted from community discussion — PeterTheCheater
Select the devices from the below options that can be fart of Cisco SDWAN Solution. (Choose two.)
Answer: BC
Select the devices from the below options that can be part of Cisco SDWAN Solution. (Choose two.), the question is like that, I think.
Source: Adapted from community discussion — KZM
What is the purpose of the weight attribute in an EID-to-RLOC mapping?
Answer: B
http://www.watersprings.org/pub/id/draft-ietf-lisp-rfc6830bis-32.html hen multiple RLOC have the same 'Priority' then the 'Weight' states how to load balance traffic among them. The value of the 'Weight' represents the relative weight of the total packets that match the maping entry.
Source: Adapted from community discussion — snarkymark
A network engineer is designing a QoS policy for voice and video applications. Which software queuing feature provides strict-priority servicing?
Answer: B
https://en.wikipedia.org/wiki/Low-latency_queuing Low-latency queuing (LLQ) is a feature developed by Cisco to bring strict priority queuing (PQ) to class-based weighted fair queuing (CBWFQ). LLQ allows delay-sensitive data (such as voice) to be given preferential treatment over other traffic by letting the data to be dequeued and sent first.
Source: Adapted from community discussion — snarkymark
Which characteristic applies to a traditional WAN solution but not to a Cisco SD-WAN solution?
Answer: A
I think A because B is listed as an SD-WAN characteristic on https://www.cisco.com/c/en/us/solutions/enterprise-networks/sd-wan/what-is-sd-wan.html#~benefits "A single, centralized, cloud-delivered management dashboard for configuration and management of WAN, cloud, and security"
Source: Adapted from community discussion — Lungful
What is a characteristic of para-virtualization?
Answer: D
Paravirtualization is a type of virtualization where software instructions from the guest operating system running inside a virtual machine can use “hypercalls” that communicate directly with the hypervisor. This provides an interface very similar to software running natively on the host hardware. The main benefits of paravirtualization are where instructions are not compatible with full virtualization or where more immediate access to underlying hardware is required for performance reasons. For timing-critical functions, paravirtualization can provide the speed of native code alongside some of the benefits of virtualization, such as sharing hardware between multiple operating systems.
Source: Adapted from community discussion — slacker_at_work
Which LISP infrastructure device provides connectivity between non-LISP sites and LISP sites by receiving non-LISP traffic with a LISP site destination?
Answer: A
Further simplified: PITRs are for Non-LISP > LISP PETRs are for LISP > Non-LISP Always remember who is performing encapsulation and de-encapsulation. xITRs always encapsulate, whether [FROM] a LISP-RLOC or Non-LISP Site; while xETRs always de-encapsulate, whether [TO] a LISP-RLOC or Non-LISP Site.
Source: Adapted from community discussion — ArchBishop
