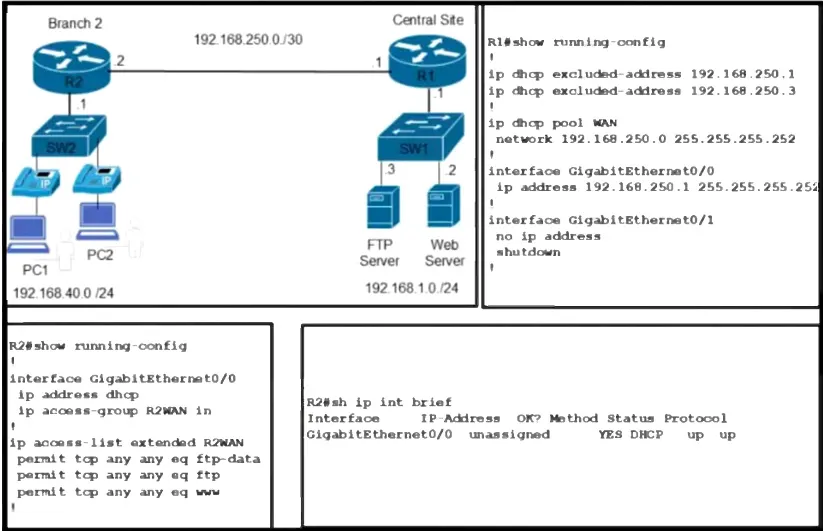

Refer to the exhibit. Which configuration is required for R2 to get the IP address from the DHCP server.
Answer: D
The server listens on UDP port number 67, and the client listens on UDP port number 68. In this scenario R2 is the client, so you have to accept the inbound: permit udp any any eq 68
Source: Adapted from community discussion — DavideDL
What are the two major components of an MPLS-based VPN? (Choose two.)
Answer: DE
An Multiprotocol Label Switching (MPLS)-based virtual private network (VPN) has three major components: - VPN route target communities—A VPN route target community is a list of all members of a VPN community. VPN route targets need to be configured for each VPN community member. - Multiprotocol BGP (MP-BGP) peering of VPN community provider edge (PE) devices—MP-BGP propagates virtual routing and forwarding (VRF) reachability information to all members of a VPN community. MP-BGP peering must be configured on all PE devices within a VPN community. - MPLS forwarding—MPLS transports all traffic between all VPN community members across a VPN service-provider network. https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst9300/software/release/16-5/configuration_guide/mpls/b_165_mpls_9300_cg/b_165_mpls_9300_cg_chapter_011.html#concept_qvl_scy_f1b
Source: Adapted from community discussion — DavideDL

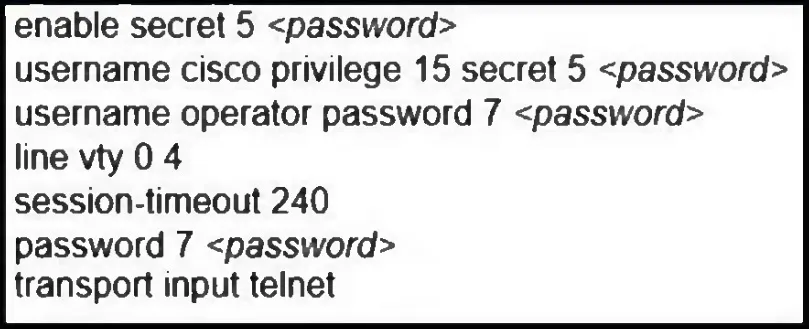

Refer to the exhibit. The authentication is not working as desired and the user drops into user-exec mode. Which configuration resolves the issue?
Answer: D
Labbed this in GNS3, it could be the IOS version. But having followed the syntax I came to D: aaa new-model aaa authentication login default local aaa authorization exec default local ! line vty 0 4 session-timeout 240 password password transport input telnet ! I did put the last 2 bits of config in VTY but they don't show in the running so must be defautl and to be fair it worked before I did that.
Source: Adapted from community discussion — Commando1664

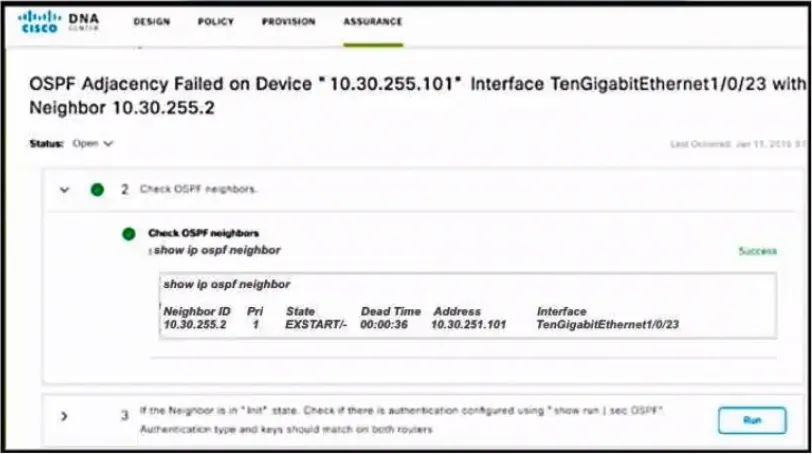

Refer to the exhibit. An engineer is investigating an OSPF issue reported by the Cisco DNA Assurance Center. Which action resolves the issue?
Answer: A
no, that's there to throw you off. it says: "If the neighbor is in the init state check if there's authentication" Our neighbor is not in init
Source: Adapted from community discussion — bk989
Which router translates the customer routing information into VPNv4 routes to exchange VPNv4 routes with other devices through MP-BGP?
Answer: D
The router that translates the customer routing information into VPNv4 routes to exchange VPNv4 routes with other devices through MP-BGP is the Provider Edge (PE) router
Source: Adapted from community discussion — Defilet
An engineer received a ticket about a router that has reloaded. The monitoring system graphs show different traffic patterns between logical and physical interfaces when the router is rebooted. Which action resolves the issue?
Answer: D
the SNMP ifIndex persistence feature provides an interface index (ifIndex) value that is retained and used when the switch reboots. Should be D
Source: Adapted from community discussion — Defilet

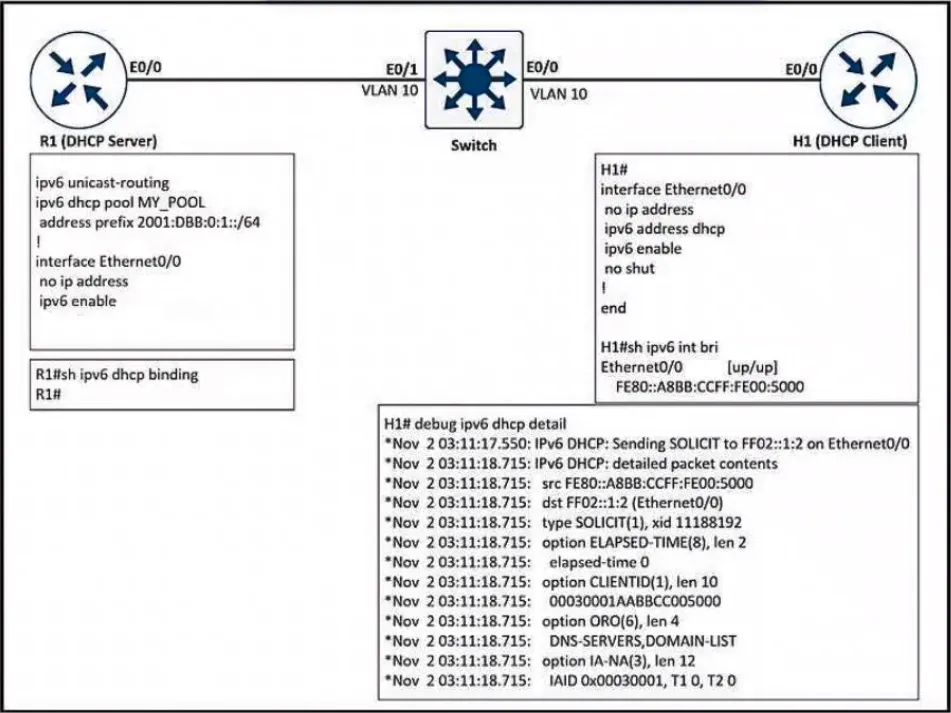

Refer to the exhibit. After the network administrator rebuilds the IPv6 DHCP server, clients are not getting the IPv6 address lease. Which action resolves the issue?
Answer: D
"ipv6 dhcp server interface command is necessary to enable the interface to use the DHCP pool for handing out IPv6 addressing information."
Source: Adapted from community discussion — d740f62

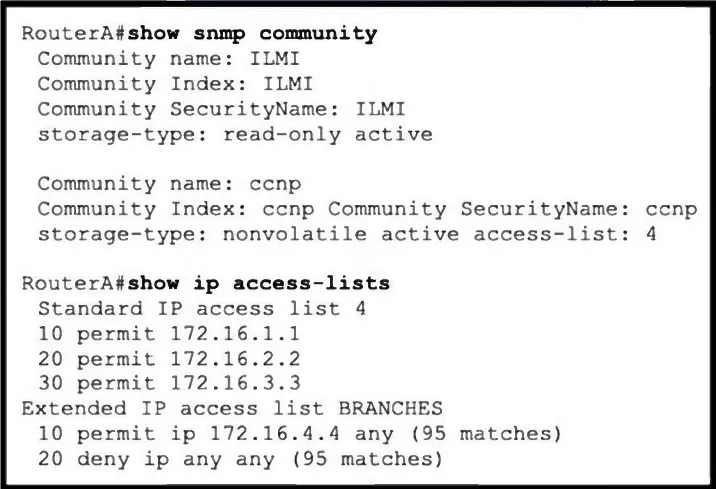

Refer to the exhibit. The SNMP server with IP address 172.16.4.4 cannot access host router A. Which configuration command on router A resolves the issue?
Answer: B
Why letter A ? The question is about standard access list, there isn't need wildcard mask when use the keyword host, see: RouterA(config)#access-list 4 permit host 172.16.4.4 ? log Log matches against this entry RouterA(config)#access-list 4 permit host 172.16.4.4 RouterA(config)#
Source: Adapted from community discussion — Carvalho

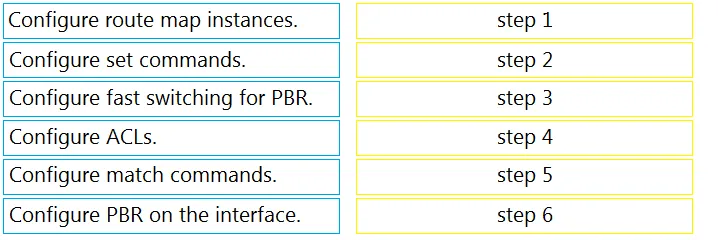

DRAG DROP - Drag and drop the actions from the left into the correct order on the right to configure a policy to avoid following packet forwarding based on the normal routing path. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

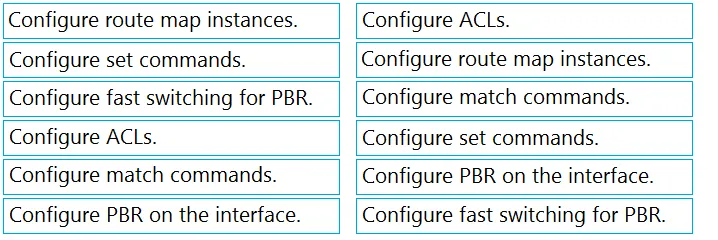

Answer: See figure below
Reference: https://community.cisco.com/t5/networking-documents/how-to-configure-pbr/ta-p/3122774
What must a network architect consider for RTs when planning for a single customer full-mesh VPN in an MPLS Layer 3 network?
Answer: B
