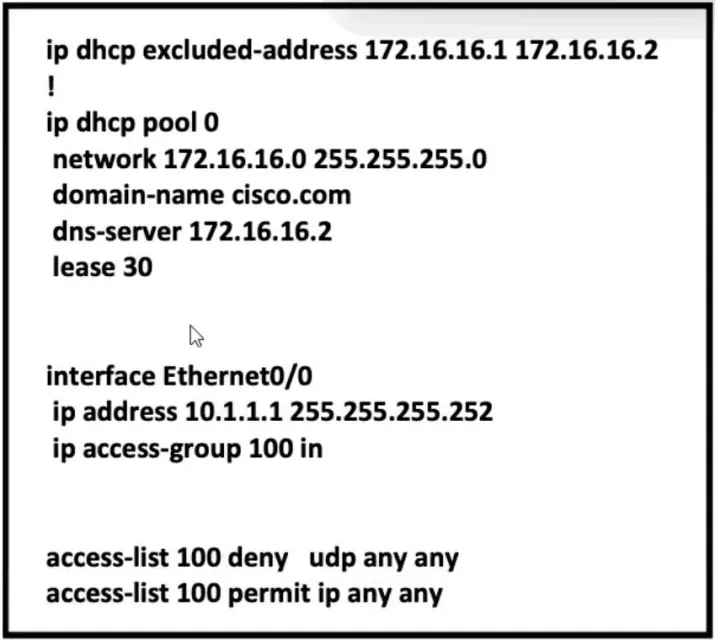

Refer to the exhibit. Which two configurations allow clients to get dynamic IP addresses assigned? (Choose two.)
Answer: AE
you're right. The Client listens on 68 for the offer and ack parts of DORA, and because this ACL is inbound, port 68 should not matter as a destination port, it would matter as a source port.
Source: Adapted from community discussion — [Removed]

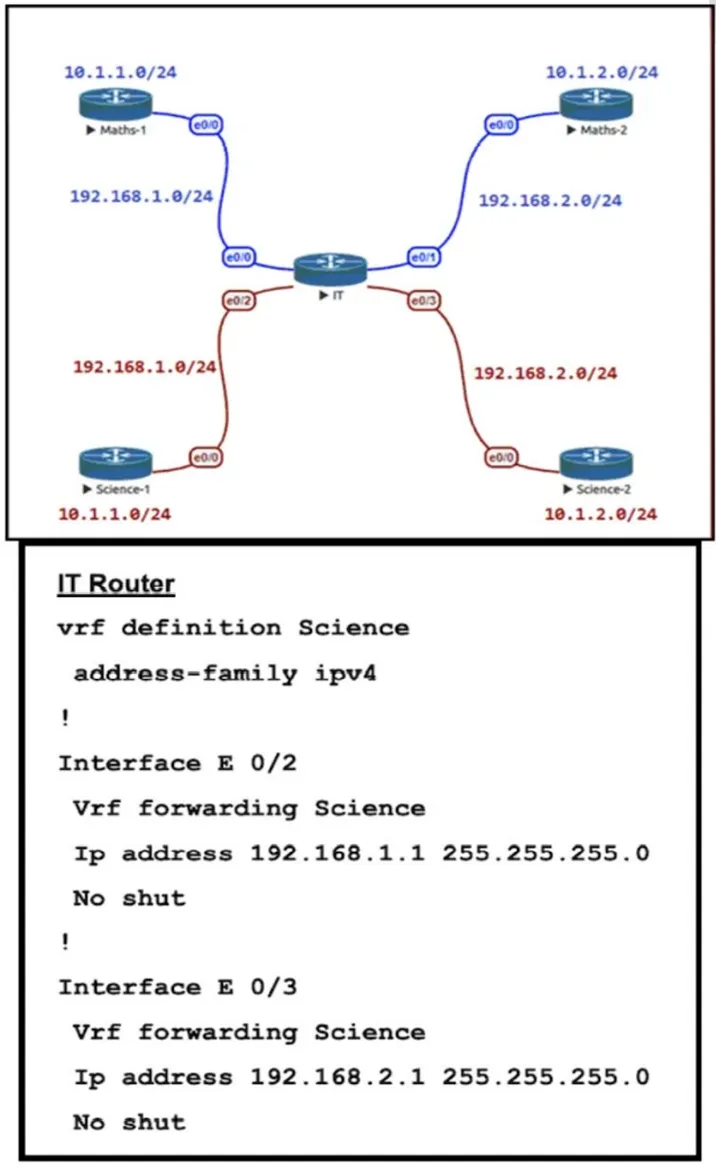

Refer to the exhibit. The IT router has been configured with the Science VRF and the interfaces have been assigned to the VRF. Which set of configurations advertises Science-1 and Science-2 routes using EIGRP AS 111?
Answer: D
D is the correct answer. please correct in EIGRP named mode R1(config)#router eigrp TEST ( 1 or 111 is just a name) Cisco wanna trick us to make money
Source: Adapted from community discussion — bolbolskanes
An engineer must override the normal routing behavior of a router for Telnet traffic that is destined to 10.10.10.10 from 10.10.1.0/24 via a next hop of 10.4.4.4, which is directly connected to the router that is connected to the 10.1.1.0/24 subnet. Which configuration reroutes traffic according to this requirement?
Answer: D
I believe the 10.4.4.4 is not directly connected to this router, but is connected to a router behind 10.1.1.0/24 subnet. So recursive would be necessary. In that case I would go for answer D.
Source: Adapted from community discussion — Patrick1234
Refer to the exhibit. An engineer must configure DMVPN Phase 3 hub-and-spoke topology to enable a spoke-to-spoke tunnel. Which NHRP configuration meets the requirement on R6?
Answer: A

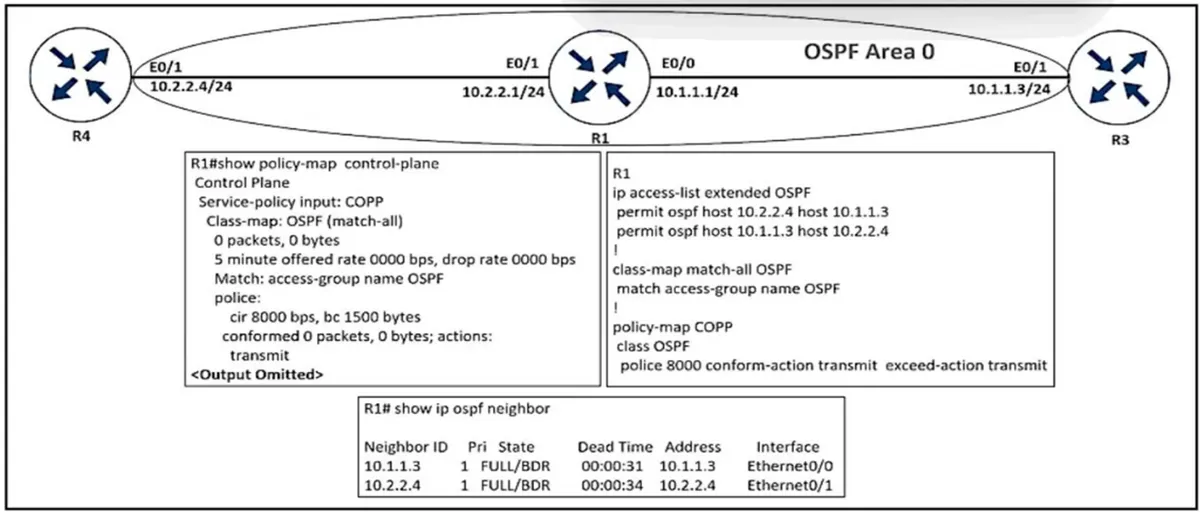

Refer to the exhibit. An engineer implemented CoPP but did not see OSPF traffic going through it. Which configuration resolves the issue?
Answer: C
"A" and "D" are already applied, "B" is not required as traffic only needs to be captured and not limited, so "drop" is incorrect. "C" is correct, however it would be enough to set the appropriate source and destination IP pairs, as Aikat and others wrote.
Source: Adapted from community discussion — HungarianDish_111

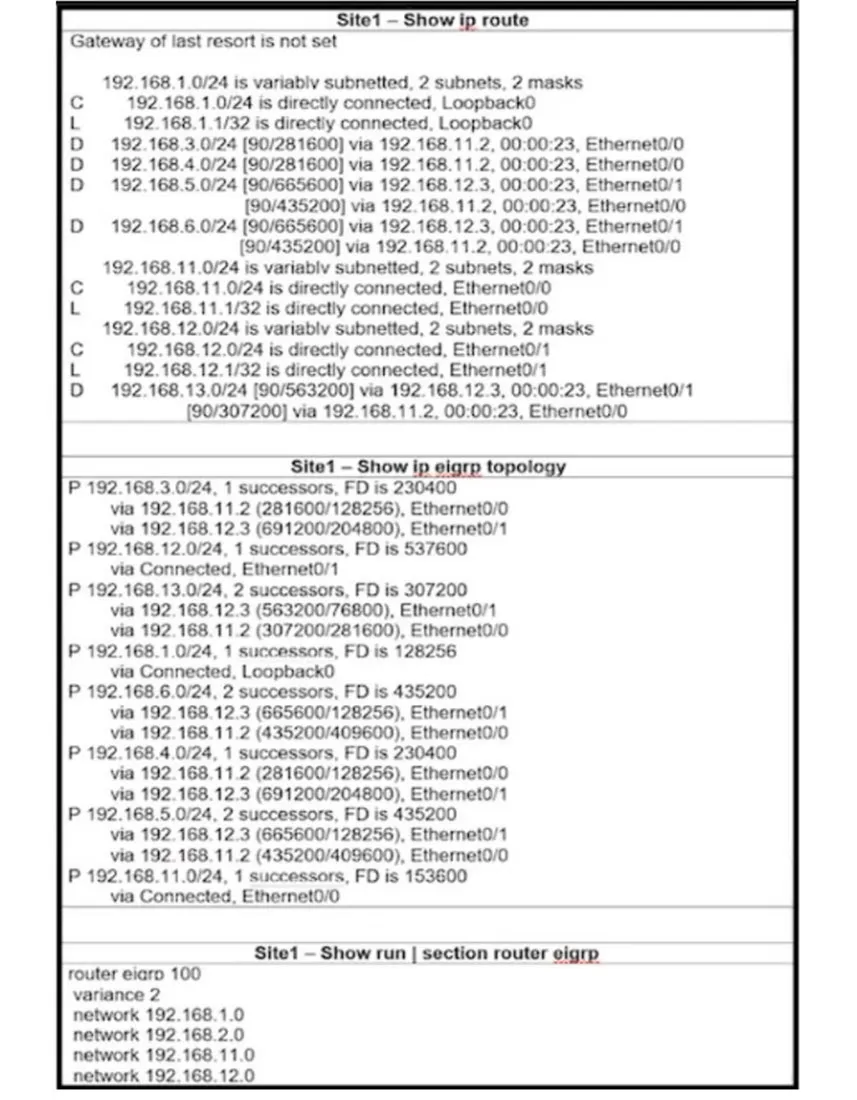

Refer to the exhibit. Site1 must perform unequal cost load balancing toward the segments behind Site2 and Site3. Some of the routes are getting load balanced but others are not. Which configuration allows Site1 to load balance toward all the LAN segments of the remote routers?
Answer: D
Agree with answer "D". https://networklessons.com/eigrp/eigrp-variance-command-example FD of feasible successor / FD of successor ≈ variance 691200 / 230400 = 3 (variance 3) 563200 / 307200 = 1,833 (variance 2) 665600 / 435200 = 1,529 (variance 2)
Source: Adapted from community discussion — HungarianDish_111

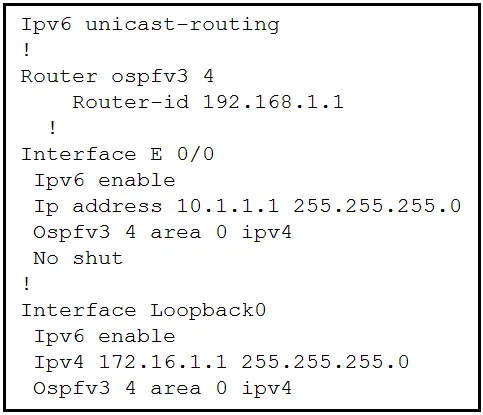

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface. The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?
Answer: B
With the OSPFv3 address families feature, you may have two device processes per interface, but only one process per AF. If the IPv4 AF is used, an IPv4 address must first be configured on the interface. For IPv6 AF it is enough, if only IPv6 is enabled on the interface, as OSPFv3 uses link-local addresses. A single IPv4 or IPv6 OSPFv3 process running multiple instances on the same interface is not supported.
Source: Adapted from community discussion — spapi0390

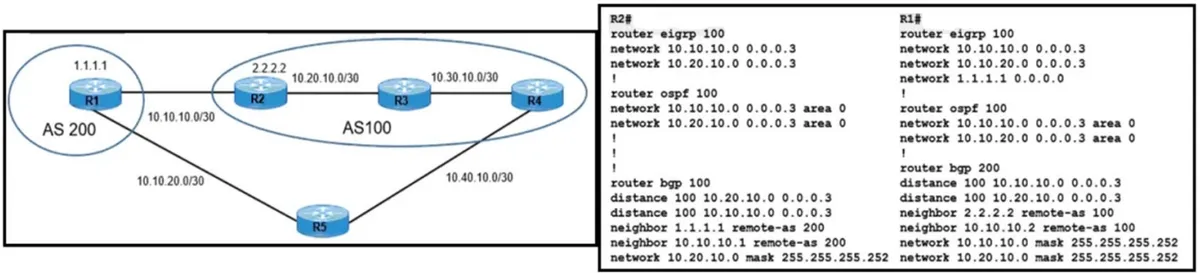

Refer to the exhibit. R1 and R2 use IGP protocol to route traffic between AS 100 and AS 200 despite being configured to use BGP. Which action resolves the issue and ensures the use of BGP?
Answer: C
But its AD is overwritten to 100 using distance command. Removing the distance command brings eBGP Ad back to 20. So BGP will be installed in the routing table.
Source: Adapted from community discussion — ellen_AA

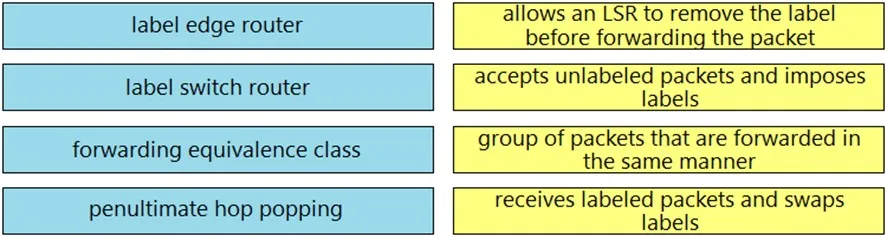

DRAG DROP - Drag and drop the MPLS concepts from the left onto the descriptions on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Which table is used to map the packets in an MPLS LSP that exit from the same interface, via the same next hop, and have the same queuing policies?
Answer: B
A forwarding equivalence class (FEC) is a term used in Multiprotocol Label Switching (MPLS) to describe a set of packets with similar or identical characteristics which may be forwarded the same way; that is, they may be bound to the same MPLS label.
Source: Adapted from community discussion — msama
