350-801ProfessionalCiscoAll questions freePage 39 of 45
350-801 practice questions 381–390
Implementing Cisco Collaboration Core Technologies (CLCOR)450 questions across 45 pages are complete and free, with no account or card.
Official study references
450 questions in this bank
Free access · progress saved on this device
Question 382 · 450 in bank
Select 2A network with IP telephony traffic uses LLDP to support information advertisement between network devices. An engineer must disable LLDP on the specific interface of a Cisco switch. Which two commands must be used on an interface configuration? (Choose two.)
Show answer
Answer: BC
Question 383 · 450 in bank
An employee of company ABC just quit. The IT administrator deleted the employee's user ID from the active directory at 10 a.m. on March 4 . The nightly sync th occurs at 10 p.m. daily. The IT administrator wants to troubleshoot and find a way to delete the user ID as soon as possible. How is this issue resolved?
Show answer
Answer: A
Explanation
Account has deleted at 10 AM, March 4. So, at Sync Interval 10 PM, March 4. User on UCM is marked inactive. At 3:15 AM March 5, which is choice D, Garbage Collection run and fount that account is inactive less than 24 hours (10PM March 4 to 3:15AM March 5). So, the account have not been deleted yet. Once, the Garbage collection run again on 3:15AM March 6. The account will be deleted due to inactive >24 hours. So, the answer must be choice A.
Source: Adapted from community discussion — NPPR
References
Question 384 · 450 in bank
An administrator must implement a new Cisco Unity Connection cluster integrated with LDAP for users and SIP with Cisco UCM. Assuming a phone system and LDAP directory has been configured, how must the administrator add a new user mailbox with message waiting indication functionality to this setup?
Show answer
Answer: A
Explanation
Correct answer is A With SIP integration between Unity and CallManager you DO NOT configure MWI On/Off numbers on CUCM.
Source: Adapted from community discussion — Bazant
Question 385 · 450 in bank
Select 2

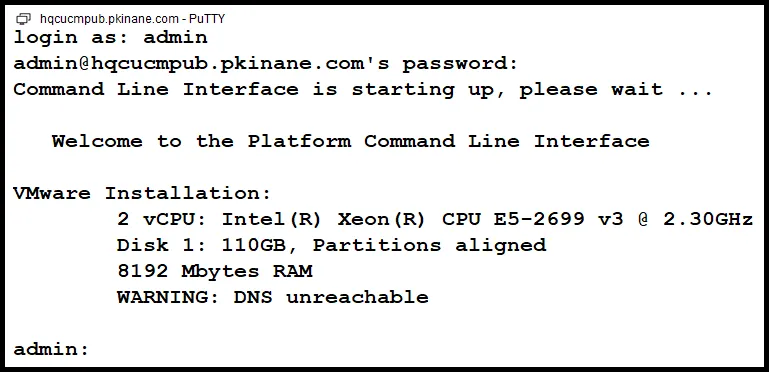

Refer to the exhibit. An administrator accesses the terminal of a Cisco UCM and starts a packet capture. Which two commands must the administrator use on Cisco UCM to generate DNS traffic? (Choose two.)
Show answer
Answer: BC
Explanation
B and C. Part of 'utils diagnose module validate_network' tests DNS functionality, and one of the modules that 'utils diagnose test' is 'utils diagnose module validate_network', so both in turn test DNS functionality.
Source: Adapted from community discussion — skneff
Question 386 · 450 in bank
A collaboration engineer adds a voice gateway to Cisco UCM. The engineer creates a new gateway device in Cisco UCM, selects VG320 as the device type, and selects MGCP as the protocol. What must be done next to add the gateway to the Cisco UCM database?
Show answer
Answer: B
Explanation
Answer is B: This snippet is captured from the link below: "Now that you have selected the hardware and protocol used, you need to configure the Domain Name, Cisco Unified Communications Manager Group, and the Module Information. These are the major fields that are required to register an endpoint via MGCP." So Cisco has listed the order as [Select Hardware, Protocol then FQDN/Hostname]. in the question, we can see it already told you that Hardware is: VG320, Protocol is :MGCP , the next step has to be Specify FQDN/Hostname https://www.cisco.com/c/en/us/support/docs/voice/media-gateway-control-protocol-mgcp/214635-configure-and-troubleshoot-mgcp-gateways.html
Source: Adapted from community discussion — Komy
Question 387 · 450 in bank
A collaboration engineer configures Global Dial Plan Replication for multiple Cisco UCM clusters. The local cluster acts as the hub cluster, and the remaining clusters act as spoke clusters. Which service must the engineer configure on the local cluster?
Show answer
Answer: B
Explanation
The correct answer is B; Intercluster Lookup Service. Intra-Cluster Communication Signaling (ICCS) is used for the propagation and replication of run-time data such as registration of devices, locations bandwidth, and shared media resources.
Source: Adapted from community discussion — Slushed
References
Question 388 · 450 in bank

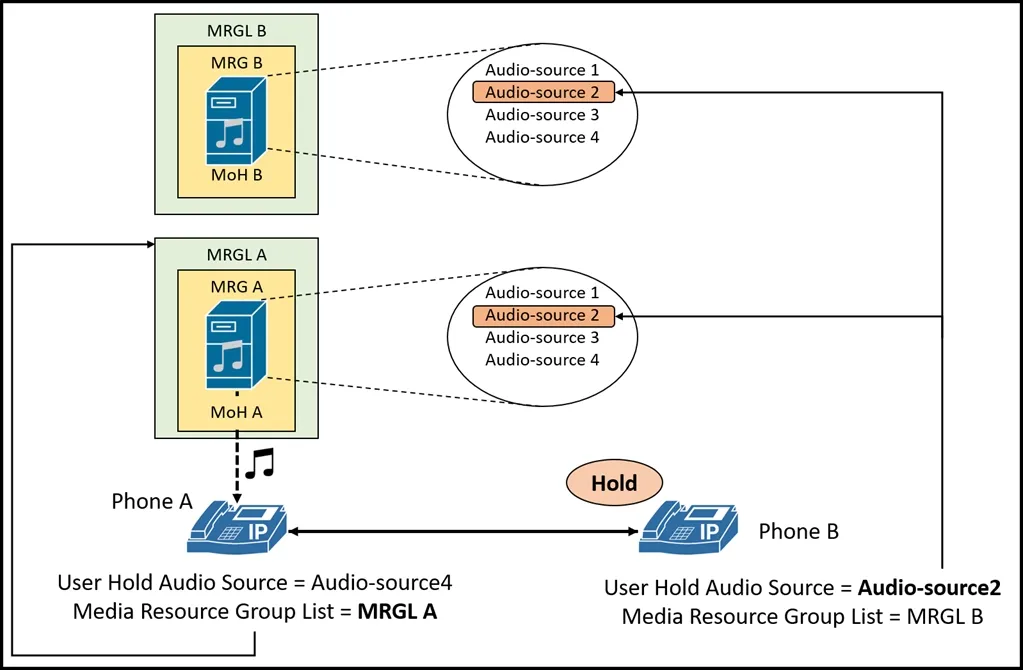

Refer to the exhibit.
There is a call flow between Phone A and Phone B. Phone B (holder) places Phone A (holdee) on hold. Which MRGL and Audio Source are played to Phone A?
Show answer
Answer: D
Explanation
In simplest terms, the holder's configuration determines which audio file to play, and the holdee's configuration determines which resource or server will play that file. As illustrated by the example in Figure 18-1, if phones A and B are on a call and phone B (holder) places phone A (holdee) on hold, phone A will hear the MoH audio source configured for phone B (Audio-source2). However, phone A will receive this MoH audio stream from the MRGL (resource or server) configured for phone A (MRGL A). https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/8x/moh.html#wp1092723
Source: Adapted from community discussion — ciscogeek
References
Question 389 · 450 in bank
A SIP phone has been configured in the system with MAC address 0030.96D2.D5CB. The phone retrieves the configuration file from the Cisco UCM. Which naming format is the file that is downloaded?
Show answer
Answer: D
Explanation
That document is from CME. Since the question is asking about the naming format from UCM the answer is D. .cnf is only used on older phone models as far as i am aware.
Source: Adapted from community discussion — Omitted
Question 390 · 450 in bank

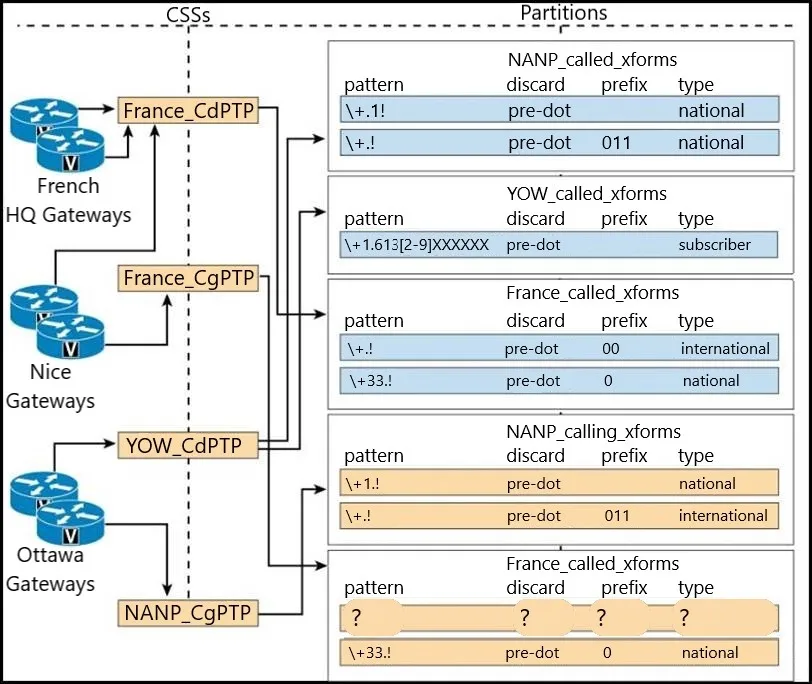

Refer to the exhibit.
A call from +1 613 555 1234 that is sent out through the Nice Gateways should result in a calling party of 001 613 555 1234 with the numbering type `international`. Which configuration accomplishes this goal?
Show answer
Answer: D
Explanation
The Answer is D reason being the Nice gw route to that \+.! pref 00 for international. so A only routes \+1.! for national.
Source: Adapted from community discussion — iExpo_91
References
