350-801 practice questions 371–380

1. Question 371 · 450 in bank

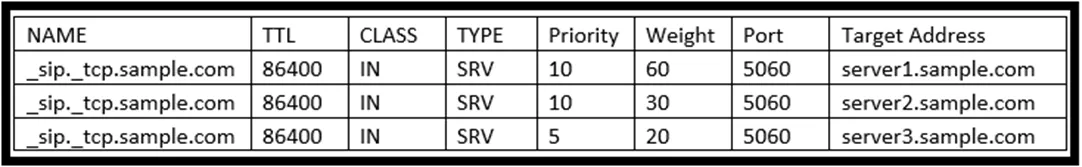

   Refer to the exhibit. An administrator must fix the SRV records to ensure that server1.sample.com is always contacted first from the three servers. Which solution should the engineer apply to resolve this issue?

   • APriority = 5, Weight = 70
   • BPriority = 10, Weight = 5
   • CPriority = 100, Weight = 90
   • DPriority = 10, Weight = 10

   Show answer

   Answer: A

   Explanation

   What is the difference between priority and weight in SRV records? SRV records indicate the "priority" and "weight" of the various servers they list. The "priority" value in an SRV record enables administrators to prioritize one server that supports the given service over another. A server with a lower priority value will receive more traffic than other servers. However, the "weight" value is similar: a server with a higher weight will receive more traffic than other servers with the same priority. The main difference between them is that priority is looked at first. If there are three servers, Server A, Server B, and Server C, and they have respective priorities of 10, 20, and 30, then their "weight" does not matter. The service will always query Server A first. But suppose Servers A, B, and C all have a priority of 10 — how will a service choose between them? This is where weight becomes a factor: if Server A has a "weight" value of 5 and Servers B and C have a "weight" value of 3 and 2, Server A will receive the most traffic, Server B will receive the second-most traffic, and Server C the third-most.

   Source: Adapted from community discussion — ciscogeek

   Next question

2. Question 372 · 450 in bank

   Select 2

   An engineer must configure a new Cisco UCM route pattern. When a user at extension 5555 and external phone number mask XXXX dials 911 or 9911, these requirements must be met: • Both patterns must be accepted. • Only the number 911 must be sent to the gateway. • A caller ID of 555-555-5555 must be sent to the gateway. • All transformations must be done at the route pattern level. Which two route patterns must be used? (Choose two.)

   • ARoute pattern: 9.@ Called party transformation discard digits: PreDot Calling party transformation mask: 5555555555
   • BRoute pattern: 9.@ Called party transformation discard digits: PreDot Calling party transformation mask: 9.5555555555
   • CRoute pattern: 911 - Called party transformation discard digits: None Calling party transformation — Use Calling Party's External Phone Number Mask selected
   • DRoute pattern: 911 - Called party transformation prefix digits: None Calling party transformation mask: 555555XXXX
   • ERoute pattern: 9.911 - Called party transformation discard digits: PreDot Calling party transformation mask: 9.5555555555

   Show answer

   Answer: AD

   Explanation

   B. No option for discard digits with the calling party tranformations C. External phone number mask set does not match 5555555555 E. Again, no option for discard digits with the calling party tranformations

   Source: Adapted from community discussion — Gary1968

   Next question

3. Question 373 · 450 in bank

   Which dial plan design provides the most benefit to systems with many sites or overlapping site extension ranges?

   • ALCR
   • Bvariable-length
   • CTEHO
   • Dforced-on-net

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

4. Question 374 · 450 in bank

   A company wants to block all users from forwarding calls to international destinations. An engineer must configure a calling search space named NATIONAL across all phones for call forwarding by using the Bulk Administration Tool. Which action must the engineer take from Bulk Administration in Cisco UCM Administration?

   • AFrom Phones, select Update Phones, and then click Update Lines.
   • BFrom Lines, click Update Lines.
   • CFrom Phones, select Update Phones, and then click Query.
   • DFrom Phones, select Add/Update Lines, and then click Update Lines.

   Show answer

   Answer: D

   Explanation

   A is wrong, such menu choice does not exist. Secondly Phones in bulk is updating device level settings not line level settings. D is the correct menu choice to update line level settings

   Source: Adapted from community discussion — Bazant

   Next question

5. Question 375 · 450 in bank

   An engineer deploys a new Cisco UCM server as a TFTP-only node to an existing Cisco UCM cluster. Where must the IP address of the TFTP server be configured to ensure that IP phones use the new TFTP server?

   • Ain the Option 066 field for DHCP
   • Bin the Cisco UCM device pools
   • Cin the Option 150 field for DHCP
   • Din the Cisco UCM device configuration

   Show answer

   Answer: A

   Next question

6. Question 376 · 450 in bank

   An engineer must configure the dial plan for a new Cisco UCM cluster. Standard local route groups must be used for all local calls. The engineer configures the Local Route Group Names settings and associates a local route group with a device pool. What must the engineer associate the local route group with?

   • ASIP profile
   • Broute pattern
   • CSIP trunk
   • Droute list

   Show answer

   Answer: D

   Next question

7. Question 377 · 450 in bank

   Which configuration setting is used to configure PLAR on a SIP phone?

   • ASIP profile
   • BSIP dial rule
   • Ccommon phone profile
   • Doutbound rollover

   Show answer

   Answer: B

   References

   • cisco.com documentation

   Next question

8. Question 378 · 450 in bank

   Select 2

   Which two functions are provided by Cisco Expressway Series? (Choose two.)

   • Ainterworking of SIP and H.323
   • Bendpoint registration
   • Cintercluster extension mobility
   • Dvoice and video transcoding
   • Evoice and video conferencing

   Show answer

   Answer: AB

   Explanation

   Answer is A & B. Recent Exam has question has made a clearer choice for B as follows : Endpoint Registration over the Internet

   Source: Adapted from community discussion — abelcollab

   Next question

9. Question 379 · 450 in bank

   Select 2

   What are two differences between media flow-around and media flow-through on Cisco Unified Border Element? (Choose two.)

   • AWhen using media flow-through, the call signaling and media are passed through the Cisco Unified Border Element.
   • BWhen using media flow-through, call signaling goes through the Cisco Unified Border Element, but media does not.
   • CWhen using media flow-around, both call signaling and media do not go through the Cisco Unified Border Element.
   • DWhen using media flow-around, the call signaling goes through the Cisco Unified Border Element, but media is not passed through it.
   • EWhen using media flow-through, the call signaling goes through the Cisco Unified Border Element, but media is not passed through it.

   Show answer

   Answer: AD

   Next question

10. Question 380 · 450 in bank

    A network engineer must convert an inbound number 12345551111 when it reaches Cisco UCM and then converts it to an internal extension 3022, so it can ring to a specific desk. Which action meets this requirement?

    • ACreate a route pattern 9.1XXXXXXXXXX and assign it to the trunk.
    • BCreate translation pattern 12345551111, called party transform mask 3022.
    • CCreate a route group and route list and assign it to the translation pattern.
    • DChange the partition and calling search space on the DID for the specific desk.

    Show answer

    Answer: B

    Next question
