350-801 practice questions 91–100

1. Question 91 · 450 in bank

   Which endpoint feature is supported using Mobile and Remote Access through Cisco Expressway?

   • ASRST
   • BSSO
   • CH.323 registration proxy to Cisco UCM
   • DMGCP gateway registration

   Show answer

   Answer: B

   Next question

2. Question 92 · 450 in bank

   When a phone is registered over Mobile and Remote Access, where does it register?

   • ACisco Unified Presence Server
   • BExpressway-E
   • CCisco Unified Communications Manager
   • DExpressway-C

   Show answer

   Answer: C

   Explanation

   Certainly CUCM - p.254 cisco reference CLCOR- the Cisco Unified IP phones cannot register to the Cisco Expressway. A proxy registration function using Mobile and Remote Access (MRA) allows Cisco Unified IP phones to register to the Cisco Unified Communications Manager through the Expressway Core and Edge, but in this type of deployment, the registration is still to the Cisco Unified CM.

   Source: Adapted from community discussion — omsssh

   References

   • Cisco documentation

   Next question

3. Question 93 · 450 in bank

   An engineer is notified that the Cisco TelePresence MX800 that is registered in Cisco Unified Communications Manager shows an empty panel, and the Touch 10 shows a corresponding icon with no action when pressed. Where does the engineer go to remove the inactive custom panel?

   • AThe Software Upgrades page in CUCM OS Administration
   • BThe In-Room Control Editor on the webpage of the MX800
   • CThe phone configuration page in CUCM Administration
   • DThe SIP Trunk Security Profile page in CUCM Administration

   Show answer

   Answer: B

   Explanation

   Perform the following steps to remove the in-room control panel and icon from Touch10: a. Launch the in-room control editor from the video system’s web interface. b. Select the panel to be removed (Global, Homescreen or Incall) c. Click Recycle bin ( )in the lower right corner.

   Source: Adapted from community discussion — jorgeoscar90

   References

   • Cisco documentation

   Next question

4. Question 94 · 450 in bank

   An engineer is implementing toll fraud prevention for incoming calls cluster-wide on Cisco UCM. What is the first step to configure this feature?

   • ASet service parameter ג€System Remote Access Blocked Numbersג€ to True.
   • BSet service parameter ג€Block OffNet To OffNet Transferג€ to True.
   • CSet service parameter ג€Block OffNet To OffNet Transferג€ to False.
   • DConfigure blocking for inbound calls based on caller ID.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/4_1_3/ccmfeat/fsxfer.html

   Next question

5. Question 95 · 450 in bank

   A collaboration engineer must optimize the dial plan within Cisco UCM. There are multiple remote sites, and each site has its own route patterns and local gateways. What should the engineer do on the Cisco UCM to optimize the dial plan?

   • AImplement ILS with GDPR so the dial plan can dynamically replicate across clusters.
   • BConfigure a Standard Local Route Group to use a single route pattern for all calls within the cluster.
   • CCreate a centralized dial plan with a Cisco UCM Session Management Edition cluster or a Cisco gatekeeper.
   • DLeverage Cisco UCM Express as SRST so the phones can have more features at each remote site.

   Show answer

   Answer: B

   Explanation

   Standard Local Route Group addresses Route Group of location by device pool setting All phones know Route Group in there location for PSTN access by device pool. general route pattern can now address outgoing calls for all locations with "\+.!" not by a single gateway/Route group, instead it is Standard Local Route Group

   Source: Adapted from community discussion — DaKenjee

   Next question

6. Question 96 · 450 in bank

   An administrator must implement toll fraud prevention on Cisco UCM using these parameters: ✑ Enable Forced Authorization Code 112211. ✑ Set an authorization level of 3 for the route pattern 8005551212. ✑ Require no access code to dial 10-digit numbers. How must the route pattern be implemented?

   • APattern = 8005xxxxxx
   • BPattern = 1122113.8005551212
   • CPattern = 3.800xxxxxxx
   • DPattern = 8005551212.1122113

   Show answer

   Answer: A

   Explanation

   It is A, nothing special has to be done on the route pattern beside checking the Require Forced Authorization Code checkbox https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-callmanager/81541-fac-config-ex.html

   Source: Adapted from community discussion — Omitted

   References

   • Cisco documentation

   Next question

7. Question 97 · 450 in bank

   Select 2

   An engineer is asked to implement on-net/off-net call classification in Cisco UCM. Which two components are required to implement this configuration? (Choose two.)

   • ASIP trunk
   • BSIP route patterns
   • CCTI route point
   • Droute group
   • Eroute pattern

   Show answer

   Answer: AE

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_5_2/ccmfeat/CUCM_BK_C3A84B33_00_cucm-feature-configuration- guide_1052/CUCM_BK_C3A84B33_00_cucm-feature-configuration-guide_chapter_0100010.html

   Source: Adapted from community discussion — TheBabu

   References

   • Cisco documentation

   Next question

8. Question 98 · 450 in bank

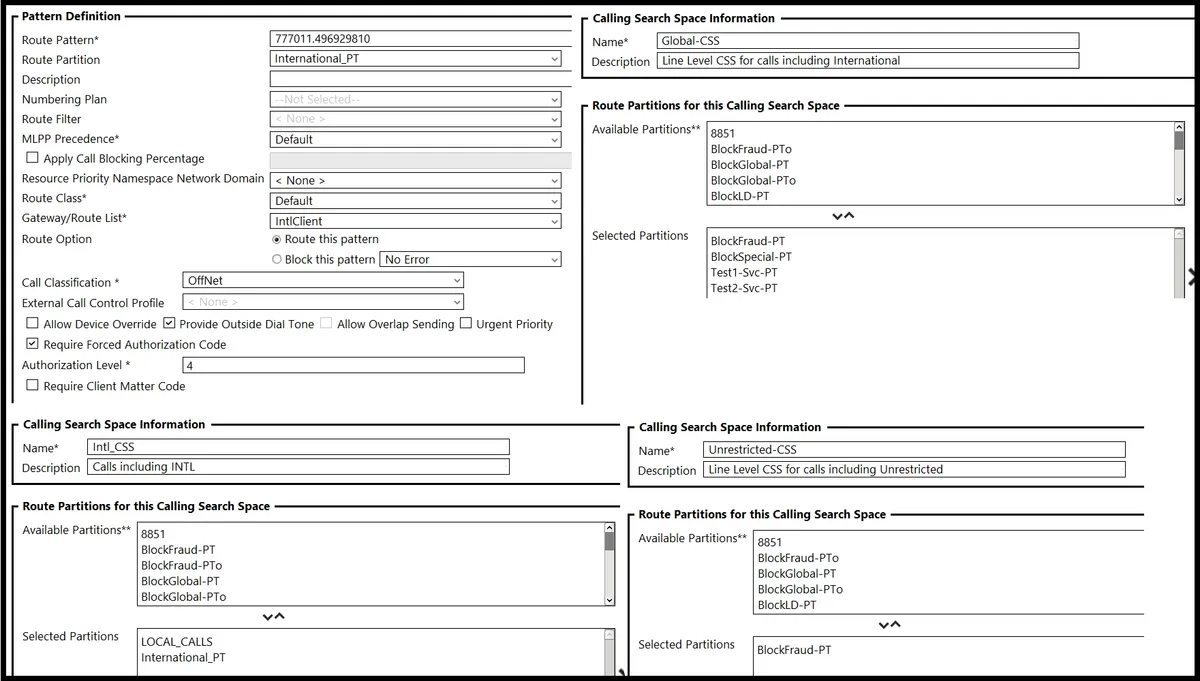

   Refer to the exhibit. How must the +E.164 translation pattern be configured to reach international number 496929810?

   • APattern= \+.496929810, CSS=Intl_CSS, PreDot, Prefix=777011
   • BPattern= \+.496929810, CSS=Unrestricted-CSS, PreDot, Prefix=777011
   • CPattem= \+.777011496929810, CSS=Intl_CSS
   • DPattern= \+.011496929810, CSS=Global-CSS, PreDot, Prefix=777

   Show answer

   Answer: A

   Explanation

   Should be A, because International Number is given and it should be in E164 format. Only A matches the format, and then prefixes the required digit for matching the route pattern.

   Source: Adapted from community discussion — ciscogeek

   Next question

9. Question 99 · 450 in bank

   An engineer must configure a SIP route pattern using domain routing with destination +12345678901. The domain ciscocm1.jupiter.com resolves to 192.168.1.3. How must the IPv4 Pattern be configured?

   • Aciscocm1.jupiter.com
   • B\+12345678901@192.168.1.3
   • C192.168.1.3
   • D+12345678901@192.168.1.3

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmcfg/CUCM_BK_C95ABA82_00_admin-guide-100/ CUCM_BK_C95ABA82_00_admin-guide-100_chapter_0100111.pdf

   Source: Adapted from community discussion — Omitted

   Next question

10. Question 100 · 450 in bank



    Refer to the exhibit. A user takes a phone from San Francisco to New York for a short reassignment. The phone was set up to use the San Francisco device pool, and device mobility is enabled on the Cisco UCM. The user makes a call that matches a route pattern in a route list that contains the Standard Local Route Group. To where does the call retreat?

    • AThe call egresses in San Francisco because the user uses device mobility and is allowed to roam while still keeping the number and resources assigned in San Francisco.
    • BThe call egresses in New York because the device automatically is assigned a New York device pool and uses the local gateway.
    • CThe call fails because device mobility is turned on, and the phone is not configured in New York. The engineer must configure which sites the device should be roaming to.
    • DThe call fails because the Standard Local Route Group is being used only if no configuration is set for the device pools.

    Show answer

    Answer: B

    Explanation

    Correct answer is B. The point of Device Mobility is for devices that are moved to a new location to utilize the resources local to that location.

    Source: Adapted from community discussion — Slushed

    References

    • Cisco documentation
    • cisco.com documentation

    Next question
