350-801 practice questions 31–40

1. Question 31 · 450 in bank

   What is a characteristic of a SIP endpoint configured in Cisco UCM with "Use Trusted Relay Point" set to "On"?

   • AIt enables Cisco UCM to insert an MTP or transcoder designated as a TRP.
   • BIt enables the Use Trusted Relay Point setting from the associated common device configuration.
   • CIf TRP is allocated and MTP is also required for the endpoint, calls fail.
   • DIt creates a trust relationship with the called party.

   Show answer

   Answer: A

   Explanation

   A Trusted Relay Point (TRP) is an MTP or transcoder that Cisco Unified Communications Manager can insert into the media stream to act as a control point for call media. The TRP can provide further processing on the stream and can ensure that the stream follows a specific path.

   Source: Adapted from community discussion — Omitted

   References

   • Cisco documentation

   Next question

2. Question 32 · 450 in bank

   A customer is deploying a SIP IOS gateway for a customer who requires that in-band DTMF relay is first priority and out-of-band DTMF relay is second priority. Which IOS entry sets the required priority?

   • Adtmf-relay rtp-nte sip-notify
   • Bdtmf-relay cisco-rtp
   • Csip-notify dtmf-relay rtp-nte
   • Ddtmf-relay sip-kpml cisco-rtp

   Show answer

   Answer: A

   Next question

3. Question 33 · 450 in bank

   Which DHCP option must be set up for new phones to obtain the TFTP server IP address?

   • Aoption 15
   • Boption 6
   • Coption 66
   • Doption 120

   Show answer

   Answer: C

   Next question

4. Question 34 · 450 in bank



   Refer to the exhibit. An engineer configures a VoIP dial peer on a Cisco gateway. Which codec is used?

   • AG.711ulaw
   • BNo codec is used (missing codec command).
   • CG.711alaw
   • DG.729r8

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

5. Question 35 · 450 in bank

   An engineer must configure an MGCP gateway and register it to Cisco Unified Communications Manager. Which prerequisite must be met before applying the gateway commands to enable MGCP?

   • AThe MGCP gateway and the Cisco Unified CM must be able to communicate aver ports 5060 and 5061.
   • BCisco Unified CM and the MGCP gateway must utilize the SIP OPTIONS ping feature to monitor status.
   • CThe MGCP gateway must have voice service VoIP configured.
   • DThe MGCP gateway and the Cisco Unified CM must be able to communicate over ports 2427, 2428, and 2727.

   Show answer

   Answer: D

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/ios/voice/cminterop/configuration/guide/12_4t/vc_12_4t_book/vc_ucm_mgcp_gw.html

   Source: Adapted from community discussion — Griswald

   References

   • cisco.com documentation

   Next question

6. Question 36 · 450 in bank

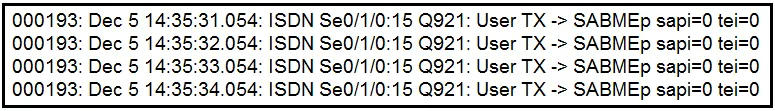

   Refer to the exhibit. Given this "debug isdn q921" output, what is the problem with the PRI?

   • ALayer 1 is down on the controller.
   • BPRI does not have an IP address configured on the interface.
   • CNothing, the PRI is sending keepalives.
   • DLayer 2 is down on the controller.

   Show answer

   Answer: D

   Explanation

   If Layer 2 is stable, the router and switch must begin to synchronize with each other. The Set Asynchronous Balanced Mode Extended (SABME) message appears on the display. This message indicates that Layer 2 tries to initialize with the other side. Either side can send the message and try to initialize with the other side. If the router receives the SABME message, it must send back an Unnumbered Acknowledge frame (UAf). https://www.cisco.com/c/en/us/support/docs/wan/t1-e1-t3-e3/8131-T1-pri.html

   Source: Adapted from community discussion — Ol_Mykhailiuk

   References

   • Cisco documentation

   Next question

7. Question 37 · 450 in bank

   An administrator is trying to change the default LINECODE for a voice ISDN T1 PRI. Which command makes this change?

   • Alinecode esf
   • Blinecode ami
   • Clinecode hdb3
   • Dlinecode b8zs

   Show answer

   Answer: D

   Explanation

   D is correct. Question is changing from default (which is AMI) for T1 line. So the correct answer is b8zs. hdb3 is for E1. https://www.cisco.com/c/en/us/td/docs/ios/voice/cminterop/configuration/guide/12_4t/vc_12_4t_book/vc_mgcp_t1cas.html

   Source: Adapted from community discussion — Brant

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

8. Question 38 · 450 in bank

   Due to provider requirements, outgoing calls from the Enterprise to the PSTN must start with channel 1. Which ISDN command changes the channel selection on IOS to meet this requirement?

   • Aisdn bchan-number-order descending
   • Bisdn bchan-number-order ascending
   • Cisdn protocol-emulate network
   • Disdn incoming-voice voice

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

9. Question 39 · 450 in bank



   Refer to the exhibit. What causes of the PRI issue?

   • AThe cable is unplugged.
   • BThe clock source is incorrect.
   • CThe controller shut down.
   • DThe framing is configured incorrectly.

   Show answer

   Answer: D

   Explanation

   Yes, A and C, are wrong, you wont have layer 1 up if they are true. and B clock problems, cant turn down the layer 2 service.

   Source: Adapted from community discussion — santiagof

   References

   • Cisco documentation
   • Cisco documentation
   • cisco.com documentation

   Next question

10. Question 40 · 450 in bank



    Refer to the exhibit. An engineer verifies the configuration of an MGCP gateway. The commands are already configured. Which command is necessary to enable MGCP?

    • ADevice(config)# mgcp enable
    • BDevice(config)# ccm-manager enable
    • CDevice(config)# ccm-manager active
    • DDevice(config)# mgcp

    Show answer

    Answer: D

    Explanation

    Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-callmanager/42105-vg200-cfg.html

    References

    • Cisco documentation

    Next question
