300-620 practice questions 261–270

1. Question 261 · 340 in bank

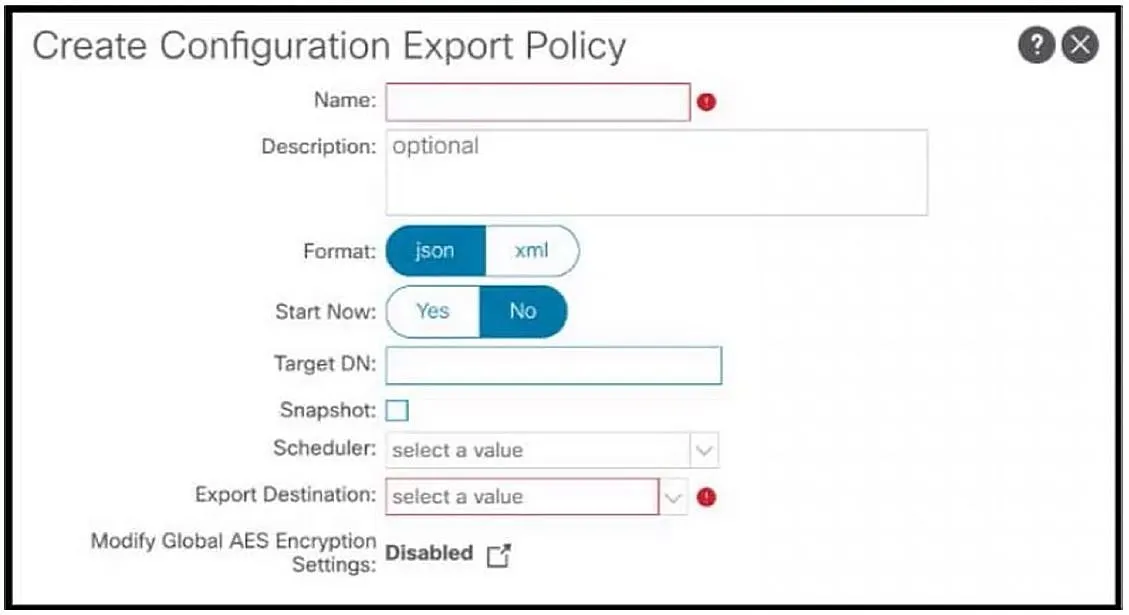

   Refer to the exhibit. A network engineer must improve the configuration backup process and the configuration restore process. The current ACI solution is integrated with VMMs and third-party L4-L7 devices. The process requires that no additional information be re-entered when importing the configuration for a fully-functional state. Which configuration configures the export policy?

   • AConfigure a local snapshot.
   • BEnable the Global AES Encryption Setting.
   • CSelect the JSON data format to be used when exporting.
   • DCreate target DNs for all tenants.

   Show answer

   Answer: B

   Next question

2. Question 262 · 340 in bank

   Which Cisco ACI feature allows the encryption of communication over TEP addresses connecting sites via the intersite network in a Cisco Multi-Site deployment?

   • ATrustSec
   • BIPsec
   • CMACsec
   • DCloudSec

   Show answer

   Answer: D

   Next question

3. Question 263 · 340 in bank

   A Cisco ACI environment is configured to integrate with a vCenter environment using the VMM domain name west_coast_VMM. Within the ACI environment, only tenant west_coast has EPGs associated with west_coast_VMM. This deployment is new, so these EPGs currently do not have any members. A systems engineer is setting up vCenter, creates a VDS named west-coast-VMM, and deletes the VDS named west_coast_VMM. The systems engineer creates the necessary port groups that correspond with the EPGs, but when VMs are connected to the port groups, they cannot ping their gateway. Which action establishes connectivity?

   • AAssociate the EPGs to west-coast-VMM.
   • BRename the VDS to west_coast_VMM.
   • CUse the EPG encap-VLAN on the port groups.
   • DDisconnect Cisco APIC connectivity from vCenter.

   Show answer

   Answer: B

   Next question

4. Question 264 · 340 in bank

   An engineer must configure SNMP inside a Cisco ACI fabric. The engineer has created an SNMP Policy, called SNMP-policy and an SNMP Monitoring Group called SNMP-group1 that contains five trap receivers. Which configuration set completes the configuration?

   • APermit OOB management traffic using UDP port 161. Associate client group policy with the OOB management EPG.
   • BEdit oobbrc to permit traffic using UDP port 16. Associate the client group policy to SNMP-group1.
   • CCreate an OOB management contract. Include the SNMP server in the OOB management EPG.
   • DAllow all OOB management traffic. Configure three trap receivers on SNMP-group1.

   Show answer

   Answer: A

   Next question

5. Question 265 · 340 in bank

   A Cisco ACI fabric must back up the current configuration to a remote FTP server. Which set of actions automatically triggers the created policy?

   • ACreate two export policies. Create two scheduler policies. Set the maximum concurrent node value to 1.
   • BCreate an import policy. Create two scheduler policies. Set the maximum concurrent node value to 2.
   • CCreate an export policy. Create a scheduler policy. Set the maximum concurrent node value to 1.
   • DCreate two import policies. Create a scheduler policy. Set the maximum concurrent node value to 2.

   Show answer

   Answer: C

   Next question

6. Question 266 · 340 in bank

   A Cisco ACI fabric has 10 standalone leaf switches. The requirement is for the APIC to select the odd switches as a VPC group and select even switches as another VPC group automatically. Which VPC protection type must be configured to accomplish this goal?

   • Aserial
   • Bconsecutive
   • Creciprocal
   • Dexplicit

   Show answer

   Answer: C

   Next question

7. Question 267 · 340 in bank

   Which component provides Cisco ACI fabric with Layer 2 and Layer 3 connectivity across pods and physical locations?

   • AInter-Pod Network
   • BVXLAN overlay
   • CCOOP control plane
   • DCisco APIC control cluster

   Show answer

   Answer: A

   Next question

8. Question 268 · 340 in bank

   An engineer configures an L3Out in VRF-1 that was configured for Import Route Control Enforcement. The L3Out uses OSPF to peer with a core switch. The L3Out has one external EPG, and it has been configured with a subnet 10.1.0.0/24. Which scope must be set to force 10.1.0.0/24 to populate in the routing table for VRF-1?

   • AImport Route Control Subnet
   • BExternal Subnet for External EPG
   • CShared Route for External EPG
   • DExport Route Control Subnet

   Show answer

   Answer: A

   Next question

9. Question 269 · 340 in bank

   Select 2

   An engineer resolves an underlying condition of a fault but notices that the fault was not deleted from the Faults view. Which two actions must be taken to remove the fault? (Choose two.)

   • AThe raised condition ceases.
   • BFaults are never deleted from the system.
   • CThe soaking timer expires.
   • DAcknowledge the fault as an administrator.
   • EThe fault is deleted after the retention interval.

   Show answer

   Answer: DE

   Next question

10. Question 270 · 340 in bank

    An engineer configures SNMP for an ACI fabric and created an SNMP Monitoring Destination Group called snmp_dgroup1. Snmp_dgroup1 is configured with the server hostname and community password. An SNMP policy called snmp_podpolicy1 is configured to enable SNMP and add an SNMP Client Group Profile called snmp_clgroup1. Snmp_podpolicy1 is associated the default pod profile via a pod policy group named pod1. Which configuration set must the engineer enable to complete the SNMP configuration?

    • AConfigure the OOB management contract to permit UDP 162. Associate snmp_dgroup1 with the OOB management EPG.
    • BConfigure an SNMP management contract to permit all traffic. Associate snmp_podpolicy1 with an SNMP pod profile.
    • CConfigure an SNMP management contract to permit UDP 162. Associate the SNMP Source to snmp_clgroup1.
    • DConfigure the OOB management contract to permit all traffic. Associate snmp_clgroup1 with the SNMP management EPG.

    Show answer

    Answer: A

    Next question
