300-620 practice questions 211–220

1. Question 211 · 340 in bank

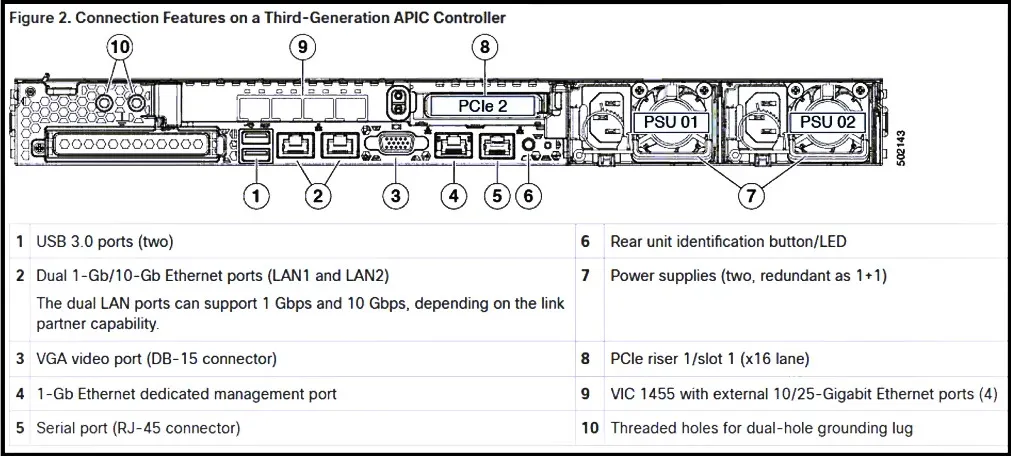

   Refer to the exhibit. A network engineer deploys Cisco APIC for the first time. Which connectivity type must be used to connect a Cisco ACI APIC node to connect to an out-of-band segment?

   • A4. 1-Gb Ethernet dedicated management port
   • B5. Serial port (RJ-45 connector)
   • C9. VIC 1455 with external 10/25-Gigabit Ethernet ports
   • D2. Dual 1-Gb/10-Gb Ethernet ports (LAN1 and LAN2)

   Show answer

   Answer: D

   Next question

2. Question 212 · 340 in bank

   A network administrator is configuring a Cisco ACI fabric to automatically take a snapshot of all the configurations once per week. The snapshot must be saved on a server that is located in the data center. Which configuration meets these requirements?

   • AScope: Fabric - Action: Create recurring snapshots Location: Create Remote Location
   • BScope: Tenant - Action: Create recurring snapshots Location: APIC
   • CScope: Tenant - Action: Take a snapshot - Location: Create Remote Location
   • DScope: Fabric - Action: Take a snapshot - Location: APIC

   Show answer

   Answer: A

   Next question

3. Question 213 · 340 in bank

   A Cisco ACI fabric is experiencing packet loss that originates from a bare metal server. The engineer must configure the syslog service to meet these requirements: • The ACI syslog information must be collected with logging information from other network devices. • The monitoring must only be performed on leaf 103 and leaf 104. Which set of actions accomplishes these goals?

   • AConfigure the Syslog Monitoring Destination Group to remote server logging. Create an Access Monitoring policy for ingress and egress packet drops. Apply the Monitoring policy to the appropriate Switch Profile group.
   • BConfigure the Syslog Monitoring Destination Group to Console logging. Create a Fabric-Wide Monitoring policy for ingress packet drops. Apply the Monitoring policy to the appropriate Switch Profile group.
   • CConfigure the Syslog Monitoring Destination Group to Local File logging. Create a Fabric Monitoring policy for ingress and egress bytes. Apply the Monitoring policy to the appropriate Switch Profile group.
   • DConfigure the Syslog Monitoring Destination Group to Console logging. Create an Access Monitoring policy for egress packet drops. Apply the Monitoring policy to the appropriate Switch Profile group.

   Show answer

   Answer: A

   Next question

4. Question 214 · 340 in bank

   All nodes in a Cisco ACI fabric are raising NTP faults. The Date and Time policy is configured with the IP address of two NTP servers and both servers are reachable via the out-of-band management network. Also, the out-of-band EPG has been selected as the management EPG. Which configuration clears the NTP faults?

   • AAdd the NTP server IPs to the external management instance profile.
   • BCreate a node management address policy that includes all nodes in the fabric.
   • CConfigure and apply an out-of-band contract to the out-of-band EPG.
   • DDirectly attach both NTP servers to the Cisco ACI fabric via a leaf switch.

   Show answer

   Answer: C

   Next question

5. Question 215 · 340 in bank

   Select 2

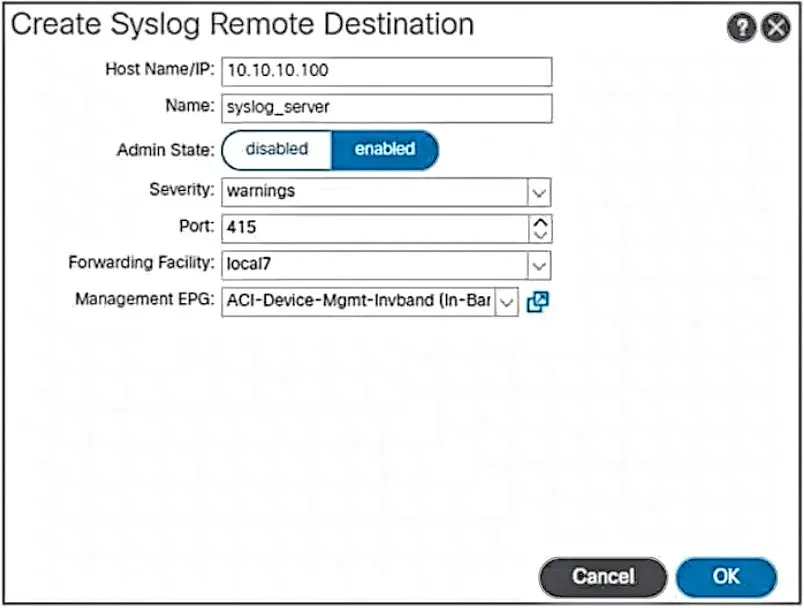

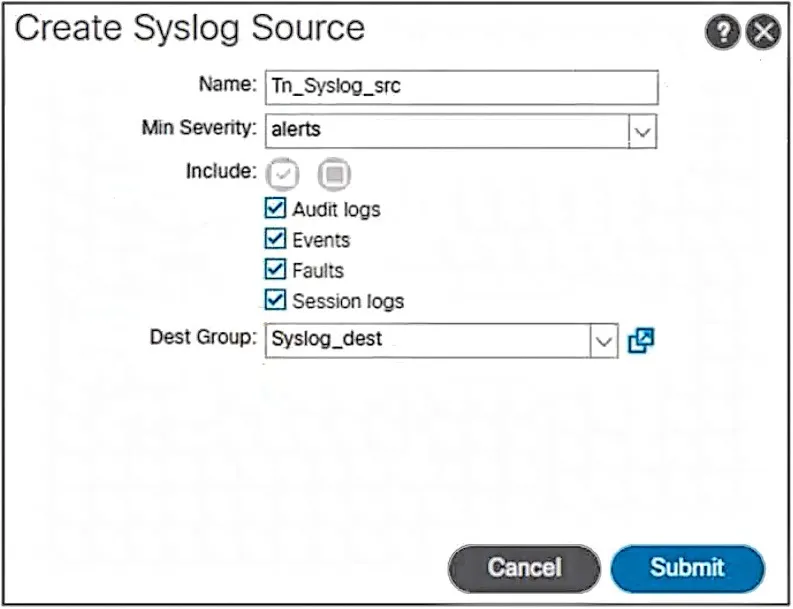

   Refer to the exhibit. A syslog service was configured to capture different faults and events from a Cisco ACI tenant. The Cisco ACI fabric is missing any OOB capability. After some time, the administrator noticed that the syslog messages were not present on the APIC. Which two actions complete the configuration? (Choose two.)

   • AChange forwarding facility to local1.
   • BPing the syslog server from the APIC.
   • CReconfigure the UDP port settings.
   • DChange the minimum severity levels.
   • ESet the management EPG to default.

   Show answer

   Answer: CD

   Next question

6. Question 216 · 340 in bank

   A network engineer must optimize a Cisco ACI multi-pod deployment. Both pods are using the same pod policy group. The customer requirement is to avoid inter-pod traffic loss in case of planned or unplanned spine reload. Which action accomplishes this goal?

   • AConfigure the COOP type as compatible in COOP Group Policy.
   • BConfigure MACsec in the MACsec Fabric Interface Policy.
   • CConfigure a lower IS-IS metric for redistributed routes in ISIS Policy.
   • DConfigure all spines as Route Reflectors in the BGP Route Reflector Policy.

   Show answer

   Answer: C

   Next question

7. Question 217 · 340 in bank

   An engineer wants to configure Cisco ACI switches to use authenticated ZMQ when communicating with the proxy spine. Which configuration allows MD5 ZMQ messages only?

   • ACOOP Group policy in strict mode
   • BIS-IS password using MD5
   • CBGP password using MD5
   • DCOOP Group policy in compatible mode

   Show answer

   Answer: A

   Next question

8. Question 218 · 340 in bank



   Refer to the exhibit. A tenant is configured with a single L3Out and a single-homed link to the core router called Core-1. An engineer must add a second link to the L3Out that connects to the Core-2 router. Which action allows traffic from Core-2 to BL-1002 to have the same connectivity as the traffic from Core-1 to BL-1001?

   • AAdd a second OSPF interface profile to the logical interface profile.
   • BAdd a second interface to the external domain to the existing L3Out.
   • CAdd a second path to the logical interface profile of the existing L3Out.
   • DAdd a second subnet to the external EPG to the existing L3Out.

   Show answer

   Answer: C

   Next question

9. Question 219 · 340 in bank

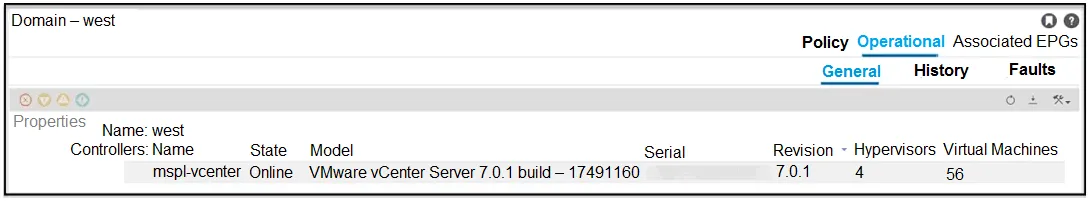

   Refer to the exhibit. An engineer associated EPG-1 with a VMM domain called VMware/west. The VLAN pool west-VLP is configured in VMware/west, and the VMware/west is associated with the AEP called VMware/west-AEP. The corresponding port group failed to be automatically created in vCenter. Which action must the engineer take to resolve the missing port group?

   • AConfigure VMware/west-AEP with the correct vCenter credentials.
   • BInclude VLANs in the VMware/west-VLP.
   • CAdd a static range to VMware/west-VLP.
   • DAssociate VMware/west-AEP with a physical domain.

   Show answer

   Answer: B

   Next question

10. Question 220 · 340 in bank

    Select 2



    Refer to the exhibit. A Cisco ACI fabric has these configurations: • VPC exists between Leaf2 and Leaf3. • A switch profile called SW_Prof exists. • A switch selector called SW_Selec exists. • An interface selector named Int_Selec exists. • An interface profile named Int_Prof exists. Which two sets of actions must the engineer perform to connect Server1 to Leaf2 and Leaf3 using VPC? (Choose two.)

    • AMap switch selector SW_Selec under switch profile SW_Prof. Add Leaf2 and Leaf3 node IDs under switch selector SW_Selec. Assign policy group to interface selector Int_Selec.
    • BAdd Leaf2 and Leaf3 node IDs under switch selector SW_Selec. Map switch profile SW_Prof under switch selector SW_Selec. Create the explicit VPC group from access policies.
    • CCreate the explicit VPC group from fabric policies. Map interface Eth1/1 under interface selector Int_Selec. Assign policy group to interface selector Int_Selec.
    • DAdd Leaf2 and Leaf3 node IDs under switch profile SW_Prof. Map Int_Selec under Int_Prof. Assign policy group to interface profile Int_Prof.
    • ECreate the explicit VPC group from access policies. Map Interface Eth1/1 under interface selector Int_Selec. Map Int_Selec under Int_Prof.

    Show answer

    Answer: AE

    Next question
