300-620 practice questions 281–290

1. Question 281 · 340 in bank

   Which Cisco ACI setting corresponds to the VMware MAC pinning?

   • Aroute based on MAC hash
   • Broute based on IP hash
   • Croute based on physical NIC load
   • Droute based on originating virtual port

   Show answer

   Answer: D

   Next question

2. Question 282 · 340 in bank

   Which feature is used to program policy CAM on a leaf switch without sending traffic from VM to the leaf?

   • Aimmediate resolution immediacy
   • Bimmediate deployment immediacy
   • Con-demand deployment immediacy
   • Don-demand resolution immediacy

   Show answer

   Answer: B

   Next question

3. Question 283 · 340 in bank

   Select 2

   A company is implementing a new security policy to track system access, configuration, and changes. The network engineer must enable the log collection to track user login and logout attempts. In addition, any configuration changes such as a fabric node failure must be collected in the logs. The syslog policy is configured to send logs to the company SEIM appliance. Which two log types must be enabled to meet the security requirements? (Choose two.)

   • Aerror
   • Baudit
   • Cfault
   • Devent
   • Ehealth

   Show answer

   Answer: BC

   Next question

4. Question 284 · 340 in bank

   An engineer configures port-12 on Leaf-101 and Leaf-102 to connect to a new server. SVR-12. The new server will belong to EPG-12 and use encap VLAN-1212. The engineer configured port-12 as a VPC member port and statically bound the VPC member port to EPG-12. Which additional step must the engineer take to configure connectivity?

   • ACreate a VPC Explicit Protection Group for EPG-12 and VLAN-1212.
   • BConfigure an LACP Interface Policy and apply it to EPG-12.
   • CSelect VLAN-1212 on the EPG-12 Interface Policy Group.
   • DAssociate a domain with EPG-12 that is associated with VLAN-1212.

   Show answer

   Answer: D

   Next question

5. Question 285 · 340 in bank

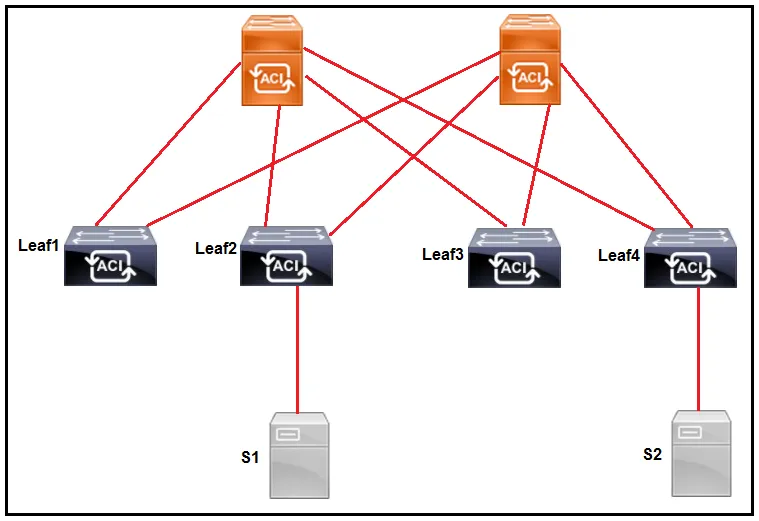

   Refer to the exhibit. An application called App_1 is hosted on the server called S1. A silent host application, App_2, is hosted on S2. Both applications use the same VLAN encapsulation. Which action forces Cisco ACI fabric to learn App_2 on ACI leaf 2?

   • ASet Unicast Routing to Hardware Proxy.
   • BSet L2 Unknown Unicast to Flood.
   • CSet L3 Unknown Multicast to Optimized flood.
   • DSet Multi-Destination Flooding to Drop.

   Show answer

   Answer: B

   Next question

6. Question 286 · 340 in bank

   A Cisco ACI fabric has three different endpoints S1, S2, and S3. These endpoints must communicate with each other without contracts. These objects have been created in APIC: • Two EPGs named DNS_EPG and Database_EPG • Two application profiles. PROD_App and Data_App • Two bridge domains DNS_BD and Database_BD • PROD_APP and Database_BD mapped to Tenant PROD • Data_App and DNS_BD mapped to Tenant Data Which set of actions completes the fabric configuration?

   • AAdd S1, S2, S3 under Database_EPG. MAP Database_EPG under PROD_ App. Associate Datbase_EPG with DNS_BD.
   • BAdd S1, S2, S3, under DNS_EPG. MAP DNS_EPG to Data_App. Associate DNS_EPG with Dns_BD.
   • CAdd S1, S2, S3 under DNS_EPG. MAP DNS_EPG to Data_App. Associate DNS_EPG with Database_BD.
   • DAdd S1, S2, S3 under Database_EPG. MAP Database_EPG under Data_App. Associate Datbase_EPG with Database_BD.

   Show answer

   Answer: B

   Next question

7. Question 287 · 340 in bank

   What is a characteristic of a Cisco ACI Multi-Pod?

   • AIt manages the configuration of different Cisco ACI pods using a single common Cisco APIC cluster.
   • BIt eliminates the need to deploy multicast in the Layer 3 network that interconnects the pods.
   • CA VPNv4 address family is used to exchange endpoint information between spines.
   • DSpines use BGP peering with IPN to send out the TEP pool prefix for the local pod.

   Show answer

   Answer: A

   Next question

8. Question 288 · 340 in bank

   How many ARP requests are sent from leaf switches to perform host tracking for local endpoints?

   • A1
   • B2
   • C3
   • D4

   Show answer

   Answer: C

   Next question

9. Question 289 · 340 in bank

   What is the maximum number of sites connected using spine back-to-back with a direct link in a Cisco ACI Multi-Site fabric?

   • A2
   • B3
   • C4
   • D5

   Show answer

   Answer: A

   Next question

10. Question 290 · 340 in bank

    An engineer implements a configuration backup on the Cisco APIC. The backup job must meet these requirements: • The backup must transfer the encrypted data to the remote server. • The transfer must be resumed if the connection is interrupted Which configuration set meets these requirements?

    • ASelect protocol TFTP in Create Remote Location. Choose JSON format in Configuration Export Policy.
    • BSelect protocol FTP in Create Remote Location. Choose XML format in Configuration Export Policy.
    • CSelect protocol SFTP in Create Remote Location. Choose XML format in Configuration Export Policy.
    • DSelect protocol HTTP in Create Remote Location. Choose JSON format in Configuration Export Policy.

    Show answer

    Answer: C

    Next question
