350-901 practice questions 331–340

1. Question 331 · 385 in bank

   Select 2

   The UCS Python SDK includes modules for Service Profile template creation. Which two UCS Service Profile template types are supported? (Choose two.)

   • Ainitial-template
   • Bupdating-template
   • Cabstract-template
   • Dattached-template
   • Ebase-template

   Show answer

   Answer: AB

   Explanation

   Agree with the answer being A and B. - Initial Template: The initial template is used to create a new server from a service profile with UIDs, but after the server is deployed, there is no linkage between the server and the template, so changes to the template will not propagate to the server, and all changes to items defined by the template must be made individually to each server deployed with the initial template. - Updating Template: An updating template maintains a link between the template and the deployed servers, and changes to the template (most likely to be firmware revisions) cascade to the servers deployed with that template on a schedule determined by the administrator. Some more reading about Service Profiles: https://www.cisco.com/c/dam/en/us/solutions/collateral/data-center-virtualization/unified-computing/white_paper_590518.pdf

   Source: Adapted from community discussion — architect_

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 332 · 385 in bank

   A container running a Python script is failing when it reaches the integration testing phase of the CI/CD process. The code has been reviewed thoroughly, and the build process works on this container and all other containers pass unit and integration testing. What should be verified to resolve the issue?

   • Athat the correct port is exposed in the Dockerfile
   • Bthat the necessary modules and packages are installed on build
   • Cthat the script is running from the right directory
   • Dthat the Python version of the container image is correct

   Show answer

   Answer: A

   Explanation

   A: does not make sense as the docker file does not expose the ports. The purpose of the EXPOSE command within the docker file is simply for documentation purposes. The port exposure happens at runtime with the -p argument. https://docs.docker.com/engine/reference/builder/#expose "The EXPOSE instruction does not actually publish the port. It functions as a type of documentation between the person who builds the image and the person who runs the container, about which ports are intended to be published. To actually publish the port when running the container, use the -p flag on docker run to publish and map one or more ports, or the -P flag to publish all exposed ports and map them to high-order ports."

   Source: Adapted from community discussion — Cyphr

   Next question

3. Question 333 · 385 in bank

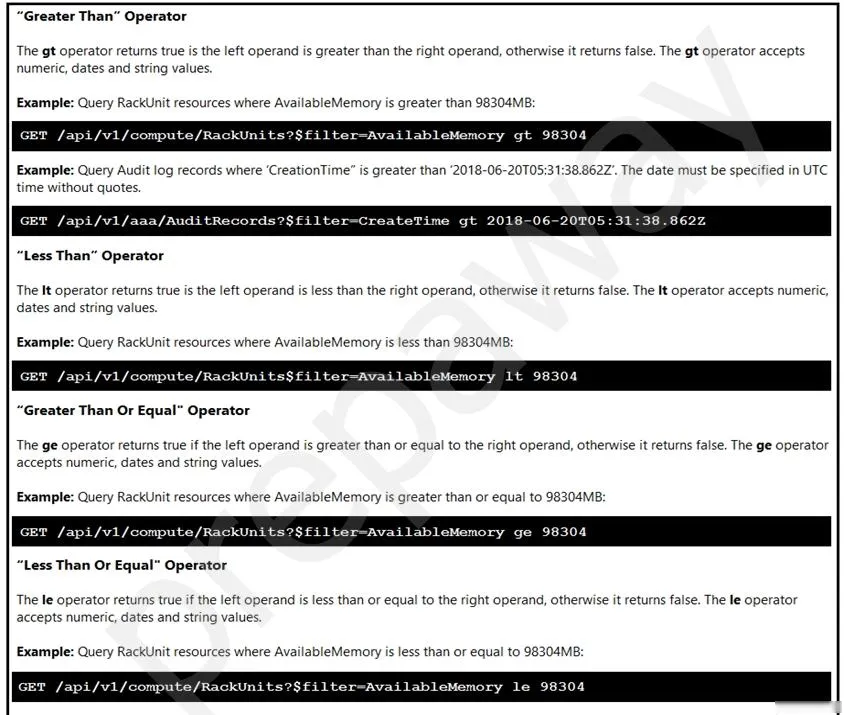

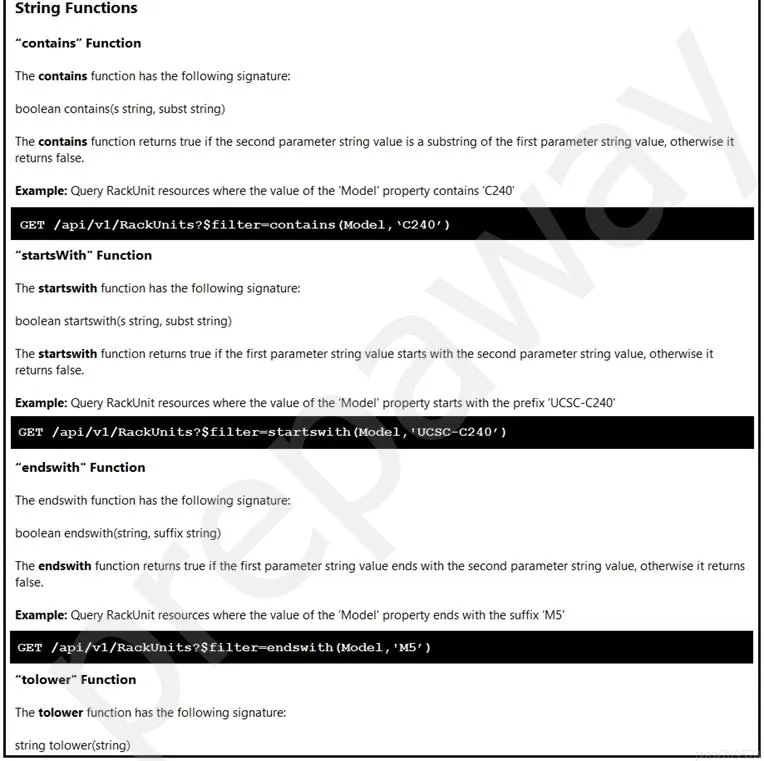

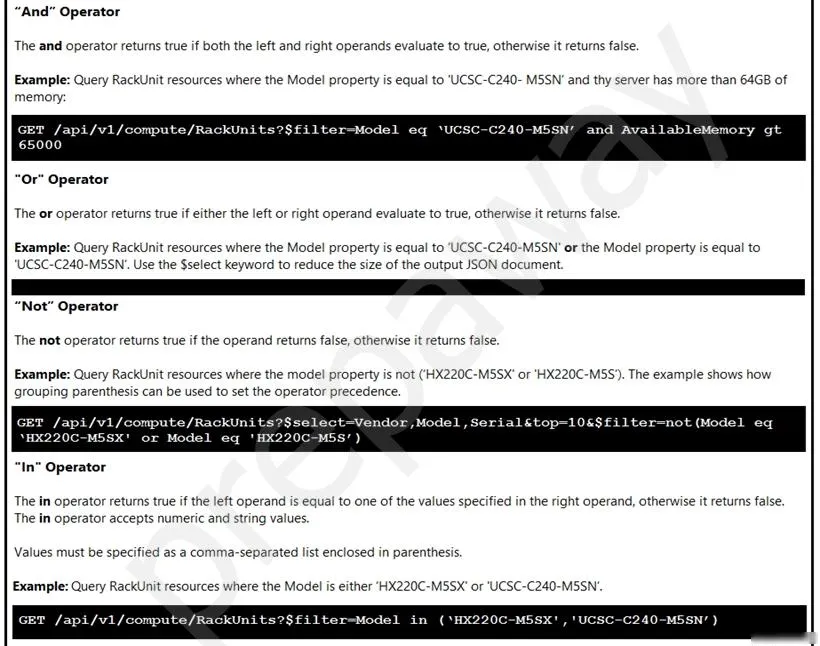

   Click on the GET Resource button above to view resources that will help with this question.







   An engineer is managing a data center with 6000 Cisco UCS servers installed and running. The engineer has been asked to identify all resources where the model is in the UCSB family and the available memory is less than or equal to 5 GB. Which REST API call accomplishes this task?

   • AGET/api/v1/compute/RackUnits?$select=Vendor,Model,Serial&$filter=not(Model eq 'UCSC') and AvailableMemory le 5000
   • BGET/api/v1/compute/RackUnits?$select=Vendor,Model,Serial&$filter=Model eq 'UCSB' and AvailableMemory lt 5000
   • CGET/api/v1/compute/RackUnits?$select=Vendor,Model,Serial&$filter=contains(Model, UCSB') and AvailableMemory lt 5000
   • DGET/api/v1/compute/RackUnits?$select=Vendor,Model,Serial&$filter=contains(Model, UCSB') and AvailableMemory le 5000

   Show answer

   Answer: D

   Explanation

   Guys here is a typo error on questions D, despite it is the best answer. Although if you see the missing ' on answer D, go for answer A instead which is also correct, the problem is that, we don't know if there is any other type of UCS platform i.e. f, g, h etc therefore it is not the most accurate considering the requirements of the question.

   Source: Adapted from community discussion — CiscoRider

   References

   • Cisco documentation

   Next question

4. Question 334 · 385 in bank

   Select 2

   AppGigabitEthernet interface is used as data port for a container on a Cisco Catalyst 9000 Series Switch. Which two interface configuration options should be used? (Choose two.)

   • Atrunk interface
   • Bbridged virtual interface
   • CSPAN port
   • Dmanagement interface
   • Esubinterface

   Show answer

   Answer: AC

   Explanation

   A and C seem more accurate since SPAN Source Ports can be access or trunk ports. Definition: Containers can connect to AppGigabitEthernet in two modes: VLAN (where a single untagged VLAN is mapped to a container’s interface) and Trunk (where traffic for all the allowed VLANs is sent as Native or VLAN-tagged frames) Also, please see the white paper > https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9300-series-switches/white-paper-c87-742415.html Although, there are two types of connectivity which are via Front Panel (Regular) L2 interfaces using trunk or VLAN (untagged vlan) or via L3 Routed interface using NAT and VirtualPortGroup. I think the question is asking only about the AppGigabitEthernet and this could be only configured as L2 interfaces in two modes (VLAN and Trunk) according to the WhitePaper and Cisco DEVCOR Study Guide.

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 335 · 385 in bank

   Select 2

   Which two types of storage are supported for app hosting on a Cisco Catalyst 9000 Series Switch? (Choose two.)

   • Aexternal USB storage
   • Binternal SSD
   • CCD-ROM
   • DSD-card
   • Ebootflash

   Show answer

   Answer: AB

   Explanation

   From here https://www.cisco.com/c/dam/en/us/td/docs/security/cyber_vision/Cisco_Cyber_Vision_Network_Sensor_Installation_Guide_for_Cisco_IE3400_and_Catalyst_9300_3_1_1.pdf The SD Card is nly supported on the 3400 and for the 9300 it states a SSD to be plugged in. The questions asks on a 9000 series. On a 9400 the storage plugs into the supervisor card. https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9400-series-switches/nb-06-cat9400-ser-sup-eng-data-sheet-cte-en.pdf. on the 9500 it appears external https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9500-series-switches/nb-06-cat9500-ser-data-sheet-cte-en.html. On 9600 its on the supervisor https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9600-series-switches/nb-06-cat9600-series-data-sheet-cte-en.html. Appears those switches that are modular are on the supervisor card itself and those that are stackable are external SSD. Given that it appears A and B is correct.

   Source: Adapted from community discussion — tommiy

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

6. Question 336 · 385 in bank



   Refer to the exhibit. Which configuration of method and parameter retrieves the health of a laptop connected to the network from Cisco DNA Center?

   • APUT; network-health;
   • BGET; client-health;
   • CGET; network-device;
   • DPOST; network-device;

   Show answer

   Answer: B

   Explanation

   I agree 'B' is the correct answer. Get Overall Client Health GET /dna/intent/api/v1/client-health Returns Overall Client Health information by Client type (Wired and Wireless) for any given point of time https://developer.cisco.com/docs/dna-center/api/1-3-3-x/#!intent-api-v1-3-3-x

   Source: Adapted from community discussion — CertifiedGoogler

   References

   • cisco.com documentation
   • cisco.com documentation

   Next question

7. Question 337 · 385 in bank

   On a Cisco Catalyst 9300 Series Switch, the guest shell is being used to create a service within a container. Which change is needed to allow the service to have external access?

   • AApply ip nat overload on VirtualPortGroup0.
   • BApply ip nat inside on Interface VirtualPortGroup0.
   • CApply ip nat outside on Interface VirtualPortGroup0.
   • DApply ip nat inside on Interface GigabitEthernet1.

   Show answer

   Answer: B

   Explanation

   B is correct ### Connectivity via L3 Routed Interface ## In such a configuration, the device itself will be a default gateway for the container. For the external connectivity, NAT might be required and may be performed on the device itself (with the VirtualPortGroup interface as “inside” and outgoing routing interface as “outside”). Example: interface GigabitEthernet1/0/20 ip address dhcp ip nat outside ! interface VirtualPortGroup1 ip address 10.1.0.1 255.255.255.0 ip nat inside !

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation

   Next question

8. Question 338 · 385 in bank

   A network operations team is using the cloud to automate some of their managed customer and branch locations. They require that all of their tooling be ephemeral by design and that the entire automation environment can be recreated without manual commands. Automation code and configuration state will be stored in git for change control and versioning. The engineering high-level plan is to use VMs in a cloud-provider environment, then configure open source tooling onto these VMs to poll, test, and configure the remote devices, as well as deploy the tooling itself. Which configuration management and/or automation tooling is needed for this solution?

   • AAnsible
   • BAnsible and Terraform
   • CNSO
   • DTerraform
   • EAnsible and NSO

   Show answer

   Answer: B

   Explanation

   Yes but NSO isn't opensource and therefor B is correct as stated earlier. Ansible is opensource and Terraform. Terraform is used to deploy the infrastructure and Ansible to deploy the rule set's on VM's and Network equipment.

   Source: Adapted from community discussion — Npirate

   Next question

9. Question 339 · 385 in bank



   Refer to the exhibit. Which code snippet is required in the headers to successfully authorize wireless information from Cisco DNA Center?

   • Aheaders = {'X-auth-token':'fa8426a0-8eaf-4d22-8e13-7c1b16a9370c'}
   • Bheaders = {'Authorization':'Basic YWRtaW46R3JhcGV2aW5IMQ=='}
   • Cheaders = {'Authorization':'Bearer ASDNFALKJER23412RKDALSNKF'}
   • Dheaders = {'Content-type':'application/json'}

   Show answer

   Answer: A

   Explanation

   Correct answer: A https://github.com/CiscoDevNet/DNAC-Top5/blob/master/util.py line 23: def get_url(url): if FAKE: return fake[url] url = create_url(path=url) print(url) token = get_auth_token() headers = {'X-auth-token' : token['token']}

   Source: Adapted from community discussion — Teringzooi

   References

   • cisco.com documentation

   Next question

10. Question 340 · 385 in bank

    Select 2

    Into which two areas are AppDynamics APIs categorized? (Choose two.)

    • Aapplication-centric
    • Banalytics-events
    • Cdatabase-visibility
    • Dplatform-side
    • Eagent-side

    Show answer

    Answer: DE

    Explanation

    "The AppDynamics APM Platform exposes various APIs for customizing and extending its features on the platform-side, which are served by the Controller and Events Service, and on the agent-side."

    Source: Adapted from community discussion — FR99

    Next question
