300-420 practice questions 191–200

1. Question 191 · 359 in bank

   Select 2

   What are two purposes of the RPF check in multicast routing? (Choose two.)

   • Ato ensure that multicast packets are forwarded if they arrived on the interface used to route traffic back to the source address
   • Bto ensure that multicast packets are forwarded if they arrived on the interface used to route traffic to the destination address
   • Cto ensure that multicast packets are dropped if they arrived on the interface used to route traffic to the destination address
   • Dto ensure that multicast packets are dropped if they arrived on the interface used to route traffic back to the source address
   • Eto ensure that multicast packets, no matter the interface they arrived on are forwarded out all interfaces

   Show answer

   Answer: AC

   Next question

2. Question 192 · 359 in bank

   A customer requires QoS to support multimedia conferencing over MPLS. The network architect chooses to use per-hop behavior. Which solution must the architect use to classify and mark traffic traveling between branch sites?

   • ABW Queue with DSCP AF3
   • BBW Queue and DSCP WRED with DSCP AF4
   • CBW Queue and DSCP WRED with DSCP AF3
   • DBW Queue with DSCP AF4

   Show answer

   Answer: B

   Next question

3. Question 193 · 359 in bank

   Select 2

   Which two functions is the Cisco SD-Access Border Node responsible for? (Choose two.)

   • AMap users to a virtual network
   • BAdvertise EID subnets
   • CRoute and transport IP traffic
   • DAct as an anycast Layer 3 gateway
   • EAct as a LISP proxy tunnel router

   Show answer

   Answer: BE

   References

   • Cisco documentation

   Next question

4. Question 194 · 359 in bank

   An engineer must establish a direct connection between two remote offices. The new connection must be established using a logical path, share a common broadcast domain, connect over private WAN, and have as little overhead as possible. Which technology must the engineer choose?

   • AGRE
   • BL2VPN
   • CGET VPN
   • DIPsec

   Show answer

   Answer: B

   Next question

5. Question 195 · 359 in bank

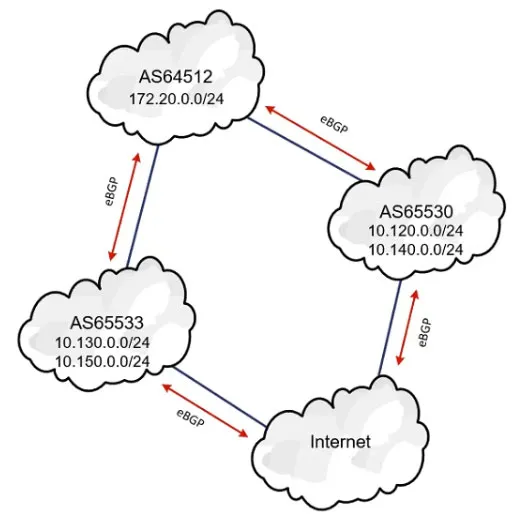

   Refer to the exhibit. AS65533 and AS65530 are announcing a partial Internet routing table as well as their IP subnets. An architect must create a design that ensures AS64512 does not become a transit AS. Which filtering solution must the architect choose?

   • Ano-advertise
   • Bnext-hop
   • Cno-export
   • Dmaximum-prefix

   Show answer

   Answer: C

   Explanation

   4 methods how you can prevent becoming a transit AS: 1 Filter-list with AS PATH access-list. 2 No-Export Community. 3 Prefix-list Filtering 4 Distribute-list Filtering

   Source: Adapted from community discussion — andrewChan

   Next question

6. Question 196 · 359 in bank

   Select 2

   A customer plans to deploy WoL in the enterprise with these high-level design requirements: • DHCP services must be available • Clients BIOS settings must be set for WoL • Clients get IP addresses once online • Spanning-tree PortFast is enabled on the Layer 2 switches Which two solutions must the customer select to have a successful deployment? (Choose two.)

   • AIP directed broadcast and forward-protocol must be enabled on all the SVI or routed interfaces where the client subnets reside
   • BIP directed broadcast and forward-protocol must be disabled on all the SVI or routed interfaces where the client subnets reside
   • CIP helper-addresses for the client ranges must be disabled on the SVI or routed interface where the WoL server subnet resides
   • DIP helper-addresses for the WoL server must be enabled on the SVI or routed interface where the client subnets reside
   • EIP helper-addresses for the client ranges must be enabled on the SVI or routed interface where the WoL server subnet resides

   Show answer

   Answer: AE

   References

   • Cisco documentation

   Next question

7. Question 197 · 359 in bank



   Refer to the exhibit. Due to budget constraints, a customer decided to purchase WAN routers with one LAN and one WAN interface per device. There is a requirement to connect the three sites to ensure high availability without buying additional WAN links. Which design deployment must the customer choose?

   • Adual-homed full mesh
   • Bsingle-homed full mesh
   • Csingle-homed hub-and-spoke
   • Ddual-homed hub-and-spoke

   Show answer

   Answer: B

   Next question

8. Question 198 · 359 in bank

   In Cisco SD-Access, virtual networks create segmentation that allows for separation of users and resources. How is this type of segmentation described?

   • Astretched
   • Bmicro
   • Cmacro
   • Dinter-VN

   Show answer

   Answer: C

   Explanation

   Answer is correct Macro vs Micro Segmentation Network segmentation can be divided into two main categories: macro segmentation and micro segmentation. Macro segmentation is the process of dividing the network into larger segments based on factors such as geography, department, or function. This is usually achieved through traditional methods such as VRF, VLANs, or firewall zoning. Micro segmentation, in contrast, involves dividing the network into smaller, more granular segments based on individual workloads or applications. This is typically accomplished using software-defined methods such as Security Group Tags (SGTs). Micro segmentation provides more granular control over traffic flows, enabling organizations to reduce the attack surface of the network by limiting the lateral movement of threats. By implementing micro segmentation, organizations can improve their security posture and better protect their critical assets. https://learningnetwork.cisco.com/s/article/software-defined-segmentation-a-primer#:~:text=Macro%20vs%20Micro%20Segmentation,better%20protect%20their%20critical%20assets.

   Source: Adapted from community discussion — muffedtrims

   References

   • cisco.com documentation

   Next question

9. Question 199 · 359 in bank

   What is the purpose of service routes in OMP updates?

   • Adefine the remote management information
   • Bspecify routes toward a centralized orchestration plane
   • Cdescribe underlay transport information
   • Dindicate services that are enabled for service insertion

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

10. Question 200 · 359 in bank



    Refer to the exhibit. A company specializing in VoD content creation has two offices in a separate multicast domain connected by a WAN link. BGP communication has been established between the offices. Clients are inside the LAN in each office. In AS5373, R2 has been selected as RP. What must the network architect design to deliver VoD content to clients in AS65773?

    • APIM SSM
    • BPIM ASM with BSR
    • CMSDP
    • DPIM ASM with Auto-RP

    Show answer

    Answer: C

    Explanation

    Given the network setup and the requirements, Multicast Source Discovery Protocol (MSDP) is the appropriate solution to deliver VoD content to clients across different multicast domains (AS5373 and AS65773)

    Source: Adapted from community discussion — PicoOstrava

    Next question
