200-301 practice questions 501–510

1. Question 501 · 1334 in bank

   Select 2

   The SW1 interface g0/1 is in the down/down state. What are two reasons for the interface condition? (Choose two.)

   • AThere is a protocol mismatch
   • BThere is a duplex mismatch
   • CThe interface is shut down
   • DThe interface is error-disabled
   • EThere is a speed mismatch

   Show answer

   Answer: DE

   Explanation

   A.- When there is a protocol mismatch the status is UP/DOWN B.- When there is a duplex mismatch, the status is UP/UP C.- When the interface is shut down the status is ADMINISTRATIVELY DOWN/DOWN The only 2 answers where the status is DOWN/DOWN are answers C & D

   Source: Adapted from community discussion — Dante_Dan

   Next question

2. Question 502 · 1334 in bank

   How will Link Aggregation be implemented on a Cisco Wireless LAN Controller?

   • AThe EtherChannel must be configured in ג€mode activeג€.
   • BWhen enabled, the WLC bandwidth drops to 500 Mbps.
   • CTo pass client traffic, two or more ports must be configured.
   • DOne functional physical port is needed to pass client traffic.

   Show answer

   Answer: D

   Explanation

   D is correct "When you enable LAG, only one functional physical port is needed for the controller to pass client traffic." https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_010100001.html#:~:text=When%20you%20enable%20LAG%2C%20only,controller%20to%20pass%20client%20traffic.&text=When%20you%20enable%20LAG%2C%20you,on%20which%20it%20received%20them.

   Source: Adapted from community discussion — oooMooo

   References

   • Cisco documentation

   Next question

3. Question 503 · 1334 in bank

   Select 2

   Which two conditions must be met before SSH operates normally on a Cisco IOS switch? (Choose two.)

   • AIP routing must be enabled on the switch.
   • BA console password must be configured on the switch.
   • CTelnet must be disabled on the switch.
   • DThe switch must be running a k9 (crypto) IOS image.
   • EThe ip domain-name command must be configured on the switch.

   Show answer

   Answer: DE

   Explanation

   "The Cisco IOS image used must be a k9(crypto) image in order to support SSH. " "!--- Step 2: Configure the DNS domain of the router. ip domain-name rtp.cisco.com"

   Source: Adapted from community discussion — mazintaha

   Next question

4. Question 504 · 1334 in bank

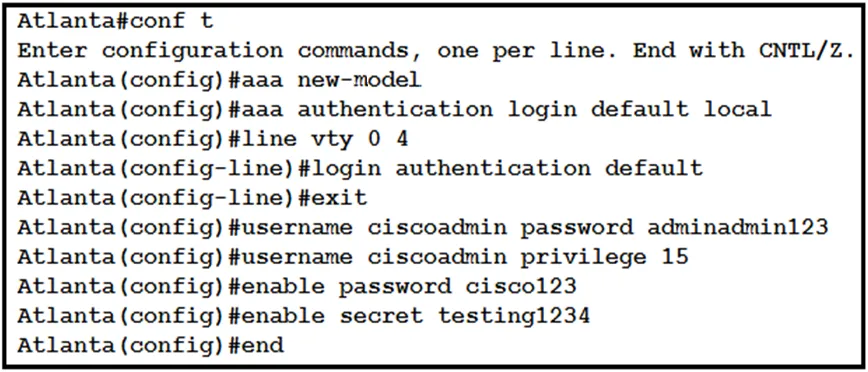

   Refer to the exhibit. Which password must an engineer use to enter the enable mode?

   • Aadminadmin123
   • Bcisco123
   • Cdefault
   • Dtesting1234

   Show answer

   Answer: D

   Explanation

   D is correct If you set both enable password and enable secret. You will need to use the enable secret password to enter privileged mode.

   Source: Adapted from community discussion — ZUMY

   Next question

5. Question 505 · 1334 in bank

   Which state does the switch port move to when PortFast is enabled?

   • Ablocking
   • Blistening
   • Clearning
   • Dforwarding

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

6. Question 506 · 1334 in bank

   Which protocol prompts the Wireless LAN Controller to generate its own local web administration SSL certificate for GUI access?

   • ARADIUS
   • BHTTPS
   • CTACACS+
   • DHTTP

   Show answer

   Answer: B

   Explanation

   You can protect communication with the GUI by enabling HTTPS. HTTPS protects HTTP browser sessions by using the Secure Sockets Layer (SSL) protocol. When you enable HTTPS, the controller generates its own local web administration SSL certificate and automatically applies it to the GUI. You also have the option of downloading an externally generated certificate. Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-0/configuration-guide/b_cg80/b_cg80_chapter_011.html

   Source: Adapted from community discussion — NSA_Poker

   Next question

7. Question 507 · 1334 in bank

   Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?

   • Aexplicitly assign a link-local address
   • Bdisable the EUI-64 bit process
   • Cenable SLAAC on an interface
   • Dconfigure a stateful DHCPv6 server on the network

   Show answer

   Answer: C

   Explanation

   For anyone that read @dave1992 comment, don't worry! The reason people doing it is because there is a lot of INCORRECT answer especially from #423 - #1057 ( I haven't check anything after that yet). So the more people COMMENTING it, the more it help others validate the answer so when you sit on the actual exam you know you got it right. this user @dave1992 here is just being a Smart As*. the saying goes: if you can't contribute positively, then just shut the F up.

   Source: Adapted from community discussion — Brocolee

   References

   • Cisco documentation

   Next question

8. Question 508 · 1334 in bank

   An engineer must configure interswitch VLAN communication between a Cisco switch and a third-party switch. Which action should be taken?

   • Aconfigure DSCP
   • Bconfigure IEEE 802.1q
   • Cconfigure ISL
   • Dconfigure IEEE 802.1p

   Show answer

   Answer: B

   Next question

9. Question 509 · 1334 in bank

   An engineer requires a switch interface to actively attempt to establish a trunk link with a neighbor switch. What command must be configured?

   • Aswitchport mode trunk
   • Bswitchport mode dynamic desirable
   • Cswitchport nonegotiate
   • Dswitchport mode dynamic auto

   Show answer

   Answer: B

   Explanation

   The key word here is “actively attempt” therefore only desirable is work, then the given answer is correct which is relevant to the question.

   Source: Adapted from community discussion — Nhan

   Next question

10. Question 510 · 1334 in bank

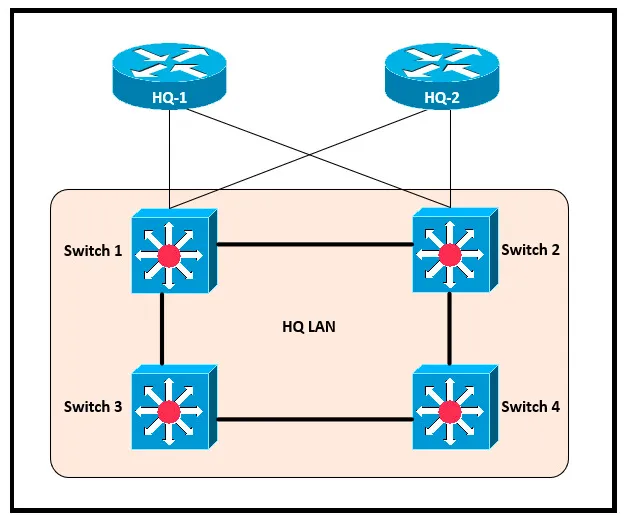

    Refer to the exhibit. After the election process, what is the root bridge in the HQ LAN? Switch 1: 0C:E0:38:81:32:58 - Switch 2: 0C:0E:15:22:1A:61 - Switch 3: 0C:0E:15:1D:3C:9A - Switch 4: 0C:E0:19:A1:4D:16 -



    • ASwitch 1
    • BSwitch 2
    • CSwitch 3
    • DSwitch 4

    Show answer

    Answer: C

    Next question
