200-301 practice questions 461–470

1. Question 461 · 1334 in bank

   Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2, while all other VLANs are to remain tagged. Which command accomplishes this task?



   • Aswitchport access vlan 67
   • Bswitchport trunk allowed vlan 67
   • Cswitchport private-vlan association host 67
   • Dswitchport trunk native vlan 67

   Show answer

   Answer: D

   Explanation

   D is correct Native VLAN: The native VLAN is the one into which untagged traffic will be put when it’s received on a trunk port. This makes it possible for your VLAN to support legacy devices or devices that don’t tag their traffic like some wireless access points and simply network attached devices.

   Source: Adapted from community discussion — ZUMY

   Next question

2. Question 462 · 1334 in bank

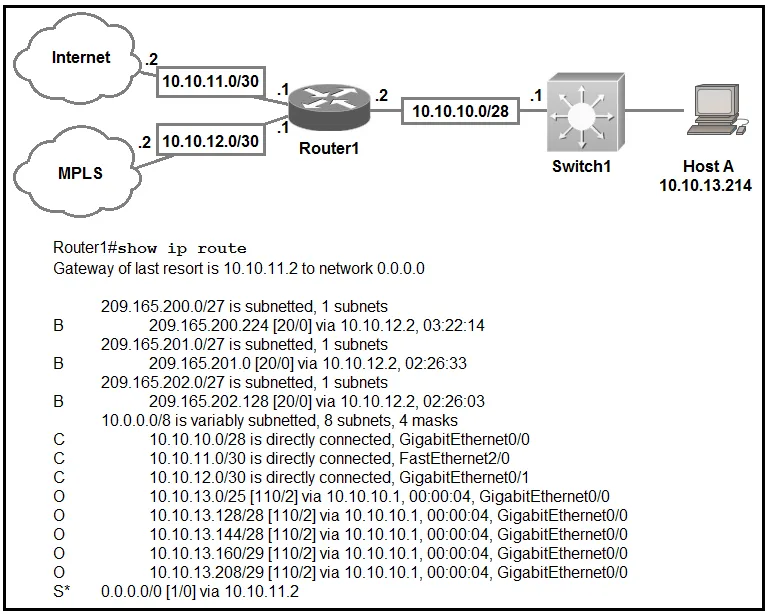

   Refer to the exhibit. Which prefix does Router1 use for traffic to Host A?

   • A10.10.10.0/28
   • B10.10.13.0/25
   • C10.10.13.144/28
   • D10.10.13.208/29

   Show answer

   Answer: D

   Explanation

   10.10.13.208/29 gives .208 for network, hmin 209, hmax 214, bcast 215. The correct answer will be D as this route gives the correct range.

   Source: Adapted from community discussion — mikachuu85

   References

   • cisco.com documentation

   Next question

3. Question 463 · 1334 in bank

   What is a benefit of using a Cisco Wireless LAN Controller?

   • AIt eliminates the need to configure each access point individually.
   • BCentral AP management requires more complex configurations.
   • CUnique SSIDs cannot use the same authentication method.
   • DIt supports autonomous and lightweight APs.

   Show answer

   Answer: A

   Explanation

   A wireless LAN (or WLAN) controller is used in combination with the Lightweight Access Point Protocol (LWAPP) to "manage light-weight access points in large quantities" by the network administrator or network operations center.

   Source: Adapted from community discussion — Samitha

   Next question

4. Question 464 · 1334 in bank

   Select 2

   Which two command sequences must be configured on a switch to establish a Layer 3 EtherChannel with an open-standard protocol? (Choose two.)

   • Ainterface GigabitEthernet0/0/1 channel-group 10 mode auto
   • Binterface GigabitEthernet0/0/1 channel-group 10 mode on
   • Cinterface port-channel 10 no switchport ip address 172.16.0.1 255.255.255.0
   • Dinterface GigabitEthernet0/0/1 channel-group 10 mode active
   • Einterface port-channel 10 switchport switchport mode trunk

   Show answer

   Answer: CD

   Explanation

   We can answer this by discarding incorrect answers we need to use an open standard IE LACP The option "A" is discarded: PAgP configuration The option "B" is discarded: manual configuration ("On" mode) The option "C" is configuration that LACP uses. The option "D" is configuration that LACP uses. The option "E" is discarded: It is configuration of trunk mode, not Etherchannel C and D correct.

   Source: Adapted from community discussion — Dave861

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

5. Question 465 · 1334 in bank

   Select 2

   Refer to the exhibit. Which two commands when used together create port channel 10? (Choose two.)



   • Aint range g0/0-1 channel-group 10 mode active
   • Bint range g0/0-1 channel-group 10 mode desirable
   • Cint range g0/0-1 channel-group 10 mode passive
   • Dint range g0/0-1 channel-group 10 mode auto
   • Eint range g0/0-1 channel-group 10 mode on

   Show answer

   Answer: AC

   Explanation

   I only see A as the answer because the configuration does the same on both interfaces so if they are both mode Active it will form an LACP channel; which is what is required. If both are auto it will not form, if both are desirable it will form an PAGP channel, which is not what is required, if they are both on there will be no protocol, if they are passive no LACP will form. So the only answer is A.

   Source: Adapted from community discussion — Paplewska

   Next question

6. Question 466 · 1334 in bank

   Refer to the exhibit. An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEthernet 3/1/4 port on a switch?



   • AThe phone and a workstation that is connected to the phone do not have VLAN connectivity.
   • BThe phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1.
   • CThe phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity.
   • DThe phone and a workstation that is connected to the phone send and receive data in VLAN 50.

   Show answer

   Answer: B

   Explanation

   I think if we are talking about "tagging" we have to mention a TRUNK, tagging has no use in an isolated switched, the switch simply separates ports in different vlans, and each one with a separate MAC address table. Think about .1q tagging as a tool for giving information about an internal switch vlan to another switch. If you don't configure explicitely a command "switchport mode access vlan x", and the port is not a trunk port, hence an Access Port (like in this example), the default data VLAN will be 1.

   Source: Adapted from community discussion — Unemaru

   References

   • Cisco documentation
   • Cisco documentation

   Next question

7. Question 467 · 1334 in bank

   Refer to the exhibit. Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?



   • AThe frame is processed in VLAN 1
   • BThe frame is processed in VLAN 11
   • CThe frame is processed in VLAN 5
   • DThe frame is dropped

   Show answer

   Answer: C

   Explanation

   Untagged and native VLAN go together, so VLAN 5. However, 'switchport mode trunk' and switchport access VALN 11', no good.

   Source: Adapted from community discussion — Ali526

   Next question

8. Question 468 · 1334 in bank

   Which command is used to enable LLDP globally on a Cisco IOS ISR?

   • Alldp run
   • Blldp enable
   • Clldp transmit
   • Dcdp run
   • Ecdp enable

   Show answer

   Answer: A

   Explanation

   A is correct #lldp run - Golably Enable #no lldp run - Globally Disable #lldp Recieve -To receive LLDP packets #lldp Transmit - To transmit LLDP packets

   Source: Adapted from community discussion — ZUMY

   References

   • Cisco documentation

   Next question

9. Question 469 · 1334 in bank

   Which command should you enter to configure an LLDP delay time of 5 seconds?

   • Alldp timer 5000
   • Blldp holdtime 5
   • Clldp reinit 5000
   • Dlldp reinit 5

   Show answer

   Answer: D

   Explanation

   The correct answer to the question "Which command should you enter to configure an LLDP delay time of 5 seconds?" is D. lldp reinit 5. Explanation : LLDP (Link Layer Discovery Protocol) is a network protocol used to discover network devices and their properties. The lldp reinit command is used to set the delay time for reinitializing LLDP information after an interface has gone down and come back up. By default, this delay time is set to 2 seconds. To configure it to 5 seconds, you would enter the command lldp reinit 5. Option A, lldp timer 5000, sets the interval at which LLDP packets are sent, measured in seconds. Option B, lldp holdtime 5, sets the amount of time a device should retain information received from its neighbors before discarding it, measured in seconds. Option C, lldp reinit 5000, sets the delay time for reinitializing LLDP information, but the value is in milliseconds, not seconds. Therefore, the correct answer is D, lldp reinit 5.

   Source: Adapted from community discussion — dearc

   Next question

10. Question 470 · 1334 in bank

    In a CDP environment, what happens when the CDP interface on an adjacent device is configured without an IP address?

    • ACDP becomes inoperable on that neighbor
    • BCDP uses the IP address of another interface for that neighbor
    • CCDP operates normally, but it cannot provide IP address information for that neighbor
    • DCDP operates normally, but it cannot provide any information for that neighbor

    Show answer

    Answer: B

    Explanation

    I tested in Packet tracer and I don't see that CDP uses an IP address of another interface for the CDP neighbor, it just leaves it empty but still works as usual. I don't see how you guys say it is B, but the simulation on PT says otherwise. I'm going with C.

    Source: Adapted from community discussion — ddban

    References

    • Cisco documentation
    • cisco.com documentation
    • Cisco documentation
    • Cisco documentation
    • cisco.com documentation

    Next question
