AZ-305 practice questions 151–160

1. Question 151 · 232 in bank

   You plan to provision a High Performance Computing (HPC) cluster in Azure that will use a third-party scheduler. You need to recommend a solution to provision and manage the HPC cluster node. What should you include in the recommendation?

   • AAzure Automation
   • BAzure CycleCloud
   • CAzure Purview
   • DAzure Lighthouse

   Show answer

   Answer: B

   Explanation

   Azure CycleCloud is a tool designed to manage and orchestrate HPC workloads in Azure. It simplifies the creation, management, and scaling of HPC clusters while supporting various third-party schedulers. This makes it an ideal solution for provisioning and managing an HPC cluster with a third-party scheduler in Azure.

   Source: Adapted from community discussion — NotMeAnyWay

   References

   • Microsoft Learn

   Next question

2. Question 152 · 232 in bank

   HOTSPOT - You are designing an Azure App Service web app. You plan to deploy the web app to the North Europe Azure region and the West Europe Azure region. You need to recommend a solution for the web app. The solution must meet the following requirements: ✑ Users must always access the web app from the North Europe region, unless the region fails. ✑ The web app must be available to users if an Azure region is unavailable. ✑ Deployment costs must be minimized. What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: A Traffic Manager profile To support load balancing across the regions we need a Traffic Manager. Box 2: Priority traffic routing - Priority traffic-routing method. Often an organization wants to provide reliability for their services. To do so, they deploy one or more backup services in case their primary goes down. The 'Priority' traffic-routing method allows Azure customers to easily implement this failover pattern. Reference: https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/app-service-web-app/multi-region https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-routing-methods

   Source: Adapted from community discussion — NotMeAnyWay

   References

   • Microsoft Learn
   • Microsoft Learn



   Next question

3. Question 153 · 232 in bank

   Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution. After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen. You plan to deploy multiple instances of an Azure web app across several Azure regions. You need to design an access solution for the app. The solution must meet the following replication requirements: ✑ Support rate limiting. ✑ Balance requests between all instances. ✑ Ensure that users can access the app in the event of a regional outage. Solution: You use Azure Traffic Manager to provide access to the app. Does this meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   To achieve rate limiting along with load balancing and high availability, you should use Azure Front Door with the Web Application Firewall (WAF). Azure Front Door is a global, scalable entry-point that uses the Microsoft global edge network to create fast, secure, and widely scalable web applications. It provides load balancing and failover across multiple regions. By enabling the WAF on Azure Front Door, you can configure custom rate limiting rules to protect your web app from excessive traffic and potential attacks. So, using Azure Front Door with WAF will meet the requirements of supporting rate limiting, balancing requests between instances, and ensuring app accessibility during regional outages.

   Source: Adapted from community discussion — NotMeAnyWay

   References

   • Microsoft Learn

   Next question

4. Question 154 · 232 in bank

   Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution. After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen. You plan to deploy multiple instances of an Azure web app across several Azure regions. You need to design an access solution for the app. The solution must meet the following replication requirements: ✑ Support rate limiting. ✑ Balance requests between all instances. ✑ Ensure that users can access the app in the event of a regional outage. Solution: You use Azure Load Balancer to provide access to the app. Does this meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   Explanation is wrong. Azure Application Gateway and Azure Load Balancer load balance within a region (no support for regional outage). See Regional vs Global https://docs.microsoft.com/en-us/azure/architecture/guide/technology-choices/load-balancing-overview

   Source: Adapted from community discussion — GarryK

   References

   • Microsoft Learn

   Next question

5. Question 155 · 232 in bank

   Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution. After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen. You plan to deploy multiple instances of an Azure web app across several Azure regions. You need to design an access solution for the app. The solution must meet the following replication requirements: ✑ Support rate limiting. ✑ Balance requests between all instances. ✑ Ensure that users can access the app in the event of a regional outage. Solution: You use Azure Application Gateway to provide access to the app. Does this meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   No, this solution does not meet the goal. Azure Application Gateway is a Layer 7 load balancer that provides features like SSL termination, cookie-based session affinity, and URL-based routing. However, it operates within a single region and cannot distribute traffic across multiple regions. To meet the requirements of supporting rate limiting, balancing requests between instances across multiple regions, and ensuring app accessibility during regional outages, you should use Azure Front Door with Web Application Firewall (WAF). Azure Front Door is a global load balancer that can distribute traffic optimally to services across multiple regions, ensuring high availability in the event of a regional outage. By enabling WAF, you can configure custom rate limiting rules to control incoming traffic to your web app.

   Source: Adapted from community discussion — NotMeAnyWay

   Next question

6. Question 156 · 232 in bank

   You have an Azure subscription that contains a storage account. An application sometimes writes duplicate files to the storage account. You have a PowerShell script that identifies and deletes duplicate files in the storage account. Currently, the script is run manually after approval from the operations manager. You need to recommend a serverless solution that performs the following actions: ✑ Runs the script once an hour to identify whether duplicate files exist ✑ Sends an email notification to the operations manager requesting approval to delete the duplicate files ✑ Processes an email response from the operations manager specifying whether the deletion was approved ✑ Runs the script if the deletion was approved What should you include in the recommendation?

   • AAzure Logic Apps and Azure Event Grid
   • BAzure Logic Apps and Azure Functions
   • CAzure Pipelines and Azure Service Fabric
   • DAzure Functions and Azure Batch

   Show answer

   Answer: B

   Explanation

   B. Azure Logic Apps and Azure Functions Azure Logic Apps is a serverless solution that enables you to create and run workflows that integrate with various services and systems. You can use Azure Logic Apps to create a workflow that runs the PowerShell script once an hour using a time-based trigger, sends an email notification to the operations manager for approval, and processes the email response. Azure Functions is a serverless compute service that allows you to run event-driven code without having to manage infrastructure explicitly. You can use Azure Functions to host the PowerShell script, which can be triggered by the Logic App when the operations manager approves the deletion. Combining Azure Logic Apps and Azure Functions will provide the necessary components to meet the requirements of the scenario.

   Source: Adapted from community discussion — NotMeAnyWay

   References

   • Microsoft Learn

   Next question

7. Question 157 · 232 in bank

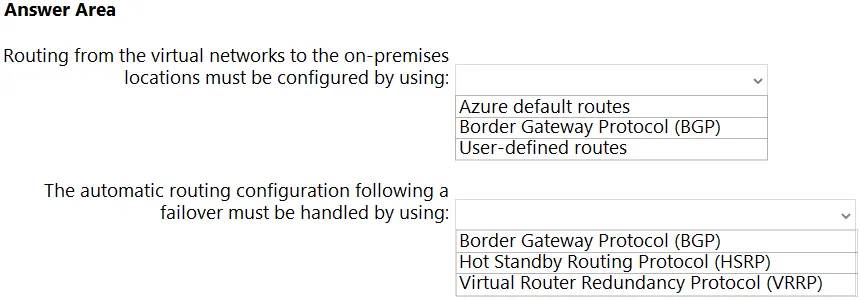

   HOTSPOT - Your company has two on-premises sites in New York and Los Angeles and Azure virtual networks in the East US Azure region and the West US Azure region. Each on-premises site has ExpressRoute Global Reach circuits to both regions. You need to recommend a solution that meets the following requirements: ✑ Outbound traffic to the internet from workloads hosted on the virtual networks must be routed through the closest available on-premises site. ✑ If an on-premises site fails, traffic from the workloads on the virtual networks to the internet must reroute automatically to the other site. What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

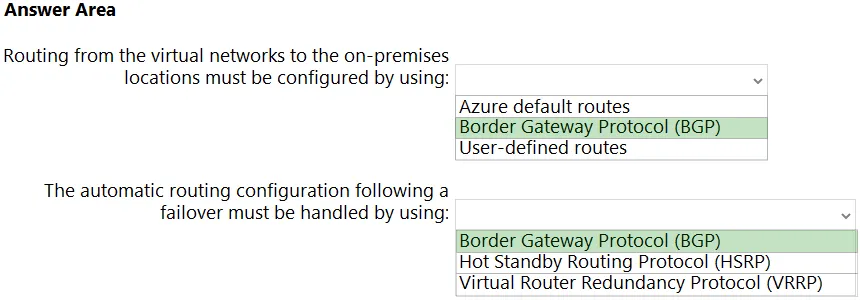

   Box 1: Border Gateway Protocol (BGP) An on-premises network gateway can exchange routes with an Azure virtual network gateway using the border gateway protocol (BGP). Using BGP with an Azure virtual network gateway is dependent on the type you selected when you created the gateway. If the type you selected were: ExpressRoute: You must use BGP to advertise on-premises routes to the Microsoft Edge router. You cannot create user-defined routes to force traffic to the ExpressRoute virtual network gateway if you deploy a virtual network gateway deployed as type: ExpressRoute. You can use user-defined routes for forcing traffic from the Express Route to, for example, a Network Virtual Appliance. Box 2: Border Gateway Protocol (BGP) Incorrect: Microsoft does not support HSRP or VRRP for high availability configurations. Reference: https://docs.microsoft.com/ja-jp/azure/expressroute/designing-for-disaster-recovery-with-expressroute-privatepeering https://docs.microsoft.com/en-us/azure/expressroute/expressroute-routing

   Source: Adapted from community discussion — GarryK

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn



   Next question

8. Question 158 · 232 in bank

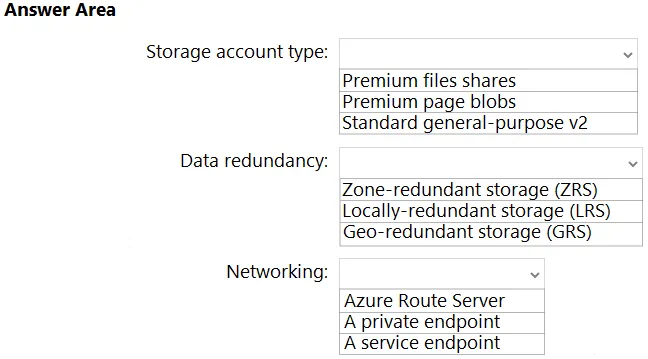

   HOTSPOT - You are designing an application that will use Azure Linux virtual machines to analyze video files. The files will be uploaded from corporate offices that connect to Azure by using ExpressRoute. You plan to provision an Azure Storage account to host the files. You need to ensure that the storage account meets the following requirements: ✑ Supports video files of up to 7 TB ✑ Provides the highest availability possible ✑ Ensures that storage is optimized for the large video files ✑ Ensures that files from the on-premises network are uploaded by using ExpressRoute How should you configure the storage account? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: Premium page blobs - The maximum size for a page blob is 8 TiB. Incorrect: Not Premium file shares: Max file size for Standard and Premium file shares are 4 TB. Box 2: Geo-redundant storage (GRS) GRS provides additional redundancy for data storage compared to LRS or ZRS. Box 3: A private endpoint - Azure Private Link allows you to securely link Azure PaaS services to your virtual network using private endpoints. For many services, you just set up an endpoint per resource. This means you can connect your on-premises or multi-cloud servers with Azure Arc and send all traffic over an Azure ExpressRoute or site-to-site VPN connection instead of using public networks. Reference: https://docs.microsoft.com/en-us/rest/api/storageservices/understanding-block-blobs--append-blobs--and-page-blobs https://docs.microsoft.com/en-us/azure/storage/files/storage-files-scale-targets https://docs.microsoft.com/en-us/azure/azure-arc/servers/private-link-security

   Source: Adapted from community discussion — ezfix

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn



   Next question

9. Question 159 · 232 in bank

   HOTSPOT - A company plans to implement an HTTP-based API to support a web app. The web app allows customers to check the status of their orders. The API must meet the following requirements: ✑ Implement Azure Functions. ✑ Provide public read-only operations. ✑ Prevent write operations. You need to recommend which HTTP methods and authorization level to configure. What should you recommend? To answer, configure the appropriate options in the dialog box in the answer area. NOTE: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: GET only - Get for read-only- Box 2: Anonymous - Anonymous for public operations.

   Source: Adapted from community discussion — Davin0406

   References

   • Microsoft Learn



   Next question

10. Question 160 · 232 in bank

    You have an Azure subscription. You need to recommend a solution to provide developers with the ability to provision Azure virtual machines. The solution must meet the following requirements: ✑ Only allow the creation of the virtual machines in specific regions. ✑ Only allow the creation of specific sizes of virtual machines. What should you include in the recommendation?

    • AAzure Resource Manager (ARM) templates
    • BAzure Policy
    • CConditional Access policies
    • Drole-based access control (RBAC)

    Show answer

    Answer: B

    Explanation

    Correct https://docs.microsoft.com/en-us/azure/governance/policy/samples/built-in-policies Allowed virtual machine size SKUs This policy enables you to specify a set of virtual machine size SKUs that your organization can deploy. Allowed locations This policy enables you to restrict the locations your organization can specify when deploying resources. Use to enforce your geo-compliance requirements. Excludes resource groups, Microsoft.AzureActiveDirectory/b2cDirectories, and resources that use the 'global' region.

    Source: Adapted from community discussion — GarryK

    References

    • Microsoft Learn

    Next question
