Question 81 · 339 in bank
HOTSPOT - You have the network topology shown in the Topology exhibit. (Click the Topology tab.)

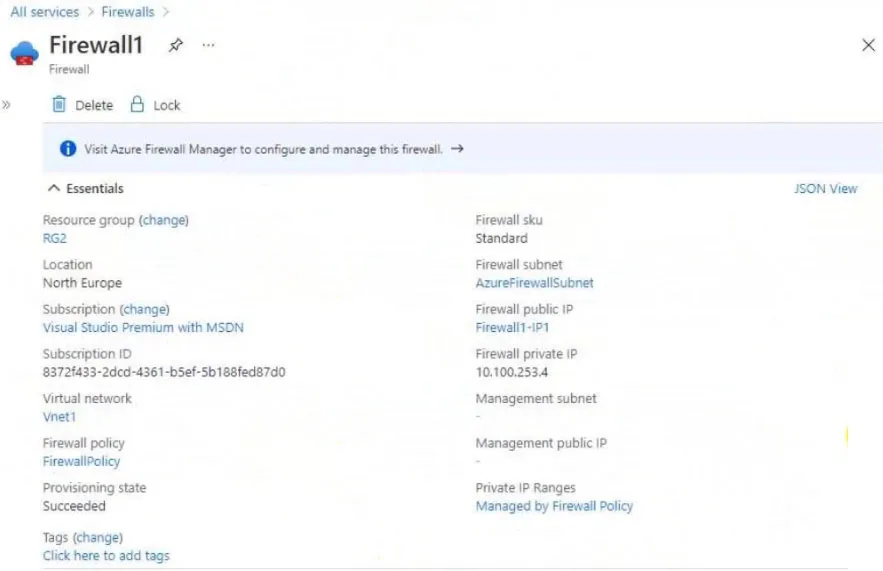

You have the Azure firewall shown in the Firewall1 exhibit. (Click the Firewall1 tab.)

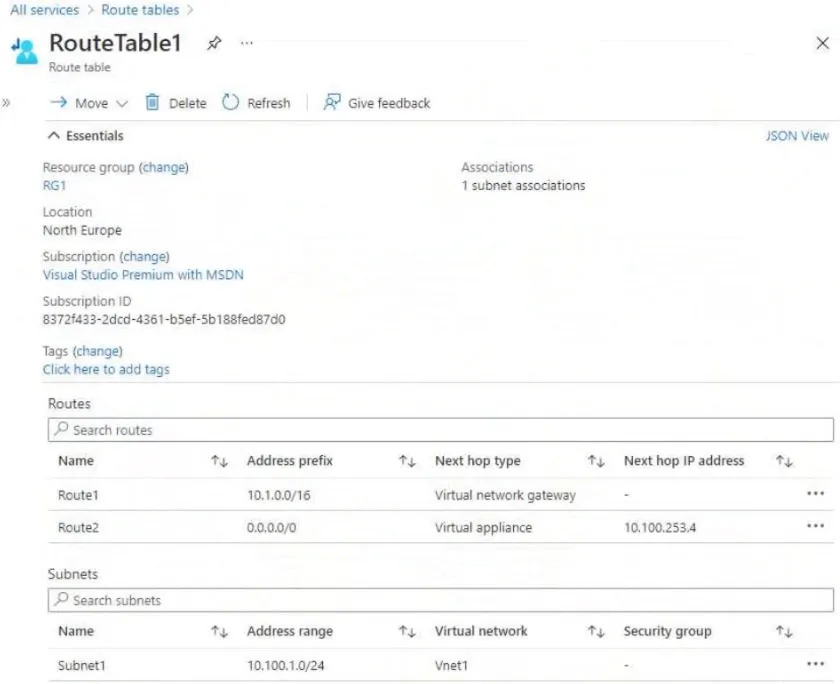

You have the route table shown in the RouteTable1 exhibit. (Click the RouteTable1 tab.)
For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point. Hot Area:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Box 1: Yes - Resources in Subnet1 will use the Route2 and its Next hop ID address to the Firewall to reach the Internet. Box 2: Yes - Yes, with network network peering. Box 3: No - Resources in Subnet2 can only reach resources in Subnet1, as gateway transit for virtual network peering has not been configured. Reference: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-udr-overview https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit
Source: Adapted from community discussion — Sheriboy
