JN0-351 practice questions 71–80

1. Question 71 · 105 in bank



   When trying to commit the configuration shown in the exhibit, you receive an error. What is the problem?

   • AYou have not set the interface family correctly.
   • BYou have omitted the interface-mode access command.
   • CYou have omitted the interface-mode trunk command.
   • DYou have not configured an IP address to the interface.

   Show answer

   Answer: C

   Next question

2. Question 72 · 105 in bank

   Select 3

   Which three actions are required for filter-based forwarding? (Choose three.)

   • ACreate routing policies for source addresses.
   • BCreate routing instances for individual destinations.
   • CCreate a firewall filter to match desired traffic.
   • DCreate a forwarding option for load balancing.
   • ECreate a RIB group for next-hop entries.

   Show answer

   Answer: ACE

   Next question

3. Question 73 · 105 in bank

   Select 2



   Which two statements about the firewall filter terms shown in the exhibit are true? (Choose two.)

   • ATraffic that matches the from statement in term one is discarded.
   • BAll traffic not matching the from statement in term one is accepted by term two.
   • CTraffic that matches the from statement in term one is accepted.
   • DTraffic matching the from statement in term two is logged.

   Show answer

   Answer: BC

   Next question

4. Question 74 · 105 in bank

   You are deploying an EX Series switch with a Wi-Fi access point. The access point needs all untagged traffic to use a specific VLAN. In this scenario, which feature should you enable on the switch port?

   • Aflexible VLAN tagging
   • Bvoice VLAN
   • CVLAN tagging
   • Dnative VLAN

   Show answer

   Answer: D

   Next question

5. Question 75 · 105 in bank

   You are asked to explore adding BGP route reflectors to allow for increased scale in your core network. Which statement is correct in this scenario?

   • AThe cluster ID is required to prevent routing loops.
   • BRoute reflectors are required whenever internal BGP (IBGP) sessions are needed.
   • CThe cluster ID is not required to use route reflectors.
   • DRoute reflectors require that the network is connected in a physical full mesh.

   Show answer

   Answer: A

   Next question

6. Question 76 · 105 in bank

   Select 2

   Which two statements about BGP facilitate the prevention of routing loops within an autonomous system? (Choose two.)

   • ARoutes learned from IBGP neighbors are only advertised to other IBGP neighbors.
   • BRoutes learned from IBGP neighbors are not readvertised to other IBGP neighbors.
   • CIBGP sessions must be configured as a logical full mesh.
   • DIBGP sessions must be configured as a physical full mesh.

   Show answer

   Answer: BC

   Next question

7. Question 77 · 105 in bank

   Your network has two ISPs available. You want to ensure that all outbound traffic is routed out ISP-1. If the connection to ISP-1 fails, all outbound traffic is routed to the backup ISP, ISP-2. In this scenario, how should you configure BGP on your network?

   • ASet the local-preference attribute to a higher value for ISP-1 than ISP-2.
   • BSet the local-preference attribute to a higher value for ISP-2 than ISP-1.
   • CConfigure the gateway for ISP-1 with a higher origin code than the gateway for ISP-2.
   • DConfigure the gateway for ISP-1 with a higher peer ID than the gateway for ISP-2.

   Show answer

   Answer: A

   Next question

8. Question 78 · 105 in bank

   Select 3

   Which three statements are correct about OSPF packet types? (Choose three.)

   • ALink-state request packets are sent after receiving an LSA header not in the OSPF database.
   • BLink-state acknowledgment packets are sent every 30 seconds.
   • CHello packets are sent every 30 seconds by default.
   • DLink-state update packets contain one or more LSAs.
   • EDatabase description packets are used during the adjacency formation process.

   Show answer

   Answer: ADE

   Next question

9. Question 79 · 105 in bank

   In a LAN segment, which tie-breaker would spanning tree consider if equal-cost paths exist between two or more switches to the root bridge?

   • Aport ID
   • Bbridge ID
   • Cport priority
   • Dinterface number

   Show answer

   Answer: B

   Next question

10. Question 80 · 105 in bank

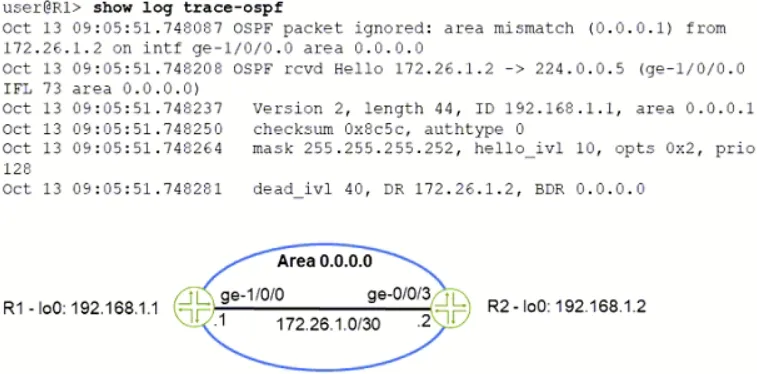

    You have two OSPF routers that will not form an adjacency. You enter the show log trace-ospf command. Referring to the exhibit, which statement is correct?

    • AThere is a mismatched subnet.
    • BThe wrong OSPF area has been configured.
    • CThe physical connection has been disconnected.
    • DYou are stuck in the ExStart state.

    Show answer

    Answer: B

    Next question
